Cellular Routers
LTE
LR77 V2 Libratum
PRODUCT FEATURES
•
•
•
•
•
•
•
2-port Ethernet switch
2 independent LAN
Models with Wi-Fi option: AP or client mode
Dual-SIM fail over
Antenna Rx Diversity
Operating temperature up to +75°C
Metal or plastic casing
Balanced LR77v2 Libratum a LTE non-modular wireless router
features high speed data rates 100 Mbps, two Ethernet 10/100 ports
and dual-SIM failover capability for mission critical applications.
This router is particularly suited to the demands of the “Transaction
Management” industry such as point-of-sale terminals, remote ATMs
and vending terminals as well as a huge variety of intelligent remote
monitoring and control applications in the Transport, Energy and
Security sectors.
Key Features
This exceptionally fast LTE LR77v2 Libratum wireless router is
equipped with two Ethernet 10/100 ports and two SIM cards for
backup communication in mobile operator networks and provide
failover to each other. WiFi models are available.
Configuration is done via a web interface protected by password. The
4G LTE router supports creation of VPN tunnels using IPsec, OpenVPN
and L2TP to assure safe communication.
Web interface provides detail statistics about router activity, signal
strength, detailed log, etc. Cellular router supports functions: DHCP,
NAT, NAT-T, DynDNS, NTP, VRRP, control by SMS and many other
functions.
Other diagnostic functions for continuous communication include
automatic inspection of PPP connection offering an automatic restart
feature - in case of connection losses, or hardware watchdog which
monitors the status of the router. With the help of a start up script
window you may insert Linux scripts for various actions.
For some applications the key option is to create several different
configurations for one LTE wireless router, the so-called profiles
(maximum of 4), and the option to switch among them (for example
via SMS) is essential. Cellular wireless routers may automatically
upgrade configuration and firmware from server. This allows mass
reconfiguration of many routers in one time.
ORDERING INFORMATION
Note: Check with your local distributor for availability and options. Contact
Advantech B+B SmartWorx distributors.
BB
-
LR 2 L710 XXX
Accessories
0
1 (set)
2 (set)
3 (set)
4 (set)
Enclosure
1
2
WiFi
0
7
No Accessories (DIN holder included)
Accessories with EU power supply
Accessories with UK power supply
Accessories with Australia power supply
Accessories with US power supply
Plastic enclosure
Metal enclosure
No WiFi
WiFi
SELECTED APPLICATIONS
Transportation and security
IT and communication
Self-service terminals
Energy and power industry
Meteorology, alarm and warning systems
www.advantech-bb.com
/
Enabling an Intelligent Planet
All product specifications are subject to change without notice.
DS_LR77v2_Libratum_December 12, 2017 10:44 AM
Cellular Routers
LTE
LR77 V2 Libratum
SPECIFICATIONS
INTERFACES
2× Ethernet
2× SIM
10/100 Mbits, independent or bridged
2 mini SIMs (2FF)
PARAMETERS - LTE MODULE
LTE
Bit rate 100 Mbps (download) / 50 Mbps (upload)
3GPP rel. 8 standard
Supported bandwidths: 5 MHz, 10 MHz, 20 MHz
Supported frequencies: 800 / 900 / 1800 / 2100 / 2600 MHz
Bit rate 42 Mbps (DL) / 5,76 Mbps (UL)
3GPP rel. 7 standard
UE CAT. 1 to 6, 8, 10, 12, 14
3GPP data compression
Supported frequencies: 900 / 1800 / 2100 MHz
PS bit rate 384 kbps (DL) / 384 kbps (UL)
CS bit rate 64 kbps (DL) / 64 kbps (UL)
W-CDMA FDD standard
Supported frequencies: 900 / 1800 / 2100 MHz
Bit rate 237 kbps (DL) / 59,2 kbps (UL)
GPRS multislot class 10, CS 1 to 4
EDGE multislot class 12, CS 1 to 4,
MCS 1 to 9
Supported frequencies: 900 / 1800 MHz
EGSM 900: Class 4 (33 dBm)
GSM 1800/1900: Class 1 (30 dBm)
EDGE 900: Class E2 (27 dBm)
EDGE 1800/1900: Class E2 (26 dBm)
ANTENNA
2(3)× SMA connector, 50 Ohm
HSPA+
32b ARM microprocessor, 0.25 DMIPS per MHz
16 MB DDR SDRAM
64 MB
128 kB
GPRS/EDGE
UMTS
CPU & MEMORY
CPU
Flash memory
RAM
M-RAM
POWER
Source
Consumption
9 - 36 VDC
2.3W reception
3.5W (GPRS transmission)
5.5W (LTE transmission)
51 x 87 x 116 mm (DIN 35 mm
42 x 87 x 113 mm (DIN 35 mm)
IP30
150g
280 g
-40° to +75°C
-40° to +85°C
0 to 95%, non-condensing
MECHANICAL
Dimensions Plastic box
Dimensions Metallic box
Protection
Weight Plastic box
Weight Metallic box
GPRS/EDGE -
Supported Power
Classes
SOFTWARE FEATURES
Linux based, possibility to program your own application
NTP client, NTP Server – time synchronization
SMS communication – AT commands on RS232, Ethernet and I/O
M-RAM memory inside – router statistic´s saving into memory
NETWORKING
DHCP – automatic IP addressing in LAN network
NAT/PAT – IP address and ports translation between inside/outside network
VRRP – virtual backup router function
DynDNS client – access to the router with a dynamic IP address
Dial-in – the ability to communicate over dial CSD call
PPPoE Bridge – PPP frames encapsulation inside ETH frames
VPN TUNNELING
IPsec, OpenVPN, L2TP – secure encrypted tunnels
CONFIGURATION AND DIAGNOSTIC
HTTP server – configuration via web server
Telnet – configuration and access to the file system
SNMP – router diagnostics, communication with I/O and M-Bus
GPRS state signalization by LED
On-line info on GSM signal status (level, cell, neighbors)
SMS info – power on, GPRS connection or disconnection
SMS control – on/off GPRS connection, switch SIM, I/O etc.
Transferred data counting, one more APN as backup
Remote router group configuration change, switching among configuration profiles
SSH – encrypted configuration and access to the file system
ENVIRONMENTAL
Operating Temperature
Storage Temperature
Humidity
WIFI
*optional
Antenna connector
Supported WiFi band
Standards
2.4 GHz supported channels
RX Sensitivity
R-SMA – 50 Ohms
2.4 GHz
802.11b, 802.11g, 802.11n
1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
11b, 11 Mbps: typ. -85 dBm
11g, 54 Mbps: typ. -70 dBm
(HT20) 11n, MSC7: typ. -66 dBm
(HT40) 11n, MSC7: typ. -62 dBm
11b, 11 Mbps: min. 18, typ. 19, max. 20 dBm
11g, 54 Mbps: min. 14.5, typ. 16, max. 17.5 dBm
802.11n (HT20): min. 13.5, typ. 15, max. 16.5 dBm
802.11n (HT40): min. 13.5, typ. 15, max. 16.5 dBm
Access point, station
TX Output Power
Type of device
STANDARDS/REGULATIONS
Telecom/Emission
ETSI EN 301 511 V12.5.1 (2017-03), ETSI EN 300 440 V2.1.1
(2017-03), ETSI EN 301 908-1 V11.1.1 (2016-07), ETSI EN 301
908-2 V11.1.1 (2016-07), ETSI EN 301 908-13 V11.1.1 (2016-
07), ETSI EN 300 328 V2.1.1 (2016-11)
ETSI EN 301 489-1 V2.1.1 (2016-11), Draft ETSI EN 301 489-19
V2.1.0 (2017-03), Draft ETSI EN 301 489-52 V1.1.0 (2016-11),
ETSI EN 301 489-17 V3.1.1 (2017-02)
EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
+ AC:2011, EN 62311:2008
E-Mark homologation number: 10R – 04 7950
EMC
Safety:
E-Mark – EMC for
devices
in transportation
orders@advantech-bb.com
support@advantech-bb.com
Corporate Headquarters:
707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office:
Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
Cellular Routers
LTE
LR77 V2 Libratum

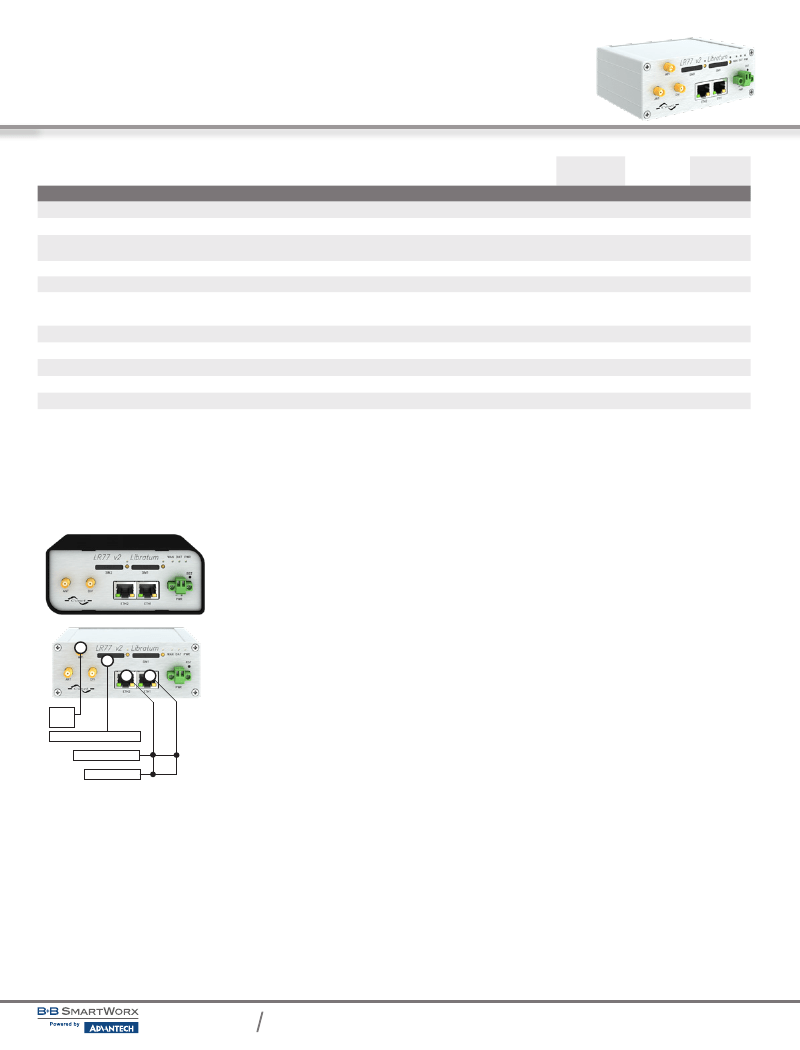

ACCESSORIES
ORDER CODE
BB-SBD40
BB-CPD2-B
BB-GA.110.101111
BB-TG.10.0113
BB-AO-ABASE-C16
BB-AW-A24G-M5SRP
BB-CON-WR2
BB-RPS-v2-WR2-EU
BB-RPS-v2-WR2-US
BB-RPS-v2-WR2-UK
BB-RPS-v2-WR2-AUS
BB-KD-ETH
Quick Start Guide
INCLUDED IN
PACKAGE
a
a
INCLUDED IN
SET PACKAGE
SOLD
SEPARATELY
a
a
a
DESCRIPTION
Metal DIN holder for Metal versions of routers v2
Plastic DIN holder for Plastic versions of routers v2
Magnet mount antenna LTE 698MHz to 960MHz, 1575.42MHz, 1710MHz to 2700MHz, 3500MHz, 1M RG174 Cable,
SMA(M) Connector Typical 40% Efficiency and 3dBi Peak Gain
Antenna LTE/UMTS/GSM, Terminal, SMA-M
Magnetic mount base for terminal antenna, 3m cable, SMA connector
Antenna WiFi stick 5dB, SMA-RP connector
2-pin Terminal block for Power Supply
Power supply with WR connector (2 pins) - 12V/1A - EU plug
Power supply with WR connector (2 pins) - 12V/1A - US plug
Power supply with WR connector (2 pins) - 12V/1A - UK plug
Power supply with WR connector (2 pins) - 12V/1A - AUS plug
Ethernet cross cable 1.5m
2×
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
2× SIM card holder
2× LAN port, Wi-Fi optional
LR77 v2 LIBRATUM
*optional
Wi-Fi
Back up of primary SIM
Ethernet 10/100
2 port switch
orders@advantech-bb.com
support@advantech-bb.com
Corporate Headquarters:
707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office:
Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
