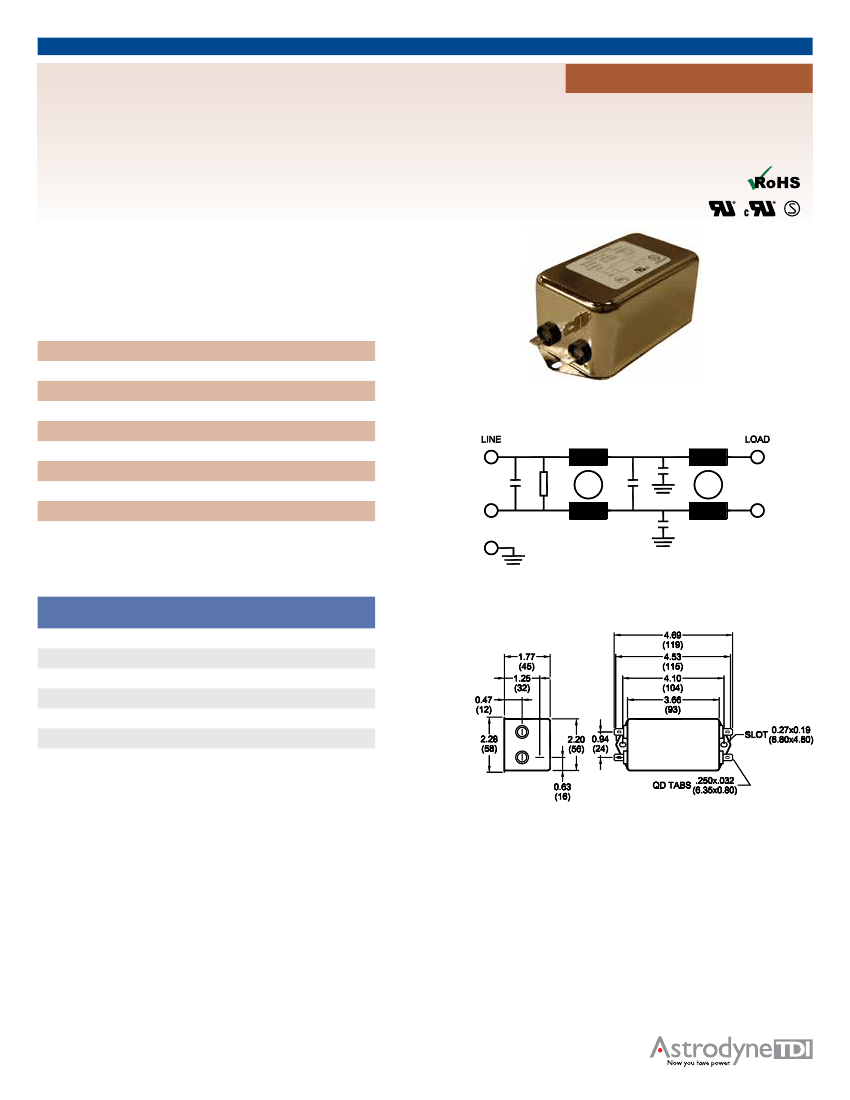

RP220 Series
6 A to 20 A Chassis Mount Filter
Specifications
Operating Frequency
Usable Frequency
Max. Operating Voltage*
Ambient Temperature
Climatic Category
Hipot Rating (L-G)
Terminals (-T)
Safety Approvals
Typ. Weight, lbs (kg)
50/60 Hz
DC - 400 Hz
250 V +10%
-25 to 40°C
25/100/21
2700 VDC
QD: 0.25 Tabs
cURus, EN60939
0.8 (0.4)
SINGLE PHASE FILTERS
High Performance Dual Stage Power Line Filters
Electrical Schematic
*Available up to 300 VAC. Please contact us to verify specifications.
Part Number/Ordering
RP220
-X
(Amps)
6
10
12
16
20
-Y
(Ycap, nF)
0
0.47
1
2.2
4.7
10
Note:
Use any combination of -Y with any -X (Amps) rating
e.g. RP220-10-10-QD (10 Amps with 10 nF Ycap)
Mechanical Dimensions
-T
QD
TYPICAL TOLERANCE: +/-0.02” (0.50 mm)
Specifications are subject to change. Consult factory to verify specifications.
For more information on our filter products call us at: (800) 527-4362 or (714) 289-0055
LCR, Radius Power, and Filter Concepts are now part of Astrodyne TDI
www.AstrodyneTDI.com
RP220 Series
6 A to 20 A Chassis Mount Filter
Typical Insertion Loss, dB (50/50 Ohm)
Freq (MHz)
6 Amp
CM(dB)
DM(dB)
10 Amp
CM(dB)
DM(dB)
12 Amp
CM(dB)
DM(dB)
16 Amp
CM(dB)
DM(dB)
20 Amp
CM(dB)
DM(dB)
40
34
65
58
70
60
52
65
40
60
42
36
65
60
70
65
55
65
50
60
56
45
70
60
70
68
50
60
50
60
55
45
70
60
70
60
50
70
50
65
60
50
70
60
70
68
52
60
50
60
0.15
0.5
1.0
10
30
SINGLE PHASE FILTERS
High Performance Dual Stage Power Line Filters
Leakage Current
Y-cap, nF
0
0.47
1
2.2
4.7
10
mA,
120 V/60 Hz
0.0
0.04
0.09
0.2
0.4
0.9
mA,
250 V/60 Hz
0.0
0.08
0.18
0.4
0.8
1.8
Specifications are subject to change. Consult factory to verify specifications.
For more information on our filter products call us at: (800) 527-4362 or (714) 289-0055
LCR, Radius Power, and Filter Concepts are now part of Astrodyne TDI
www.AstrodyneTDI.com
