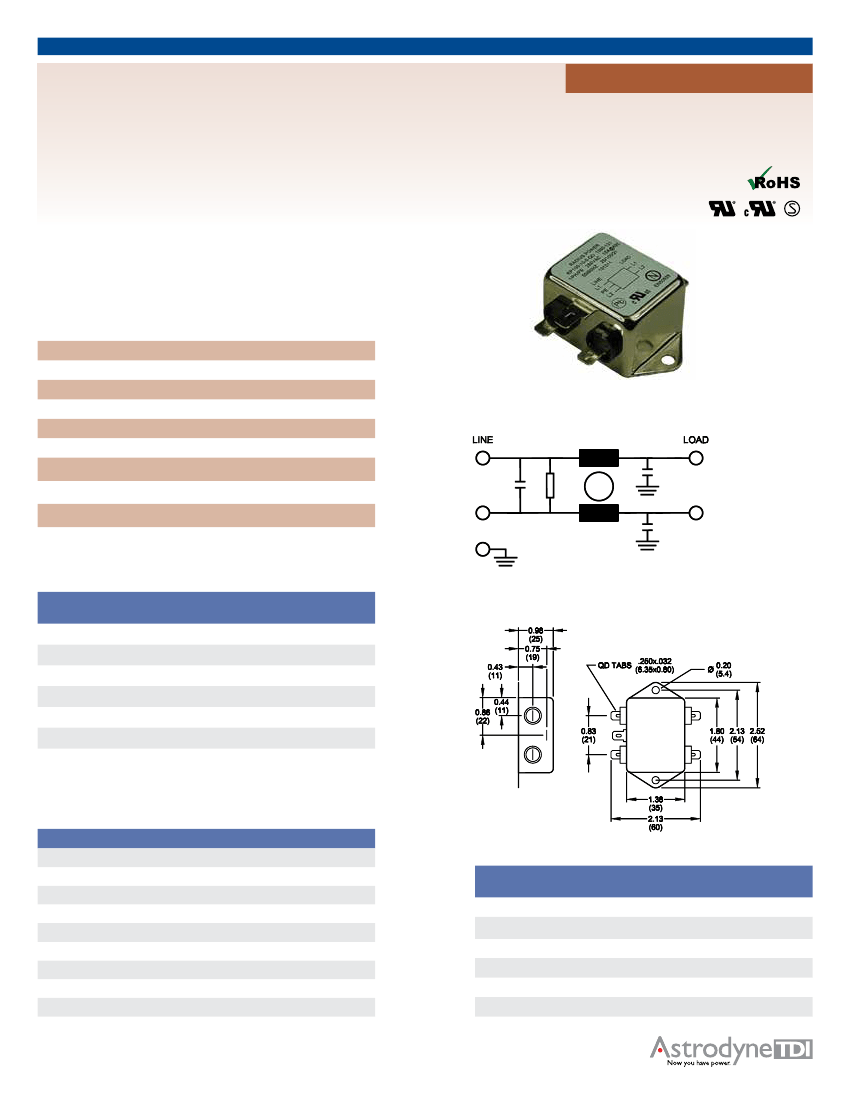

RP100 Series
3 A to 10 A Chassis Mount Filter
Specifications
Operating Frequency
Usable Frequency
Max. Operating Voltage*
Ambient Temperature
Climatic Category
Hipot Rating (L-G)
Terminals (-T)
Safety Approvals
Typ. Weight, lbs (kg)
50/60 Hz
DC - 400 Hz
250 V +10%
-25 to 40°C
25/100/21
2700 VDC
QD: 0.25 Tabs
cURus, EN60939
0.3 (0.1)
SINGLE PHASE FILTERS
Compact Single Stage Power Line Filters
*Available up to 300 VAC. Please contact us to verify specifications.
Part Number/Ordering
RP100
-X
(Amps)
3
6
10
-Y
(Ycap, nF)
0
0.47
1
2.2
4.7
10
Note:
Use any combination of -Y with any -X (Amps) rating
e.g. RP100-6-2.2-QD (6 Amps with 2.2 nF Ycap)
Mechanical Dimensions
-T
QD
TYPICAL TOLERANCE: +/-0.02” (0.50 mm)
Typical Insertion Loss, dB (50/50 Ohm)
Freq (MHz)
3 Amp
CM(dB)
DM(dB)
6 Amp
CM(dB)
DM(dB)
10 Amp
CM(dB)
DM(dB)
20
15
30
22
34
28
42
60
32
60
30
15
40
22
45
28
45
60
32
60
38
15
42
24
45
34
45
60
36
60
0.15
0.5
1.0
10
30
Leakage Current
Y-cap, nF
0
0.47
1
2.2
4.7
10
mA,
120 V/60 Hz
0.0
0.04
0.09
0.2
0.4
0.9
mA,
250 V/60 Hz
0.0
0.08
0.18
0.4
0.8
1.8
Specifications are subject to change. Consult factory to verify specifications.
For more information on our filter products call us at: (800) 527-4362 or (714) 289-0055
