P6101PR-AC-RS-US-EU datasheet, PDF

Datasheet> All Categories > Embedded solution> Display module> P6101PR-AC-RS-US-EU

P6101PR-AC-RS-US-EU: Description显示模块 10.4" XGA 350nits TFT LCD Monitor With Resistive Touch Screen (RS232 interface) *Accessories optional (Input: VGA DVI & HDMI Supports Panel Mount ); CategoryEmbedded solution Display module; File Size284KB，3 Pages; ManufacturerAxiomtek; Websitehttp://www.axiomtek.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

P6101PR-AC-RS-US-EU Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	P6101PR-AC-RS-US-EU	-	-	View	Buy Now

P6101PR-AC-RS-US-EU Overview

显示模块 10.4" XGA 350nits TFT LCD Monitor With Resistive Touch Screen (RS232 interface) *Accessories optional (Input: VGA DVI & HDMI Supports Panel Mount )

P6101PR-AC-RS-US-EU Parametric

Parameter Name	Attribute value
Maker	Axiomtek
Product Category	display module
series	P6101
product	LCD Displays
type	Resistive
Display resolution—pixels	1024 x 768
diagonal	10.4 in
Backlight type	LED
Interface Type	Serial
Minimum operating temperature	0 C
Maximum operating temperature	+ 50 C
size	277.5 mm x 48 mm x 223.55 mm
Factory packaging quantity	1

Preview

Download Datasheet

View All

P6101

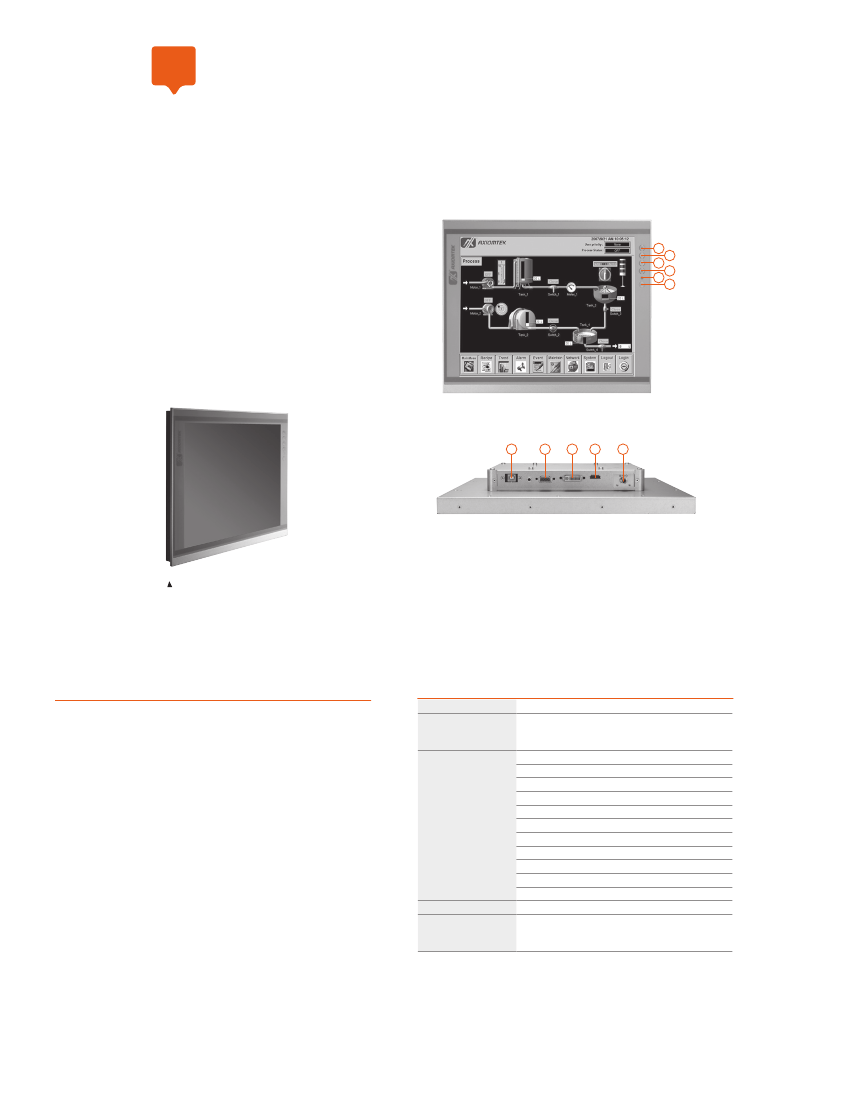

Features

NEW

10.4" XGA TFT Industrial LCD Monitor

●

10.4" XGA TFT LED backlight LCD

●

NEMA 4/12 (IP65)- compliant flat panel monitor

●

Supports panel mount, wall mount, rack mount and VESA

arm

●

Resistive touchscreen

●

Full range screw-type (locked) AC-in or 12V/24V DC-in (option)

●

DVI-D, VGA and HDMI with multi-signal inputs

1. Menu

2. SEL+

3. SEL-

4. Exit

5. Power LED

6. Power switch

1. T/S port

2. VGA

3. DVI-D

Ultra-slim mechanism design

4. HDMI

5. Power

Introduction

The P6101 is an ultra slim industrial LCD monitor, which adopts 10.4-inch 350 nits XGA

LED backlight LCD display and supports multi-signal interfaces including DVI, VGA

and HDMI. Featuring NEMA 4/12 & IP65 compliant front bezel, screw-type adaptor

plug design, and 12/24V DC-in means it is fit for all kinds of industrial environments.

Moreover, the P6101 supports panel mount, wall mount or VESA FPMPMI (Video

Electronics Standards Association Flat Panel Monitor Physical Mounting Interface)

mounting. With the compact mechanism design, users can enjoy free from space

constraint. It is especially suitable for POI/POS, excellent HMI and all kinds of heavy-duty

industrial fields.

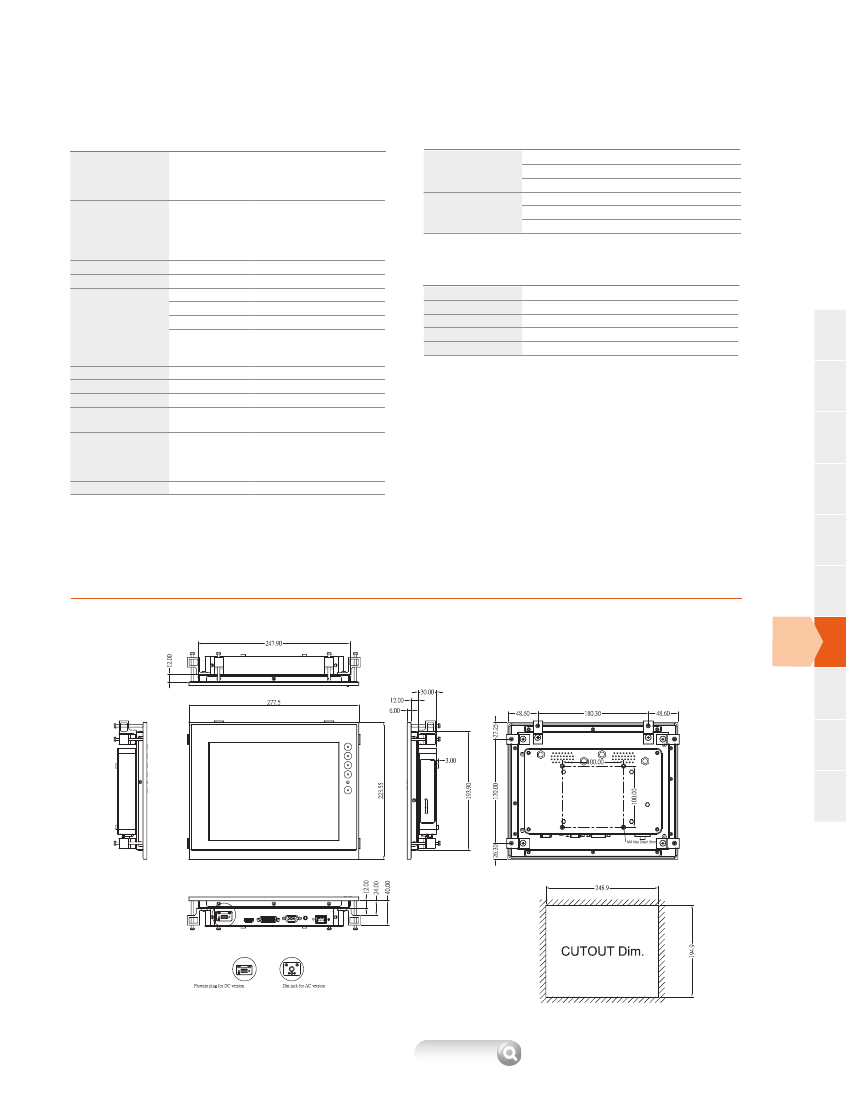

Specifications

Front Bezel

Mounting

NEMA 4/12 (IP65)-compliant, metal front bezel

Panel mount, wall mount, rack mount or VESA arm

FPMPMI mounting (video electronics standards association

flat panel monitor physical mounting interface)

Display

10.4" XGA TFT LCD

Max. Resolution

1024 x 768

Max. Colors

16.7 M

Active Area (mm)

211.2 x 158.4

Pixel Pitch (mm)

0.2063 x 0.2063

Response Time

16ms

Backlight

LED backlight

Backlight MTBF

30,000 hrs

Viewing Angle (H/V) 150°/150°

Contrast Ratio

900 (TYP.)

350 nits

Brightness (cd/m )

OSD (on screen display)

VGA 640 x 350 (70Hz), VGA 640 x 480 (60/72/75Hz),

VGA 720 x 400 (70Hz), SVGA 800 x 600 (60/72/75Hz),

XGA 1024 x 768 (60/72/75Hz)

LCD Panel

Display Control

Display Mode

677

Updated Feb. 13, 2018.

* All specifications and photos are subject to change without notice.
