3M
™

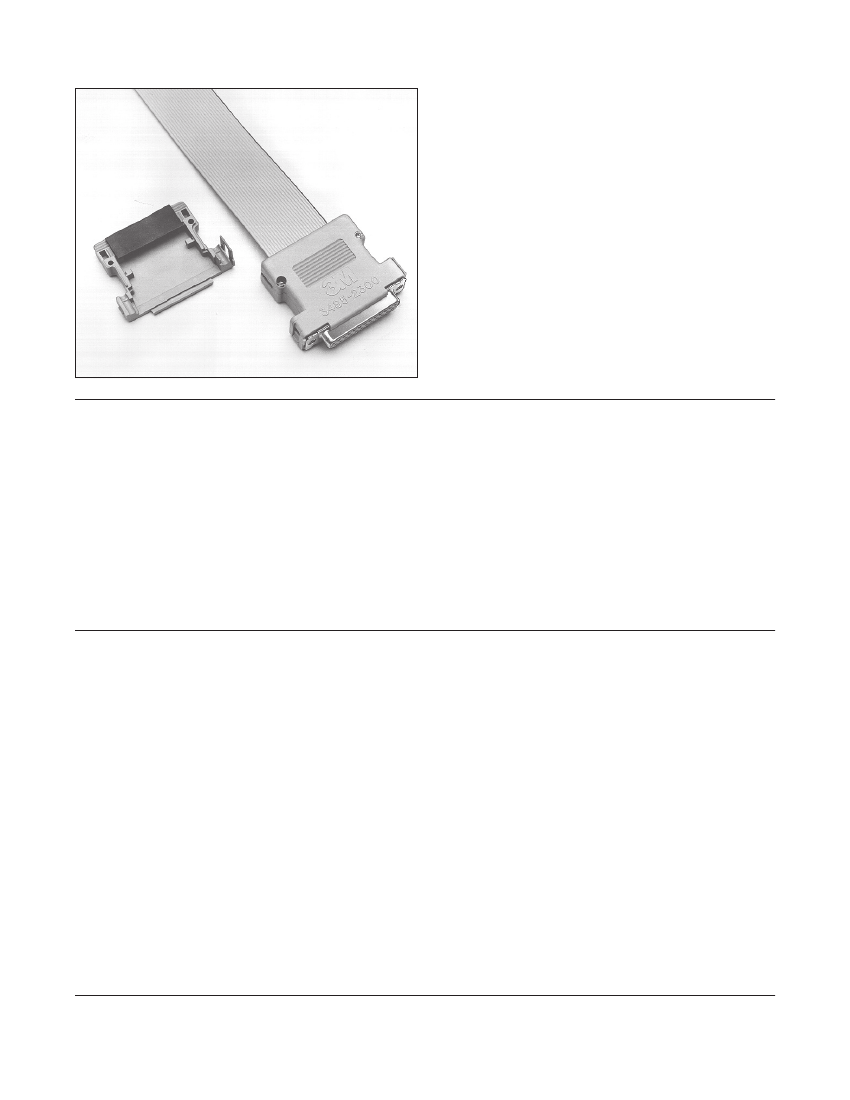

D Sub Junction Shell
Plastic
•
•
•
•
Uses standard hardware
Light weight, compact size
Full family of sizes
See the Regulatory Information Appendix (RIA) in
the “RoHS compliance” section of
www.3M.com/Interconnect for compliance
information (RIA E1 & C1 apply)
Date Modified: August 11, 2009
TS-0037-B
Sheet 1 of 2
Physical
Shell:
Material: Glass Filled Polyester (PBT)
Flammability: UL 94V-0
Color: Gray
Insert:
Brass
Tape:
3M +130C Rubber Tape (3485-2X00F Only)
Screw:
(2) 2-56 × .50 Roundhead Steel Zinc
Mounting Hardware:
See Specification Sheet TS-0142
Environmental
Temperature Rating:
-55°C to +105°C
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
D Sub Junction Shell
Plastic
Round Cable Application
#2-56 X 0.15 [3.8] Threaded Insert (2)
Flat Cable Application
#2-56 X 0.15 [3.8] Threaded Insert (2)
1.57
[ 39.9 ]
1.57
[ 39.9 ]
A
B
.66 Ref
[ 16.8 ]
A
B
.66 Ref
[ 16.8 ]
C
Table 1
Used On 3M
Connector
8209, 8309
8215, 8315
8225, 8325
8237, 8337
Dimensions
A Ref
1.30
[ 33.0 ]
1.63
[ 41.4 ]
2.17
[ 55.1 ]
2.82
[ 71.6 ]
B Ref
0.98
[ 24.9 ]
1.31
[ 33.3 ]
1.85
[ 47.0 ]
2.50
[ 63.5 ]
C Ref
0.27
[ 6.86 ]
0.28
[ 7.11 ]
0.34
[ 8.64 ]
0.38
[ 9.65 ]
Inch
[mm]
Tolerance Unless Noted
.0
Notes:
Use only with thru hole style flange on connector.
Inserts will interfere with shell housing.
Uses Jack Socket 3341-4 and Jack Screw 3342-2. See TS-0142.
.00
± .01
.000
± .005
inch
± .1
[ ] Dimension for Reference Only
Ordering Information
3485-2X00X
Contact Quantity:
1 = 9 Position
2 = 15 Position
3 = 25 Position
4 = 37 Position
Cable Type:
F = Flat Cable
R = Round Cable
TS-0037-B
Sheet 2 of 2
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
