cPCI-6940DX/D1559/M16-0 datasheet, PDF

Datasheet> All Categories > Embedded solution> To calculate> Single board computer> cPCI-6940DX/D1559/M16-0

cPCI-6940DX/D1559/M16-0: DescriptionSingle board computer 8HP 6U CompactPCI blade with Intel Xeon D-1559 processor 1.5GHz, AMD E8860 GPU and 16GB DDR4-2133 ECC soldered memory with DP, VGA,2x GbE, COM, 2x USB 3.0, 2x 10G SFP+, audio, XMC slot; CategoryEmbedded solution To calculate Single board computer; File Size1MB，6 Pages; ManufacturerADLINK; Websitehttps://www.adlinktech.com/en/AboutUs.aspx; Environmental Compliance

Download Datasheet Parametric Compare View All

cPCI-6940DX/D1559/M16-0 Overview

Single board computer 8HP 6U CompactPCI blade with Intel Xeon D-1559 processor 1.5GHz, AMD E8860 GPU and 16GB DDR4-2133 ECC soldered memory with DP, VGA,2x GbE, COM, 2x USB 3.0, 2x 10G SFP+, audio, XMC slot

cPCI-6940DX/D1559/M16-0 Parametric

Parameter Name	Attribute value
Maker	ADLINK
Product Category	single board computer
series	cPCI-6940
physical dimension	6U 4/8HP
Processor brand	Intel
Processor type	Intel Xeon
frequency	1.5 GHz
storage	16 GB
Working power voltage	3.3 V, 5 V
Interface Type	Serial
Minimum operating temperature	- 40 C
Maximum operating temperature	+ 85 C
size	233.33 mm x 160 mm
storage type	DDR4-2133
Power consumption	45 W
core	Intel Xeon
Processor series	D-1559
Factory packaging quantity	1

Preview

Download Datasheet

View All

cPCI-6940

6U CompactPCI Intel

Xeon

Processor D-1500 Processor Blade

with AMD Radeon™ E8860 GPU

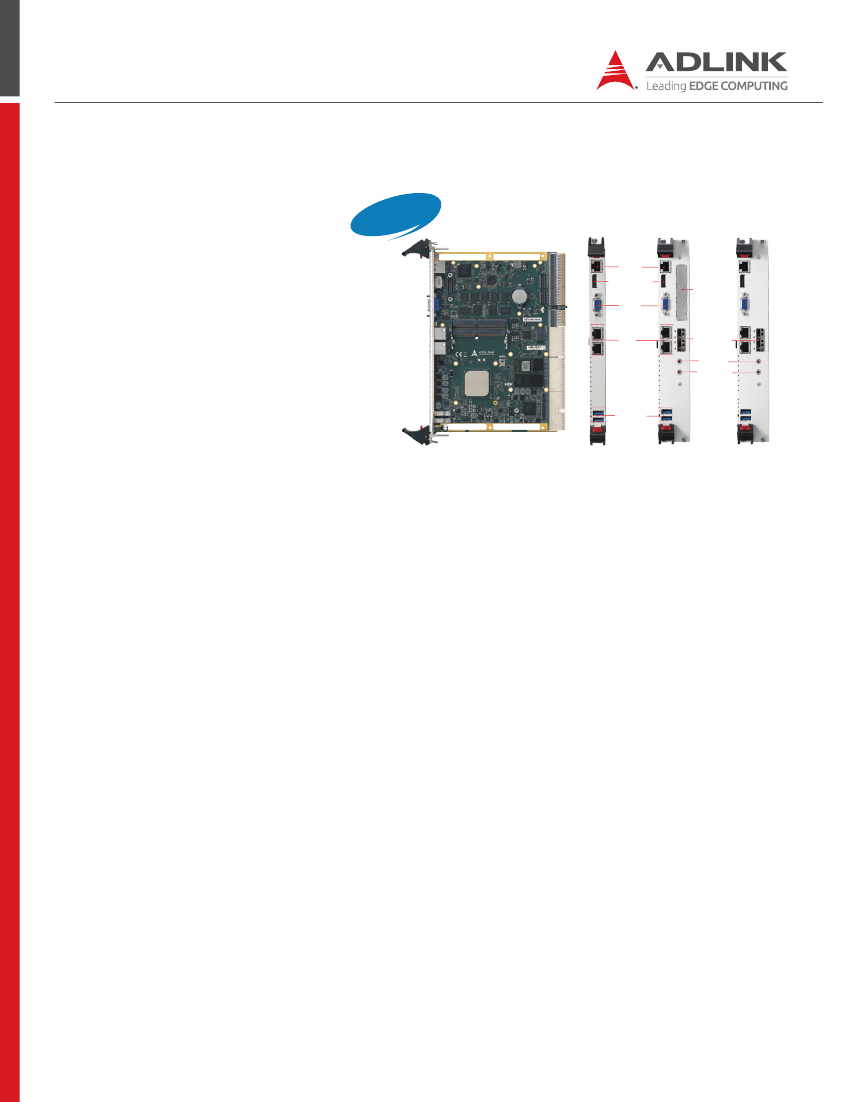

Features

●

New

14nm multi-core Intel

Xeon

D-1500 family processor

(formerly “Broadwell-DE”)

16GB DDR4-2133 ECC soldered memory & up to 32GB

DDR4-2133 ECC socket type memory, max. 48GB

Integrated AMD Radeon™ E8860 GPU onboard supporting

DirectX 11.1, Open GL 4.2, Open CL 1.2

Dual 10G SFP+ ports on front panel (8HP versions)

PCIe x16 to J4 UHM connector for rear expansion

Extended temperature with Xeon

server grade processor

COM

DisplayPort

VGA

XMC

●

GbE

10G SFP+

Mic-in

Line-out

●

USB 3.0

cPCI-6940

cPCI-6940DX

cPCI-6940DH

Specifications

●

Processor & System

CPU

uFC-BGA 16-core Intel Xeon D-1577 SoC, 1.3GHz/ 2.1GHz, 24MB LLC, 45W TDP

uFC-BGA 12-core Intel

Xeon

D-1559 SoC, 1.5GHz/ 2.1GHz, 18MB LLC, 45W

TDP, -40°C to 85°C

uFC-BGA 8-core Intel

Xeon

D-1548 SoC, 2.0GHz/ 2.6GHz, 12MB LLC, 45W TDP

uFC-BGA 8-core Intel

Xeon

D-1539 SoC, 1.6GHz/ 2.2GHz, 12MB LLC, 35W

TDP, -40°C to 85°C

●

Connectivity

XMC

One PCIe x8 Gen2 XMC site BOM option (cPCI-6940DX only)

Optional 12V power support

Ethernet

Two 1/10G SFP+ ports on front panel (8HP version only)

One Intel

82580 4-port GbE Controller providing 2 GbE to the front panel

and 2 GbE to J3 for PICMG 2.16

RAM

16GB DDR4-2133 ECC soldered memory & 2x SODIMM supporting up to

32GB of DDR4-2133 ECC socket type memory (up to 48GB total)

Graphics

AMD Embedded Radeon™ E8860 GPU

1x VGA and 1x DisplayPort on front panel (DP up to 3840 x 2160, at 60Hz)

2x DVI-D and RGB to rear (RGB is switched from front)

BIOS

AMI EFI BIOS, 64Mbit SPI flash memory

CompactPCI Bus

PCI 64bit/66MHz to J1, universal V(I/O)

Supports satellite and stand alone modes in Peripheral slots

Note: The cPCI-6940 J4 supports PCIe x16, which has a signal conflict with PICMG

2.5 backplanes. Do not insert the cPCI-6940 into a peripheral slot of backplanes

supporting PICMG 2.5.

USB

2x USB 3.0 on front panel

4x USB 2.0 and 2x USB 3.0 routed to rear USB 3.0 downgradeable to 2.0

PS/2

PS/2 keyboard/mouse port to rear

PICMG standards

PICMG

2.0 CompactPCI

Rev. 3.0

PICMG

2.1 Hot Swap Specification Rev.2.0

PICMG

2.9 System Management Bus Rev. 1.0

PCIMG

2.16 Packet Switching Backplane Rev.1.0

Serial Port

1x RS-232/422/485 on front panel

1x RS-232 + 1x TX/RX to J3 and 1x TX/RX to J5

Audio

Mic-in, Line-out on front panel (8HP version only)

PCIe

1x PCIe x16 to J4,configurable to 1x PCIe x8 to J4 and PCIe x8 to XMC on

layer 2

1x PCIe x4 to J5, configurable to 4x PCIe x1

Rear I/O Signals

6x USB 2.0, 2x COM, 2x SATA, PS/2 KB/MS to J3

2x GbE, 1x VGA switched from front to J3

PCIe x16 to J4 through UHM connector or 1x PCIe x8 to J4 and PCIe x8 to

XMC on layer 2

2x DVI-D, 2x SATA,1x PCIe x4, 1x COM(TX/RX), GPIO, USB 3.0 signal to J5

cPCI-6940DX/D1559/M16-0 Related Products

	cPCI-6940DX/D1559/M16-0	cPCI-6940/D1577/M16-0	cPCI-6940/D1548/M16-0	cPCI-6940DX/D1548/M16-0
Description	Single board computer 8HP 6U CompactPCI blade with Intel Xeon D-1559 processor 1.5GHz, AMD E8860 GPU and 16GB DDR4-2133 ECC soldered memory with DP, VGA,2x GbE, COM, 2x USB 3.0, 2x 10G SFP+, audio, XMC slot	Single board computer 4HP 6U CompactPCI blade with IntelR XeonR D-1577 processor 1.3GHz, AMD E8860 GPU and 16GB DDR4-2133 ECC soldered memory with DP, VGA, 2x GbE, COM, 2x USB 3.0, onboard SATA slot	Single board computer 4HP 6U CompactPCI blade with IntelR XeonR D-1548 processor 2.0GHz, AMD E8860 GPU and 16GB DDR4-2133 ECC soldered memory with DP, VGA, 2x GbE, COM, 2x USB 3.0, onboard SATA slot	Single board computer 8HP 6U CompactPCI blade with Intel Xeon D-1548 processor 2.0GHz, AMD E8860 GPU and 16GB DDR4-2133 ECC soldered memory with DP, VGA,2x GbE, COM, 2x USB 3.0, 2x 10G SFP+, audio, XMC slot
Maker	ADLINK	ADLINK	ADLINK	ADLINK
Product Category	single board computer	single board computer	single board computer	single board computer
series	cPCI-6940	cPCI-6940	cPCI-6940	cPCI-6940
physical dimension	6U 4/8HP	6U 4/8HP	6U 4/8HP	6U 4/8HP
Processor brand	Intel	Intel	Intel	Intel
Processor type	Intel Xeon	Intel Xeon	Intel Xeon	Intel Xeon
frequency	1.5 GHz	1.3 GHz	2 GHz	2 GHz
storage	16 GB	16 GB	16 GB	16 GB
Working power voltage	3.3 V, 5 V	3.3 V, 5 V	3.3 V, 5 V	3.3 V, 5 V
Interface Type	Serial	Serial	Serial	Serial
Minimum operating temperature	- 40 C	0 C	0 C	0 C
Maximum operating temperature	+ 85 C	+ 60 C	+ 60 C	+ 60 C
size	233.33 mm x 160 mm	233.33 mm x 160 mm	233.33 mm x 160 mm	233.33 mm x 160 mm
storage type	DDR4-2133	DDR4-2133	DDR4-2133	DDR4-2133
Power consumption	45 W	45 W	45 W	45 W
core	Intel Xeon	Intel Xeon	Intel Xeon	Intel Xeon
Processor series	D-1559	D-1577	D-1548	D-1548
Factory packaging quantity	1	1	1	1
