1554VA2GYCL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > accessories> Cover, box and shell products> 1554VA2GYCL

1554VA2GYCL: DescriptionCovers, boxes and shell products Watertight/Polycarb Clear Lid; Categoryaccessories Cover, box and shell products; File Size336KB，4 Pages; ManufacturerHammond; Websitehttp://www.hammondmfg.com; Environmental Compliance

Download Datasheet Parametric Compare View All

1554VA2GYCL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1554VA2GYCL	-	-	View	Buy Now

1554VA2GYCL Overview

Covers, boxes and shell products Watertight/Polycarb Clear Lid

1554VA2GYCL Parametric

Parameter Name	Attribute value
Maker	Hammond
Product Category	Covers, boxes and shell products
Shipping restrictions	Mouser does not currently sell this product.
product	Enclosures
type	Water-Tight
Material	Polycarbonate (PC)
color	Clear
length	238.76 mm
width	160.02 mm
high	88.9 mm
IP rating	IP68
NEMA Rating	4, 4X, 6, 6P, 12, 13
Flammability rating	UL 94 V-0
size	238.76 mm L x 160.02 mm W x 88.9 mm H

Preview

Download Datasheet

View All

3/18/2019

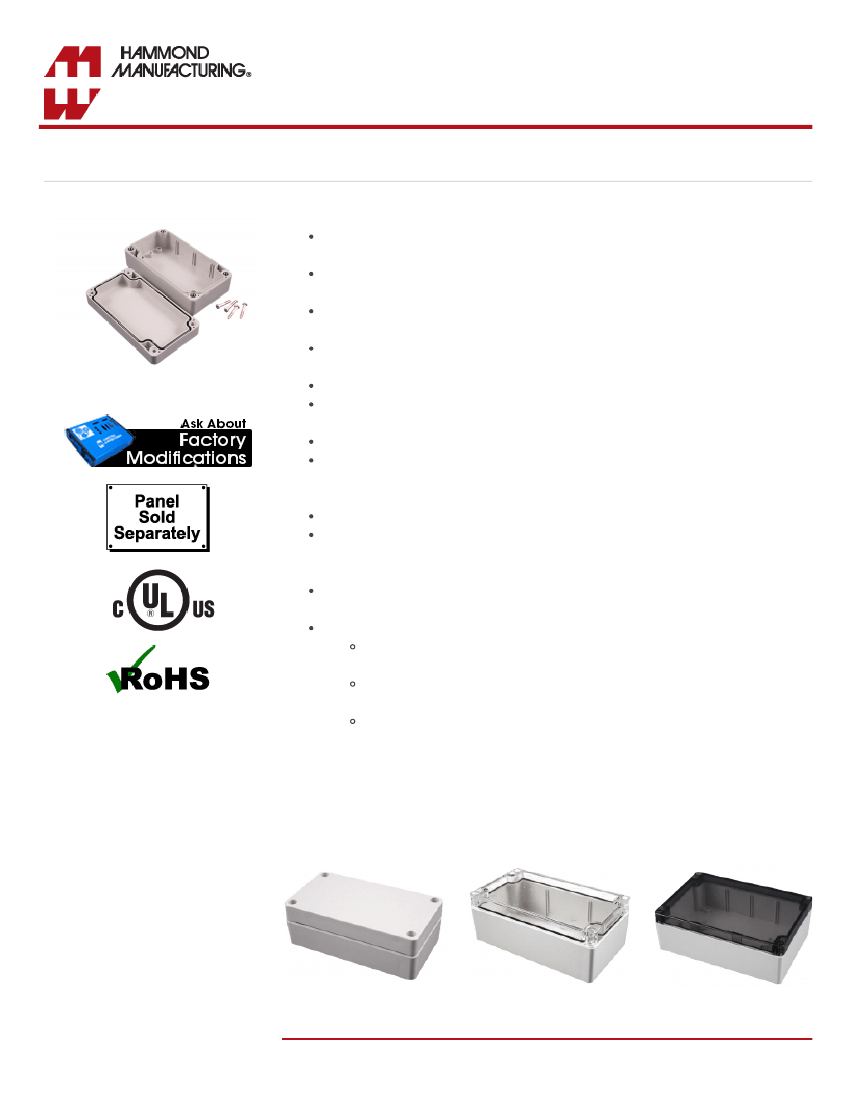

Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures (1554 Series) - Hammond Mfg.

Quality Products. Service Excellence.

Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures

1554 Series

Watertight, Flat Lid, UL Listed Options

Key Features

Ideally suited for mounting printed circuit boards or DIN rail mounted components (see

photo features below for details).

ABS Versions are molded from general purpose material which carries a flammability

rating of UL94-HB. For indoor use.

Polycarbonate versions are UV stabilized for outdoor use. Gray polycarb carries a UL94-

5VA rating, while clear and smoked lids carry a UL94V-0 rating.

Polycarbonate versions are cUL and UL 508A listed (File # E65324). ABS plastic

versions are not UL listed.

Enclosure color is a light gray (RAL 7035).

Gasketed lid with two piece “tongue & groove” construction provides protection against

access of oil, dust and water.

Gasket is one piece made from high temperature, U.L. listed silicone.

Polycarb versions are designed to meet NEMA Type 4, 4X, 6, 6P, 12 & 13 ratings which

meet and exceed IP ratings up to and including IP68. (Except 1554/55 V size which is

4,4X only)

ABS Plastic versions are designed to meet IP66.

Lid is secured with included M4 stainless steel machine screws which are threaded into

integral stainless steel bushings for repetitive assembly & disassembly. All hardware is

stainless steel to avoid corrosion caused by dissimilar metals.

Lid screws are self captivating (lid holes are threaded with the first installation of lid

screws).

Internal features are maximized for mounting options and vary with size:

Internal DIN rail mounting tabs molded into most models, except sizes “C” and

“D”.

Threaded (M3) integral brass inserts and/or standoffs (#6 self tapping screws) for

P.C. board or inner panel mounting in all but the smallest size (“B”).

Vertical P.C. card guides (for 1.5 mm thick P.C. boards) are molded in all but the

smallest size (“B”).

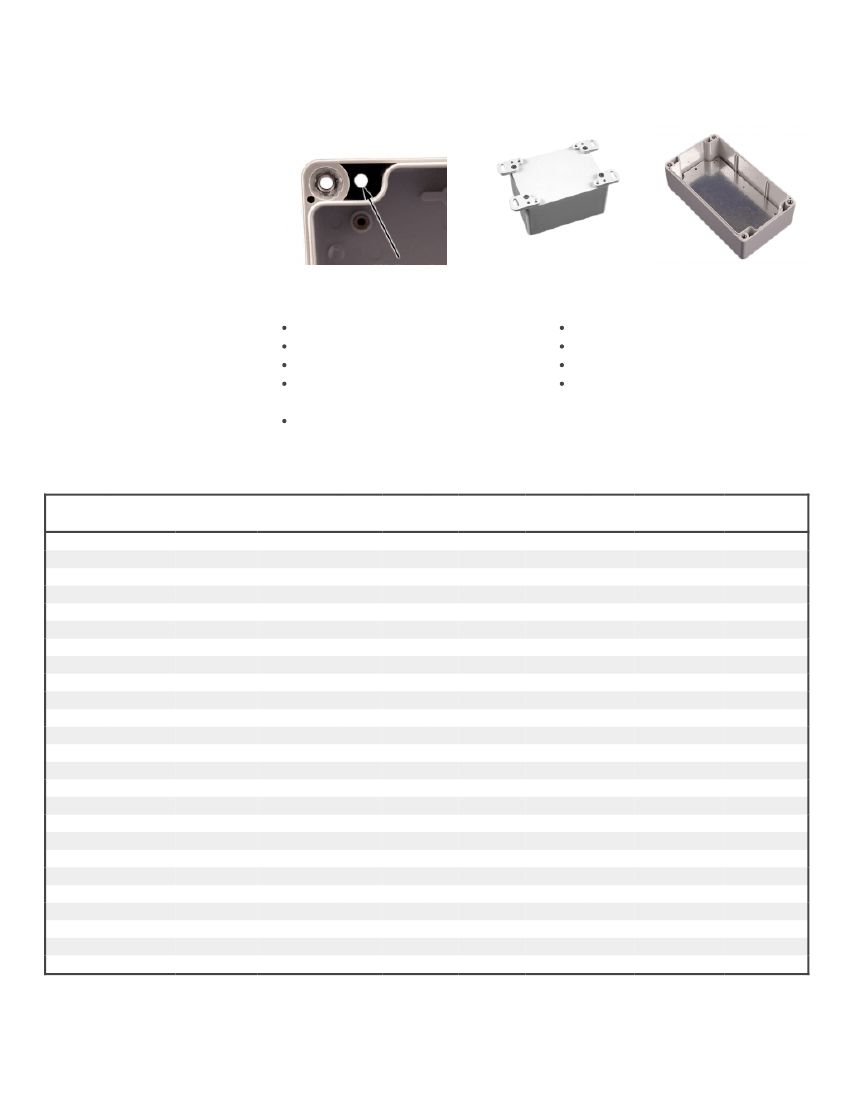

Photo Features

Polycarbonate versions available with gray, clear, or smoked lid. ABS version available only in

gray.

Gray

Clear

Smoked

https://www.hammfg.com/electronics/small-case/plastic/1554

1/3

1554VA2GYCL Related Products

	1554VA2GYCL	1554VAGY	1554EE2GY
Description	Covers, boxes and shell products Watertight/Polycarb Clear Lid	Covers, boxes and shell products Watertight/Polycarb 9.4 x6.3 x3.5" GRAY	Covers, boxes and shell productsPolycarb. Watertight 3.50x3.50x3.56" Gray
Maker	Hammond	Hammond	Hammond
Product Category	Covers, boxes and shell products	Covers, boxes and shell products	Covers, boxes and shell products
product	Enclosures	Enclosures	Enclosures
type	Water-Tight	Water-tight	Water-tight
Material	Polycarbonate (PC)	Plastic	Polycarbonate
color	Clear	Gray (Light Gray)	Gray (Light Gray)
length	238.76 mm	239 mm	3.5 in
width	160.02 mm	6.3 in	3.5 in
high	88.9 mm	9.4 in	3.5 in
IP rating	IP68	IP66	IP66
NEMA Rating	4, 4X, 6, 6P, 12, 13	4, 4X, 6, 6P, 12, 13	4, 4X, 6, 6P, 12, 13
size	238.76 mm L x 160.02 mm W x 88.9 mm H	239 mm L x 6.3 in W x 9.4 in H	3.5 in L x 3.5 in W x 3.5 in H
Shipping restrictions	Mouser does not currently sell this product.	Mouser does not currently sell this product.	-
Flammability rating	UL 94 V-0	UL 94 HB	-
series	-	1554	1554
unit weight	-	521.631 g	158.757 g
