PMS20 BK080 Overview

Cable Fixtures and Accessories 10-14MM SPRL PLTC BLACK SOLD PER PCS

PMS20 BK080 Parametric

Parameter Name	Attribute value
Maker	Alpha Wire
Product Category	Cable Fixtures and Accessories
Shipping restrictions	Mouser does not currently sell this product.
type	Cable Protection Gland
installation method	Screw
Material	Polyamide
color	Black
Maximum beam diameter	31 mm
series	PMS
high	106 mm
series	PMS
IP rating	IP68
Factory packaging quantity	10
unit weight	217.724 g

Preview

Download Datasheet

View All

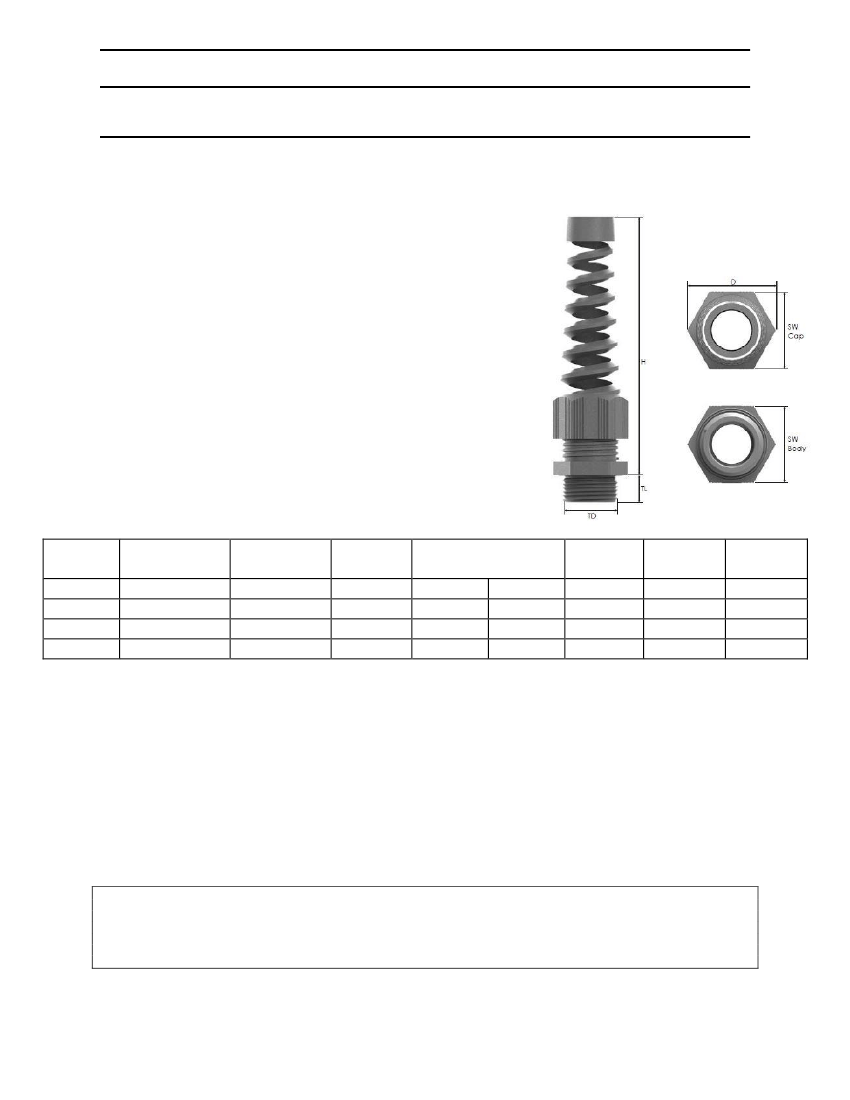

ALPHA WIRE COMPANY

CUSTOMER PRODUCT SPECIFICATION

Part Numbers: PMS12-PMS25

Spec Number: PMS METRIC

Page 1 of 1 Pages

Issue:

Issue Date:

Effective Date:

02/27/2018

A. Technical Details

1) Material

a) Body

PA 6 (Polyamide 6)

b) Cap

PA 6 (Polyamide 6)

c) Seal

CR (Chloroprene Rubber)

2) Color

a) Gray, RAL 7001

b) Black, RAL 9005

3) Protection Class

a) IP 68

5 Bar, 30 min

b) IP 66

4) Flammability

a) V2

(According to UL94)

5) Temperature Rating

a) Permanent

-20°C to +100°C

b) Intermittent

-30°C to +150°C

6) Thread Type

a) Metric according to EN 60423

7) Approvals

a) UL

UL 514

b) CSA

CSA C22.2

Size

M-12x1.5

M-16x1.5

M-20x1.5

M-25x1.5

Clamping Range

Ø min-max

3,0-6,5

5,0-10,0

10,0-14,0

13,0-18,0

Thread Length

Thread Ø

12,0

16,0

20,0

25,0

Spanner Width

SW CAP

SW BODY

Outer Ø

17,1

25,2

31,0

38,0

Height

57,0

81,5

106,0

117,5

Part Number

PMS12

PMS16

PMS20

PMS25

B. Packaging Requirements

1) Standard Package

10 glands per package

Although Alpha Wire ("Alpha") makes every reasonable effort to ensure their accuracy at the time of publication, information and specifications

described herein are subject to errors or omissions and to changes without notice, and the listing of such information and specifications does not

ensure product availability.

Alpha provides the information and specifications herein on an "AS IS" basis, with no representations or warranties, whether express, statutory or

implied. In no event will Alpha be liable for any damages (including consequential, indirect, incidental, special, punitive, or exemplary) whatsoever,

even if Alpha has been advised of the possibility of such damages, whether in an action under contract, negligence or any other theory, arising out of

or in connection with the use, or inability to use, the information or specifications described herein.

711 Lidgerwood Ave Elizabeth, NJ 07207-0711

Toll Free 1-800-52 ALPHA • T: 1-908-925-8000 • F: 908-925-5411 • Email: info@alphawire.com

www.alphawire.com
