STM8-SO8-DISCO
Discovery kit with STM8S001J3M3,
STM8L001J3M3 and STM8L050J3M3 MCUs
Data brief
Features
•
STM8S001J3M3 microcontroller featuring
8 Kbytes of Flash memory, 1 Kbyte of RAM
and 128 bytes of Data EEPROM in an SO8
package
•
STM8L001J3M3 microcontroller featuring
8 Kbytes of Flash memory including up to
2 Kbytes of Data EEPROM and 1.5 Kbytes of
RAM in an SO8 package
•
STM8L050J3M3 microcontroller featuring
8 Kbytes of Flash memory, 1 Kbyte of RAM
and 256 bytes of Data EEPROM in an SO8
package
•
1 user LED
•
1 user push-button
•
Individual and breakable STM8 SO8 to DIL8
module
•
DIL8 socket to ease programming of the STM8
MCU
•
On-board ST-LINK/V2 debugger/programmer
•
Comprehensive free software libraries and
examples
•
Support of a wide choice of Integrated
Development Environments (IDEs) including
Cosmic, IAR™, Raisonance, iSYSTEM and
STMicroelectronics

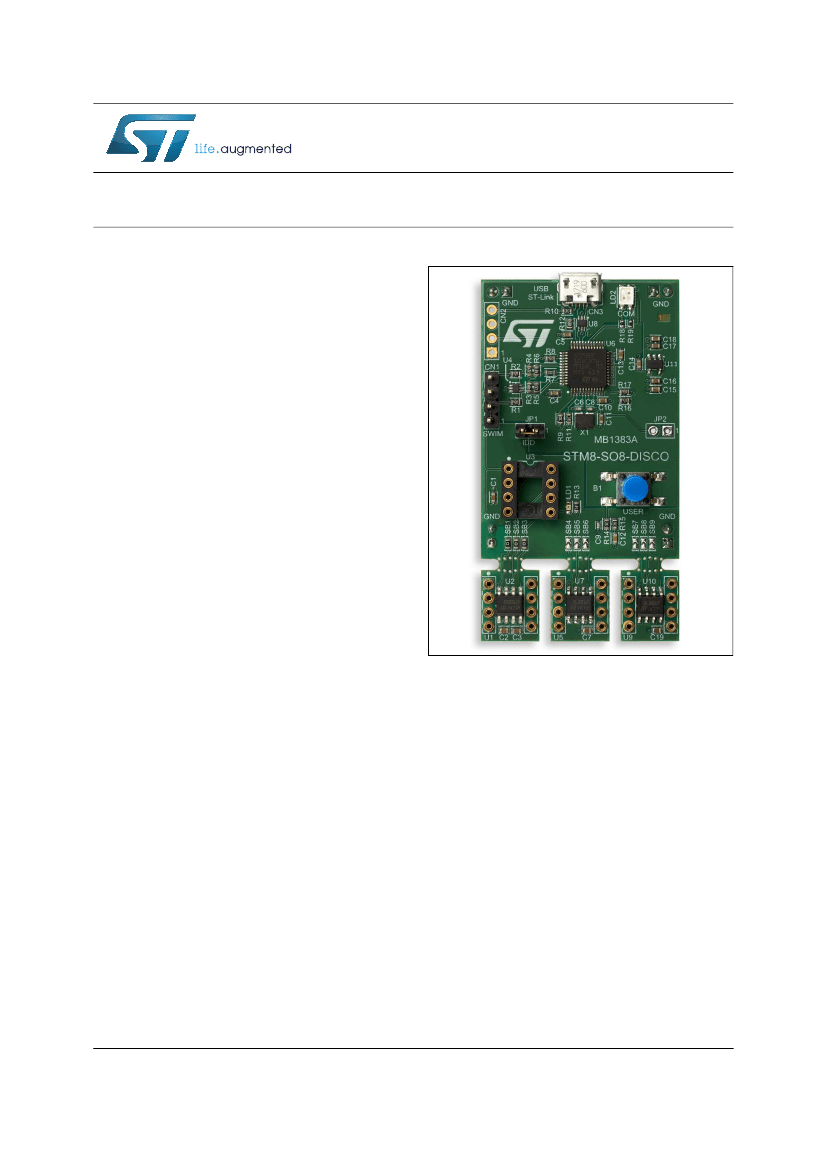

1. Picture is not contractual.
The STM8-SO8-DISCO is operated by simply
plugging it into a PC through a standard USB
Type-A to Micro-B cable.
Description
The STM8-SO8-DISCO helps to discover
features of STM8S Value Line and STM8L Value
Line devices available in SO8 packages. This
discovery kit offers three SO8 to DIL8 modules
designed with STM8S001J3M3, STM8L001J3M3
and STM8L050J3M3 microcontrollers, and allows
the user to easily develop and share applications.
It includes an on-board ST-LINK/V2 to debug and
program any of the embedded STM8
microcontrollers, or even an external target by
means of a SWIM connector.
March 2018
DB3487 Rev 3
1/4
www.st.com
For further information contact your local STMicroelectronics sales office.
System requirements
STM8-SO8-DISCO
System requirements
•
•
Windows
®
OS (7, 8 and 10)
USB Type-A to Micro-B cable
Development toolchains
•
•
•
•
•
STMicroelectronics: free STVD-STM8 (using Cosmic toolchain)
IAR™: IAR-EWSTM8
Cosmic: free IDEA
Raisonance: RIDE-STM8
iSYSTEM: winIDEA-STM8
Demonstration software
The demonstration software, included in the corresponding STM8 standard peripheral
library package, is preloaded in the STM8S001J3M3 Flash memory for easy demonstration
of the device peripherals in standalone mode. The latest versions of the demonstration
source code and associated documentation can be downloaded from the
www.st.com/stm8-discovery web page.
Ordering Information
To order the STM8-SO8-DISCO kit, refer to
Table 1.
Table 1. Ordering information
Order code
STM8-SO8-DISCO
Target STM8
STM8S001J3M3
STM8L001J3M3
STM8L050J3M3
