ASPI-7318-R15N-T datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> inductor> ASPI-7318-R15N-T

Preview

ASPI-7318-R15N-T: DescriptionFixed InductorSMD Shielded High Current Power Inductor 7.3 x 6.8 x 1.8mm; CategoryPassive components inductor; File Size2MB，3 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric Compare View All

ASPI-7318-R15N-T Overview

Fixed InductorSMD Shielded High Current Power Inductor 7.3 x 6.8 x 1.8mm

ASPI-7318-R15N-T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Abracon
package instruction	2927
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	10 weeks
uppercase and lowercase codes	2927
structure	Rectangular
DC Resistance	0.0019 Ω
Nominal inductance(L)	0.15 µH
Inductor Applications	HIGH CURRENT INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	2.8 mm
Package length	7.3 mm
Package form	SMT
Package width	6.8 mm
method of packing	TR, EMBOSSED, 13 INCH
Maximum rated current	27 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.2 MHz
Tolerance	30%

Preview

Download Datasheet

View All

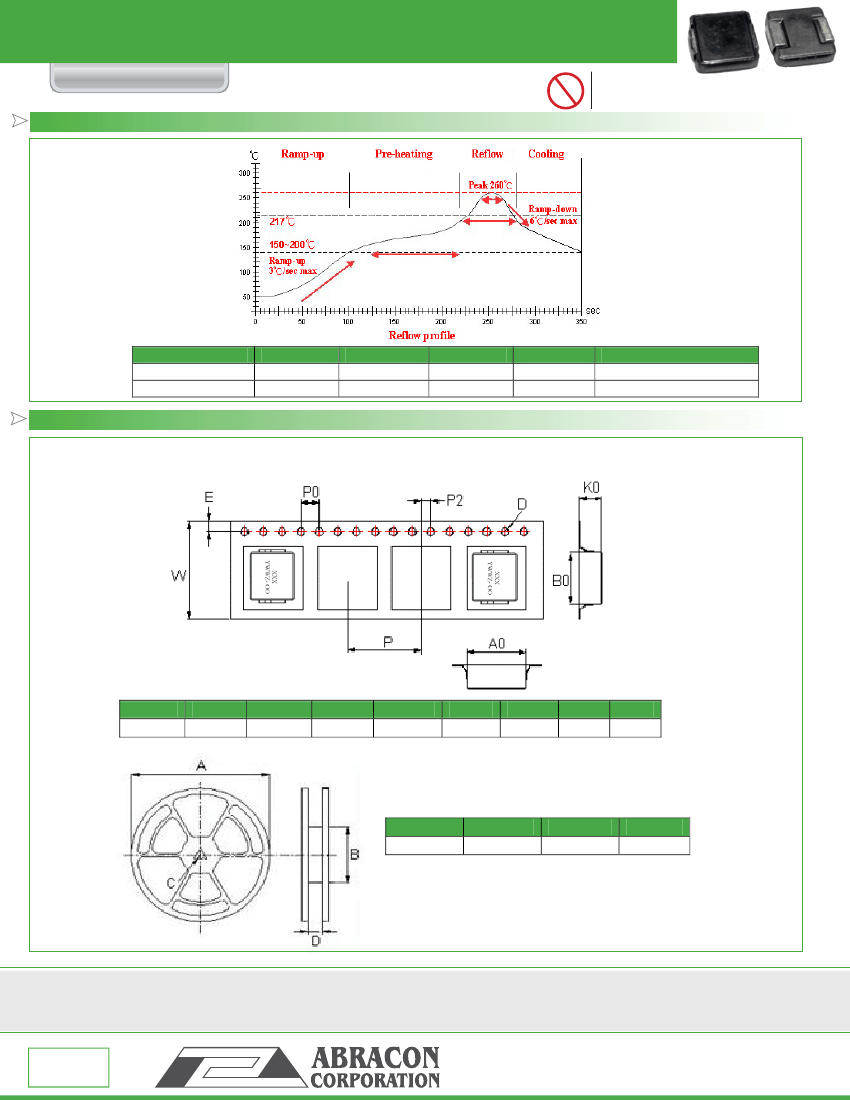

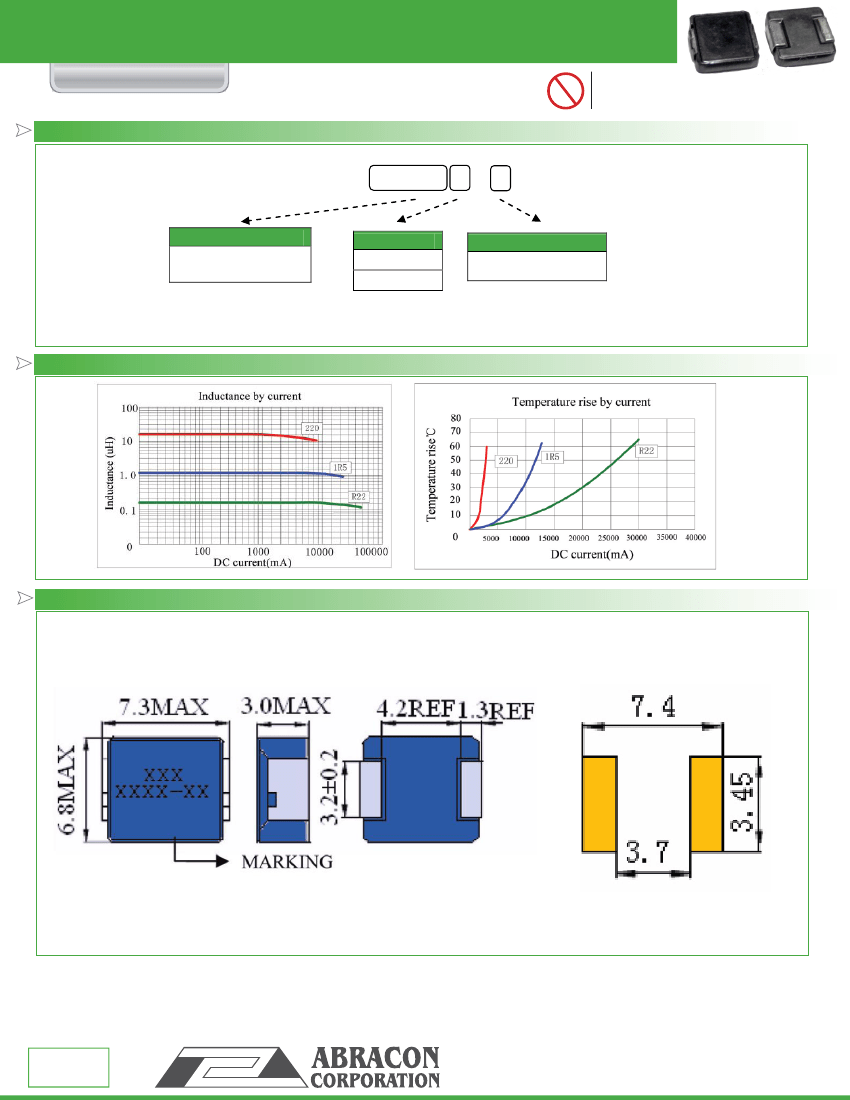

HIGH CURRENT SHIELDED POWER INDUCTOR

ASPI-7318

FEATURES:

MSL Level:1

Pb

RoHS

Compliant

7.3 x 6.8 x 3.0 mm

•

100%lead (Pb) free.

•

Lowest DCR/uH, in this package size.

•

Frequency range up to 5.0MHz

•

Handles high transient current spikes without saturation

•

Ultra low buzz noise, due to composite construction.

•

Notebook/Desktop/Server applications.

•

Low profile, high current power supplies.

•

Battery powered devices.

•

DC/DC converter for Field Programmable

•

Gate Array(FPGA)

APPLICATIONS:

ELECTRICAL SPECIFICATIONS:

Abracon P/N:

Operating Temperature

Storage Temperature

:

ASPI-7318-xxx

-55ºC to +125ºC

Less than +25˚C, Humidity<75% RH.

L

(µH)

0.10

0.15

0.20

0.22

0.33

0.47

0.56

0.68

0.82

1.0

1.5

2.2

2.5

3.3

4.7

5.6

6.8

8.2

10.0

22.0

Tolerance

(M, N)

N

M

R

DC

Max

mΩ

1.7

2.5

3.0

3.1

3.9

4.2

5.3

5.5

8.0

10.0

15

20

22

30

40

54

60

68

105

230

I

sat

Typ

(A)

50

45

41

34

28

24

23

22

19

17

15

12

11

10

8

7.5

7

6

5.5

3

I

rms

Typ

(A)

30

26

24

22

20

17.5

15.5

13

11

9

8

6

5

4.5

4

3

2

Part Number

ASPI-7318-

Inductance Code

ASPI-7318-R10

ASPI-7318-R15

ASPI-7318-R20

ASPI-7318-R22

ASPI-7318-R33

ASPI-7318-R47

ASPI-7318-R56

ASPI-7318-R68

ASPI-7318-R82

ASPI-7318-1R0

ASPI-7318-1R5

ASPI-7318-2R2

ASPI-7318-2R5

ASPI-7318-3R3

ASPI-7318-4R7

ASPI-7318-5R6

ASPI-7318-6R8

ASPI-7318-8R2

ASPI-7318-100

ASPI-7318-220

Test Conditions

1. Inductance tested at 200kHz, 0.25V, 0A; Tolerance M=±20%; N=±30%

2. All test data is in reference to 25°C ambient.

3. Isat will cause the inductance value to drop approximately 20%

4. Irms will cause an approximate

ΔT

of 40°C

5. The part temperature (ambient + temp. rise) should not exceed 125°C under worst case operating

conditions. Circuit design, component placement, PWB trace size and thickness, airflow and other

cooling provisions all affect the part temperature. Part temperature should be verified in the end

application.

6. Please contact Abracon for the availability of other inductance values.

ABRACON IS

ISO9001:2008

CE RTIFIED

Revised: 10.11.12

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-80

|

fax 949-546-80

| www.abracon.com

00

01

Visit www.abracon.com for Terms & Conditions of Sale

ASPI-7318-R15N-T Related Products

	ASPI-7318-R15N-T	ASPI-7318-R33M-T	ASPI-7318-R15M-T	ASPI-7318-R20M-T	ASPI-7318-1R5M-T
Description	Fixed InductorSMD Shielded High Current Power Inductor 7.3 x 6.8 x 1.8mm	Fixed Inductors .33uH 20% -55C +125C	Fixed Inductors .15uH 20% -55C +125C	Fixed Inductors .20uH 20% -55C +125C	Fixed Inductors 1.5uH 20% -55C +125C
Tolerance	30%	20%	20 %	20 %	20%
Is it Rohs certified?	conform to	conform to	-	-	conform to
Maker	Abracon	Abracon	-	-	Abracon
package instruction	2927	2927	-	-	2927
Reach Compliance Code	compliant	compliant	-	-	compliant
ECCN code	EAR99	EAR99	-	-	EAR99
Factory Lead Time	10 weeks	14 weeks	-	-	14 weeks
uppercase and lowercase codes	2927	2927	-	-	2927
structure	Rectangular	Rectangular	-	-	Rectangular
DC Resistance	0.0019 Ω	0.0039 Ω	-	-	0.015 Ω
Nominal inductance(L)	0.15 µH	0.33 µH	-	-	1.5 µH
Inductor Applications	HIGH CURRENT INDUCTOR	HIGH CURRENT INDUCTOR	-	-	HIGH CURRENT INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	-	-	GENERAL PURPOSE INDUCTOR
Number of functions	1	1	-	-	1
Number of terminals	2	2	-	-	2
Maximum operating temperature	125 °C	125 °C	-	-	125 °C
Minimum operating temperature	-55 °C	-55 °C	-	-	-55 °C
Package height	2.8 mm	2.8 mm	-	-	2.8 mm
Package length	7.3 mm	7.3 mm	-	-	7.3 mm
Package form	SMT	SMT	-	-	SMT
Package width	6.8 mm	6.8 mm	-	-	6.8 mm
method of packing	TR, EMBOSSED, 13 INCH	TR, EMBOSSED, 13 INCH	-	-	TR, EMBOSSED, 13 INCH
Maximum rated current	27 A	20 A	-	-	9 A
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	-	-	RECTANGULAR PACKAGE
shield	YES	YES	-	-	YES
surface mount	YES	YES	-	-	YES
Terminal location	DUAL ENDED	DUAL ENDED	-	-	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND	-	-	WRAPAROUND
Test frequency	0.2 MHz	0.2 MHz	-	-	0.2 MHz
