DA14585
Bluetooth 5.0 SoC with Audio Interface
General Description
The DA14585 is an ultra-low power SoC integrating a 2.4 GHz transceiver and an
ARM Cortex-M0®
microcontroller with 96kB of RAM and 64kB of One-Time Programmable (OTP) memory. It offers a
very fast boot time (<50ms) and supports up to 8 BLE connections. It can be used as a standalone
application processor or as a data pump in hosted systems.
The radio transceiver, the baseband processor and the qualified
Bluetooth® LE
stack is fully
compliant with the
Bluetooth® Low Energy 5.0 standard.
The DA14585 has dedicated hardware for the Link Layer implementation of
Bluetooth® Low Energy
and interface controllers for enhanced connectivity capabilities.
The
Bluetooth® Low Energy
firmware includes the L2CAP service layer protocols, Security Manager
(SM), Attribute Protocol (ATT), the Generic Attribute Profile (GATT) and the Generic Access Profile
(GAP). All profiles published by the
Bluetooth
SIG as well as custom profiles are supported.
The device is suitable for remote control units (RCU) requiring support for voice commands, wireless
sensor nodes, Bluetooth Mesh applications, fitness trackers, toys and HID devices (keyboards, mice,
etc.).
Key Features
■
Complies with Bluetooth V5.0, ETSI EN 300
328 and EN 300 440 Class 2 (Europe), FCC
CFR47 Part 15 (US) and ARIB STD-T66
(Japan)
■
Supports up to 8 Bluetooth LE connections
■
Fast cold boot in less than 50 ms
■
Processing power
□
16 MHz 32 bit ARM Cortex-M0 with SWD
interface
■
Flexible Reset Circuitry
□
System & Power On Reset in a single pin
■
General purpose, Capture and Sleep timers
■
Digital interfaces
□
Gen. purpose I/Os: 14 (WLCSP34), 25
(QFN40), 32 (QFN48)
□
2 x UARTs with hardware flow control up
to 1 Mbps
□
Dedicated Link Layer Processor
□
AES-128 bit encryption Processor
■
Memories
□
64 kB One-Time-Programmable (OTP)
memory
□
SPI+™ interface
□
I2C bus at 100 kHz, 400 kHz
□
3-axes capable Quadrature Decoder
■
Analog interfaces
□
4-channel 10-bit ADC
■
Radio transceiver
□
Fully integrated 2.4 GHz CMOS
transceiver
□
96 kB Data/Retention SRAM
□
128 kB ROM
■
Power management
□
Integrated Buck/Boost DCDC converter
□
P0, P1 and P2 ports with 3.3 V tolerance
□
Easy decoupling of only 4 supply pins
□
Supports coin (typ. 3.0 V) and alkaline
(typ. 1.5 V) battery cells
□
Single wire antenna: no RF matching or
RX/TX switching required
□
Supply current at VBAT3V:
TX: 3.4 mA, RX: 3.7 mA (with ideal DC-
DC)
□
1.8 V cold boot support
□
10-bit ADC for battery voltage
measurement
□
0 dBm transmit output power
□
-20 dBm output power in “Near Field
Mode”
□
-93 dBm receiver sensitivity
■
Digital controlled oscillators
□
16 MHz crystal (±20 ppm max) and RC
■
Packages:
□
WLCSP 34 pins, 2.40 mm x 2.66 mm
oscillator
□
QFN 40 pins, 5 mm x 5 mm
□
32 kHz crystal (±50 ppm, ±500 ppm max)
□
QFN 48 pins, 6 mm x 6 mm
and RCX oscillator
Revision 3.2
1 of 340
Datasheet
CFR0011-120-00
04-Apr-2018
© 2018 Dialog Semiconductor
DA14585
Bluetooth 5.0 SoC with Audio Interface
Applications
■
Voice-controlled remote controls
■
Beacons
■
(Multi-sensor) Wearable devices
□
Fitness trackers
□
Consumer health
■
Smartwatches
■
Human interface devices
□
Keyboard
□
Mouse
■
Toys
■
Consumer appliances
Key Benefits
■
Lowest power consumption
■
Smallest system size
■
Lowest system cost

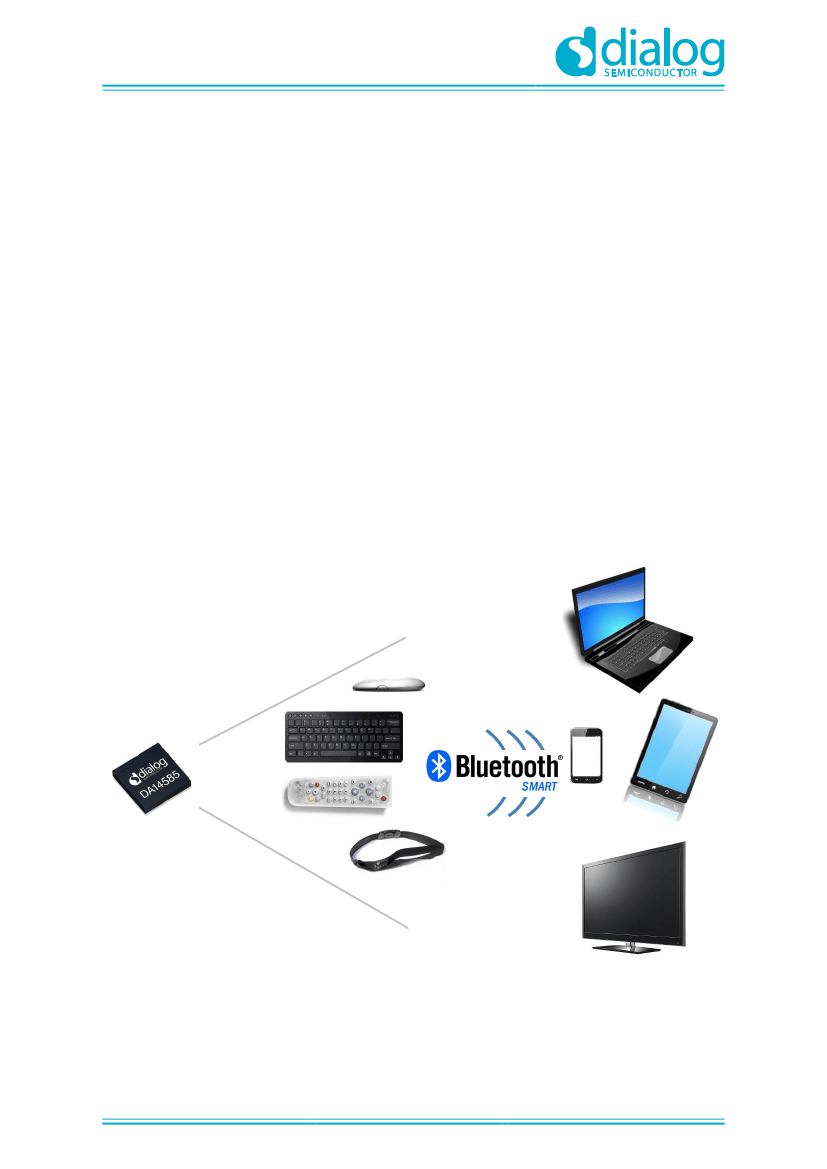

System Diagram
Figure 1: System Diagram
Datasheet
CFR0011-120-00
Revision 3.2
2 of 340
04-Apr-2018
© 2018 Dialog Semiconductor
