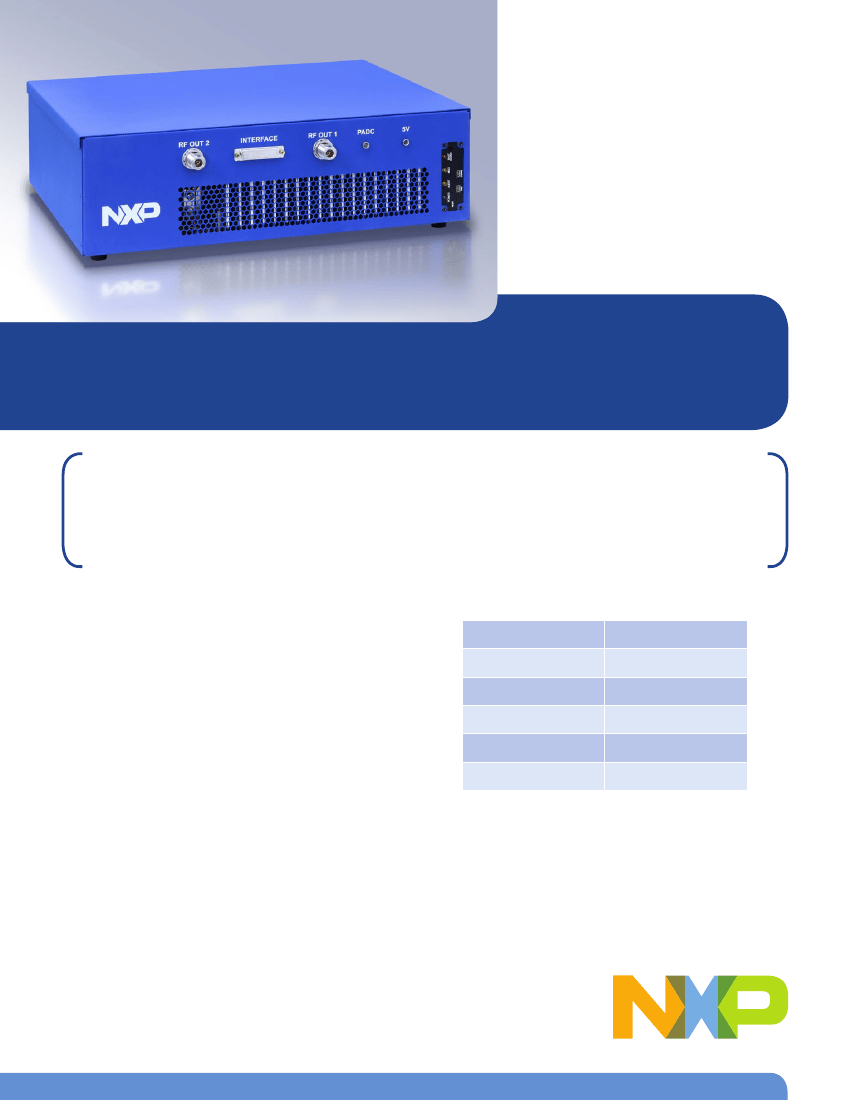

RFEL24-500 NXP RF Energy Lab Box
The RFEL24-500 RF energy lab box is a 2 x 250 W, fully integrated RF development
system. It is a powerful tool for exploring the benefits of solid-state RF energy.
Designed for both RF and non-RF engineers to test and prototype innovative solutions,
the RF energy lab box eliminates the need to invest in an extensive RF test bench.
OVERVIEW
The RF energy lab box uses the capabilities of two
RFEM24-250 modules for signal generation with frequency,
power and phase control and for monitoring output power,
reflected power, current and temperature. The RFEL24-500
with the PC-based GUI has extended features that, among
others, enable phase and frequency optimization.
FEATURES
RF signal generator
Two 2.45 GHz, 50 ohm, 250 W modules
Power, frequency and phase control
Operated by PC-based graphical user interface
Warnings and error thresholds for safe operation
Data logging
Thermostatically controlled fans
Frequency and phase sweep capabilities for best
match optimization
High accuracy RF power measurement
Continuous monitoring of forward and reflected RF power,
current and temperature
TYPICAL PERFORMANCE
Frequency
RF power output
Efficiency
Operating voltage
VSWR
RF power measurement
2400-2500 MHz
250 W / Channel
> 50% (full power)
100-265 VAC, 1 kW Max
Unlimited
± 5%
HARDWARE OVERVIEW
RF energy lab box includes:
Two 2400-2500 MHz, 250 W modules
USB to I
2
C interface
RFEL24-500 RF ENERGY LAB BOX
Power supply unit
Heatsink and fans
2.45 GHz
RF
1
USB
Interface
I
2
C
Clock
2.45 GHz
RF
2
Cooling
Power Supply
Power
Size: 13” x 17” x 5”
(33 cm x 43 cm x 13 cm)

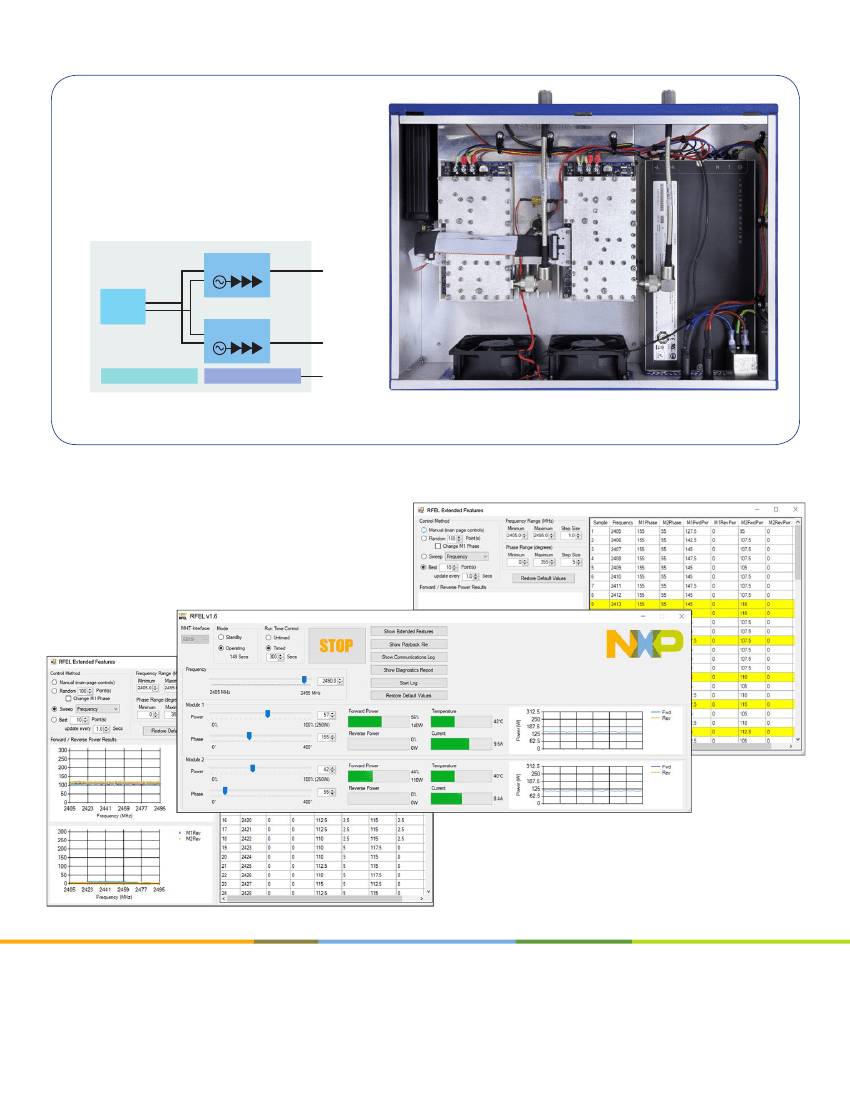

GRAPHICAL USER INTERFACE
The intuitive PC GUI (graphical user interface) includes
an extended features menu that supports frequency and
phase sweeps. It automatically finds the best spots that
maximize the energy transfer, making access to solid-state
RF design easy.
www.nxp.com/RFenergy
NXP and the NXP logo are trademarks of NXP B.V. All other product or service names are the property of their respective owners.
© 2018 NXP B.V.
RFEL24-500FS Rev. 1
6/2018
