10G-BASE-SR & 10G AGNOSTIC EMBEDDED
FIBER/COPPER MEDIA CONVERTERS
PDS -293
Amphenol introduces a proven line of multi-channel 10G media converters
meant for Ethernet and other encoded interfaces.
These converters can be used in harsh environment avionics, ground systems, or naval applications that need to
transmit and receive encoded interfaces over fiber optic cables.
MEDIA CONVERTER FAMILY
•
•
•
CF-020011-1XX:
Embedded 4-Channel 10G-Base-
SR / 10G-Base-KR Embedded Media Converter
CF-020011-2XX:
Embedded 2-Channel 10G-Base-
SR / XAUI Embedded Media Converter
CF-020010-8XX:
Embedded 4-Channel 10G
Encoded Protocol Agnostic Embedded Media
Converter
Jared Sibrava
•
Office: +1 (607) 643 - 1845
•
Email: jsibrava@amphenol-aao.com
amphenol-aerospace.com
• amphenolmao.com
CF-020011-1XX
Embedded 4-Channel 10G-Base-SR / 10G-Base-KR Embedded Media Converter
•
•
•
•
•
•
•
Converts four channels of 10G-Base-KR Ethernet to 10G-Base-SR Ethernet.
The 10G-Base-KR links are fully compliant to the IEEE specification, support auto-negotiation, and are brought
out on a Samtec HQDP ribbon for attachment into a customer subsystem.
The 10G-Base-SR links (multi-mode 850nm optics) are fully compliant to the IEEE specification and brought out
on a shell size 11 MIL-DTL-38999 with an embedded MT contact suitable for use in ruggedized environments.
Input 5V power is brought into the unit over the Samtec HQDP ribbon along with the high speed lanes.
An I2C interface also is on the HQDP ribbon for configurability and BIT adaptation.
-40C - +85C operating temperature and meant for military/commercial aerospace environments.
The parts can be configured with any plating, shell rotation, HQDP ribbon length, and HQDP connector type.
MIL-DTL-38999
with Embedded
MT Contact

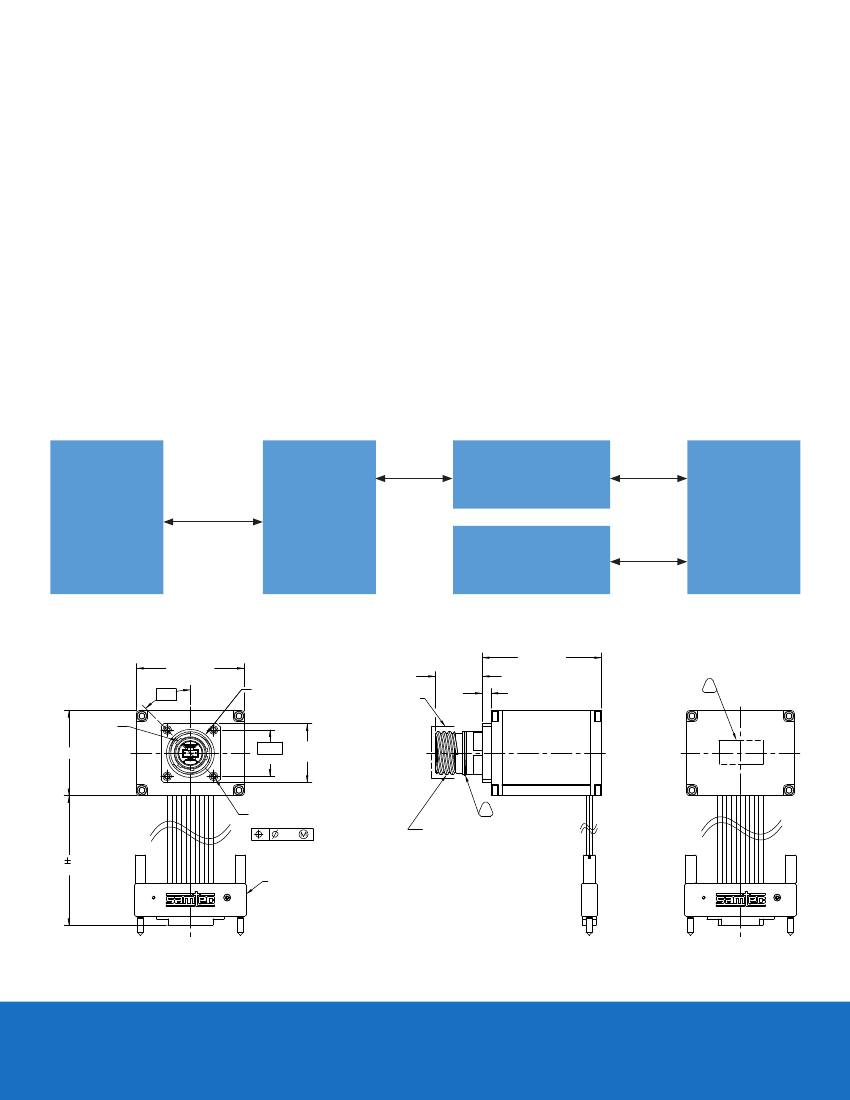

4 Channels
10G-Base-SR
Quad 10G-Base-KR PHY
Quad Channel
Copper/Fiber
Transceiver
Power and Diagnostics
Samtec HQDP
Ribbon and
Connector
4 Channels
10G-Base-KR
2.100 MAX
2.100
2.100 MAXMAX
1.900
1.900 MAX
1.900 MAXMAX
45°
45° 45°
(.818)
CAP
CAP CAP
PROTECTIVE PROTECTIVE
PROTECTIVE
(.818)
(.818)
.155
.155 .155
3
3
3
SEE DETAIL DETAIL A A
SEE A DETAIL
SEE
MAIN
MAIN
MAIN
KEYWAY KEYWAY
KEYWAY
1.500
1.500 MAX
1.500 MAXMAX
.812
TYP
1.031
1.031
.812 .812 1.031
SQUARE SQUARE
SQUARE
TYP TYP
J1
J1 J1
4-40 UNC-2B THREAD THREAD
4-40 4-40 UNC-2B THREAD
UNC-2B
.268 MIN HOLE DEPTH HOLE DEPTH
.268 .268 MIN DEPTH
MIN HOLE
.005
.005 .005
4 PLACES4 PLACES
4 PLACES
2
2
2
8.750 .250 8.750 .250
8.750 .250
CABLE LENGTH LENGTH
CABLE LENGTH
CABLE
38999 III STYLE CONNECTOR CONNECTOR
38999 III STYLE CONNECTOR
38999 III STYLE
SHELL SIZE 11 SIZESIZE 11
SHELL
SHELL 11
W/ 12F MT FERRULE FERRULE
W/ 12F MT MT FERRULE
W/ 12F
REF: CF-69W011-M1S
REF:REF: CF-69W011-M1S
CF-69W011-M1S
SAMTEC CABLE ASSEMBLY ASSEMBLY
SAMTEC CABLE
SAMTEC CABLE ASSEMBLY
HQDP-020-XX.XX-TTL-TEU-1-B
HQDP-020-XX.XX-TTL-TEU-1-B
HQDP-020-XX.XX-TTL-TEU-1-B
W/ TX-30100-FEP-01 TWINAX CABLE CABLE
W/ TX-30100-FEP-01 TWINAX CABLE
W/ TX-30100-FEP-01 TWINAX
J2
-Z-
-Z- -Z-
J2 J2
-B-
-B- -B-
Jared Sibrava
•
Office: +1 (607) 643 - 1845
•
Email: jsibrava@amphenol-aao.com
amphenol-aerospace.com
• amphenolmao.com
-Z-
-Z- -Z-
-Z-
-Z- -Z-
(45 )
MAIN KEYWAY
12
(45 )
1
12
MAIN KEYWAY
12
1
1
1
12
39
12
1
DETAIL A
1
2
39
VIEW AT AA-AA
40
12
DETAIL A
2
VIEW AT AA-AA
40

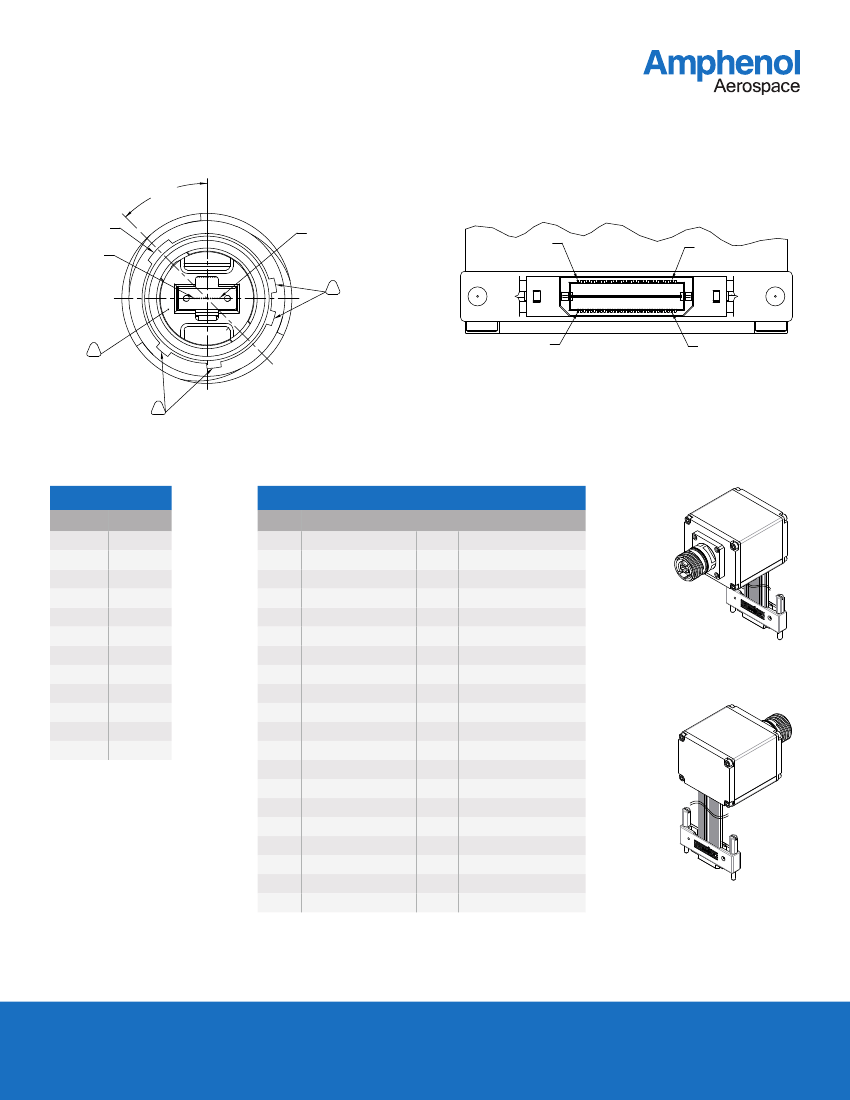

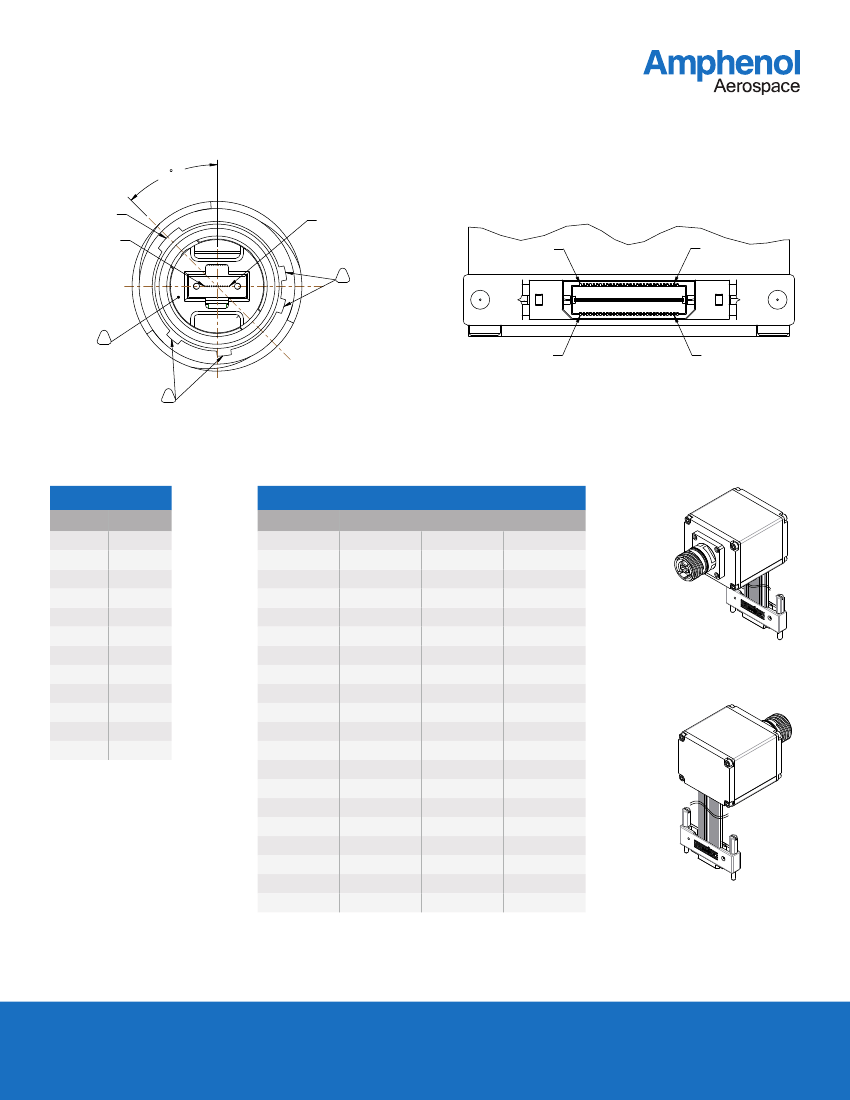

J1 I/O CHART
ID
1
2
3
4
5
6
7
8
9
10
11
12
Signal
RX0
RX1
RX2
RX3
N/C
N/C
N/C
N/C
TX3
TX2
TX1
TX0
ID
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
J2 I/O CHART
Signal
KR_0_RX_P
KR_0_RX_N
KR_1_RX_P
KR_1_RX_N
N/C
N/C
N/C
N/C
+5V
GND
GND
GND
N/C
N/C
N/C
N/C
KR_2_RX_P
KR_2_RX_N
KR_3_RX_P
KR_3_RX_N
ID
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
Signal
KR_0_TX_P
KR_0_TX_N
KR_1_TX_P
KR_1_TX_N
N/C
N/C
N/C
N/C
+5V
+5V
SDA
SCL
N/C
N/C
N/C
N/C
KR_2_TX_P
KR_2_TX_N
KR_3_TX_P
KR_3_TX_N
REAR ISO VIEW
REAR ISO VIEW
FRONT ISO VIEW
FRONT ISO VIEW
Jared Sibrava
•
Office: +1 (607) 643 - 1845
•
Email: jsibrava@amphenol-aao.com
amphenol-aerospace.com
• amphenolmao.com
CF-020011-2XX
Embedded 2-Channel 10G-Base-SR / XAUI Embedded Media Converter
•
•
•
•
•
•
•
Converts two channels of XAUI Ethernet to 10G-Base-SR Ethernet.
The XAUI links are fully compliant to the IEEE specification and are brought out on a Samtec HQDP ribbon for
attachment into a customer subsystem.
The 10G-Base-SR links (multi-mode 850nm optics) are fully compliant to the IEEE specification and brought out
on a shell size 11 MIL-DTL-38999 with an embedded MT contact suitable for use in ruggedized environments.
Input 5V power is brought into the unit over the Samtec HQDP ribbon along with the high speed lanes.
An MDIO interface also is on the HQDP ribbon for configurability and BIT adaptation.
-40C - +85C operating temperature and meant for military/commercial aerospace environments.
The parts can be configured with any plating, shell rotation, HQDP ribbon length, and HQDP connector type.
MIL-DTL-38999
with Embedded
MT Contact

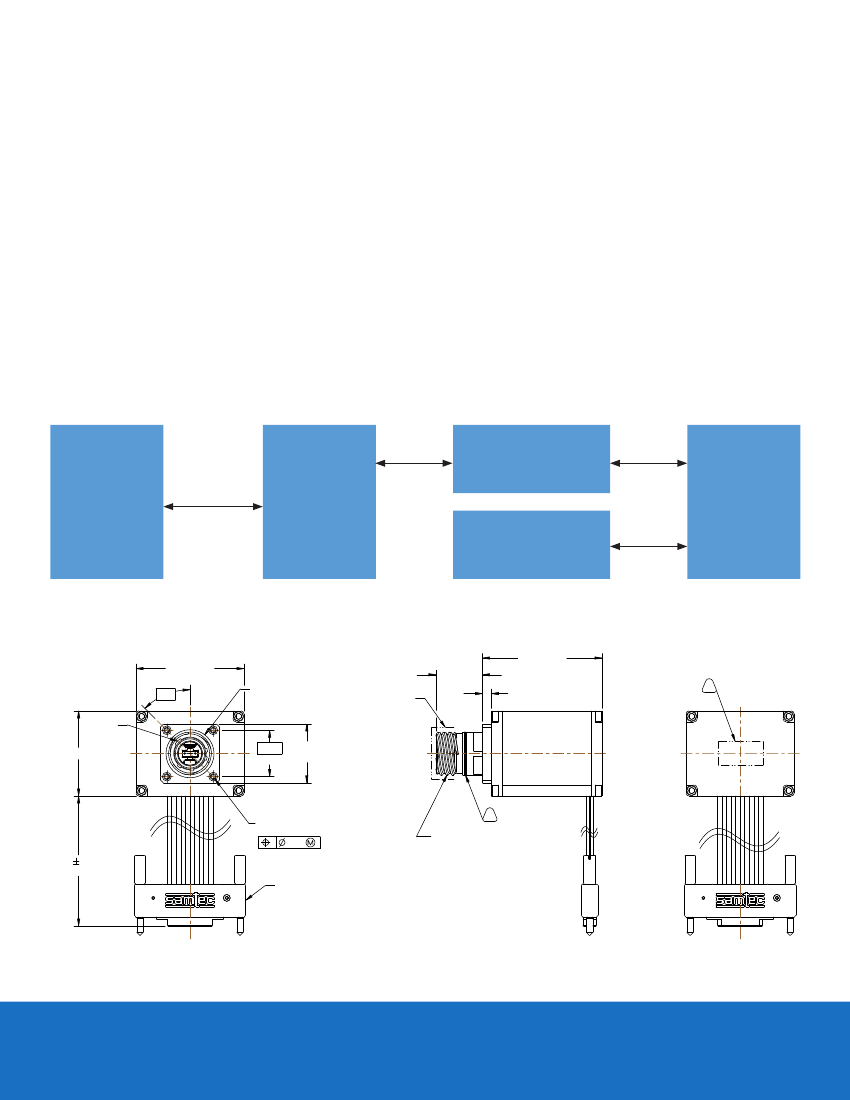

2 Channels
10G-Base-SR
XAUI/KR Serializer
De-serializer
Quad Channel
Copper/Fiber
Transceiver
Power and Diagnostics
Samtec HQDP
Ribbon and
Connector
2 Channels
XAUI
2.100 MAX 2.100 MAX MAX
2.100
1.900 MAX 1.900 MAX MAX
1.900
45°
45°
45°
(.818)
CAP
CAP CAP
PROTECTIVE
PROTECTIVE
PROTECTIVE
(.818) (.818)
.155
.155 .155
SEE DETAIL A DETAIL A A
SEE SEE DETAIL
3
3
3
MAIN
KEYWAY
MAIN MAIN
KEYWAY
KEYWAY
.812
TYP
1.031 .812 1.031 1.031
.812
SQUARE TYP
SQUARE
SQUARE
TYP
00 MAX 1.500 MAX MAX
1.500
J1
J1 J1
4-40 UNC-2B THREAD
4-40
4-40 UNC-2B THREAD UNC-2B THREAD
.268 HOLE DEPTH
.268 HOLE DEPTH .268 HOLE DEPTH
.005
.005 .005
2
2
2
4 PLACES
4 PLACES 4 PLACES
50 .2508.750 8.750 .250
.250
E LENGTH CABLE LENGTH
CABLE LENGTH
SAMTEC CABLE ASSEMBLY
SAMTEC
SAMTEC CABLE ASSEMBLYCABLE ASSEMBLY
HQDP-020-XX.XX-TTL-TEU-1-B
HQDP-020-XX.XX-TTL-TEU-1-B
HQDP-020-XX.XX-TTL-TEU-1-B
W/ TX-30100-FEP-01 TWINAX CABLE
W/ TX-30100-FEP-01
W/ TX-30100-FEP-01 TWINAX CABLE TWINAX CABLE
38999 38999 III STYLE CONNECTOR
III STYLE CONNECTOR
38999 III STYLE CONNECTOR
SHELL SIZE SIZE
SHELL SIZE 11 SHELL11 11
W/ 12F MT FERRULE
W/ 12F MT FERRULE 12F MT FERRULE
W/
REF: CF-69W011-M1S
REF: CF-69W011-M1S CF-69W011-M1S
REF:
J2
-Z-
-Z-
-Z-
J2 J2
-B-
-B-
-B-
Jared Sibrava
•
Office: +1 (607) 643 - 1845
•
Email: jsibrava@amphenol-aao.com
-Z-
-Z- -Z-
-Z-
-Z- -Z-
amphenol-aerospace.com
• amphenolmao.com
(
45°
)
MAIN KEYWAY
12
1
12
(
45°
)
1
MAIN KEYWAY
12
12
1
1
39
DETAIL A
12
1
1
12
2
40
VIEW AT AA-AA
39
DETAIL A
2
40
J1 I/O CHART
ID
1
2
3
4
5
6
7
8
9
10
11
12
Signal
RX0
RX1
RX2
RX3
N/C
N/C
N/C
N/C
TX3
TX2
TX1
TX0
ID
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
Signal
J2 I/O CHART
ID
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
VIEW AT AA-AA
Signal
XAUI_1_OUT0_P
XAUI_1_OUT0_N
XAUI_1_OUT1_P
XAUI_1_OUT1_N
XAUI_1_OUT2_P
XAUI_1_OUT2_N
XAUI_1_OUT3_P
XAUI_1_OUT3_N
+5V
+5V
MDI0
MDC
XAUI_0_OUT0_P
XAUI_0_OUT0_N
XAUI_0_OUT1_P
XAUI_0_OUT1_N
XAUI_0_OUT2_P
XAUI_0_OUT2_N
XAUI_0_OUT3_P
XAUI_0_OUT3_N
REAR ISO VIEW
REAR ISO VIEW
FRONT ISO VIEW
FRONT ISO VIEW
XAUI_1_IN0_P
XAUI_1_IN0_N
XAUI_1_IN1_P
XAUI_1_IN1_N
XAUI_1_IN2_P
XAUI_1_IN2_N
XAUI_1_IN3_P
XAUI_1_IN3_N
+5V
GND
GND
GND
XAUI_0_IN0_P
XAUI_0_IN0_N
XAUI_0_IN1_P
XAUI_0_IN1_N
XAUI_0_IN2_P
XAUI_0_IN2_N
XAUI_0_IN3_P
XAUI_0_IN3_N
Jared Sibrava
•
Office: +1 (607) 643 - 1845
•
Email: jsibrava@amphenol-aao.com
amphenol-aerospace.com
• amphenolmao.com
