DIGITAL VIDEO INTERFACE
MEDIA CONVERTER PRODUCTS
PDS -294
Amphenol introduces a proven line of Digital Video Interface media converters.
These converters can be used in harsh environment avionics, ground systems, or naval applications that need to
transmit and receive such encoded interfaces over fiber optic cables.
PRODUCTS INCLUDE:
•
•
•
•

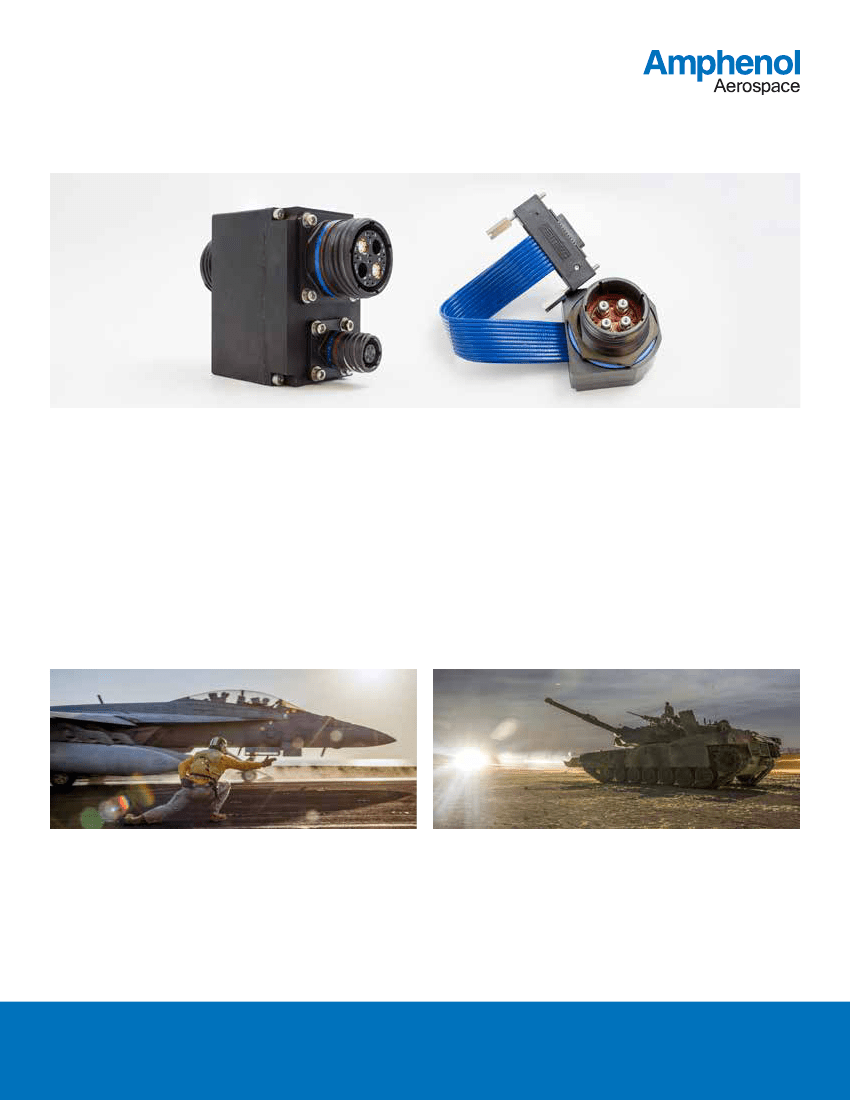

Embedded Single Channel DVI Copper to Fiber Converter
Standalone Single Channel DVI Copper to Fiber and Fiber to Copper Converter
Standalone Copper DVI Splitter From One Unique Channel to Channels
Standalone Copper DVI to HD-SDI Single Channel Converter
Jared Sibrava
•
Office: +1 (607) 643 - 1845
•
Email: jsibrava@amphenol-aao.com
amphenol-aerospace.com
• amphenolmao.com
CF-020010-900

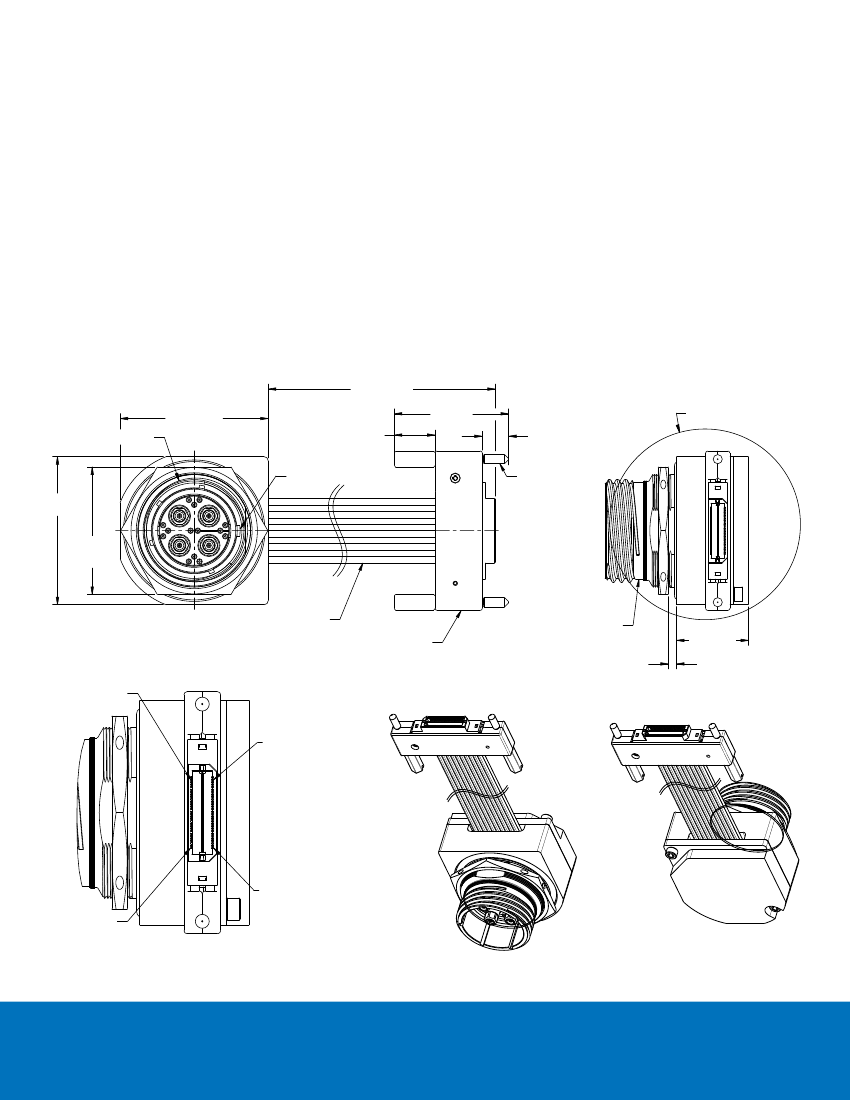

Embedded Single-Channel DVI Copper-to-Fiber Converter
•
•
•
•
•
•
•
Converts a single channel of DVI to 850nm multi-mode fiber optics
The copper DVI is brought in through a Samtec HQDP ribbon.
The fiber DVI link (multi-mode 850nm optics) is brought out on a shell size 19 MIL-DTL-38999 with embedded
CTF-Quadrax contacts suitable for ruggedized environments.
Input 3.3V power is brought into the unit over the Samtec HQDP ribbon along with high speed lanes.
-40C - +85C operating temperature and meant for military/commercial aerospace environments.
The parts can be configured with any plating, shell rotation, HQDP ribbon length, and HQDP connector type.
Various test assemblies for the copper and fiber are available per request.
6.000
+.020
1.812
-.006
+1.000
-.000
(1.400)
(.500)
WHEN FULLY
TIGHTENED
P
(.323)
WHEN FULLY
TIGHTENED
4-40 SCREW
SEE DETAIL B
SEE DETAIL A
K
MAIN
KEYWAY
1.562
+.017
-.016
TYP
F
B

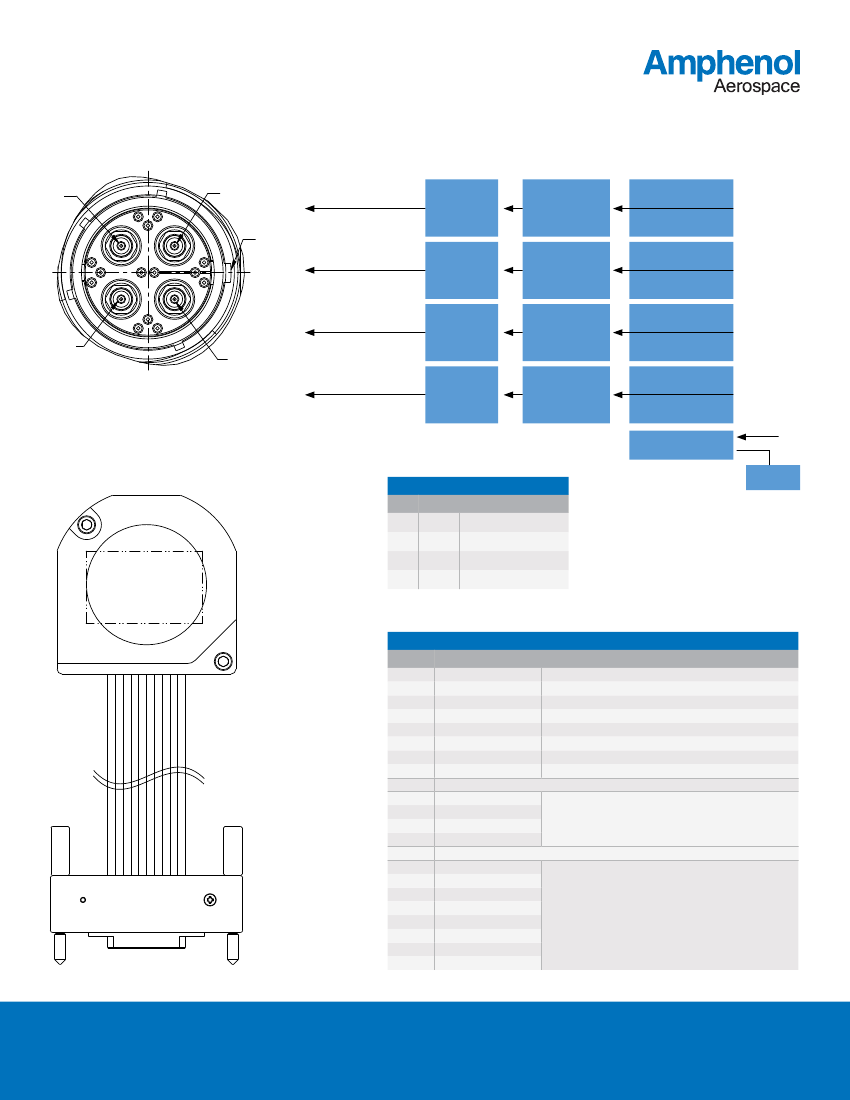

100 OHM DIFFERENTIAL
30AWG MICRO TWINAX
DETAIL
RIBBON CABLE
A
P2 CONNECTOR PIN ID
P1 CONNECTOR
SAMTEC
SCALE 3.000
HQDP-020 EDGE (VERTICAL) MOUNT STYLE
W/ QTH-020-01-H-D-DP-EM2 CONNECTOR
P2 CONNECTOR
VIEW
D38999 RECEPTACLE INTERFACE
19-ABP ARRANGEMENT
KEY ROTATION N
AT RR-RR
.895 MAX
.062 MIN
.125 MAX
PANEL THICKNESS
FRONT ISO VIEW
SCALE 1.500
PIN 39
PIN 40
PIN 2
PIN 1
REAR ISO VIEW
P1 CONNECTOR PIN ID
SCALE 3.000
DETAIL B
SCALE 1.500
FRONT ISO VIEW
SCALE 1.500
Jared Sibrava
•
Office: +1 (607) 643 - 1845
•
Email: jsibrava@amphenol-aao.com
amphenol-aerospace.com
• amphenolmao.com
XXXXXX
CF-020010-900
1.812
+.020
-.006
MAIN
KEYWAY
K
P
Fiber Transmit 850 nm
CTF-QUAD
Fiber
Transmit
Red
CTF-QUAD
Fiber
Transmit
Blue
CTF-QUAD
Fiber
Transmit
Blue
CTF-QUAD
Fiber
Transmit
Green
Laser Interface
Fiber
Transmit
Red
Laser Interface
Fiber
Transmit
Blue
Laser Interface
Fiber
Transmit
Blue
Differential Copper
Receive Red
Fiber Transmit
Disable Red
Differential Copper
Receive Blue
Fiber Transmit
Disable Blue
Fiber Transmit 850 nm
Fiber Transmit 850 nm
Differential Copper
Receive Clock
Fiber Transmit
Disable Clock
Differential Copper
Receive Green
Fiber Transmit
Disable Green
F
B
P2 CONNECTOR PIN ID
SCALE 3.000
DETAIL A
Fiber Transmit 850 nm
VIEW
Laser Interface
AT RR-RR
Fiber
Transmit
Green
XXXXXX
CF-020010-900
3.3VDC
MAIN
KEYWAY
POWER SUPPLY
3.3VDC
Return
P2 I/O CHART
ID
Signal
TX1
TX2
TX3
TX4
Description
Transmit, Red, Optical
Transmit, Blue, Optical
Transmit, Clock, Optical
Transmit, Green, Optical
PIN 40
P
B
K
PIN 2
VIEW AT RR-RR
PIN ID
0
MAIN
KEYWAY
P
B
XXXXXX
CF-020010-900
F
J2 I/O CHART
PIN ID
1
2
3
4
5
6
7
8
9-12
13
14
15
16
17-32
33
34
35
36
37
38
39
40
Input 3.3VDC Power
3.3VDC Return
Input 3.3VDC Power
3.3VDC Return
Input 3.3VDC Power
3.3VDC Return
Input 3.3VDC Power
3.3VDC Return
Power Supply
Red Transmit Disable
Clock Transmit Disable
Blue Transmit Disable
Green Transmit Disable
No Connect
Set to open on board which disables the channel;
drive to 0V (Logic 0) to enable
Signal
Red Receive Positive
Green Receive Positive
Red Receive Negative
Green Receive Negative
Blue Receive Positive
Clock Receive Positive
Blue Receive Negative
Clock Receive Negative
Description
CML Input Positive Differential Signal for Red Fiber Transmit
CML Input Positive Differential Signal for Green Fiber Transmit
CML Input Negative Differential Signal for Red Fiber Transmit
CML Input Negative Differential Signal for Green Fiber Transmit
CML Input Positive Differential Signal for Blue Fiber Transmit
CML Input Positive Differential Signal for Clock Fiber Transmit
CML Input Negative Differential Signal for Blue Fiber Transmit
CML Input Negative Differential Signal for Clock Fiber Transmit
No Connect
Jared Sibrava
•
Office: +1 (607) 643 - 1845
•
Email: jsibrava@amphenol-aao.com
amphenol-aerospace.com
• amphenolmao.com
CF-020010-000

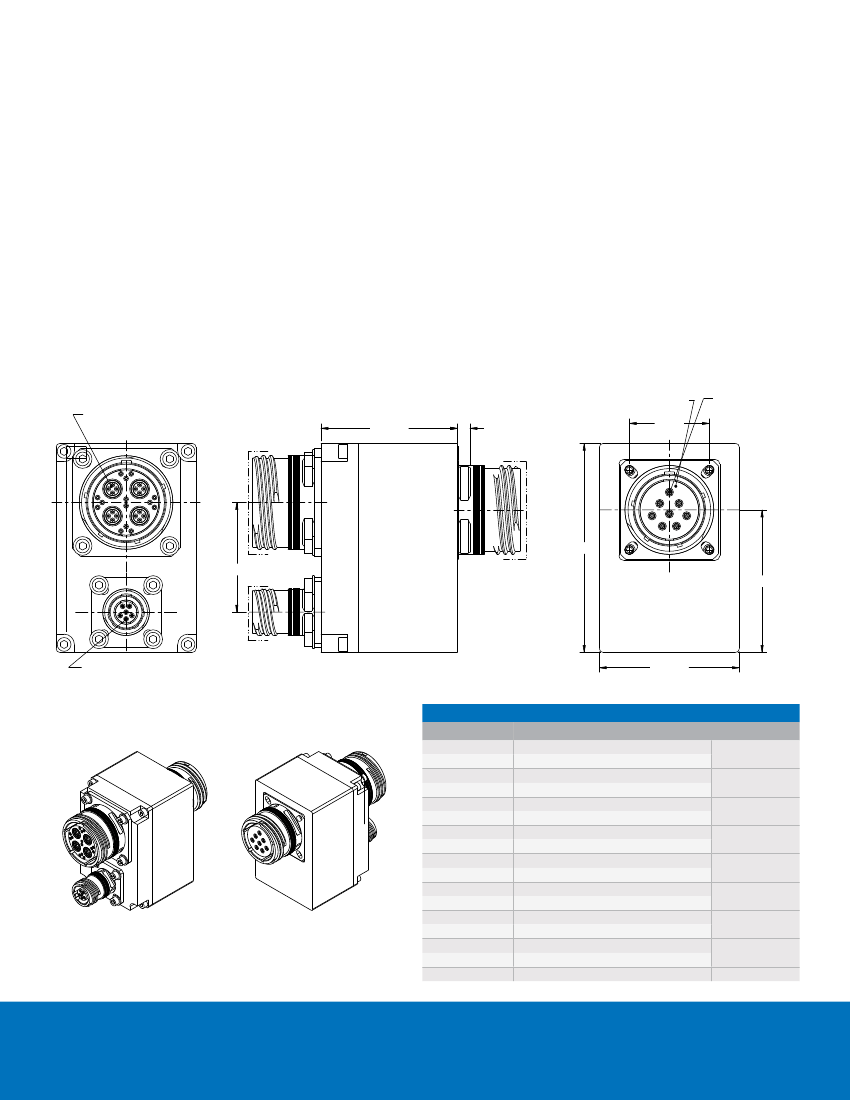

Standalone Single-Channel DVI Copper-to-Fiber and Fiber-to-Copper Converter
•
•
•
•
•
•
•
Converts a single channel of DVI from copper to fiber and a single channel of DVI from fiber to copper.
The copper DVI inputs and outputs are brought out on a shell size 19 MIL-DTL-38999 connector with high speed
Quadrax contacts.
The fiber DVI inputs and outputs are brought out on a shell size 17 MIL-DTL-38999 connector with M29504 fiber
optic contacts.
Input DC power is brought through a shell size 9 MIL-DTL-38999 connector with standard contacts.
-40C - +85C operating temperature and meant for military/commercial aerospace environments.
The parts can be configured with any plating and shell rotation.
Various test assemblies for the copper and fiber are available per request.
CONNECTOR, RECEPTACLE
CF-509017-08S
(1.814)
.234 MAX
PANEL THICKNESS
1.062
TYP
TERMINUS, SOCKET
CF-198183-4208
4 PLACES
DUMMY CONTACT
4 PLACES
CONTACT, SOCKET, QUADRAX
21-033397-221 OR EQUIV
4 PLACES
-B-
J2
J3
(2.777)
1.457
1.893
J1
CONTACT, SOCKET, 22D
10-497623-275
6 PLACES
(1.859)
Wiring Chart
J1 PIN-OUT
1 - Not Connected
J2 PIN-OUT
B1 - TMDS Data 0+Digital Blue + Input
B3 - TMDS Data 0-Digital Blue - Input
B2 - TMDS Data 0-Digital Green + Input
B4 - TMDS Data 0-Digital Green - Input
P1 - TMDS Data 0+Digital Red + Input
P3 - TMDS Data 0-Digital Red - Input
P2 - TMDS Clock+Digital Clock + Input
P4 - TMDS Clock-Digital Clock - Input
F1 - TMDS Data 0+Digital Blue + Output
F3 - TMDS Data 0-Digital Blue - Output
F2 - TMDS Data 0-Digital Green - Output
F4 - TMDS Data 0-Digital Green - Output
K1 - TMDS Data 0+Digital Red + Output
K3 - TMDS Data 0-Digital Red - Output
K2 - TMDS Clock+Digital Clock + Output
K4 - TMDS Clock-Digital Clock - Output
ALL OTHER J2 PINS NOT CONNECTED
J3 PIN-OUT
A - Data 0 Blue
Optical Output
B - Data 0 Green
Optical Output
C - Data 0 Red
Optical Output
D - Data 0 Clock
Optical Output
E - Data 0 Blue
Optical Output
F - Data 0 Green
Optical Output
G - Data 0 Red
Optical Output
H - Data 0 Clock
Optical Output
J3
J3
2 - Not Connected
3 - Not Connected
4 - Not Connected
5 - DC Power
6 - Ground
J2
J2
J1
J1
FRONT ISOMETRIC VIEW VIEW
FRONT ISOMETRIC
REAR REAR ISOMETRIC VIEW
ISOMETRIC VIEW
Jared Sibrava
•
Office: +1 (607) 643 - 1845
•
Email: jsibrava@amphenol-aao.com
amphenol-aerospace.com
• amphenolmao.com

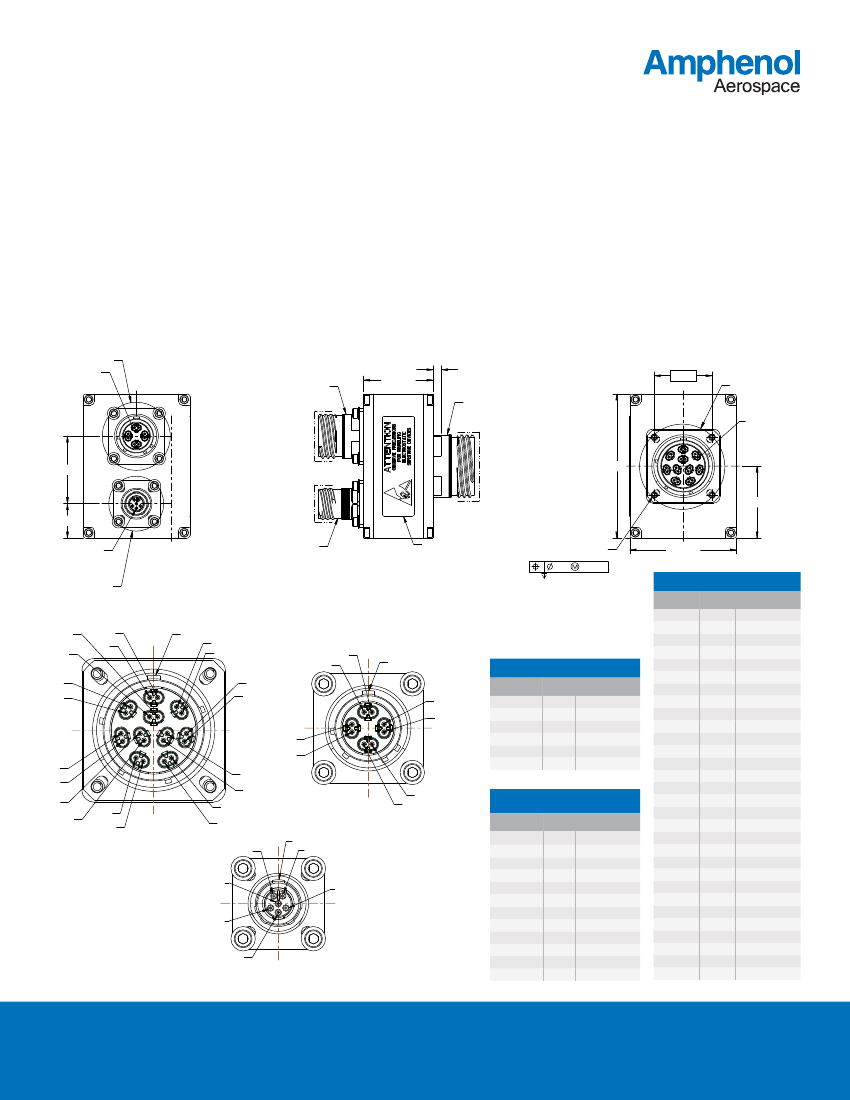

CF-020010-97X
Standalone Copper DVI Splitter From One Unique Channel to Channels
•
•
•
•
•
•
•
Duplicates a single channel of copper DVI to two DVI copper channels
The DVI input connector is a shell size 13 MIL-DTL-38999 with Oval Contact System high speed contacts.
The DVI output connector is a shell size 19 MIL-DTL-38999 with Oval Contact System high speed contacts.
Input DC power is brought through a shell size 9 MIL-DTL-38999 connector with standard contacts.
-40C - +85C operating temperature and meant for military/commercial aerospace environments.
The parts can be configured with any plating and shell rotation.
Various test assemblies for the copper and fiber are available per request.
B
H2
H1
A2
J2
A1
MAIN
CONNECTOR
KEYWAY
G1
G2
SEE DETAIL
OCS CONTACT
21-033588-011
4 PLACES
(1.385)
.204 MAX
PANEL THICKNESS
1.156
TYP
SEE DETAIL
C
RECEPTACLE
TVP00RZW-13-53S TYPE
J3 CONNECTOR
RECEPTACLE
TVP00RZW-19-86S TYPE
F1
F2
B2
B1
OCS CONTACT
21-033588-011
10 PLACES
(1.350)
(2.875)
(1.438)
(.688)
C2
C1
K1
PIN CONTACT
MAIN KEYWAY
SIZE 22D
G1
10-497620-435
G2
6 PLACES
J2
J1
J1 CONNECTOR
RECEPTACLE
D2
TVP00RW-9-35P TYPE
D1
E1
E2
K2
ESD WARNING
LABEL
SEE DETAIL
F1
F2
H2
H1
A
4-40 UNC-2B
LOCKING HELICAL INSERT
.010
.325 MIN
4 PLACES
(2.125)
J3 Connector I/O Chart
PIN ID
A1
A2
A-Outer
B1
B2
B-Outer
C1
C2
C-Outer
D1
D2
D-Outer
E1
E2
E-Outer
F1
F2
F-Outer
G1
G2
G-Outer
H1
H2
H-Outer
J1
J2
J-Outer
K1
K2
K-Outer
J3 CONNECTOR
A2
A1
MAIN KEYWAY
G1
G2
A1
DETAIL
C
Type
OUT
OUT
OUT
OUT
OUT
OUT
OUT
OUT
OUT
OUT
OUT
OUT
OUT
OUT
OUT
OUT
OUT
OUT
OUT
OUT
OUT
OUT
OUT
OUT
—
—
—
—
—
—
Description
Clock+
Clock-
Clock GND
DATA0+
DATA0-
DATA0 GND
DATA1+
DATA1-
DATA1 GND
DATA2+
DATA2-
DATA2 GND
Clock+
Clock-
Clock GND
DATA0+
DATA0-
DATA0 GND
DATA1+
DATA1-
DATA1 GND
DATA2+
DATA2-
DATA2 GND
N/C
N/C
N/C
N/C
N/C
N/C
A2
MAIN KEYWAY
J1 Connector I/O Chart
PIN ID
5
B2
B1
K1
K2
E1
E2
F1
F2
D1
D2
B2
B1
Type
IN
IN
IN
IN
IN
IN
1
Description
MAIN KEYWAY
1
3
4
5
4
6
3
6
2
AIL
NECTOR
C
C2
C1
J2
A2 J1
A1
D2
D1
MAIN KEYWAY
E1
E2
Chassis
Chassis
Chassis
2
Chassis
PWR 28 VDC
GND
K1
K2
C1
J2 CONNECTOR
MAIN KEYWAY
1
DETAIL
B
C2
J2 Connector I/O Chart
DETAIL
A
PIN ID
A1
A2
A-Outer
B1
B2
B-Outer
C1
C2
C-Outer
D1
D2
D-Outer
J1 CONNECTOR
Type
IN
IN
IN
IN
IN
IN
IN
IN
IN
IN
IN
IN
Description
Clock+
Clock-
Clock GND
DATA0+
DATA0-
DATA0 GND
DATA1+
DATA1-
DATA1 GND
DATA2+
DATA2-
DATA2 GND
J3 CONNECTOR
D1
D2
B2
B1
A2
A1
4
6
DETAIL
C
5
2
MAIN KEYWAY
5
3
D1
MAIN KEYWAY
1
C1
J2 CONNECTOR
DETAIL
B
C2
B2
B1
J1 CONNECTOR
4
DETAIL
A
D2
6
2
Jared Sibrava
•
Office: +1 (607) 643 - 1845
•
Email: jsibrava@amphenol-aao.com
3
C1
J2 CONNECTOR
DETAIL
B
C2
DETAIL
amphenol-aerospace.com
A
amphenolmao.com
•
J1 CONNECTOR
