1. Introduction
The NVT2003DP (OM13319), NVT2004TL (OM13316) and NVT2006PW (OM13323)
demo boards are designed to evaluate the NXP 3-channel, 4-channel and 6-channel
bidirectional voltage level translators. The demo boards interface between device I/Os
operating at different voltage levels. Since the NVT2003DP, NVT2004TL and
NVT2006PW devices are passive devices, pull-up resistors may be needed depending on
the I/O interface type (totem pole or open-drain), difference in translation voltage, and the
translation direction (high to low voltage, low to high voltage, or bidirectional). The
NVT2003DP, NVT2004TL and NVT2006PW devices allow translations between any
voltages from 1.0 V to 5.5 V.
Please refer to NVT2003/04/06 data sheet (Ref.
1)
and application note
AN11127 (Ref.
2)
for more detailed information.

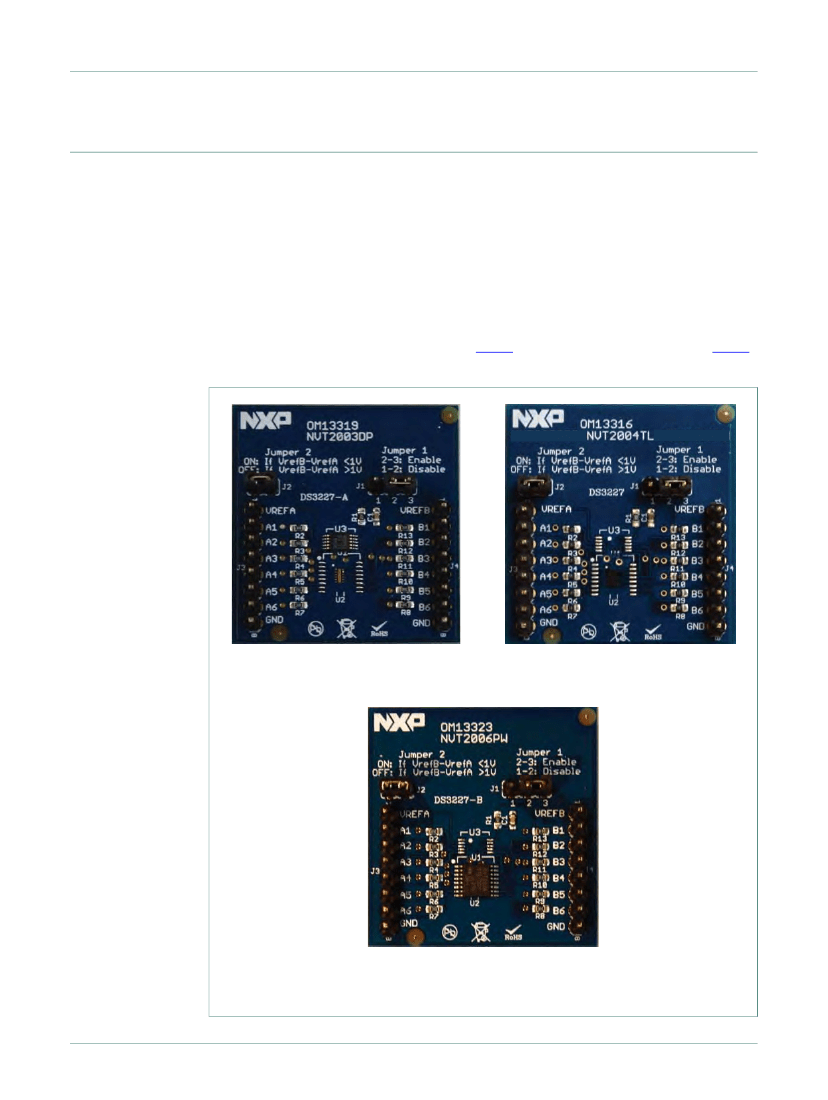

019aac708
019aac709
a. NVT2003DP (OM13319)
b. NVT2004TL (OM13316)
019aac710
c. NVT2006PW (OM13323)
Fig 1.
UM10539
Bidirectional voltage level translators demo boards
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2012. All rights reserved.
User manual
Rev. 1 — 7 March 2012
3 of 7
NXP Semiconductors
UM10539
NVT2003DP, NVT2004TL and NVT2006PW demo boards
2. Hardware description
2.1 Schematic
The demo boards contain footprints for the NVT2003DP, NVT2004TL and NVT2006PW,
where the jumpers, headers, and passive components are shared. The NVT2003DP,
NVT2004TL and NVT2006PW demo board schematic is shown in
Figure 2.
Pin 2 and
pin 3 on J1 need to be shorted to enable the part. Pin 1 and pin 8 on J3 are power and
GND for the low voltage side. Pin 1 and pin 8 on J4 are power and GND for the high
voltage side. All Bn I/O pins on the right side have 10 kΩ pull-up resistors to VREFB and
all An I/O pins on the left side have 10 kΩ pull-up resistors to VREFA through jumper J2.
A shunt needs to be installed at J2 if VREFB
−
VREFA < 1 V. If VREFB
−
VREFA
≥
1 V,
then the J2 should be open and resistors R2 through R7 must be removed. If they are
not removed, then a resistive path exists between the A-side I/Os that can impact the
efficiency and signal integrity of the solution.
Jumper:
ON: if VREFB − VREFA < 1 V
(populated 10 kΩ pull-up resistors)
OFF: if VREFB − VREFA ≥ 1 V
(do not populate 10 kΩ pull-up resistors)
low voltage
A-side
J3
J1
2-3: switch enable
1-2: switch disable
NVT2006PW
1
J2
JP
1
2
3
R1
200 kΩ
VREFA 2
16
15
EN
VREFB
EN_VREFB
B1
B2
B3
B4
B5
B6
C1
0.1 μF
1
2
3
4
5
6
7
8
CON8
VREFA
A1
A2
A3
A4
A5
A6
GND
2
high voltage
B-side
J4
A1
A2
A3
A4
A5
A6
3
4
5
6
7
8
U1
1
14
13
12
11
10
9
GND
VREFB
B1
B2
B3
B4
B5
B6
GND
1
2
3
4
5
6
7
8
CON8
R7 10 kΩ
NVT2004TL
VREFA 2
12
11
A1
3
A2
4
A3
5
A4
6
U2
NVT2003DP
EN
VREFB
A1
3
A2
4
A3
5
U3
EN_VREFB
VREFA 2
10
9
EN
VREFB
R13 10 kΩ
R2 10 kΩ
R3 10 kΩ
R4 10 kΩ
R5 10 kΩ
R6 10 kΩ
R8 10 kΩ
R9 10 kΩ
R10 10 kΩ
R11 10 kΩ
R12 10 kΩ
EN_VREFB
1
B1
10
B2
9
B3
8
B4
7
GND
1
B1
8
B2
7
B3
6
GND
002aag939
Fig 2.
NVT2003DP, NVT2004TL and NVT2006PW demo board schematic
UM10539
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2012. All rights reserved.
User manual
Rev. 1 — 7 March 2012
4 of 7
NXP Semiconductors
UM10539
NVT2003DP, NVT2004TL and NVT2006PW demo boards
2.2 Jumper and header functions
The functions of the jumpers and headers on this demo board are shown in
Table 1.
Table 1.
Header descriptions for NVT2003DP (OM13319), NVT2004TL (OM13316) or NVT2006PW (OM13323)
demo boards
Function
Device switch enable or disable
control
Connects 10 kΩ pull-up resistors to
VREFA on low voltage side for
VREFB
−
VREFA < 1 V
Low voltage VREFA, GND and
An I/O signal connect pins
Notes
Short pins 2 and 3 to enable the NVT2003DP, NVT2004TL or
NVT2006PW device (default). When pins 1 and 2 are shorted,
the device is disabled.
Short pins 1 and 2 to connect 10 kΩ pull-up resistors to VREFA
on low voltage side.
Remark:
Pins 1 and 2 must be open and 10 kΩ pull-up resistors
must be removed when VREFB
−
VREFA
≥
1 V.
Pin 1 = VREFA: low voltage power.
Pin 8 = GND: low voltage ground.
A[1:3] are low voltage signals for NVT2003DP.
A[1:4] are low voltage signals for NVT2004TL.
A[1:6] are low voltage signals for NVT2006PW.
J4 (8-pin)
High voltage VREFB, GND and
Bn I/O signal connect pins
Pin 1 = VREFB: high voltage power.
Pin 8 = GND: high voltage ground.
B[1:3] are high voltage signals for NVT2003DP.
B[1:4] are high voltage signals for NVT2004TL.
B[1:6] are high voltage signals for NVT2006PW.
Jumper/header
J1 (3-pin)
J2 (2-pin)
J3 (8-pin)
