Note: Unbalanced is measured between ground-signal-ground conductors. Balanced is measured between conductors within a pair.
Environmental
Temperature Rating:
-40°C to +105°C
Flammability Rating:
UL: Horizontal
UL File No. :E42769, Style No: 21008
3
Interconnect Solutions
http://www.3Mconnectors.com
Halogen Free is defined as both 1) no halogen compounds that are intentionally added to the product or
used in the manufacturing process for the product and 2) any impurities present are less than 900 ppm
bromine, less than 900 ppm chlorine and/or less than 1500 ppm total bromine and chlorine. The latter are
the levels set forth in certain industry standards for printed circuit boards, such as the International
Electrotechnical Commission (IEC) 61249-2-21 standard. This information represents 3M’s knowledge
and belief which may be based in whole or in part on information provided by 3rd party suppliers to 3M.
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

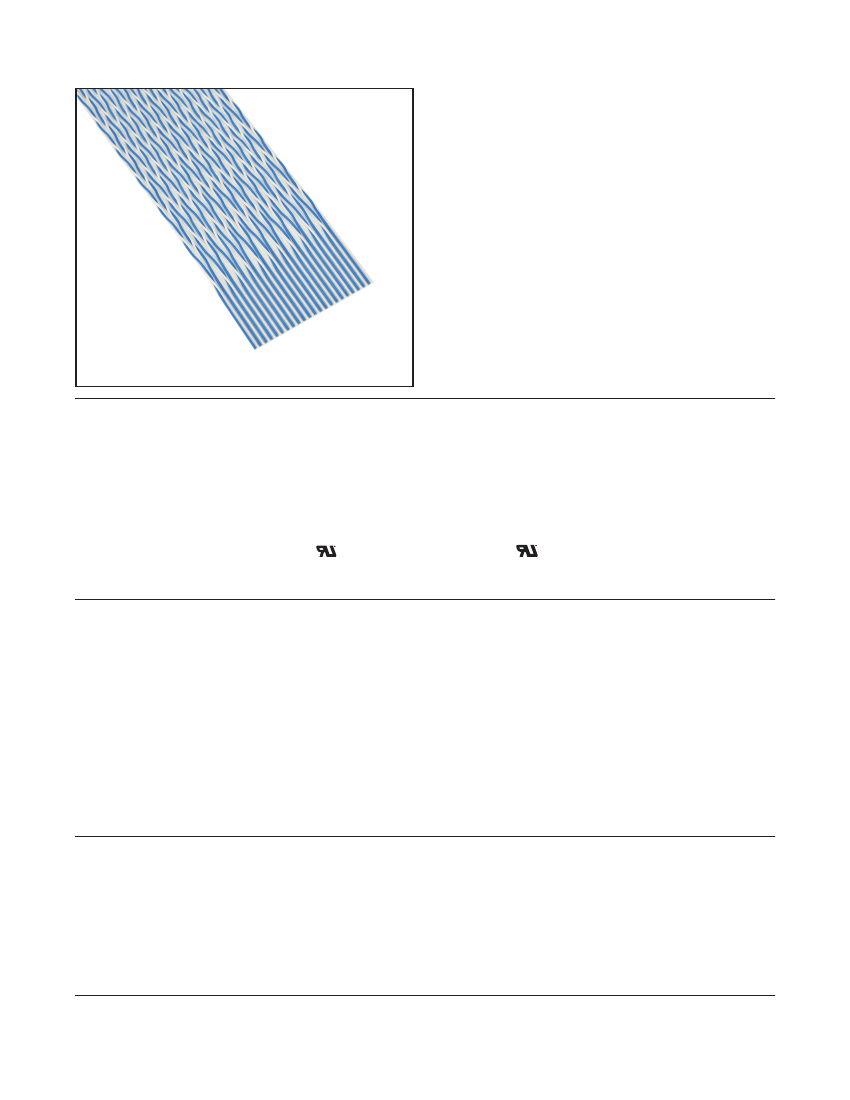

Twisted Pair Flat Cable
C
Number of
Conductors
10 (5 pair)
14 (7 pair)
16 (8 pair)
20 (10 pair)
24 (12 pair)
26 (13 pair)
30 (15 pair)
34 (17 pair)
40 (20 pair)
50 (25 pair)
60 (30 pair)
64 (32 pair)
.050" 28 AWG Stranded, Mass Terminable, Halogen Free PO
3M Part Number
HF100/10TP
HF100/14TP
HF100/16TP
HF100/20TP
HF100/24TP
HF100/26TP
HF100/30TP
HF100/34TP
HF100/40TP
HF100/50TP
HF100/60TP
HF100/64TP
Dimension A
0.50 [ 12.7 ]
0.70 [ 17.8 ]
0.80 [ 20.3 ]
1.00 [ 25.4 ]
1.20 [ 30.5 ]
1.30 [ 33.0 ]
1.50 [ 38.1 ]
1.70 [ 43.2 ]
2.00 [ 50.8 ]
2.50 [ 63.5 ]
3.00 [ 76.2 ]
3.20 [ 81.3 ]
HF100 Series
Dimension B
(See Note 2)
0.450 ± .010 [ 11.43 ]
0.650 ± .010 [ 15.88 ]
0.750 ± .010 [ 20.96 ]
0.950 ± .010 [ 22.23 ]
1.150 ± .010 [ 24.77 ]
1.250 ± .010 [ 31.12 ]
1.450 ± .015 [ 36.80 ]
1.650 ± .015 [ 37.47 ]
1.950 ± .015 [ 42.55 ]
2.450 ± .015 [ 50.17 ]
2.950 ± .015 [ 62.87 ]
3.150 ± .015 [ 80.01 ]

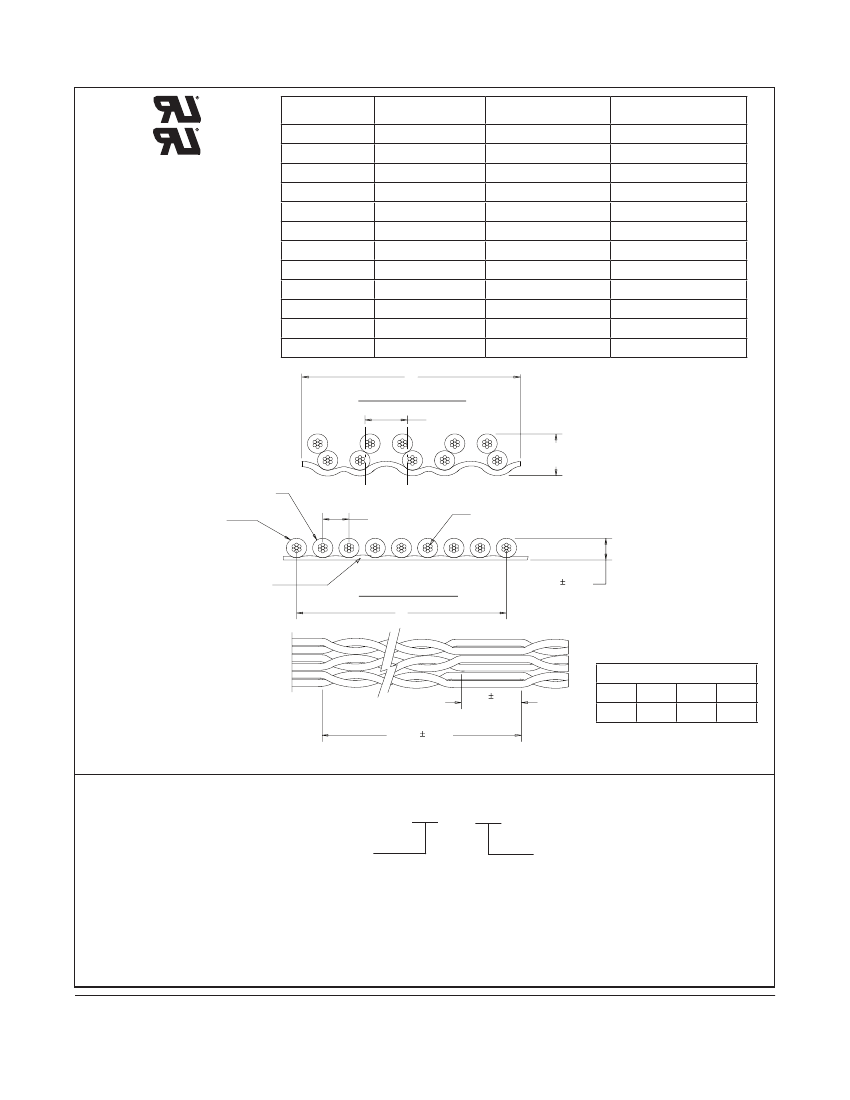

Section thru Twist
.100 [ 2.54 ] Ref
.07 Ref
[ 1.8 ]
Dark
Gray
Blue
( See note 1 )
.050 Typ
[ 1.27 ]
A
28 AWG 7 X 36 ( 7 X 0.127) Tinned
Stranded Copper Conductors
PO Carrier
Section thru Flat
B
.043 .003
[ 1.09 ]
Inch
[mm]
Tolerance Unless Noted
1.97 .32
[ 50 ]
.0
Inch
±.1
.00
±.01
.000
±.005
Note:
1. Blue edge conductor designates wire one of pair one.
2. Dimension B pertains to bonded area only.
19.68 .71
[ 500 ]
See note 4
[ ] Dimensions for Reference Only
Ordering Information
Number of Conductors
(See Table)
HF100/XX TP XX
Blank = Standard
SF = Splice Free
Note:
3. Available in standard lengths of 100 ft and 300 ft per roll, please specifiy when ordering.
4. Standard product has a 2" flat on 19.7" repeat (50 mm bond on 500 mm repeat). For special
requirements, please contact your 3M sales representative. The flat can be specified anything over
1" (25 mm), the repeat can be specified from 6.5" to 48" (16.5 cm to 1.2 m ).
TS-2344-C
Sheet 2 of 2
3
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness
is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated
with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order
shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of one (1) year from the time of purchase.
3M MAKES NO OTHER WARRANTIES
INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
If this product is defective within the
warranty period stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except
where prohibited by law, 3M will not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of
