1210ASM-2R7K-01

Description
Fixed Inductor 2700nH 10% tol Non-Mag Chip IND
CategoryPassive components    Inductor, choke coil and coil    Fixed inductance
File Size594KB,1 Pages
ManufacturerFastron
Environmental Compliance
Download Datasheet Parametric View All

1210ASM-2R7K-01 Online Shopping

Suppliers Part Number Price MOQ In stock
1210ASM-2R7K-01 - - View Buy Now

1210ASM-2R7K-01 Overview

Fixed Inductor 2700nH 10% tol Non-Mag Chip IND

1210ASM-2R7K-01 Parametric

Parameter NameAttribute value
MakerFastron
Product Categoryfixed inductor
Shipping restrictionsMouser does not currently sell this product.
Termination typeSMD/SMT
shieldUnshielded
inductance2.7 uH
Tolerance10 %
Maximum DC current260 mA
Maximum DC resistance3.3 Ohms
self resonant frequency140 MHz
Minimum operating temperature- 40 C
Maximum operating temperature+ 150 C
Q minimum25
Test frequency7.9 MHz
terminal-
Installation stylePCB Mount
Package/box3.8 mm x 3 mm x 2.4 mm
length3.8 mm
width3 mm
high2.4 mm
applicationNon-Magnetic
series1210ASM
EncapsulationReel
Core materialCeramic
productFixed Inductors
shell code - in1210
Factory packaging quantity800
unit weight54 mg
www.fastrongroup.com
1210 ASM
Non-magnetic
Engineer’s Kit : EK-1210ASM-X
3.00 max
Ne
w
2.40 max
2.7
0.51
1.15
3.80 max
2.12
3.14
2.1
(Wire wound -open)
Irms derating
120
110
100
90
80
70
60
50
40
30
20
25 °C
10
0
-40 -20 0 20 40 60 80 100 120 140
Ambient temperature (°C)
0.51
Epoxy
flat top
1.15
recommended layout
for solder pads
Percent of rated Irms
2.42
0.10 ~ 0.40
1.20 Ref
Part No
Inductance
L (nH)
f
L
(MHz)
50
50
50
50
50
50
50
50
50
50
50
50
25
25
25
25
25
25
25
25
25
25
25
25
25
7.9
7.9
7.9
7.9
7.9
7.9
7.9
7.9
7.9
7.9
7.9
7.9
7.9
Tol
± (%)
10
10
10
10
10
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
10
10
10
10
10
10
10
10
10
10
10
10
10
10
Q
min
50
50
50
50
55
55
60
60
65
65
65
60
60
60
50
50
50
45
45
45
45
45
45
45
35
35
25
25
25
25
25
20
20
15
15
17
17
15
f
Q
(MHz)
500
500
500
350
350
350
350
350
350
350
350
350
350
350
100
100
100
100
100
100
100
100
100
100
50
50
50
50
50
25
25
25
25
25
25
7.9
7.9
7.9
SRF
(MHz)
4100 min
2400 min
2400 min
2400 min
2400 min
1800 min
1600 min
1500 min
1200 min
1200 min
1000 min
1000 min
1000 min
850 min
750 min
700 min
650 min
600 min
500 min
500 min
450 min
415 min
350 min
350 min
290 typ
250 typ
200 typ
160 typ
160 typ
140 typ
120 typ
100 typ
90 typ
60 typ
60 typ
45 typ
38 typ
20 typ
DCR
max
(Ω)
0.08
0.09
0.10
0.11
0.12
0.13
0.14
0.15
0.16
0.16
0.20
0.22
0.24
0.26
0.29
0.31
0.35
0.42
0.49
0.54
0.60
1.00
1.15
1.93
2.16
2.38
2.64
2.76
2.98
3.30
3.66
4.00
4.30
4.30
5.20
5.90
6.00
7.00
Rated DC
Current
max (mA)
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
980
920
870
830
790
730
680
640
610
460
420
350
330
310
300
290
280
260
250
240
230
230
210
168
160
120

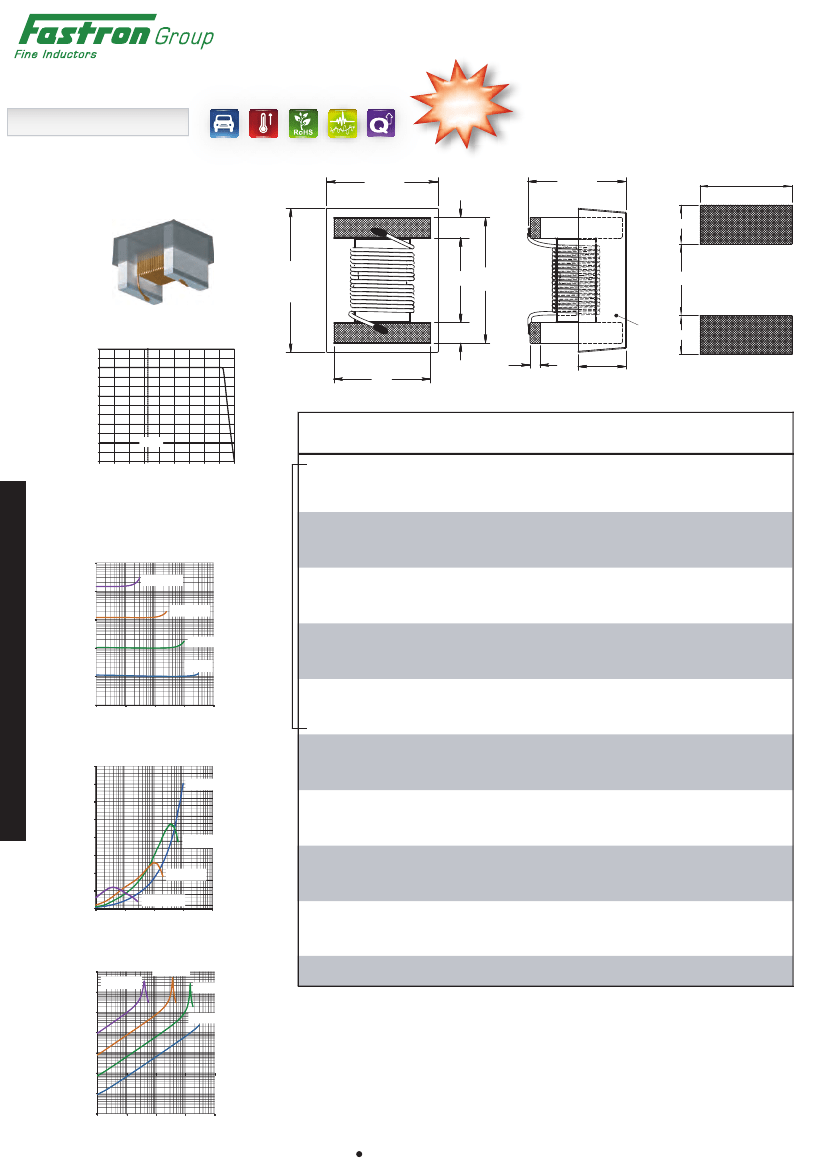

Chip Inductors for RF / Medical Applications
Current carrying capacity dependent on
the ambient temperature
100000
10000
Typical Ls vs Frequency (ƒ)
15000 nH
1000
100
10
1
1200 nH
100 nH
10 nH
1
10
100 1000 10000
Frequency (MHz)
160
140
120
Typical Q vs Frequency (ƒ)
10 nH
100
80
60
40
20
0
1
10
15000 nH
100 1000 10000
1200 nH
100 nH
Frequency (MHz)
Typical |Ζ| vs Frequency (ƒ)
100000
10000
15000 nH
1200 nH
100 nH
1210ASM-010K-YY
1210ASM-012K-YY
1210ASM-015K-YY
1210ASM-018K-YY
1210ASM-022K-YY
1210ASM-027J-YY
1210ASM-033J-YY
1210ASM-039J-YY
1210ASM-047J-YY
1210ASM-056J-YY
1210ASM-068J-YY
1210ASM-082J-YY
1210ASM-R10J-YY
1210ASM-R12J-YY
1210ASM-R15J-YY
1210ASM-R18J-YY
1210ASM-R22J-YY
1210ASM-R27J-YY
1210ASM-R33J-YY
1210ASM-R39J-YY
1210ASM-R47J-YY
1210ASM-R56J-YY
1210ASM-R68J-YY
1210ASM-R82J-YY
1210ASM-1R0K-YY
1210ASM-1R2K-YY
1210ASM-1R5K-YY
1210ASM-1R8K-YY
1210ASM-2R2K-YY
1210ASM-2R7K-YY
1210ASM-3R3K-YY
1210ASM-3R9K-YY
1210ASM-4R7K-YY
1210ASM-5R6K-YY
1210ASM-6R8K-YY
1210ASM-8R2K-YY
1210ASM-100K-YY
1210ASM-150K-YY
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
1200
1500
1800
2200
2700
3300
3900
4700
5600
6800
8200
10000
15000
Impedance (Ω)
Q Factor
Inductance (nH)
Single layer (typ)
1000
10 nH
100
10
1
0.1
0.01
1
10
100
1000 10000
Core Material :
Ceramic
SPQ :
Taped / Reel
800 [-01]
3000 [-04]
Revision date : 16 Apr 2018
Remarks:
- For not listed inductance values please check availability with us.
- 2% and 5% tolerance available on request.
Frequency (MHz)
All dimensions in mm
