ADLINK Mini-ITX Boards: Smaller form factor for today's compact systems
Industry trends indicate that users require a smaller and lower cost solution for their system requirements. Mini-ITX has a smaller board size
and lower keep-out zones to enable a reduced chassis size for systems placed on the user’s desk, mounted on a display, or installed in
space-restrictive environments.

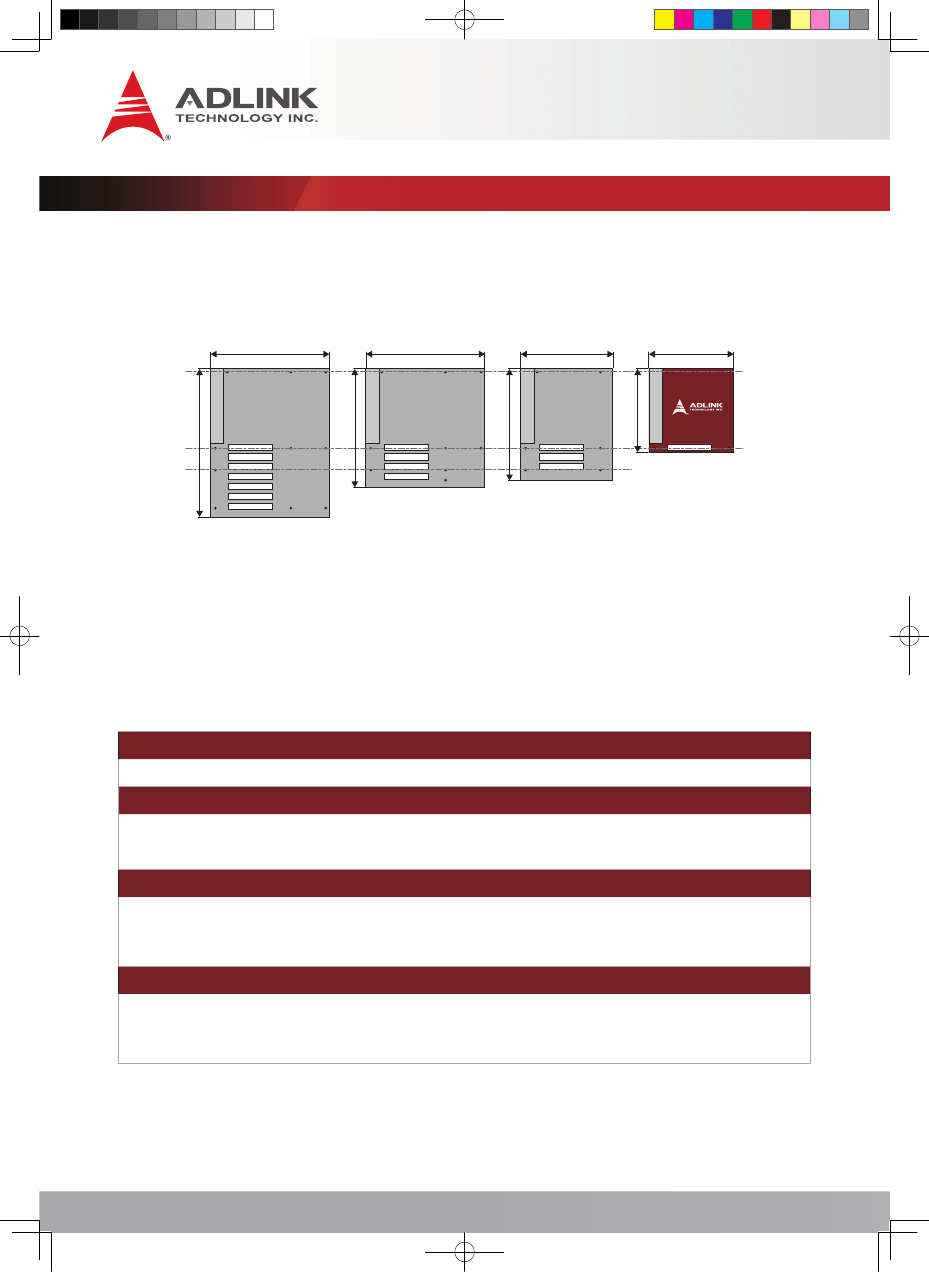

9.625" (24.5 cm)
9.625" (24.5 cm)
7.50" (19.05 cm)
6.75" (17 cm)
12.00
9.625
9.00
6.75
Mini-ITX
Micro-ATX
ATX
In addition to deployment in smaller chassis designed around the Mini-ITX form factor, these boards are compatible with ATX and microATX
chassis without the need to retool the I/O shield. Mini-ITX boards are ideal for applications in industrial automation,
self-service kiosks, and other infotainment driven solutions.
Flex-ATX
Flexible, high speed and better connectivity
ADLINK Mini-ITX boards support the latest Intel and AMD processors to deliver a high performance and
space-saving platform for a wide array of embedded computing applications. Along with its compact footprint, this product line supports
high processing speeds and high-bandwidth network connectivity with PCI
Express
®
-based Gigabit Ethernet. Coupled with ample memory, diverse I/O, storage, and audio interfaces, ADLINK Mini-ITX boards are
suitable for multimedia, automation control, and gaming applications requiring a compact, easy-to deploy, and cost-effective mainboard.
Rich I/O
•
Vertical onboard USB interface
Easy Development and Maintenance
•
Dual fail-safe BIOS
•
BMC onboard
•
SEMA and SEMA Cloud support IoT deployment
Excellent Graphics Performance
•
•
•
•
HDMI
LVDS onboard
Multi DisplayPort
PCIe slot for external graphics
Others
•
•
•
•
SATADOM support
+5VDC DC/DC converter
TPM onboard
ATX or 12VDC-only power input
Flyer_ADLINK Mini-ITX.indd 4
2015/2/16 上午 10:02:14

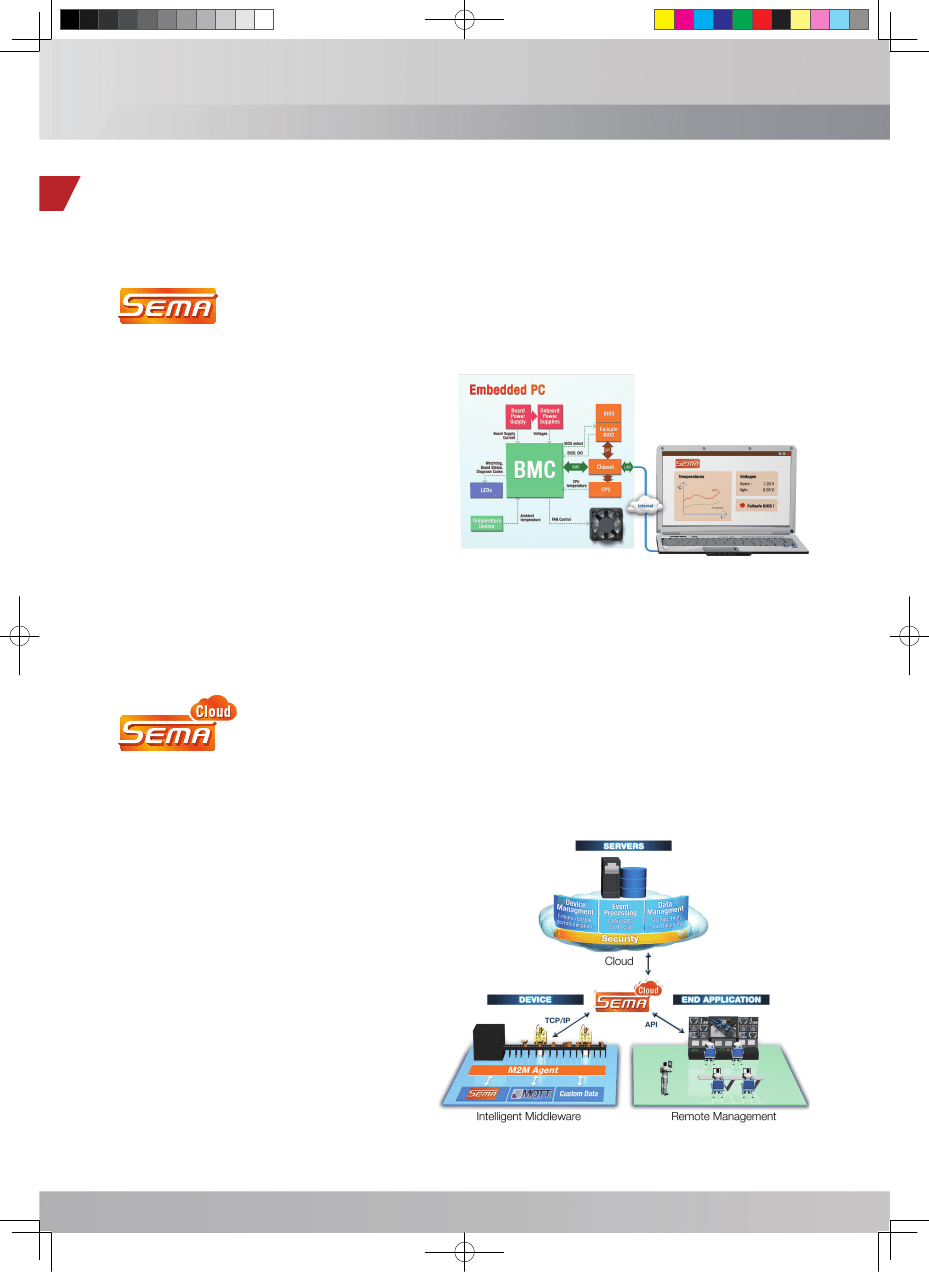

SEMA Cloud IoT Solution based on ADLINK Mini-ITX Platform
SEMA - Intelligent Middleware to Monitor your Device
Today’s Embedded PC Systems need to provide both optimal performance and low power consumption. This can be
difficult to accomplish without adequate control and system management tools to detect potential problems before
they get out of hand. To meet these requirements, a tool is needed which is able to monitor and gather performance
and status necessary information from the hardware in a timely, flexible and precise manner. ADLINK’s Smart Embedded Management
Agent (SEMA) accomplishes these goals for you, the developer and end user.
Time-to-Market (TTM) and Total-Costs-of-Ownership (TCO)
are key aspects to producing competitive products. To
combine TTM and TCO in a reliable manner, a solid and reliable
platform is fundamental. To assist in this endeavor, every new
ADLINK computer-on-module (COM) is equipped with a Board
Management Controller (BMC) device supporting SEMA.
Initially designed for power sequencing tasks, the BMC has
evolved to include many new and useful features through
the years. Measuring the supply current to get a snapshot
of the system’s power consumption is only one of the new
capabilities. Being compatible with the latest Embedded
Application Programming Interface specification (EAPI) reduces
your effort to port existing calls to SEMA to nearly zero!
Interfacing the hardware to the operating system is one of SEMA's most important functions. The BMC first collects all relevant information
from the chipset and other sources. Using the System Management Bus driver, the application layer fetches the data and presents it to the
user.
An Intelligent Cloud Solution for Remote Monitoring, Management and Control
Configure, Control and Manage - Anywhere, Anytime
ADLINK's SEMA Cloud takes today’s intelligent middleware a step further than previous generations of remote
management technology. By employing cloud server architecture and a machine-to-machine (M2M) stack on
top of the intelligent middleware, embedded devices can be connected to the cloud without additional design
requirements. ADLINK's SEMA Cloud solution provides the entire infrastructure, from gathering local data on
the device and pushing it securely to the cloud, to the cloud server which stores and processes the data, to the user interface that lets
operators remotely monitor, control and configure devices. With SEMA Cloud, users can remotely access power supply voltage, CPU
temperature, fan rotation speed and other critical data to push data to the cloud. It enables operators to verify, monitor and manage system
performance from a single, central location – improving reliability and reducing management costs.
ADLINK´s SEMA Cloud solution provides customers with a
one-stop shopping model for bringing device data into the
cloud rapidly and effectively. ADLINK offers all parts of a cloud
solution:
•
Client application for fetching and pushing data to the cloud
•
Cloud server infrasttructure for hosting and precessing data
•
End application to monitor, control and configure devices
Flyer_ADLINK Mini-ITX.indd 5
2015/2/16 上午 10:02:50
Infotainment Applications in Retail, Medical and Digital Signage
ADLINK Infotainment solution for Gaming and Retail services include ATMs, floor plan guides, lottery & slot machines and supermarket self-
service kiosks. ADLINK Mini-ITX industrial motherboards provide flexible connection possibilities for system integrators to link and manage
multiple peripherals to meet application needs. Video lottery terminal and slot machines must sustain continuous operation; thus, hardware
stability and ease of maintenance become essential. ADLINK extensive experience and capabilities in hardware design and software
development combined with our self-owned manufacturing base allows us to provide reliable products of superior quality for different
solutions.
In the retail environment, multimedia digital signage that combines entertainment and information is one of the best ways to communicate
with consumers. Intelligent display panels powered by ADLINK Mini-ITX motherboards can be installed above checkout counters or in
other suitable locations. Supermarket self-service kiosks are stand-alone terminals which integrate environment information, promotional
products, membership management and other relevant data through interactive multimedia communication.
Medical environments require highly accurate video images with low latency during surgical procedures, such as X-ray, ultrasound, and
endoscopy. This market presents diverse opportunities for embedded designers, fueled by demand for real-time data processing and
sharing, high definition imaging and graphics displays, and creative, compact solutions that enable healthcare anywhere. ADLINK expertly
solves these medical design challenges, offering intelligent embedded platforms that help OEMs/ODMs innovate, reduce risk and accelerate
time-to-market with solutions validated for high performance and complex regulatory requirements. For medical device developers and
manufacturers, ADLINK is your complete supplier of Mini-ITX industrial motherboards that provide robust, fault-free connectivity, as
well as the wide range of high-speed I/O required to support the broad and growing spectrum of imaging and diagnostics applications.
Development time is reduced, and medical device manufacturers can focus on their core competencies in creating competitive, high
performance healthcare applications.
Mini-ITX Applications
Retail
Medical
Digital Singage
Requirements
•
TTM
•
Processing performance
•
High performance HD graphics
•
Quality product and service
•
High performance HD graphics
•
Multi DisplayPort/HDMI/LVDS
outputs
•
Flight information display
•
Out of home advertising
Applications
•
Kiosk (e.g. ATM, POS)
•
Vending machine
•
•
•
•
Ultrasound
MRI
Point-of-care terminal
Patient’s bedside terminal
Flyer_ADLINK Mini-ITX.indd 6
2015/2/16 上午 10:03:20

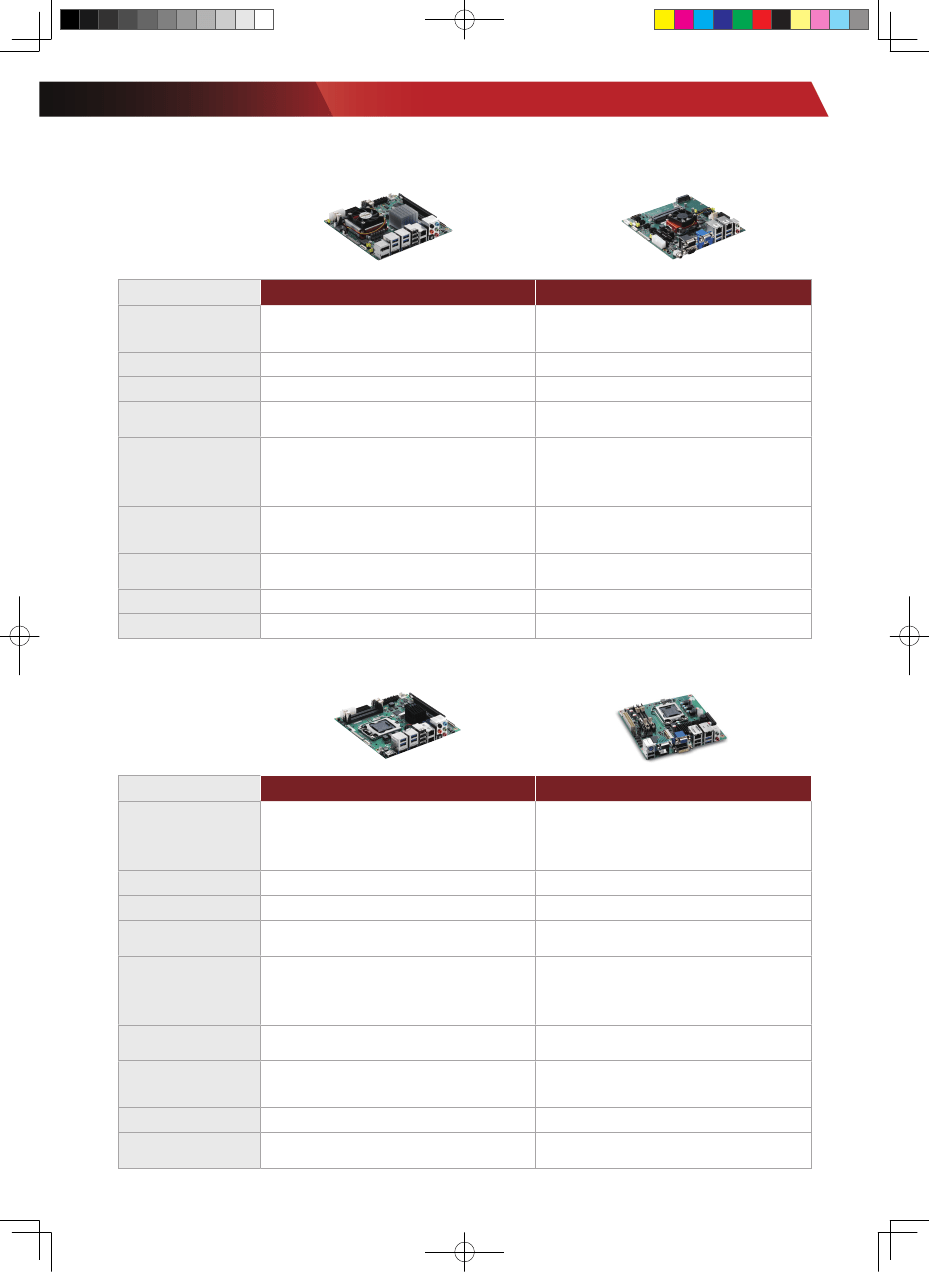

Mini-ITX boards
Product Number
CPU
Memory
SATA
USB
®
AmITX-BE-G
AMD RX-427BB/425BB/225FB
non-ECC 1333/1666 MHz DDR3L memory up to 16 GB
3x SATA 6.0
4x USB 3.0
11x USB 2.0
1x PCIe x16
1x PCIe x1
1x full size Mini PCIe
1x half size Mini PCIe
1x SPI header for external BIOS
1x RS-232/422/485
3x RS-232
AMD
®
Radeon HD 9000
4 DisplayPort, LVDS
2x GbE
0°C to 60°C
AmITX-BT-I
Intel
®
Atom™ Processors E3800 series SoC
Intel
®
Celeron
®
N2930/J1900
non-ECC 1333/1066 MHz DDR3L memory up to 8 GB
2x SATA 3.0
4x USB 3.0
6x USB 2.0
1x PCIe x1
1x Mini-PCIe
1x mSATA
1x RS-232
2x RS-232/422/485
2x RS-232/422/485
Intel
®
Gen7 graphics core
VGA, HDMI, LVDS
2x GbE
0°C to 60°C
Expansion Slots
Serial Port
Display
Ethernet
Operating Temperature
Product Number
AmITX-HL-G
Intel
®
Core™ Processors i7-4700S/4770TE,
i5-4570S/4570TE, i3-4330/4330TE
Pentium
®
Processors G3420/G3320TE
Celeron
®
Processors G1820/G1820TE
non-ECC 1333/1666 MHz DDR3L memory up to 16 GB
3x SATA 6.0
4x USB 3.0
11x USB 2.0
1x PCIe x16
1x PCIe x1
1x full size Mini PCIe
1x half size Mini PCIe
1x SPI header for external BIOS
1x RS-232/422/485
3x RS-232
Intel
®
Generation 7.5
3 DispayPort, LVDS
2x GbE
0°C to 60°C
-40°C to + 85°C (optional)
AmITX-IB-I
Intel
®
Xeon
®
Processors E3-1275v2/1224v2
Intel
®
Core™ Processors i7-3770, i5-3550S, i3-3220
Intel
®
Pentium
®
Processor G2120
Intel
®
Celeron
®
G1620
non-ECC 1333/1066 MHz DDR3L memory up to 16 GB
2x SATA 3.0
2x USB3.0
7x USB2.0
CPU
Memory
SATA
USB
Expansion Slots
1x PCI Express x4
1x Mini-PCIe
Serial Port
5x RS-232
1x RS-232/422/485
Intel
®
HD Graphics
VGA, DVI, HDMI, Dual Display VGA+DVI-D,
VGA+HDMI, DVI+HDMI
2x GbE
0°C to 60°C
Display
Ethernet
Operating Temperature
Flyer_ADLINK Mini-ITX.indd 1
2015/2/16 上午 10:04:13
