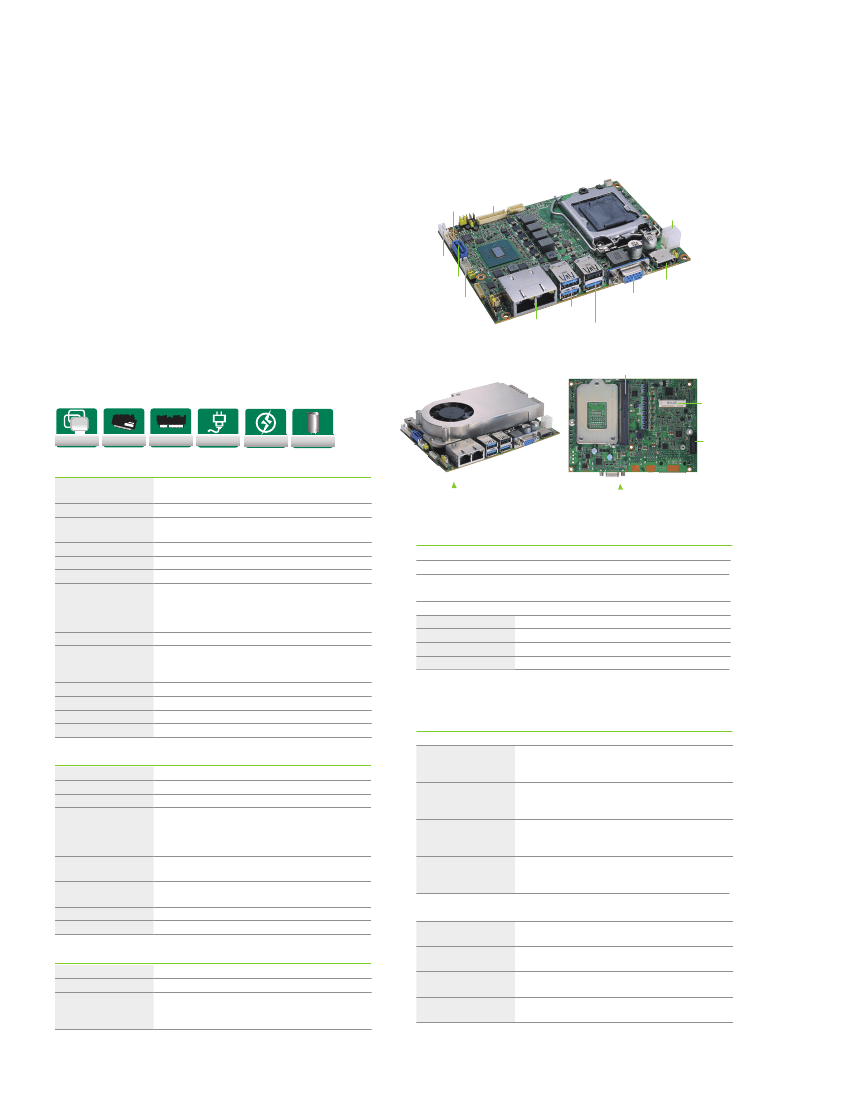

CAPA500

3.5" Embedded SBC with LGA1151 Socket 7th/6th Gen Intel® Core™ i7/i5/i3 Processor,

LVDS/VGA/HDMI, Dual GbE LANs and Audio

Features

●

LGA1151 7th/6th gen Intel® Core™ i7/i5/i3 processor

(Kaby Lake/Skylake)

●

Intel® H110 chipset (Q170 optional)

●

1 DDR4 SO-DIMM, up to 16GB

●

3 USB 3.0 and 3 USB 2.0

●

1 COM port

●

Intel® AMT 11 supported (optional)

Audio

LVDS

+12V power input

COM 1

SATA-3

USB 2.0 2/3

VGA

USB 3.0 1/2

Ethernet 1/2 USB 3.0 3 + USB 2.0 1

DDR4 SO-DIMM

Full-size PCI Express

Mini Card slot with

mSATA supported

HDMI

DDR4

PCIe Mini

TripleView

DDR4

PCIe Mini

+12V

AiRD

Full Solid

Cap Design

Core System

CPU

System Memory

Chipset

BIOS

SSD

Watchdog Timer

Expansion Interface

LGA1151 7th/6th gen Intel® Core™ i7/i5/i3 processor

(TDP up to 35W)

1 x 260-pin DDR4-2400 SO-DIMM, up to 16GB

Intel® H110

Intel® Q170 (optional)

AMI

N/A

255 levels, 1 ~ 255 sec.

1 x full-size PCI Express Mini Card slot with mSATA

supported

1 x USB, 1 x PCIe x1, 1 x LPC, 1 x SMBus through a ZIO

connector (optional)

Lithium 3V/220mAH

2 x 2-pin connector

+12V DC-in only

AT Auto Power On function supported

146 x 104 mm

1.6 mm

-20°C ~ +60°C (-4°F ~ +140°F), operation

10% ~ 95% relative humidity, non-condensing

Assembly View

Rear view

ZIO connector

(1 x PCIe x1,

1 x USB, 1 x LPC,

1 x SMBus)

Packing List

Standard

Quick installation guide, user's manual/utility CD and cable

Accessories

Part Number

59380880250E

59312260020E

59382631000E

5078E880100E

Battery Lithium

Power Input

Description

COM port cable DB9-9x1P L=250 mm P=1.25 mm

Audio cable w/ bracket P=1.25 mm L=450 mm

2 x USB 2.0 wafer cable w/ bracket 180 mm

Heatsink w/ fan

Qty

Size

Board Thickness

Temperature

Relative Humidity

Ordering Information

3.5" embedded SBC with LGA1151 socket 7th/6th gen

Intel® Core™ i7/i5/i3 processor, Intel® H110 chipset,

VGA/LVDS/HDMI, 2 GbE LANs, audio and gift box

CAPA500VHGGA-Q170

3.5" embedded SBC with LGA1151 socket 7th/6th gen

(E38E500102)

Intel® Core™ i7/i5/i3 processor, Intel® Q170 chipset,

VGA/LVDS/HDMI, 2 GbE LANs, audio and gift box

CAPA500VHGGA-H110-ZI0 3.5" embedded SBC with LGA1151 socket 7th/6th gen

(P/N: E38E500101)

Intel® Core™ i7/i5/i3 processor, Intel® H110 chipset,

VGA/LVDS/HDMI, 2 GbE LANs, audio and ZIO connector

CAPA500VHGGA-Q170-ZI0 3.5" embedded SBC with LGA1151 socket 7th/6th gen

(P/N: E38E500100)

Intel® Core™ i7/i5/i3 processor, Intel® Q170 chipset,

VGA/LVDS/HDMI, 2 GbE LANs, audio and ZIO connector

Optional

AX93262

(P/N: E393262100)

AX93285

(P/N: E393285100)

AX93291

(P/N: E393291100)

AX93295

(P/N: E393295100)

Standard

CAPA500VHGGA-H110

(P/N: E38E500103)

I/O

MIO

SATA

Hardware Monitoring

Ethernet

1 x RS-232/422/485; with +5V/+12V powered

1 x SATA-600

Detect CPU/system temperature, voltage and fan speed

1 port 10/100/1000 Mbps supports Wake-on-LAN, PXE Boot

ROM with Intel® i211AT

1 port 10/100/1000 Mbps supports Wake-on-LAN, PXE Boot

ROM with Intel® i219LM

HD Codec audio as MIC-in/Line-in/Line-out with Realtek

ALC662

3 x USB 3.0

3 x USB 2.0

System Management Bus for advanced monitoring/control

8 channels in/out programmable

Audio

USB

SMBus

Digital I/O

Display

Chipset

Memory Size

Display Interface

Intel® integrated Gfx graphic engine

Share system memory

1 x VGA

1 x LVDS; 18/24-bit single/dual channel

1 x HDMI

ZIO module for 2 x RS-232/422/485, 2 x RS-232,

1 x PCI Express Mini Card slot

ZIO module for 2 x RS-232, 32-bit programmable DIO

ZIO module for 2 x RS-232, 2 x GbE LAN

ZIO module for 2 x isolated RS-232, 2 x USB 3.0

Updated Feb. 21, 2018. * All specifications and photos are subject to change without notice.
