STEVAL-BTDP2
USB dongle for the Bluetooth® class 2 SPBT3.0DP2 module
Data brief
Description

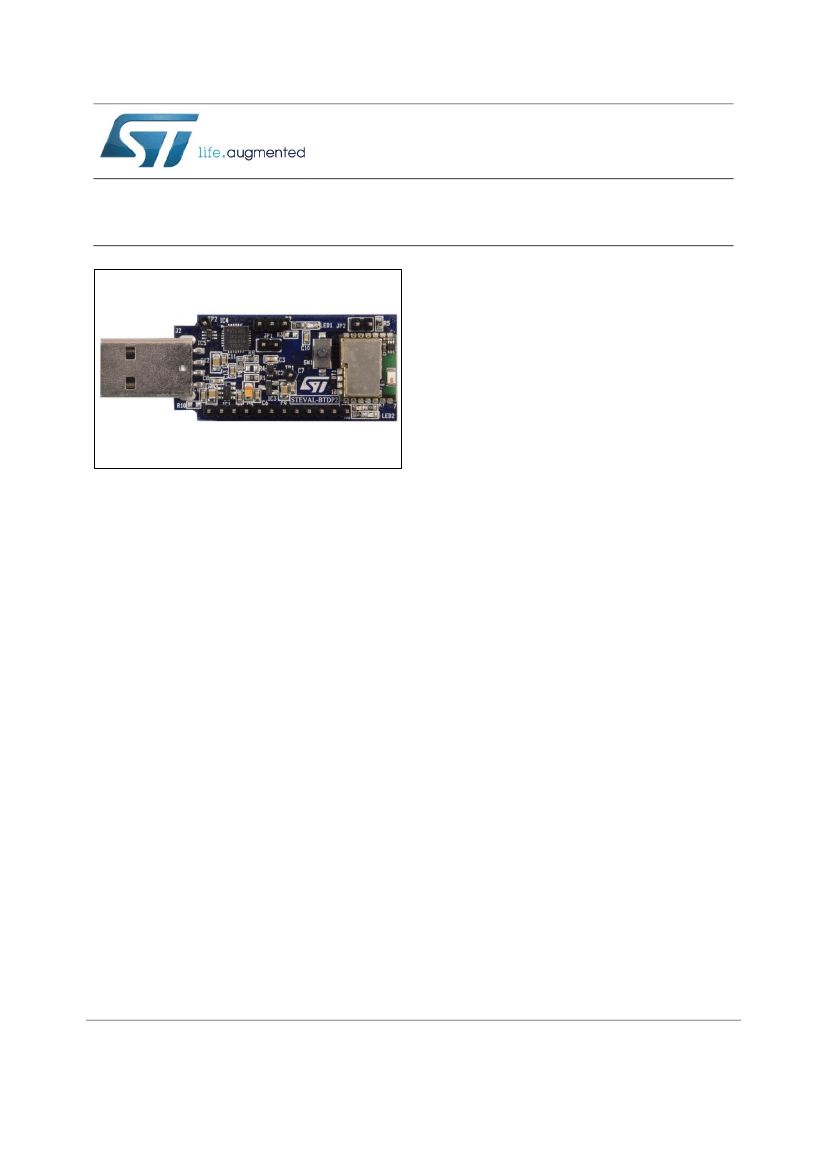

The STEVAL-BTDP2 dongle demonstration tool
is exclusively designed for quick and easy
SPBT3.0DP2 module evaluation.
The dongle includes an RF antenna and a USB
connector to allow PC communication with the
Bluetooth
®
module and power the dongle.
The STEVAL-BTDP2 includes downloaded
firmware so you can create a Bluetooth
®
link
using simple AT commands (see user manual
UM2077 on www.st.com for the complete list of
AT commands).
Features
Based on the V3.0 Bluetooth
®
class 2
module SPBT3.0DP2
USB interface and power supply
Reprogramming support via USB interface
Reset button
On-board Antenna
RoHS compliant
May 2017
DocID030682 Rev 1
1/7
www.st.com
For further information contact your local STMicroelectronics sales
office
Recommended operating
conditions
STEVAL-BTDP2
1
Recommended operating conditions
Table 1: Operating conditions
Symbol
V
DD
T
OP
Parameter
Board supply voltage
Operating case temperature range
Conditions
-40 °C < T < 85 °C
Min.
4.5
-40
Typ.
5
Max.
5.5
+85
Unit
V
°C
2/7
DocID030682 Rev 1
STEVAL-BTDP2
I/O
connections
2
2.1
I/O connections
PAD description
PAD1 to PAD15 also allow user access to the SPBT3.0DP2 module.

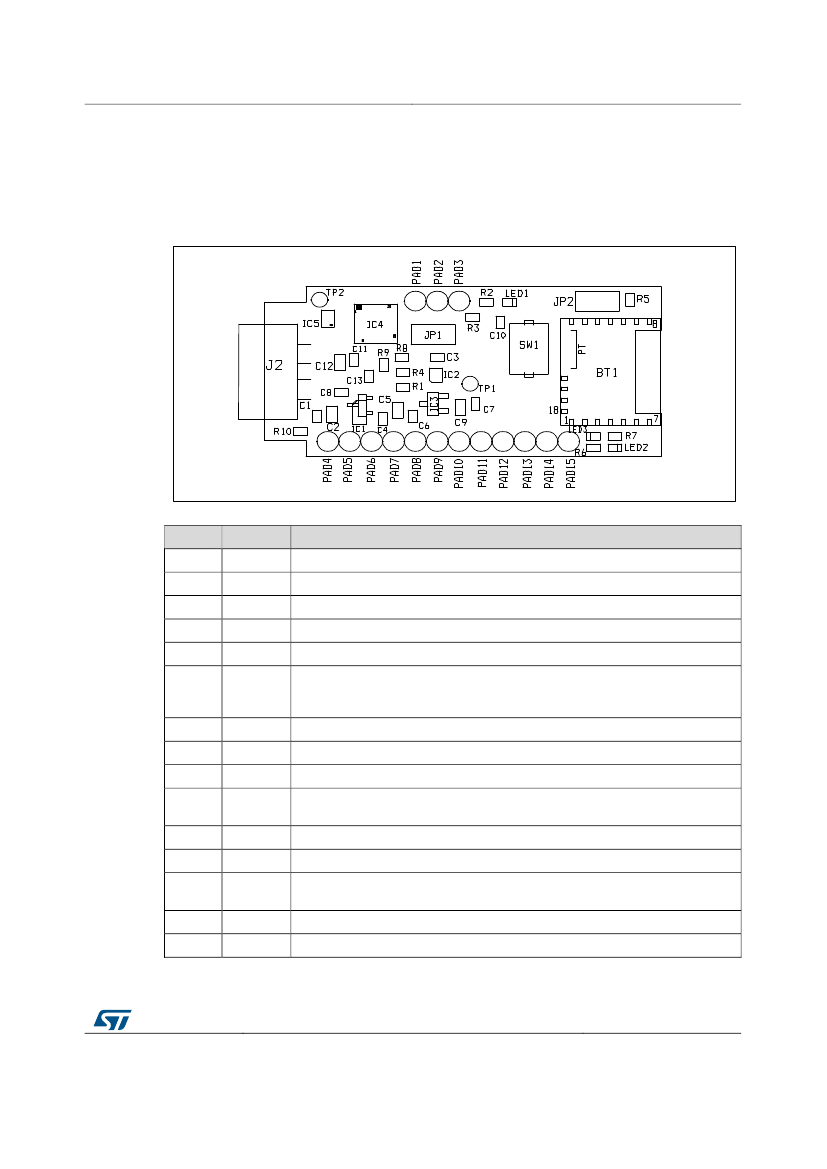

Figure 1: STEVAL-BTDP2 component layout
Table 2: Pad connections
PAD n°
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Name
BOOT0
3.3 V
RESETN
GND
+5 V
LPO
GPIO08
GPIO07
LDOUT
GPIO01
GPIO02
GPIO03
GPIO04
GPIO06
GPIO05
USB
Factory configuration: 32.768 KHz frequency output. Pad can be reconfigured
via SW as input for external 32.768 KHz to allow lower power consumption in
deep sleep mode and sniff mode.
General purpose I/O
General purpose I/O
1.8 V LDO output, max 10 mA
General purpose I/O LED2 is connected to this GPIO, LED2 is ON when
Bluetooth link is up
General purpose I/O
General purpose I/O
General purpose I/O LED3 is connected to this GPIO, LED3 is ON when
SPBT3.0DP2 is in Active State
General purpose I/O
General purpose I/O
Description
Boot pin used for firmware downloading
LED1 is connected to this PAD
Reset - connected in parallel to onboard reset switch
DocID030682 Rev 1
3/7
I/O
connections
STEVAL-BTDP2
Factory configuration - different configurations can be chosen (see the
SPBT3.0DP2 datasheet).
2.2
Reset switch
Reset switch SW1 on the dongle forces the SPBT3.0DP2 module to reset and the
information figured below is shown on the PC.
The actual BDAddress number may be different on your machine.

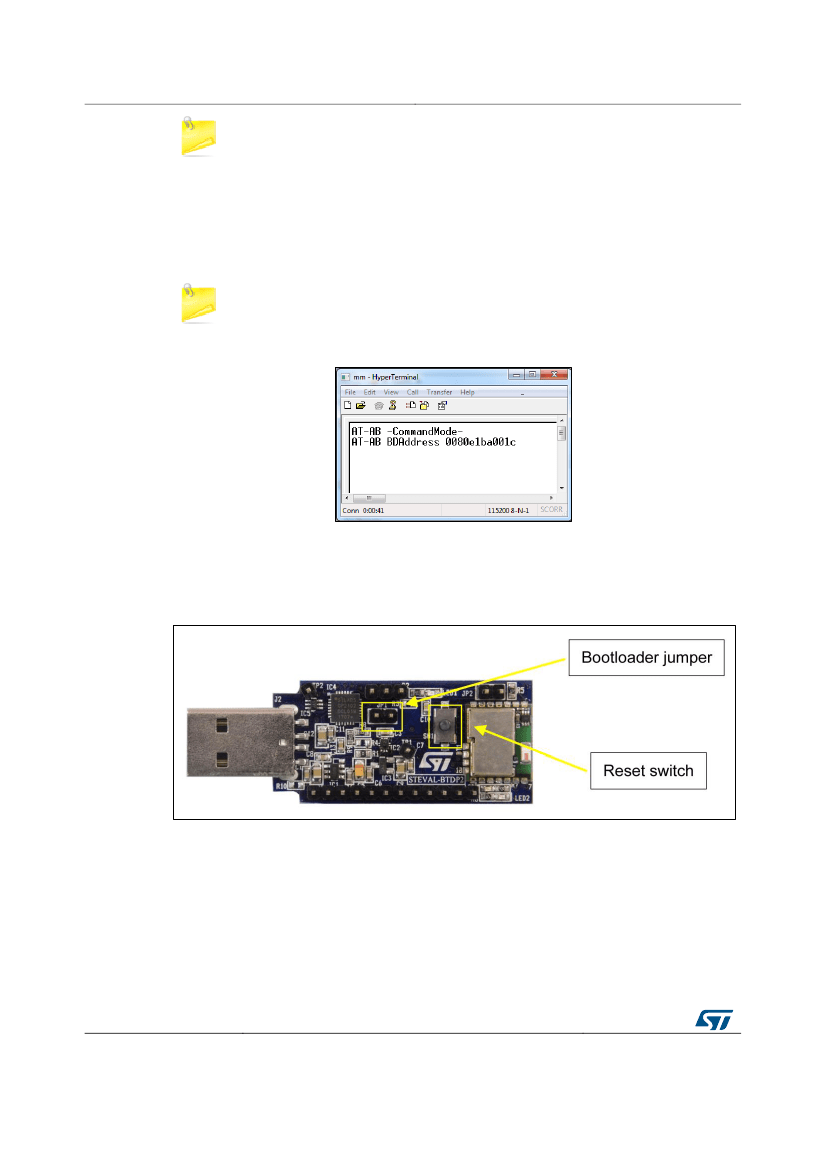

Figure 2: AT command prompt
2.3
Bootloader jumper
When Bootloader jumper (JP1) is closed, the SPBT3.0DP2 enters Bootloader mode after
reset.
Figure 3: Reset switch and Bootloader jumper
Bootloader mode is used to update the module firmware.
The STM32 Flash loader demonstrator GUI (see user manual UM0462 on www.st.com)
can be used to update the SPBT3.0DP2 module.
A detailed description of the firmware update procedure can be found in user manual
UM2077 on www.st.com.
4/7
DocID030682 Rev 1
3
STEVAL-BTDP2
IC 1
LD S3985 M 33 R
1
V in
INH IB IT
8
7
GND
OE
V out
B yP ass
TP 1
5
4
C3
100 n
+3.3V_H C
3
2
GND
IC 3
M C P1700 T1802 E
GND
U 1A 1
M C P 1701 T-3302 E/TT
3
2
V in
V out
C5
22 µ
6.3V
(TA N T.)
9
A2
B2
V CC A
C1
100 n
C4
10 n
C2
10µ
6.3V
1.8V
6
IC 2
ST 2G 323 6
5
J1
3
V in
V out
2
GND
10
A1
D IR 1
V CC B
D IR 2
B1
4
1
C7
100 n
C9
10 µ
6.3V
C8
100 n
1
R1
0 O hm
C6
1µ F
JTR ST
JTD O
JTC K
JTM S
JTD I
nR ESE T
1
2
3
1
2
3
4
5
6
7
8
+3.3V
CON8
Dongle schematic
TXD _C P210 2
R TS _C P210 2
WARNING: nRESET signal level max=2.5V
+3.3V
R XD _C P 2109 .
C TS _C P 210 2
R2
470 O hm
R3
18
17
16
15
PT 55
PT 59
PT 56
PT 58
PT 57
PT 60
LED 1
G R EE N
BT 1
SW 1
LP O
1
G P IO 01
G P IO 02
LD O U T
G P IO 07
G P IO 08
TXD
R XD
R TS
14
S W PU SH B U TT O N
2
3
4
5
6
IC 4
13
C 10
PB 4/JN TR S T
PB 3/JTD O
PA 15 /JTD I
PA 14 /JT C K
PA 13 /JTM S
NR S T
JP1
G P IO 03
G P IO 04
G P IO 05
G P IO 06
12
100 n
R4
N .M .
C TS
R ESE T
11
10
B OO T
7
GND
V IN
9
R5
28
27
26
25
24
23
22
D TR
DSR
TX D
RXD
R TS
C TS
NC
Figure 4: STEVAL-BTDP2 schematic
C 12
10 µ
6.3V
C 13
1µ F
8
9
10
11
12
13
14
VB U S
/R S T
NC
/S U SPE N D
S U SPE N D
NC
NC
LP O
G P IO 08
G P IO 07
LD O U T
G P IO 01 /SP I_ M IS O
G P IO 02 /SP I_ M O S I/I2S _S D
G P IO 03 /SP I_ C LK /I2 S _C K
G P IO 04 /SP I_ SS /I2 S _W S
G P IO 05
G P IO 06 /D A C
PA D 4
PA D 5
PA D 6
PA D 7
PA D 8
PA D 9
PA D 3
PA D 2
PA D 10
PA D 11
PA D 12
PA D 13
PA D 15
PA D 14
Dongle schematic
SCHEMA-V01.DSN
PA D 1
R 10
N .M .
+5 V U SB (V CC )
R ESET N
4
3
2
1
D1
GND
D2
1
2
3
D4
3.3V
D3
B OO T 0
DocID030682 Rev 1
1
2
3
4
5
6
7
C P 210 2
TP 2
+3.3V_C P210 2
8
0 O hm
+5V _U SB (VCC )
DC D
RI
GND
D+
D-
V dd
R E G IN
NC
NC
NC
NC
NC
NC
NC
21
20
19
18
17
16
15
JP2
R6
LE D 2
C 11
100 n
47 O hm
G R EE N
R7
LE D 3
U SB M ALE C O NN EC TO R
47 O hm
G R EE N
R9
4.7K
R8
4.7K
J2
IC 5
U SB U F01 W 6
6
5
4
+3.3V
5/7
