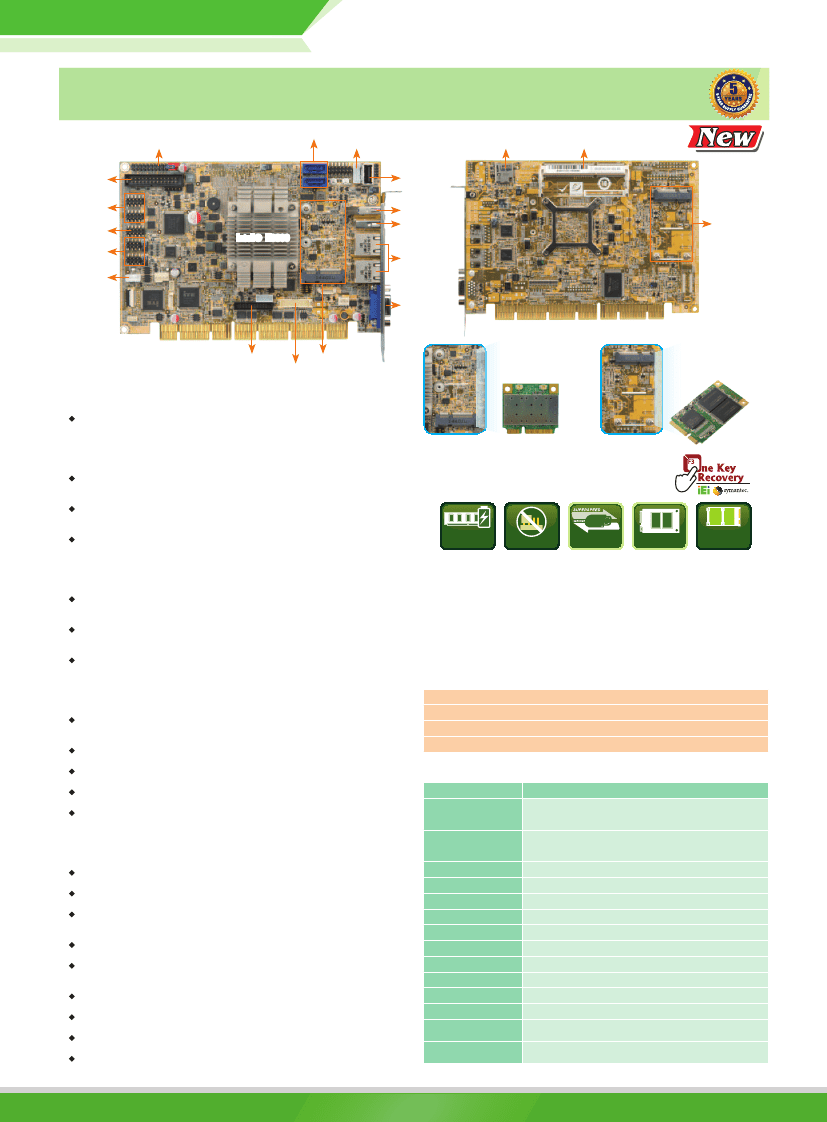

Single Board Computer
Half-size
w w w.ieiworld.com
PCISA-BT
TPM
LPT
2 x RS-232
DIO
4 x USB 2.0
RS-422/485
Half-size PCISA CPU card supports Intel® 22nm Atom™ on-board SoC with
VGA, iDP, Dual Intel® PCIe GbE, USB 3.0, PCIe Mini, SATA, mSATA, COM,
Audio and RoHS
2 x SATA 3Gb/s
KB/MS
microSD
DDR3L 1066/1333 MHz
USB 2.0
Type A
USB 3.0
USB 2.0
Intel
®
E3800
LAN
mSATA
VGA
iDP
PCIe Mini
LVDS (optional)
PCIe Mini slot
PCIe Mini slot for full-size
or half-size devices
mSATA
mSATA slot for full-size
mSATA
Specifications
SoC
Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3827 on-board SoC (1.75GHz, dual-core, 1MB cache, TDP=8W)
Intel® Atom™ E3826 on-board SoC (1.46GHz, dual-core, 1MB cache, TDP=7W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
Intel® Atom™ E3815 on-board SoC (1.46GHz, single-core, 512KB cache, TDP=5W)
Memory
One 204-pin 1066/1333MHz single-channel DDR3L SDRAM unbuffered DIMM
(system max. 8GB)
Graphics
Intel® HD Graphics Gen 7 Engines with 4 execution units, supporting DX11.1, OpenGL 4.2
and OpenCL1.2
Display Output
Dual independent display
VGA (up to 2560x1600@60Hz)
18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
(optional, MOQ: 100 pcs/lot)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60Hz)
Ethernet
LAN1: Intel® I211-AT PCIe controller
LAN2: Intel® I211-AT PCIe controller
External I/O Interface
1 x VGA
2 x RJ-45
1 x USB 2.0
1 x USB 3.0
Internal I/O Interface
1 x IR
1 x KB/MS (1x6 pin)
1 x LPT (2x13 pin)
4 x USB 2.0 (2x4 pin, P=2.54)
1 x RS-422/485 (1x4 pin, P=2.0)
1 x USB 2.0 (180 degree type A)
2 x RS-232 (2x5 pin, P=2.54)
2 x SATA 3Gb/s
1 x mSATA (SATA 3Gb/s, shares with SATA1)
Audio
Support 7.1 channel HD audio by IEI AC-KIT-892HD kit
1 x Analog audio (2x5 pin)
TPM
1 x TPM (2x10 pin)
SMBus
1 x SMBus (1x4 pin)
I²C
1 x I²C (1x4 pin)
Expansion
1 x microSD socket
1 x PCIe Mini slot
PCIe-PCI bridge: ITE8892E
LPC-ISA bridge: F85226FG
PCI and ISA signal via golden finger
Watchdog Timer
Software programmable supports 1~255 sec. system reset
Digital I/O
1 x 8-bit digital I/O (2x5 pin)
Fan Connector
1 x Smart fan connector (1x4 pin)
1 x System fan connector (1x3 pin)
Power Supply
5V/12V, AT/ATX support
Power Consumption
5V@1.55A,12V@0.74A (Intel® Atom™ E3845 1.91GHz CPU with one 8GB 1333MHz
memory)
Operating Temperature
-20°C ~ 60°C
Storage Temperature
-30°C ~ 70°C
Dimensions
185 mm x 128 mm
Weight
GW: 1000g/NW: 250g
1.35V
DDR3L
USB
Jumper-less
USB 3.0
mSATA
PCIe Mini
Expansion
Features
● Half-size PCISA CPU card supports Intel® 22nm Atom™ or Celeron® on-board SoC
● Supports dual LAN by Intel® I211-AT PCIe controllers
● Supports 1.35 V 1333/1066 MHz DDR3L SDRAM up to 8GB
● Supports dual independent display with one analog CRT, iDP and one 24-bit dual-
channel LVDS (optional)
● COM, USB 3.0, SATA 3Gb/s, PCIe Mini, mSATA and HD Audio support
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
Packing List
1 x PCISA-BT single board computer
1 x SATA cable
1 x Utility CD
1 x QIG (Quick Installation Guide)
Ordering Information
Part No.
PCISA-BT-E38451-R10
Description
Half-size PCISA CPU card supports Intel® Atom™ E3845 (10W)
on-board SoC with VGA, iDP, Dual Intel® PCIe GbE, USB 3.0,
PCIe Mini, SATA, mSATA, COM, Audio and RoHS
Half-size PCISA CPU card supports Intel® Atom™ E3825 (6W)
on-board SoC with VGA, iDP, Dual Intel® PCIe GbE, USB 3.0,
PCIe Mini, SATA, mSATA, COM, Audio and RoHS
RS-422/485 cable, 200mm, P=2.0
PS/2 KB/MS Y-cable with bracket, 220mm
SATA power cable, MOLEX 5264-4P to SATA15P
LPT flat cable, 280mm
Dual RS-232 cable, 230mm, P=2.54
Realtek ALC892 7.1 channel HD audio peripheral board
DisplayPort to DVI-D converter board (for IEI iDP connector)
DisplayPort to HDMI converter board (for IEI iDP connector)
DisplayPort to LVDS converter board (for IEI iDP connector)
DisplayPort to VGA converter board (for IEI iDP connector)
DisplayPort to DisplayPort converter board
(for IEI iDP connector)
20-pin Infineon TPM module, software management tool,
firmware V3.17
PCISA-BT-E38251-R10
32205-003800-300-RS
19800-000075-RS
32102-000100-200-RS
32200-015100-RS
19800-000051-RS
AC-KIT-892HD-R10
DP-DVI-R10
DP-HDMI-R10
DP-LVDS-R10
DP-VGA-R10
DP-DP-R10
TPM-IN01-R11
Note: Models with other CPUs not listed in the table are requested by MOQ - 100 pcs/lot.
