DS1302 Real-Time Clock Module (#29125)

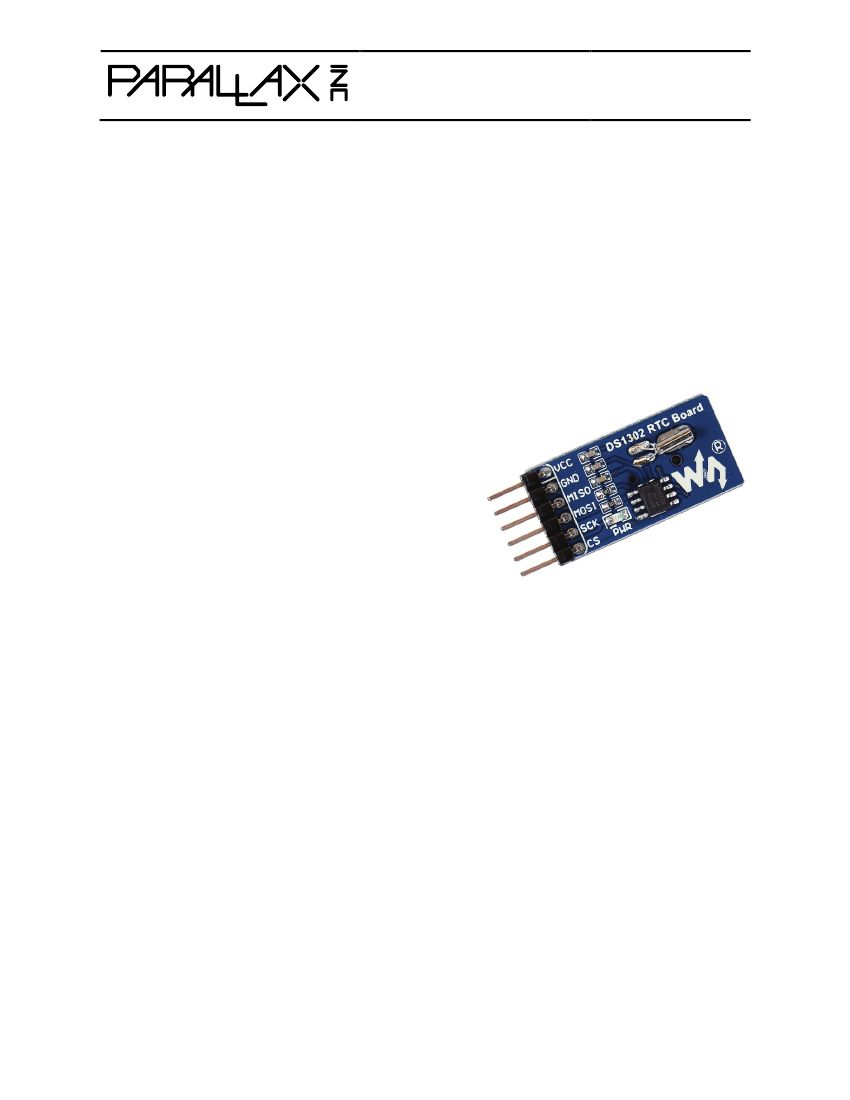

The DS1302 Real Time Clock Module provides a DS1302 real-time clock with a 32 kHz crystal and on-
board battery backup, all in a small SIP module that can be easily plugged into a breadboard.
The DS1302 provides seconds, minutes, hours date, day of week and year with leap-year compensation
up to the year 2100. You can use 24-hour mode or 12-hour mode with AM/PM indication and there are
31 bytes of RAM that are also battery-backed.
Give your project the ability to tell time, store time or make time-based decisions with 1 second
resolution in a small, compact form-factor. Easily store settings or parameters using the 31 bytes of
battery-backed RAM.
Features
On-board CR1220 battery holder
SPI interface supports 3-wire or 4-wire synchronous
serial connection
Wide operating voltage supports 3.3V and 5V
microcontrollers
Convenient SIP header makes breadboarding easy
Specifications
Power Requirements: 3.3-5 VDC
Current Requirements: 3.2 mA @ 5 VDC
Communication Interface: SPI @ Vdd (3 or 4 wire)
Operating temperature: +32 to +158 °F (0 to +70 °C)
Dimensions: 1.22 x 0.6 in (31.2 x 15.5 mm)
Application Ideas
Electronic Clock
Datalogger with Date/Time stamp
Sprinkler Control Timer
Copyright © Parallax Inc.
DS1302 Real-Time Clock Module (#29125)
v1.0 2/17/2017 Page 1 of 3
Quick-Start Circuit

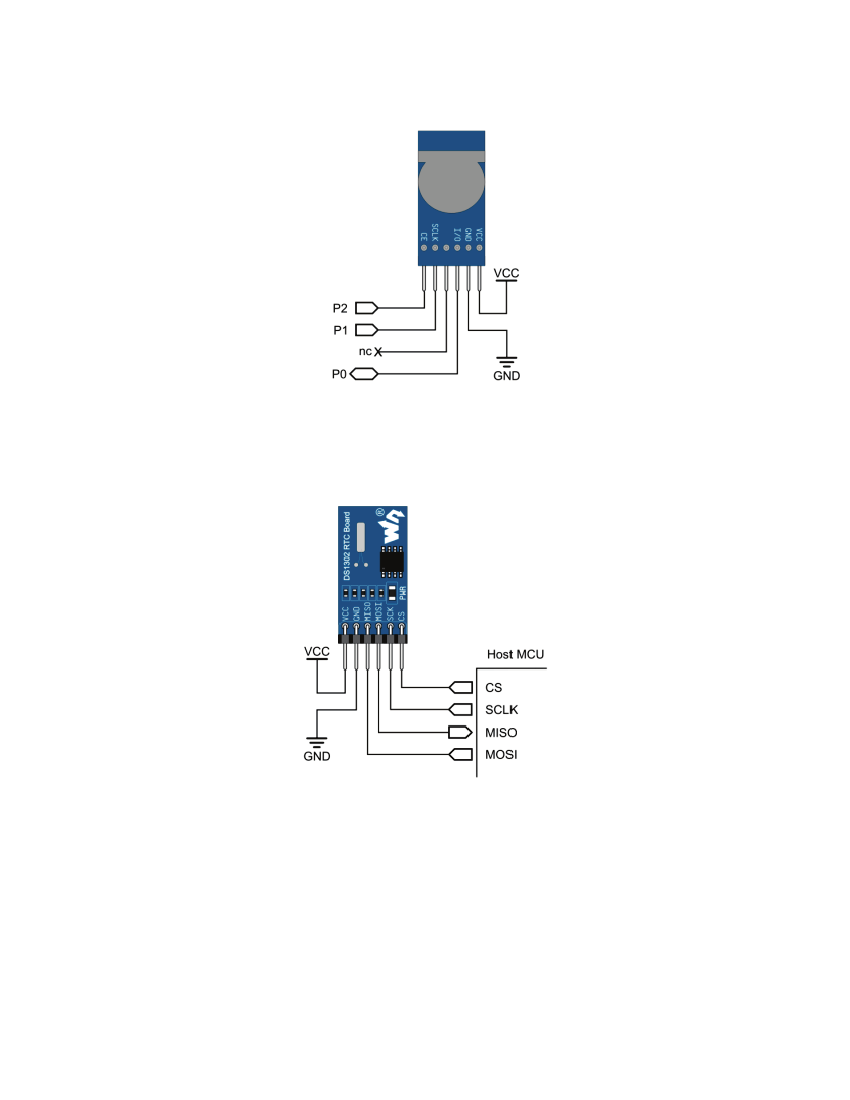

Figure 1: Connecting to a BASIC Stamp 2
The above connection diagram is typical for a BASIC Stamp 2 or Propeller Microcontroller, however if you
are trying to connect to a microcontroller that uses a 4-wire SPI interface then you should follow the
connection diagram below.
Figure 2: Connecting to a microcontroller with a 4-wire SPI interface
Resources and Downloads
Check for the latest version of this document, free software, and example programs from the DS1302
RTC Module product page. Go to www.parallax.com and search 29125.
Precautions
Because this module contains a lithium coin-cell battery for backup it is important not to enable
the DS1302 trickle-charging circuit. This could damage the battery and/or module.
Copyright © Parallax Inc.
DS1302 Real-Time Clock Module (#29125)
v1.0 2/17/2017 Page 2 of 3

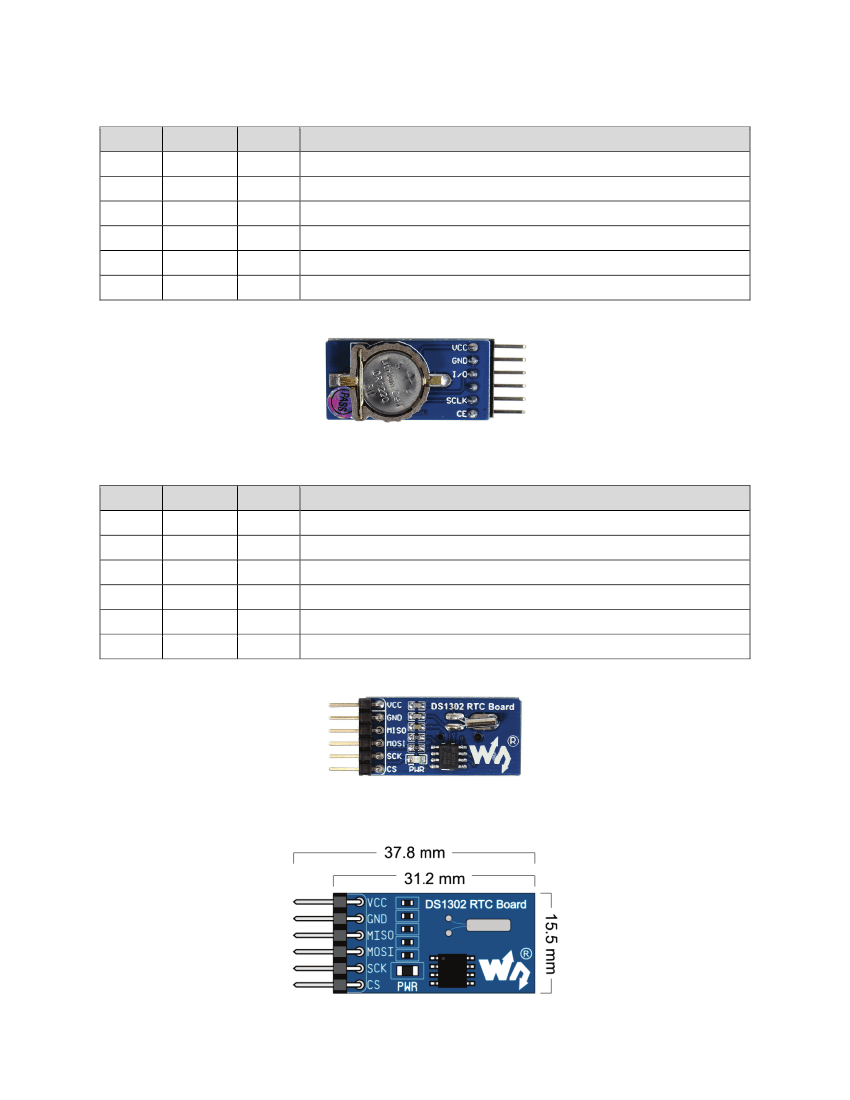

Pin Definitions (3-Wire Interface)
Pin
1
2
3
4
5
6
Name
VCC
GND
I/O
N/C
SCLK
CE
Type
P
G
I/O
—
I
I
Function
Supply Voltage (3.3-5 VDC)
Ground
Data Input / Output
No Connection
Serial Clock
Chip Enable
Pin Type: P = Power, G = Ground, I = Input, O = Output
Pin Definitions (4-Wire Interface)
Pin
1
2
3
4
5
6
Name
VCC
GND
MISO
MOSI
SCK
CS
Type
P
G
O
I
I
I
Function
Supply Voltage (3.3-5 VDC)
Ground
Master In, Slave Out
Master Out, Slave In
Serial Clock
Chip Select
Pin Type: P = Power, G = Ground, I = Input, O = Output
Module Dimensions
Copyright © Parallax Inc.
DS1302 Real-Time Clock Module (#29125)
v1.0 2/17/2017 Page 3 of 3
