P1157S-871-N Overview

Tablet PC 15" Industrial Panel Computer w/ Resistive T/S, AC power, w/o AX logo(Q77, 350nits LCD and HDD Raid)

P1157S-871-N Parametric

Parameter Name	Attribute value
Maker	Axiomtek
Product Category	tablet
Shipping restrictions	Mouser does not currently sell this product.
series	P1157S-871
Factory packaging quantity	1

Preview

Download Datasheet

View All

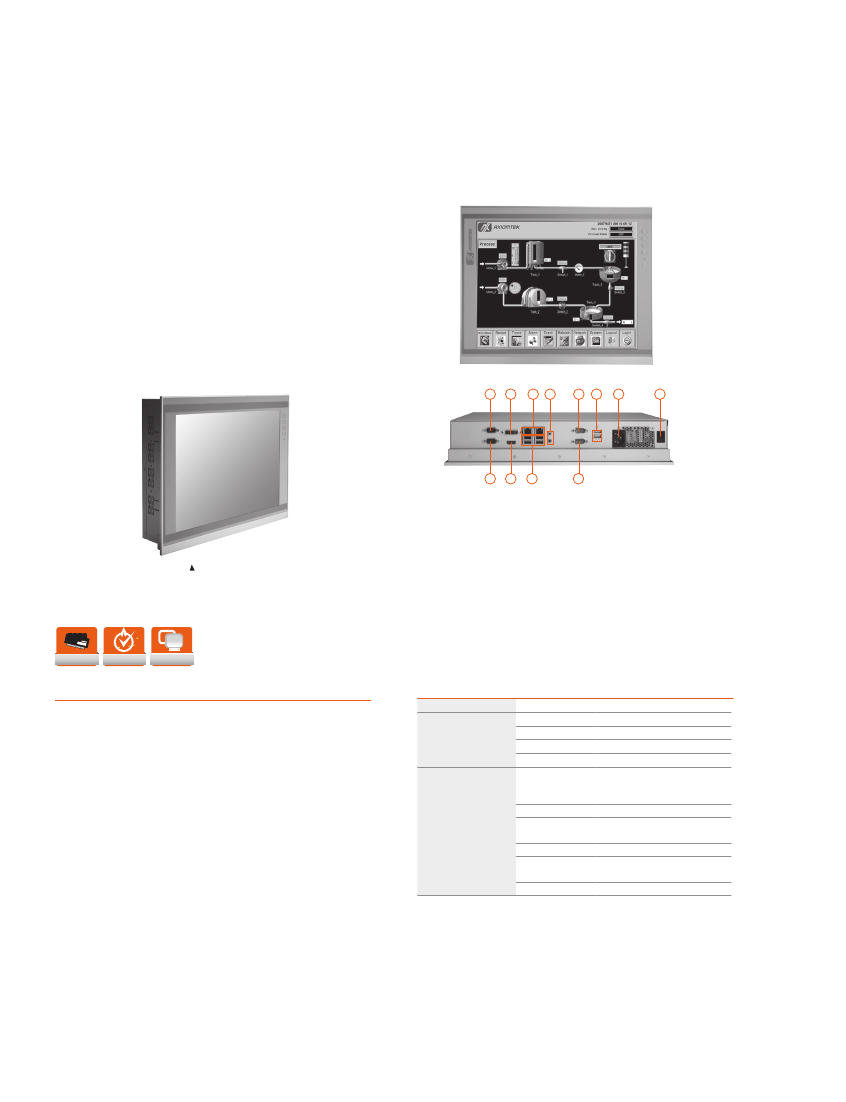

P1157S-871

15" XGA TFT Slim Industrial Touch Panel Computer with 3rd Gen

Intel® Core™ i7/i5/i3, Celeron® & Pentium® Processor

Features

●

15" XGA TFT LCD display

●

LGA1155 socket 3rd gen Intel® Core™ i7/i5/i3, Celeron® &

Pentium® processor

●

Intel® Q77 chipset

●

Less screw design for easy installation

●

4 USB 3.0, 2 USB 2.0 and 4 COM ports

●

Built-in speakers and optional Wi-Fi 802.11 b/g/n module

●

Robust aluminum with IP65 compliant front bezel design

6. USB 2.0 x 2

7. AC plug

8. Power switch

9. COM 2 (RS-232)

10. HDMI

11. USB 3.0 x 4

12. COM 4 (RS-232)

Side view

1. COM 1 with 5V & 12V

(RS-232/422/485)

2. DVI-I

3. Ethernet x 2

4. Audio (Mic-in/Line-out)

5. COM 3 with 5V & 12V (RS-232)

DDR3

IP65

DualView

Introduction

The P1157S-871 is a multimedia 15" touch panel PC for kiosk application. It has a

fashionable mechanism design and industrial-grade material front bezel which can avoid

damage from chemical corrosion. To meet the demands of multimedia application, the

P1157S-871 is powered by a high performance LGA1155 socket 3rd generation Intel®

Core™ i7/i5/i3, Pentium® & Celeron® processor with the Intel® Q77 Express chipset.

It features four COM ports, two Gigabit Ethernet and up to 16 GB memory of dual-

channel DDR3 that delivers high computing capability for high performance-demanding

applications. The industrial panel PC is most suitable for kiosk, factory and automation.

Dual Monitor Display

If larger viewing area is desired, an additional display can be connected via the system’s

VGA or HDMI port to help enhance worker’s productivity level.

Speaker and WLAN Antenna Supported

The P1157S-871 features built-in speakers for kiosk application to display multimedia

content program. It also supports WLAN module antenna (optional) for wireless network

connectivity.

Friendly Less Screw Design

TheP1157S-871 is designed with ease of maintenance in mind. There are only three

screws on the back chassis, so that technicians can quickly remove the system’s back

cover with minimum effort.

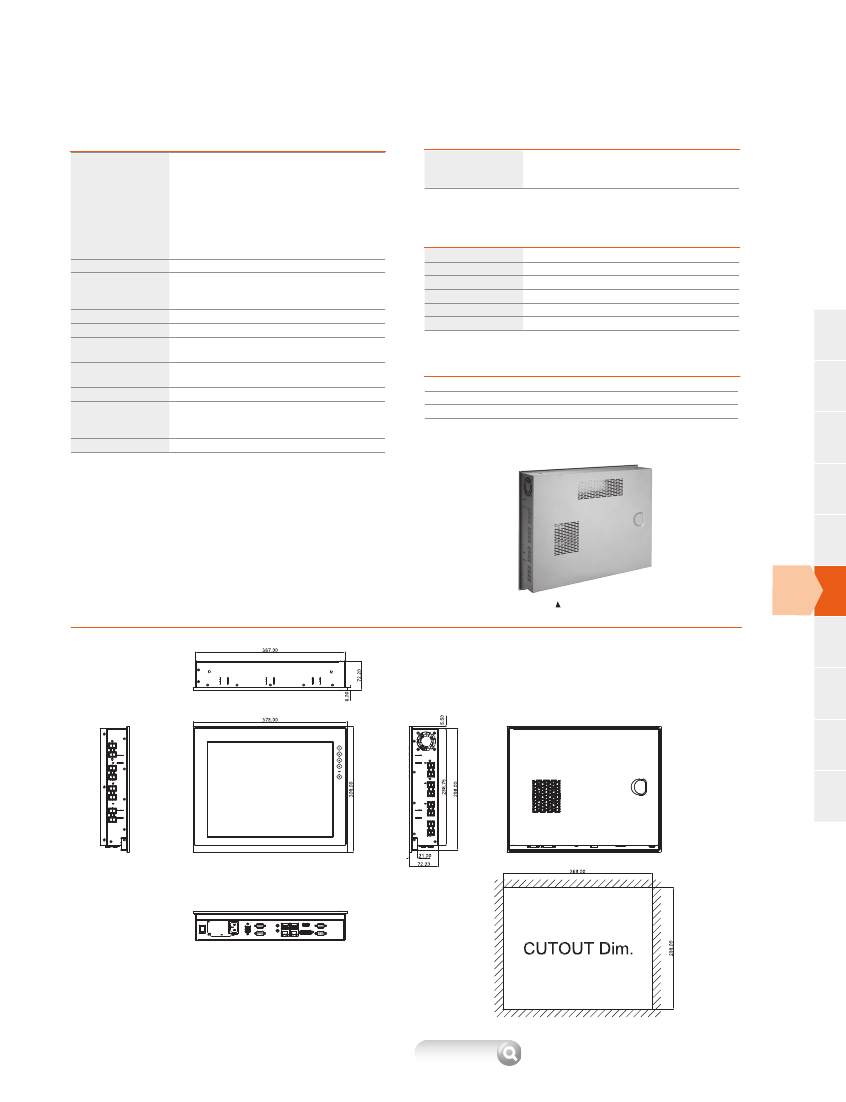

Specifications

Front Bezel

LCD Panel

Aluminum w/ IP65/NEMA 4 rugged protection

Display Type

15" XGA TFT LCD

Brightness

350 nits

Resolution

1024 x 768 pixels

Viewing Angle

170°/160°

CPU

LGA1155 socket 3rd generation

Intel® Core™ i7/i5/i3, Celeron® &

Pentium® processor

Chipset

Intel® Q77

System Memory

2 x 204-pin DDR3-1333/1600

SO-DIMM, up to 16GB

BIOS

AMI UEFI BIOS with OA 3.0 built

Storage

1 x 3.5" or 2 x 2.5" 7/9.5 mm SATA

HDD

Watchdog Timer

255 levels, 1 ~ 255 sec.

Main System

625

Updated Apr. 12, 2018.

* All specifications and photos are subject to change without notice.
