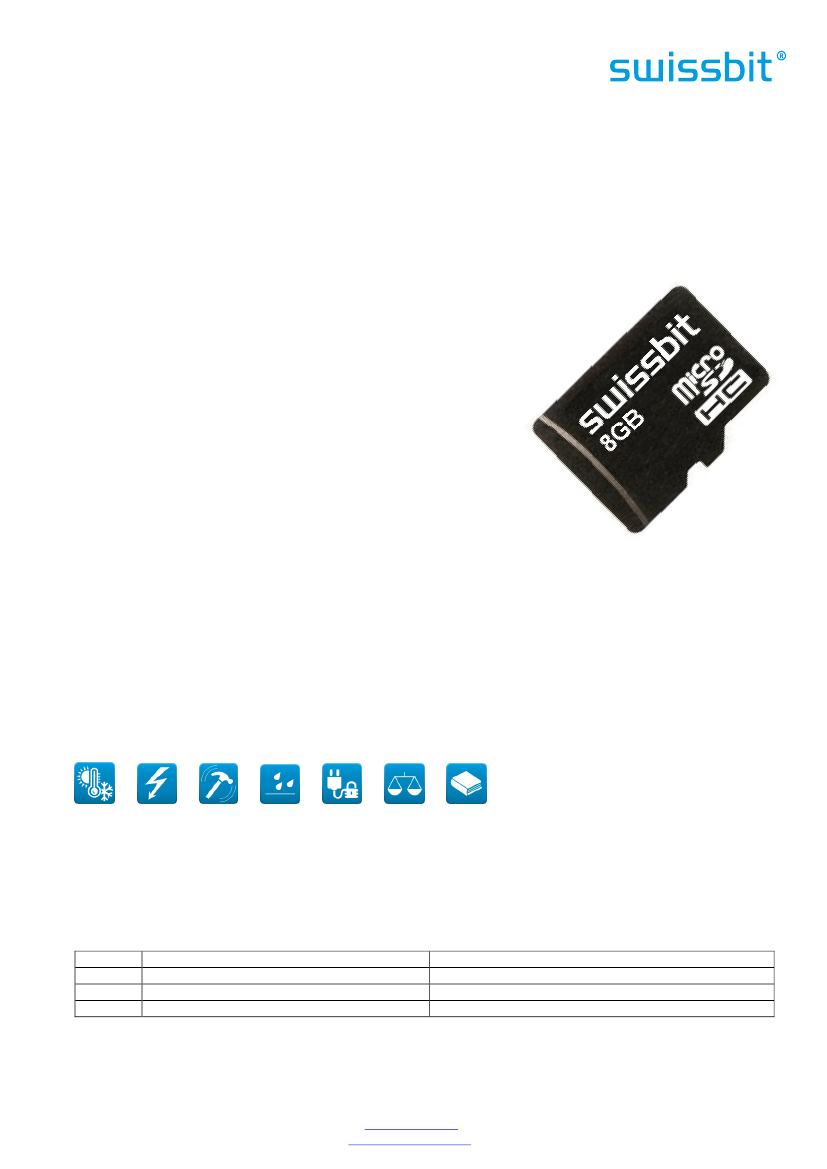

S-300u Series
MICRO SD Memory Card
1
Feature summary
Highly-integrated memory controller
o
Fully compliant with SD Memory Card specification SD1.01, SD1.1, SD2.0
and SD3.01 and MICRO SD Memory Card Addendum 4.00
Standard MICRO SD Memory Card form factor
o
15.0mm x 11.0mm x 0.7mm
Operating voltage 2.7…3.6V
Low-power CMOS technology
High reliability
o
MTBF:
> 3,000,000 hours
o
Number of insertions: > 10,000
o
Extended Temperature range -25° up to 85°C
o
Industrial Temperature range -40° up to 85°C
Hot swappable
High performance
o
Speed class
2GB Card
speed class 6
4GB, 8GB
speed class 10
o
SD burst up to 25MB/s
o
SD Low/High speed 0…25/50MHz clock rate
o
Flash burst up to 40MB/s
o
Flash Bus interleave
Operating bus modes: SD 1 & 4bit and SPI
Error Correction up to 24bit/1KB BCH ECC
Wear Leveling: equal wear leveling of static and dynamic data
The wear leveling assures that dynamic data as well as static data is balanced evenly across the memory.
With that the maximum write endurance of the device is guaranteed.
Write Endurance: Due to advanced wear leveling an even use of the entire flash is guaranteed, regardless
how much “static” (OS) data is stored. Example: If the average file size is 10MByte and the total capacity is
8GByte, 48Mio write cycles can be performed.
Available densities
o
2, 4, and 8GBytes (SLC NAND Flash)
Controlled BOM
Life Cycle Management
2
Order Information
2.1 Standard product list
Table 1: Standard Product List
Density general part number
current part number revision
2GB
SFSD2048NgBW1MT-t-ME-1x1-STD
SFSD2048N1BW1MT-t-ME-111-STD
4GB
SFSD4096NgBW1MT-t-DF-1x1-STD
SFSD4096N1BW1MT-t-DF-111-STD
8GB
SFSD8192NgBW1MT-t-QG-1x1-STD
SFSD8192N1BW1MT-t-QG-111-STD
g defines the product generation
x defines the FW
t defines the temperature range (E=-25°C to +85°C, I=-40°C to +85°C)
Swissbit AG
Industriestrasse 4
CH-9552 Bronschhofen
Switzerland
Revision: 1.12
www.swissbit.com
industrial@swissbit.com
S-300u_fact_sheet_Rev112.doc
Page
2 of 3
3
System Specification
3.1 System Performance
System Performance
Burst Data transfer Rate (max SD clock 50MHz)
Sustained Sequential Read
Sustained Sequential Write
2GB
4…8GB
2GB
4…8GB
typ
20
(1)(2)
20
(1)(2)
11
(1)(2)
17
(1)(2)
max
25
(1)(3)
24
(1)(3)
24
(1)(3)
12
(1)(3)
22
Unit
MB/s
1.
All values refer to Micron Flash 8/16Gb MICRO SD Memory Card in SD mode 50MHz, cycle time 20ns,
2.
Sustained Speed measured with USB-SD Memory Card reader. It depends on burst speed, flash number, and file size.
3.
Maximum values were measured with Testmetrix tester.
3.2 Power Consumption
Current Consumption @ 3.3V
Write
Read
Sleep Mode
Typ
60
50
0.15
Max
70
60
2
Unit
mA
3.3 Physical Dimensions
Physical Dimensions
Length
Width
Thickness
Weight (typ.)
Value
15.0±0.1
11.0±0.1
0.7 (1.0)±0.1
0.4
Unit
mm
g
3.4 Recommended Temperature Conditions
Parameter
Storage Temperature
Operating Temperature
Min
-25
-25
Typ
25
25
Max
85
85
Unit
°C
°C
3.5 Humidity and ESD
Parameter
Humidity (non-condensing)
EMC / EMI
Operating
Non Operating
operation: 95% RH @25°C
storage: 93% RH @40°C, 500h
Non Contact Pads area:
Contact Pads:
±8 kV (air discharge)
±4 kV, Human body model according to
Human body model according to
IEC61000-4-2
IEC61000-4-2
3.6 Environmental Conditions
Parameter
UV light exposure
Durability
Drop test
Bending / Torque
Operating
Non Operating
2
UV: 254nm, 15Ws/cm according to ISO7816-1
10,000 mating cycles
1.5m free fall
10N / 0.10Nm ±2.5° max
For more information on SD Memory Card Spec 3.01, please visit SD association (www.sdcard.org)
