Display System
w w w.ieiworld.com

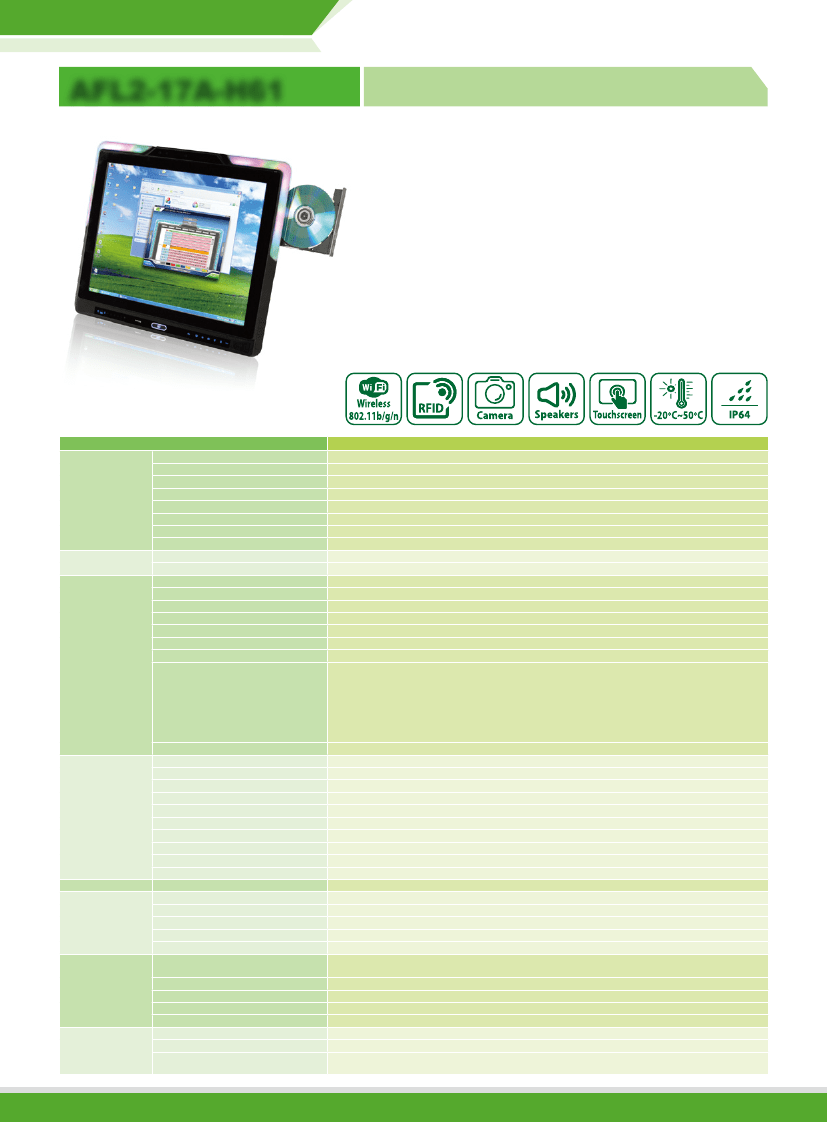

AFL2-17A-H61
Intel® Core™ i7/i5/i3 and Pentium® Processor
Features
● Programmable colorful LED light bar
● Intel® Core™ i5/ i3 and Pentium® processor
● Two 204-pin DDR3 SO-DIMM slot (system max. 16GB) preinstalled with 4GB (2GB x 2)
● Projected capacitive touchscreen and 5-wire resistive type touchscreen supported
● Wi-Fi 802.11b/g/n
● EM or Mifare RFID reader
● Built-in 2-megapixel webcam with AF, AE and AWB capabilities
● Built-in two 2W speakers and microphone
● IP 64 compliant front panel
● Auto dimming control
● Light fanless design
● Type K thermocouple temperature sensor
● Wide range 9~36 VDC input
Optional CD-ROM
available
Specifications
Model
Size
Resolution
Brightness (cd/m²)
Contrast Ratio
LCD Color
Pixel Pitch (mm)
Viewing Angle (H-V)
Backlight MTBF
Touch Screen
Touch Controller
CPU
Chipset
RAM
Ethernet
Audio Codec
HDD
CD-ROM
AFL2-17A-H61
17" (4:3)
1280 (W) x 1024 (H)
350
1000:1
16.7M
0.264 (H) x 0.264 (V)
170° / 160°
50,000 (LED backlight)
5-wire rsistive type with RS-232 interface / projected capacitive type with USB interface
PenMount DMC9000 / EETI EXC7200 & EXC5404
2nd/3rd Generation Intel® Core™ i7/i5/i3 and Pentium® processors
Intel® H61
Support two 204-pin DDR3 SO-DIMM slot (max. 16GB) preinstalled with 4GB (2GB x 2)
Realtek RTL8111E PCIe GbE controller supporting ASF 2.0
Realtek ALC892 HD Audio codec
2.5" SATA 3Gb/s HDD bay
1 x Slim Type CD-ROM bay
2 x RS-232 (DB-9 connector)
1 x RS-422/485 (DB-9 connector)
2 x GbE LAN (one on the bottom, one on the left)
2 x USB 3.0
3 x USB 2.0 (two on the bottom, one on the left)
1 x Mini USB port on front panel
1 x MicroSD card slot on front panel
1 x Line out (on the left)
1 x PCIe Mini slot reserved
AMP 2W + 2W (internal speaker)
2 M pixels with low light function
EM 125 KHz or Mifare 13.56 MHz card reader (optional)
MSR card reader (optional)
Reserved by pin-header
LCD on/off, brightness up/down, volume up/down, Hot Key
Yes
Yes
Yes
Light fanless (smart fan operates above default temperature setting)
IEEE 802.11b/g/n Telec certified
PC + ABS Plastic
Panel, Wall, Rack, Stand, Arm VESA 100mm x 100mm
Black
418 x 378 x 65
6.9 kg / 9.0 kg
-20°C ~ 50°C
-20°C ~ 60°C
10% to 95% (non-condensing)
IP 64 compliant front panel
CE / FCC
120W power adapter , Input:100 V AC ~ 240 V AC, 50 / 60Hz, Output: 19 V DC
9 ~ 36 VDC
19V@5.3A
(Intel® Core™ i3-2100T CPU with 4GB 1333 Mhz 4GB DDR3 memory)
LCD Specifications
Touch
System
Input / Output
Other Features
Expansion Interface
Audio
Camera
RFID Reader
MSR Card Reader
TPM
OSD Function
Ambient Light Sensor
Infrared Remote Controller
LED Light Bar
System Cooling
Wireless
Construction Front Panel
Mounting
Color

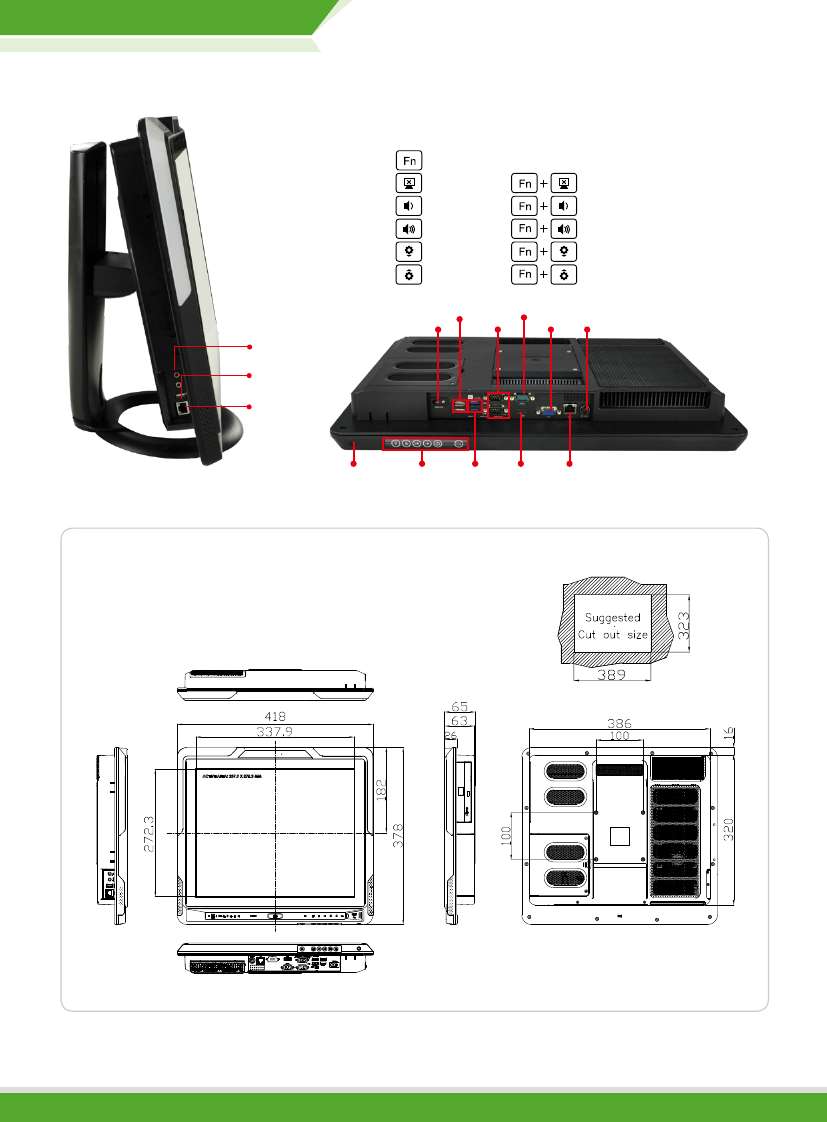

Dimensions (WxHxD)(mm)
Weight (N/G)
Operating Temperature (°C)
(Ambient with air flow)
Storage Temperature (°C)
Humidity
IP Level
Safety&EMC
Power Supply
Power Requirement
Power Consumption
Connectivity
Physical
Environment
Power
AFL2-17A-H61-2018-V10
Display System
Ordering Information
LED Bar
Model
AFL2-17A-H61-i5/R-R13
AFL2-17A-H61-i5/PC-R13
AFL2-17A-H61-i3/R-R13
LED Bar
AFL2-17A-H61-i3/PC-R13
AFL2-17A-H61-P/R-R13
AFL2-17A-H61-P/PC-R13
AFL2-17AB-H61-i5/R-R13
AFL2-17AB-H61-i5/PC-R13
AFL2-17AB-H61-i3/R-R13
AFL2-17AB-H61-i3/PC-R13
AFL2-17AB-H61-P/R-R13
AFL2-17AB-H61-P/PC-R13
Description
w w w.ieiworld.com
17" 350cd/m² SXGA panel PC, Core i5 Dual Core 2xxxT CPU (Above 2.7GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless module,
resistive touch screen, 2M camera, microphone, R13
17" 350cd/m² SXGA panel PC, Core i5 Dual Core 2xxxT CPU (Above 2.7GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless module,
projected capacitive touchscreen, 2M camera, microphone, R13
17" 350cd/m² SXGA panel PC, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless module,
resistive touch screen, 2M camera, microphone, R13
17" 350cd/m² SXGA panel PC, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless module,
projected capacitive touchscreen, 2M camera, microphone, R13
17" 350cd/m² SXGA panel PC, Pentium Dual Core G6xxT CPU (Above 2.2GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless
module, resistive touch screen, 2M camera, microphone, R13
17" 350cd/m² SXGA panel PC, Pentium Dual Core G6xxT CPU (Above 2.2GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless
module, projected capacitive touchscreen, 2M camera, microphone, R13
17" 350cd/m² SXGA panel PC, Core i5 Dual Core 2xxxT CPU (Above 2.7GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless module,
resistive touch screen, 2M camera, microphone, without LED bar, R13
17" 350cd/m² SXGA panel PC, Core i5 Dual Core 2xxxT CPU (Above 2.7GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless module,
projected capacitive touchscreen, 2M camera, microphone, without LED bar, R13
17" 350cd/m² SXGA panel PC, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 4GB DDR3 (2GB x 2) 802.11b/g/n wireless module,
resistive touch screen, 2M camera, microphone, without LED bar, R13
17" 350cd/m² SXGA panel PC, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless module,
projected capacitive touchscreen, 2M camera, microphone, without LED bar, R13
17" 350cd/m² SXGA panel PC, Pentium Dual Core G6xxT CPU (Above 2.2GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless
module, resistive touch screen, 2M camera, microphone, without LED bar, R13
17" 350cd/m² SXGA panel PC, Pentium Dual Core G6xxT CPU (Above 2.2GHz), TDP 35W, 4GB DDR3 (2GB x 2), 802.11b/g/n wireless
module, projected capacitive touchscreen, 2M camera, microphone, without LED bar, R13
Without
LED Bar
Options
Item
Panel Mounting Kit
Wall Mounting Kit
Rack Mounting Kit
Arm
Stand
Magnetic Stripe Reader
Slim DVD Burner
Module (TPM)
EM RFID Reader
Mifare RFID Reader
OS: Win 7 Embedded (DVD-ROM)
AFL2-17A-H61
AFL2PK-17A
AFLWK-19B
AFL2RK-17A
ARM-31-RS
STAND-A19-RS/STAND-A21-R10/STAND-C19-R10
AFL2P-W19AMSR-U-R10
AFL2-DVD-KIT01-R10
TPM-IN01-R11
AFL2-EM-RFID-KIT01-R10
AFL2-MF-RFID-KIT01-R11
AFL2-17A-H61-WES7P-R13 (for Projected Capacitive Touch)
AFL2-17A-H61-WES7E-R13 (for Resistive Touch)
Packing List
Item
Utility CD
One Key Recovery CD
Power Adapter
Power Cord
Power Transfer Cord
Infrared Remote Controller
M3 Screw Pack
M4 Screw Pack
I/O Bracket
Temperature Sensor Cable
Pen
P/N
7B000-000956-RS
7B000-000781-RS
63040-010120-210-RS
32702-000401-100-RS
32000-089400-RS
7Z000-SLPCB005-RS
44013-030041-RS
44033-040061-RS
41013-0290C2-00-RS
32133-004300-100-RS
43125-0002C0-00-RS
Q'ty
1
1
1
1
1
1
4
4
1
1
1
For Resistive Touch
M3 x 4 for securing HDD
M4 x 4 for VESA screw
I/O Bracket
FSP120-AAB;90~264VAC input ; 120W
;19VAC output (Meet PSE)
European, 1500mm
Description
drivers and user manual
CD-RW/DVD-RW Driver Spec.
The drive is able to write CD-R/RW disks, DVD+R/RW
disks and DVD-R/RW disks
Drive Type
Internal Slim CD-RW/DVD Combo Drive
Data Transfer
Rate
Write:
DVD+R/DVD+RW/DVD-R: 8X
DVD-RW: 6X
CD-R/CD-RW: 24X
Read:
DVD-ROM: 8X
CD-ROM: 24X
Interface
SATA
Buffer Memory
2MB
AFL2-17A-H61-2018-V10
