COMM2PD(PCI)H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Embedded solution> Interface module> COMM2PD(PCI)H

COMM2PD(PCI)H: DescriptionInterface module 2CH Isolated RS-422A RS485 Comm I/O Board; CategoryEmbedded solution Interface module; File Size1MB，3 Pages; ManufacturerARBOR; Websitehttps://www.arbor-technology.com/gl/Home; Environmental Compliance

Download Datasheet Parametric Compare View All

COMM2PD(PCI)H Overview

Interface module 2CH Isolated RS-422A RS485 Comm I/O Board

COMM2PD(PCI)H Parametric

Parameter Name	Attribute value
Maker	ARBOR
Product Category	interface module
Shipping restrictions	Mouser does not currently sell this product.
product	Serial Communication Cards
type	RS-422, RS-485
Number of channels/ports	2 Port
maximum data rate	-
Working power voltage	10 V to 30 V
Minimum operating temperature	- 20 C
Maximum operating temperature	+ 60 C
Interface Type	PCI
Description/Function	2 channels isolated RS-422A/485 communication
Factory packaging quantity	1

Preview

Download Datasheet

View All

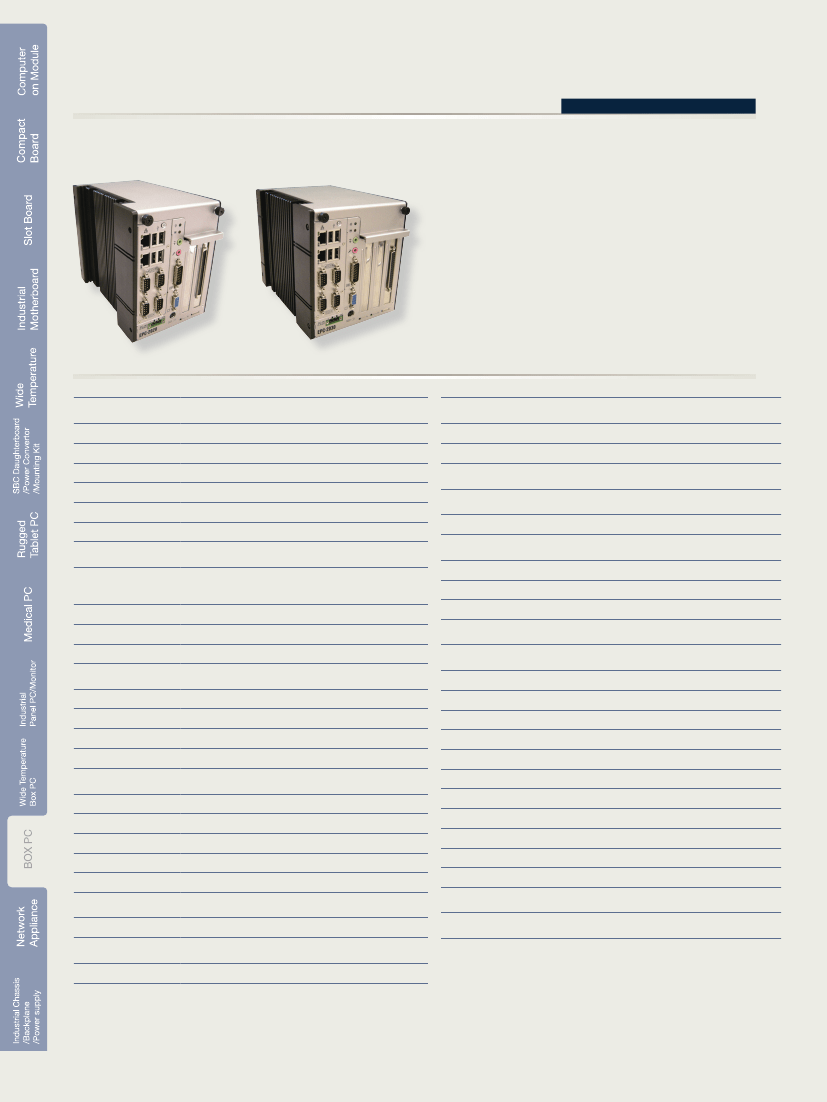

EPC-2000 Series

Embedded Programmable Controller with Intel® Atom™ D525 Platform

EPC-2020

EPC-2030

Features

•

Fanless, Cabless and Modularized Design

•

Wide Range DC Power Input (10 ~ 30V)

•

Rich Onboard I/O and Expansion Slots

(Max. 2 x PCIex1 Slots, 1 x PCI Slot)

•

RS-485 Auto-flow Control Supported

•

Easy Installation/Maintenance

•

Intel® 2.5" SATAII SSD Compatible

System

CPU

Memory

Chipset

Graphics

LAN Chipset

Watchdog Timer

Soldered onboard Intel® Atom™ D525 processor

Soldered onboard DDR3 2GB SDRAM

Intel® ICH8M

Integrated with Intel® GMA 3150

2 x Intel® 82574IT PCIe controllers

1~255 level reset

Power Requirement

Power Input

DC 10 ~ 30V input (w/ 3-pin terminal block)

Power Consumption

60W (Max.)

Storage

Type

1 x 2.5" drive bay for SATA interface HDD/SSD

supporting 300MB/s HDD transfer rate

1 x CFast socket

Peripherals and Devices

Serial Port

USB Port

LAN

Video Port

Audio

KB/MS

Expansion Bus

4 x COM ports with DB-9 male connectors (COM1,

COM2: RS-232, COM3, COM4: RS-232/422/485

selectable)

4 x USB type A connectors for USB 2.0 ports

2 x RJ-45 Gigabit Ethernet ports

1 x DB-15 female connector for Analog RGB

1 x DB-26 male connector for dual channel 24-bit

LVDS port

Mic-in/Line-out with Realtek ALC886 HD Audio CODEC

PS/2 interface Keyboard/ Mouse via Y-cable

Max. 2 x PCIex1 slots

1 x PCI slot

Mechanical

Construction

Mounting

Weight

Aluminum alloy

Wall-mount/Din rail mounting

Max. 2.92 kg (6.42 lb)

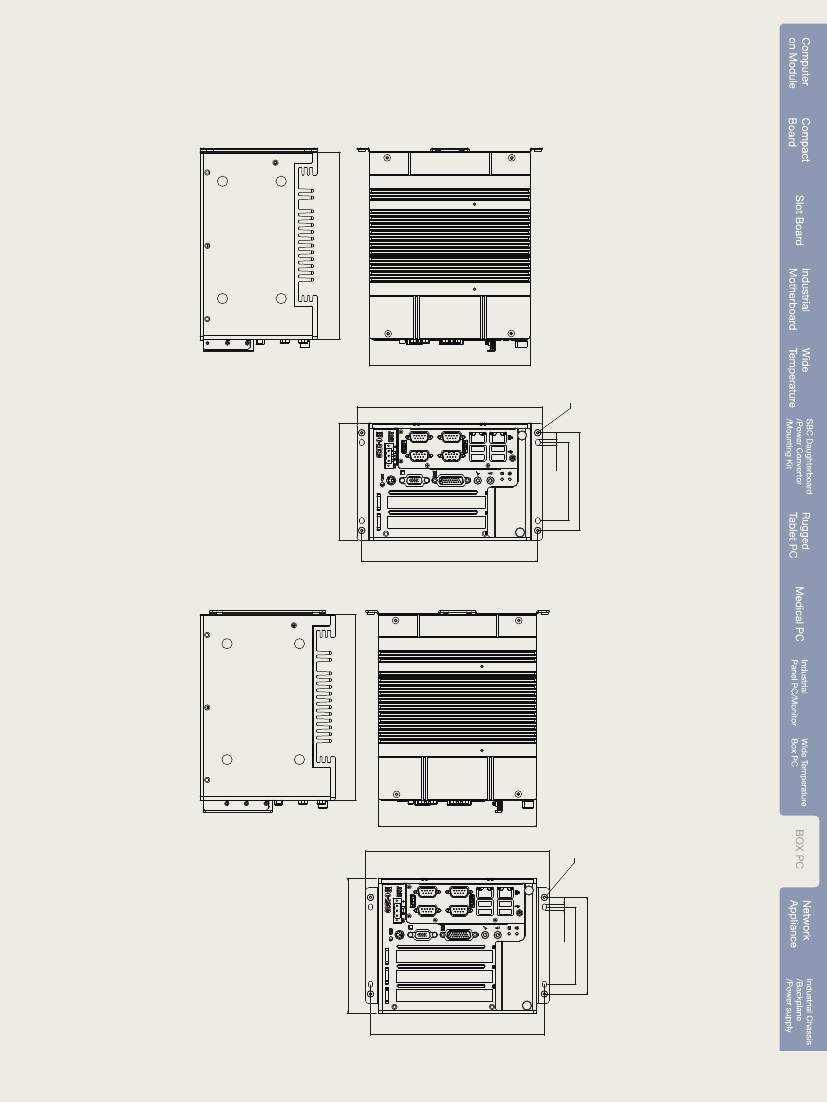

EPC-2020: 164 x 192 x 120 mm (6.46” x 7.56” x 4.72”)

Dimensions (W x D x H)

EPC-2030: 164 x 192 x 140 mm (6.46" x 7.56" x 5.51")

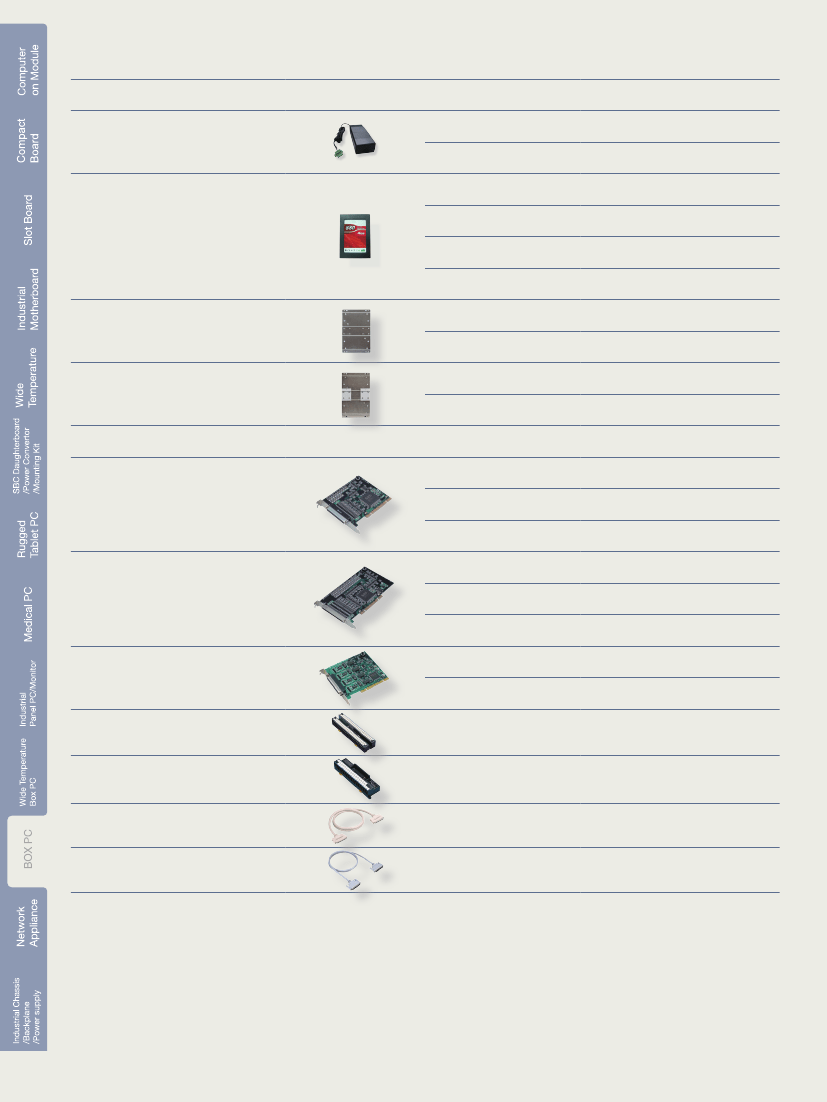

Ordering Information

EPC-2020

EPC-2030

PAC-P065W

SSD-25080

WMK-2000

DRK-2000

DIO-16/16L(PCI)H

DIO-32/32L(PCI)H

COMM-2PD(PCI)H

TML-96

TML-37

CBL-96-1.5P

CBL-37-1.5P

EPC-2000 with 1 x PCIe slot & 1 x PCI slot

EPC-2000 with 2 x PCIe slot & 1 x PCI slot

65W AC/DC adapter kit

Intel® 2.5" 80GB SATAII SSD kit

Wall-mount kit for EPC-2000 series

Din-rail mounting kit for EPC-2000 series

16-CH Input / 16-CH Output isolated digital I/O

32-CH Input / 32-CH Output isolated digital I/O

2-CH isolated RS-422A/485 communication

96-pin Din rail mountable screw terminal

37-pin DIN-rail mountable screw terminal

1.5M length shielding cable with 96-pin half-pitch

connector at each end

1.5M length shielding cable with 37-pin D-type (M)

connector at each end

Environmental

Operating Temp.

Storage Temp.

Vibration

Shock & Crash

-20 ~ 60°C (-4 ~ 140ºF), ambient with air flow

-40 ~ 85°C (-40 ~ 185°F)

Relative Humidity

10 ~ 95% @ 40°C (non-condensing)

RMS

/5 to 500Hz/random operation, with SSD

Operating 20G (11ms), Non-operating 40G with HDD

Operating 40G (11ms), Non-operating 60G with CFast/

SSD

Crash 80G (11ms)

Qualification

Certification

CE, FCC

All specifications are subject to change without notice.
