conga-TCA5/i-E3950 PCIe datasheet, PDF

Datasheet> All Categories > Embedded solution> To calculate> Modular computer - COM> conga-TCA5/i-E3950 PCIe

conga-TCA5/i-E3950 PCIe: Description模块化计算机 - COM COM Express Compact module with Intel Atom x7-E3950 quad core processor with 1.6GHz core frequency up to 2.0GHz, 2MB L2 cache and up to 8GB 1866MT/s DDR3L SODIMM memory support. Up to 5 PCI Express x1 lanes through PCI Express switch. Indu; CategoryEmbedded solution To calculate Modular computer - COM; File Size937KB，4 Pages; Manufacturercongatec; Environmental Compliance

Download Datasheet Parametric Compare View All

conga-TCA5/i-E3950 PCIe Overview

模块化计算机 - COM COM Express Compact module with Intel Atom x7-E3950 quad core processor with 1.6GHz core frequency up to 2.0GHz, 2MB L2 cache and up to 8GB 1866MT/s DDR3L SODIMM memory support. Up to 5 PCI Express x1 lanes through PCI Express switch. Indu

conga-TCA5/i-E3950 PCIe Parametric

Parameter Name	Attribute value
Maker	congatec
Product Category	Modular Computer - COM
Shipping restrictions	Mouser does not currently sell this product in your area.
physical dimension	COM Express Type 6
Processor brand	Intel
Processor type	Intel Atom x7-E3950
chipset	Integrated in SoC
frequency	1.6 GHz
cache memory	2 MB
Interface Type	Audio, DDI, Ethernet, I2C, LPC, PCIe, SATA, SDIO, SPI, USB
Minimum operating temperature	- 40 C
Maximum operating temperature	+ 85 C
size	95 mm x 95 mm
storage	8 GB
storage type	DDR3L
Power consumption	12 W
series	conga-TCA5
Factory packaging quantity	1

Preview

Download Datasheet

View All

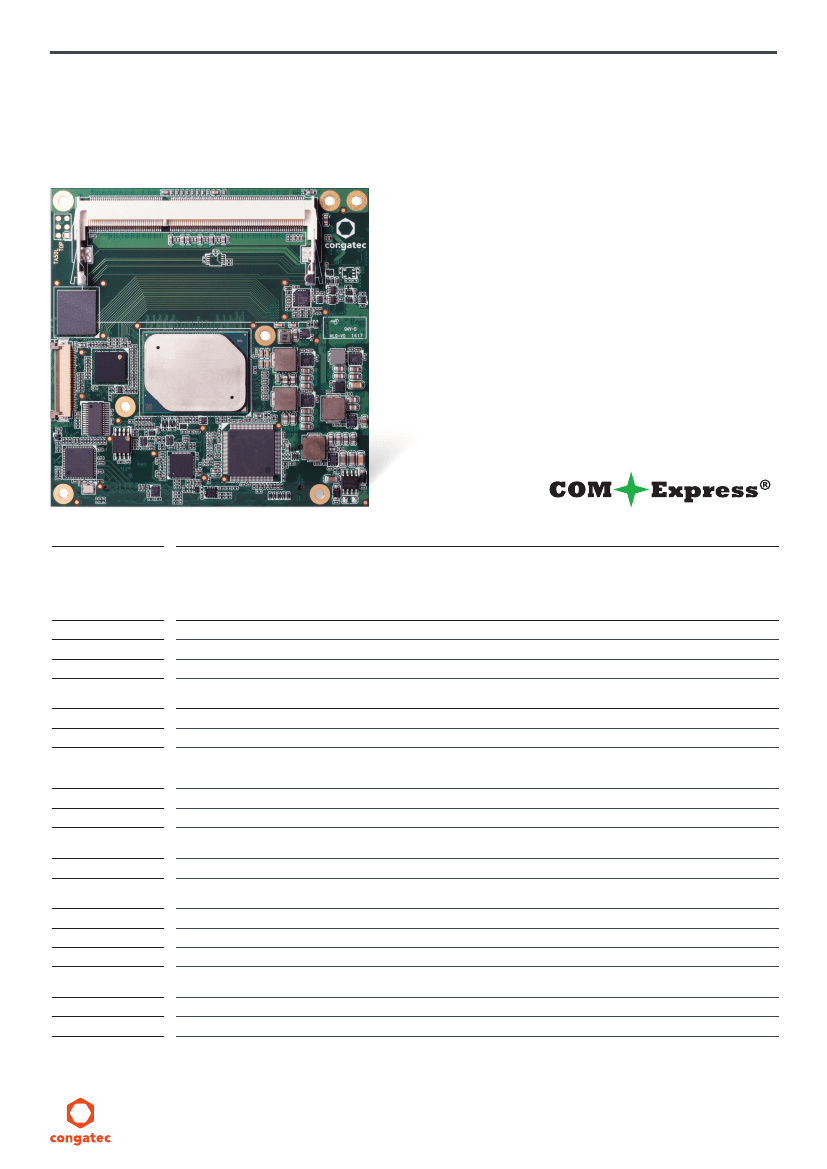

LOW POWER CONSUMPTION

conga-TCA5

Intel

Pentium

Quad Core on COM Express

Enhanced Security Execution

Up to 3 independent Ultra HD displays

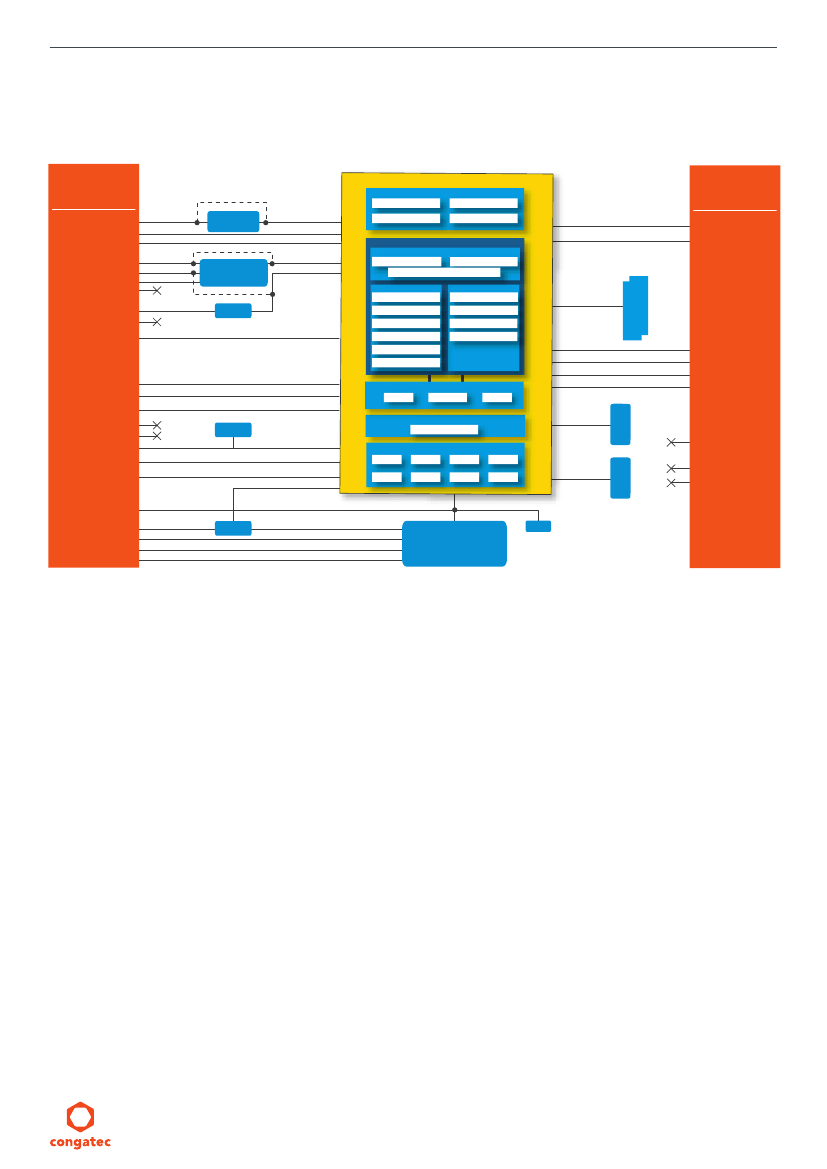

Formfactor

CPU

Formfactor COM Express

Compact | (95 x 95 mm) | Type 6 Connector Layout

Intel

Pentium

N4200

Intel

Celeron

N3350

Intel

Atom™ x7-E3950

Intel

Atom™ x5-E3940

Intel

Atom™ x5-E3930

2.50 GHz (Burst)

1.1 GHz Clock

2.40 GHz (Burst)

1.1 GHz Clock

2.00 GHz (Burst)

1.6 GHz Clock

1.80 GHz (Burst)

1.6 GHz Clock

1.80 GHz (Burst)

1.3 GHz Clock

Quad Core

Dual Core

Quad Core

Dual Core

L2 cache 2MB

6W TDP

12W TDP

9.5W TDP

6.5W TDP

DRAM

Chipset

Ethernet

I/O Interfaces

Mass Storage

Sound

Graphics

2 SO-DIMM sockets for DDR3L memory modules up to 8 GByte with 1867 MT/s | Dual channel memory interface for increased graphics performance

Integrated in SoC

Intel I210 (Industrial) /I211 (Commercial) Gigabit Ethernet Controller

2x UART (RX/TX)s | opt. 2x MIPI-CSI

opt. eMMC 5.0 onboard flash up to 64 GByte

Digital High Definition Audio Interface

(wireless) | Video decode hardware acceleration including support for 4kp60 HEVC (H.265), H.264, MVC, VP8, VP9, VC-1, WMV9, JPEG/MJPEG | Video

encode hardware acceleration including support for 4kp30 HEVC (H.265), H.264, MVC, VP8, JPEG/MJPEG.

Dual channel LVDS transmitter | support for flat panels with 2x24 bit data mapping up to a resolution of 1920x1200@60Hz.

Up to 2x DisplayPort 1.2a or 2x HDMI 1.4b (max. 3840x2160 @ 30Hz) | 1x eDP 1.3 (optional)

Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | BIOS Setup Data Backup

I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control

Trusted Platform Module (TPM) optional.

Hash and RSA algorithms | key lengths up to 2048 bits | real random number generator

ACPI 5.0 with battery support

Microsoft

Windows 10 | Microsoft

Windows 10 IoT Enterprise | Microsoft

Windows 10 IoT Core | Linux | Yocto

see user’s guide for full details | CMOS Battery Backup

Commercial :

Industrial:

Operating: 0 to +60°C

Operating: -40 to +85°C

Storage: -20 to +80°C

LVDS

Digital Display Interface (DDI)

congatec Board Controller

Embedded BIOS Features

Security

Power Management

Operating Systems

Power Consumption

Temperature

Humidity

Size

Operating: 10 - 90% r. H. non cond.

95 x 95 mm (3.74” x 3.74”)

Storage: 5 - 95% r. H. non cond.

www.congatec.com

conga-TCA5/i-E3950 PCIe Related Products

	conga-TCA5/i-E3950 PCIe	conga-TCA5/i-E3950	conga-TCA5/HSP-B	conga-TCA5/i-HSP-T	conga-TCA5/N3350	conga-TCA5/i-E3930	conga-TCA5/i-E3940
Description	模块化计算机 - COM COM Express Compact module with Intel Atom x7-E3950 quad core processor with 1.6GHz core frequency up to 2.0GHz, 2MB L2 cache and up to 8GB 1866MT/s DDR3L SODIMM memory support. Up to 5 PCI Express x1 lanes through PCI Express switch. Indu	Modular Computer - COM COM Express Compact module with Intel Atom x7-E3950 quad core processor with 1.6GHz core frequency up to 2.0GHz, 2MB L2 cache and up to 8GB 1866MT/s DDR3L SODIMM memory support. Industrial grade temperature range from -40 C to 85 C.	散热片 Standard heatspreader for COM Express Compact module conga-TCA5 with open silicon Intel Pentium and Celeron processor. All standoffs are with 2.7mm bore hole.	散热片 Standard heatspreader for COM Express Compact module conga-TCA5 with lidded Intel Atom processor. All standoffs are M2.5mm thread.	模块化计算机 - COM COM Express Compact module with Intel Celeron N3350 dual core processor with 1.1GHz core frequency up to 2.3GHz, 1MB L2 cache and up to 8GB 1600MT/s DDR3L SODIMM memory support.	模块化计算机 - COM COM Express Compact module with Intel Atom x5-E3930 dual core processor with 1.1GHz core frequency up to 1.8GHz, 1MB L2 cache and up to 8GB 1600MT/s DDR3L SODIMM memory support.Industrial grade temperature range from -40 C to 85 C.	模块化计算机 - COM COM Express Compact module with Intel Atom x5-E3940 quad core processor with 1.6GHz core frequency up to 1.8GHz, 2MB L2 cache and up to 8GB 1866MT/s DDR3L SODIMM memory support.Industrial grade temperature range from -40 C to 85 C.
Maker	congatec	congatec	congatec	congatec	congatec	congatec	congatec
Product Category	Modular Computer - COM	Modular Computer - COM	heat sink	heat sink	Modular Computer - COM	Modular Computer - COM	Modular Computer - COM
Shipping restrictions	Mouser does not currently sell this product in your area.	Mouser does not currently sell this product in your area.	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product in your area.	Mouser does not currently sell this product in your area.	Mouser does not currently sell this product in your area.
series	conga-TCA5	conga-TCA5	conga-TCA5	conga-TCA5	conga-TCA5	conga-TCA5	conga-TCA5
Factory packaging quantity	1	1	1	1	1	1	1
physical dimension	COM Express Type 6	COM Express Type 6	-	-	COM Express Type 6	COM Express Type 6	COM Express Type 6
Processor brand	Intel	Intel	-	-	Intel	Intel	Intel
Processor type	Intel Atom x7-E3950	Intel Atom x7-E3950	-	-	Intel Celeron N3350	Intel Atom x5-E3930	Intel Atom x5-E3940
chipset	Integrated in SoC	Integrated in SoC	-	-	Integrated in SoC	Integrated in SoC	Integrated in SoC
frequency	1.6 GHz	1.6 GHz	-	-	1.1 GHz	1.1 GHz	1.6 GHz
cache memory	2 MB	2 MB	-	-	2 MB	2 MB	2 MB
Interface Type	Audio, DDI, Ethernet, I2C, LPC, PCIe, SATA, SDIO, SPI, USB	Audio, DDI, Ethernet, I2C, LPC, PCIe, SATA, SDIO, SPI, USB	-	-	Audio, DDI, Ethernet, I2C, LPC, PCIe, SATA, SDIO, SPI, USB	DDI, Ethernet, I2C, PCIe, SATA, SPI, UART, USB	Audio, DDI, Ethernet, I2C, LPC, PCIe, SATA, SDIO, SPI, USB
Minimum operating temperature	- 40 C	- 40 C	-	-	0 C	- 40 C	- 40 C
Maximum operating temperature	+ 85 C	+ 85 C	-	-	+ 60 C	+ 85 C	+ 85 C
size	95 mm x 95 mm	95 mm x 95 mm	-	-	95 mm x 95 mm	95 mm x 95 mm	95 mm x 95 mm
storage	8 GB	8 GB	-	-	8 GB	8 GB	8 GB
storage type	DDR3L	DDR3L	-	-	DDR3L	DDR3L	DDR3L
Power consumption	12 W	12 W	-	-	6 W	6.5 W	9 W
