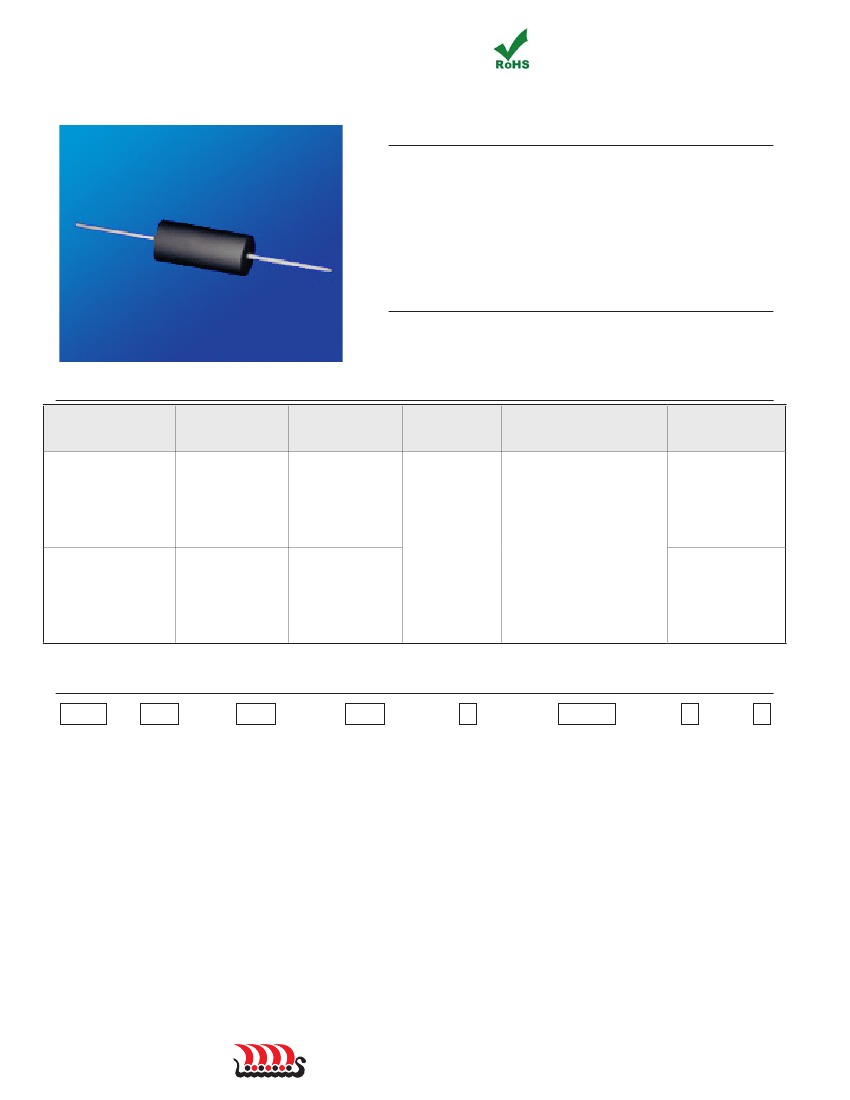

RWHSE07TQ005R0FS

Description
Wirewound Resistors - Through Hole 5Ohms 3W 1% WW Axial
CategoryPassive components    The resistor    Wire wound resistor    Wire wound resistor - through hole
File Size143KB,5 Pages
ManufacturerJohanson Dielectrics
Environmental Compliance
Download Datasheet Parametric View All

RWHSE07TQ005R0FS Online Shopping

Suppliers Part Number Price MOQ In stock
RWHSE07TQ005R0FS - - View Buy Now

RWHSE07TQ005R0FS Overview

Wirewound Resistors - Through Hole 5Ohms 3W 1% WW Axial

RWHSE07TQ005R0FS Parametric

Parameter NameAttribute value
MakerJohanson Dielectrics
Product CategoryWirewound Resistors - Through Hole
seriesRWH
resistance5 Ohms
Power rating3 W
Tolerance1 %
Temperature Coefficient50 PPM / C
Voltage rating135 V
range of working temperature- 55 C to + 250 C
diameter3.96 mm
length8.89 mm
Termination typeAxial
EncapsulationBulk
Features-
productPower Resistors Wirewound High Energy
technologyWirewound
typeStandard Winding High Power Wirewound Resistor
Installation stylePCB Mount
Lead diameter0.81 mm
Maximum operating temperature+ 250 C
Minimum operating temperature- 55 C
Factory packaging quantity500
r
esIsTor
w
Irewound
h
Igh
P
ower
r
aTIng
rwh s
erIes
k
ey
F
eatureS
• Excellent Pulse Handling
• Resistance Tolerances to ± 0.01%
• Resistance from 0.02 to 260kOhms
• MIL-R-26 / MIL-R-39007 Power Ratings
• Low TCR: ± 20ppm/ ºC Standard
• Non-Inductive Windings available
a
pplicationS
• HDVC Systems
• Braking Systems
• Power Supplies
• Fluid Heater
p
roduct
S
ummary
PRODUCT SERIES
(RWH)
POWER RATING
(W)
DIELECTRIC
STRENGTH
500 VAC:
E01, E02, E03,
E04, E05, E06
1000 VAC:
All Others
500 VAC:
F01, F02, F03,
F04, F05, F06, F07
1000 VAC:
All Others
± 0.01%
to
± 10%
(1% Standard)
>10Ω : ± 20ppm/°C
1Ω to 10Ω : ± 50ppm/°C
<1Ω : Call Factory
Characteristic U:
-55°C to + 275°C
Characteristic V:
-55°C to + 350°C
TOLERANCE
TEMPERATURE
COEFFICIENT
TEMPERATURE
RANGE
Miniature Axial
1 to 15
-55°C to + 250°C
Axial
0.1 to 15
H
ow to
o
rder
RWH
RESISTOR
WIREWOUND
HIGH POWER
S
WINDINGS
E02
PACKAGE CODE,
WATTS, RESISTANCE
Miniature Axial
E01, 1.0W, 33Vmax
E02, 1.0W, 33Vmax
Axial
F01, 0.1W, 8.5Vmax
F02, 0.4W, 20Vmax
See Table
T
OPERATING
TEMPERATURE
T = -55ºC to +250ºC
U = -55ºC to +275ºC
V = -55ºC to +350ºC
U
TEMPERATURE
COEFFICIENT OF
RESISTANCE (TCR)
U = ± 20ppm/°C
Q = ± 50ppm/°C
Z = Special
003K8
RESISTANCE
F
TOLERANCE
S
PACKING
S = Standard
N = Non-
Inductive
0R038 = 0.038Ω
003K8 = 3.8KΩ
038K0 = 38.0KΩ
380K0 = 380.0KΩ
003M8 = 3.8MΩ
Letter denotes
decimal place.
R = decimal.,“K” 10
3
,“M” 10
6
Remaining 4 digits
are significant or
placeholders.
T= ± 0.01%
Q= ± 0.02%
A= ± 0.05%
B= ± 0.1%
F= ± 1.0%
J= ± 5.0%
K= ± 10.0%
S = Bulk
T = Tape &
Reel
For Tin/Lead coated leads, add "- Pb" to part number.
Standard Termination Finish: Matte Tin (Sn)
Example P/N: RWHSE02TU003K8FS is Resistor Wirewound High Power, Standard, 1.0W, 33V, -55ºC to +250ºC, ±20ppm/ºC, 3.8KΩ, ±1.0%, bulk
