CS325-40.000MABJ-UT datasheet, PDF

Datasheet> All Categories > Passive components> Frequency controller and a timer> crystal> CS325-40.000MABJ-UT

CS325-40.000MABJ-UT: DescriptionCrystal 40MHz 18pF; CategoryPassive components Frequency controller and a timer crystal; File Size57KB，1 Pages; ManufacturerCITIZEN; Websitehttp://ce.citizen.co.jp/e/index.html; Environmental Compliance

Download Datasheet Parametric Compare View All

CS325-40.000MABJ-UT Overview

Crystal 40MHz 18pF

CS325-40.000MABJ-UT Parametric

Parameter Name	Attribute value
Maker	CITIZEN
Product Category	crystal
Termination type	SMD/SMT
Package/box	3.2 mm x 2.5 mm
load capacitance	18 pF
frequency	40 MHz
Tolerance	30 PPM
frequency stability	50 PPM
excitation level	10 uW
Minimum operating temperature	- 40 C
Maximum operating temperature	+ 85 C
length	3.2 mm
width	2.5 mm
high	0.55 mm
series	CS325
Encapsulation	Cut Tape
Encapsulation	MouseReel
Encapsulation	Reel
type	AT-Cut Crystal
ESR	50 Ohms
Installation style	SMD/SMT
Factory packaging quantity	3000
unit weight	16 mg

Preview

Download Datasheet

View All

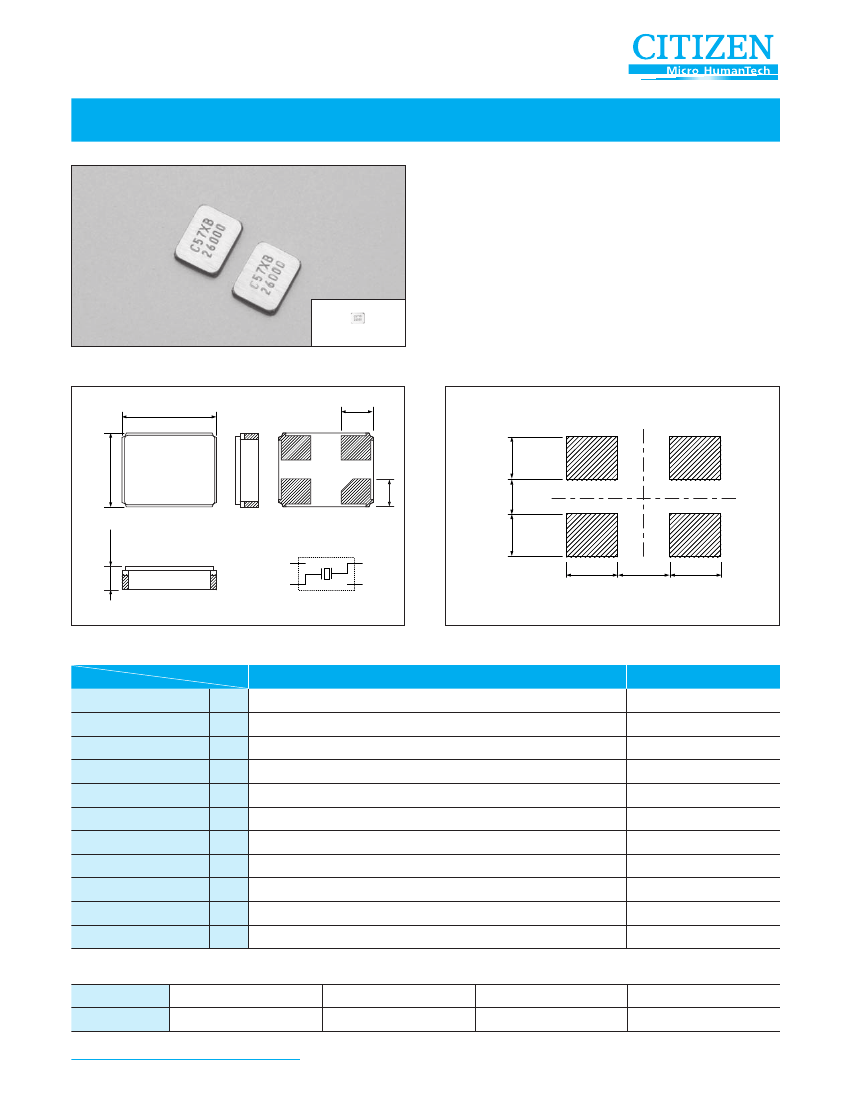

AT-CUT CRYSTAL UNIT

(SMD • Ceramic Package)

CS325

■

FEATURES

7High-density

SMD type.

3000pcs/reel

7Reliable

ceramic package and excellent

environmental characteristics.

7Suitable

for various applications such as

communication devices, AV devices and other

equipment.

Life-size

7Complete

Pb free product.

■

DIMENSION [mm]

3.2±0.1

＃4

＃3

4−1.0

＃4

■

SOLDER PAD LAYOUT [mm]

2.5±0.1

4−0.9

＃1

0.55±0.05

＃2

＃1

Internal connection

(Top View)

＃4

＃1

＃3

＃2

1.15

0.45

1.15

1.4

0.8

1.4

■

STANDARD SPECIFICATIONS

Item

Nominal Frequency

Frequency Tolerance

Frequency Tolerance over

Operating Temperature Range

Storage Temperature Range

Motional (series) resistance

Load capacitance

Shunt capacitance

Level of drive

Insulation Resistance

Aging (first year)

Model

CS325

12.0MHz∼54.0MHz Fundamental）

（

±30ppm

−

40℃∼

＋

85℃

−

55℃∼

＋

125℃

Conditions

Need to contact us for the available frequency

△

f/f

△

f/f

at 25˚C

−

10℃∼

＋

60℃

OPR

STR

△

f/f

Refer to the following table

16.0pF, 18.0pF

5.0pF Max.

10μW

（100μW Max.）

500MΩMin.

±5ppm Max.

at 25˚C

Need to specify your requirement

DC100V±15V

25℃±3℃

■

MOTIONAL (SERIES) RESISTANCE (R

)

Frequency Range

ESR

12.0MHz≦f

＜16.0MHz

150ΩMax.

16.0MHz≦f

＜20.0MHz

120ΩMax.

20.0MHz≦f

＜30.0MHz

80ΩMax.

30.0MHz≦f

＜54.0MHz

50ΩMax.

http://cfm.citizen.co.jp/english/product/pr02.html

CS325-40.000MABJ-UT Related Products

	CS325-40.000MABJ-UT	CS325-1431818MABJ-UT	CS325-27.120MABJ-UT	CS325-18.432MABJ-UT	CS325-27.000MABJ-UT	CS325-19.200MABJ-UT	CS325-13.000MABJ-UT	CS325-16.000MABJ-UT	CS325-24.576MABJ-UT	CS325-33.3333MABJ-UT
Description	Crystal 40MHz 18pF	Crystals 14.31818MHz 18pF	Crystals 27.12MHz -10C +60C 18pF 50ppm	Crystals 18.432MHz 18pF	Crystals 27MHz 18pF	Crystals 19.20MHz 18pF	Crystals 13MHz 18pF	Crystal 16MHz 18pF	Crystal 24.576MHz 18pF	Crystal 33.3333MHz 18pF
Product Category	crystal	Crystals	Crystals	Crystals	Crystals	Crystals	Crystals	crystal	crystal	crystal
Tolerance	30 PPM	30 PPM	30 PPM	30 PPM	30 PPM	30 PPM	30 PPM	30 PPM	30 PPM	30 PPM
ESR	50 Ohms	150 Ohms	80 Ohms	120 Ohms	80 Ohms	120 Ohms	150 Ohms	120 Ohms	80 Ohms	50 Ohms
Product Attribute	-	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	-	-	-
Manufacturer	-	CITIZEN	CITIZEN	CITIZEN	CITIZEN	CITIZEN	CITIZEN	-	-	-
Termination Style	-	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	-	-	-
Package / Case	-	3.2 mm x 2.5 mm	3.2 mm x 2.5 mm	3.2 mm x 2.5 mm	3.2 mm x 2.5 mm	3.2 mm x 2.5 mm	3.2 mm x 2.5 mm	-	-	-
Load Capacitance	-	18 pF	18 pF	18 pF	18 pF	18 pF	18 pF	-	-	-
Frequency	-	14.31818 MHz	27.12 MHz	18.432 MHz	27 MHz	19.2 MHz	13 MHz	-	-	-
Frequency Stability	-	50 PPM	50 PPM	50 PPM	50 PPM	50 PPM	50 PPM	-	-	-
Drive Level	-	10 uW	10 uW	10 uW	10 uW	10 uW	10 uW	-	-	-
Minimum Operating Temperature	-	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C	-	-	-
Maximum Operating Temperature	-	+ 85 C	+ 85 C	+ 85 C	+ 85 C	+ 85 C	+ 85 C	-	-	-
Length	-	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm	-	-	-
Width	-	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	-	-	-
Height	-	0.55 mm	0.55 mm	0.55 mm	0.55 mm	0.55 mm	0.55 mm	-	-	-
Packaging	-	Reel	Reel	Reel	Reel	Reel	Reel	-	-	-
Type	-	AT-Cut Crystal	AT-Cut Crystal	AT-Cut Crystal	AT-Cut Crystal	AT-Cut Crystal	AT-Cut Crystal	-	-	-
Mounting Style	-	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	-	-	-
Factory Pack Quantity	-	3000	3000	3000	3000	3000	3000	-	-	-
Unit Weight	-	0.000564 oz	0.000564 oz	0.000564 oz	0.000564 oz	0.000564 oz	0.000564 oz	-	-	-
