NXP Semiconductors
User’s Guide
Document Number: KTTWRSB0800-36EVBUG
Rev. 1.0, 7/2016
TWR-SB0800-36EVB tower system platform

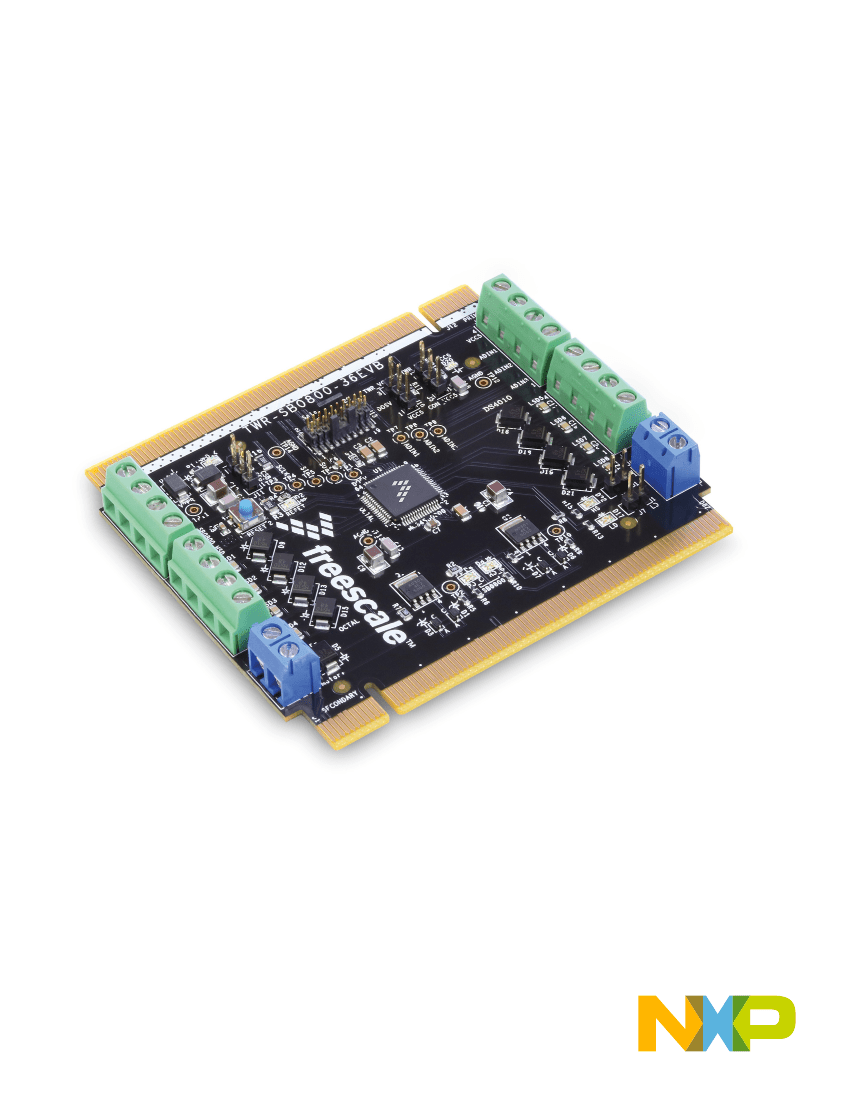

Figure 1. TWR-SB0800-36EVB
© 2016 NXP B.V.
Contents
1
2
3
4
5
6
7
8
9
10
Important notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Understanding the tower system modular development board platform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Getting to know the hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Setting up the hardware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Board layout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Board bill of materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
TWR-SB0800-36EVB tower system platform,
Rev. 1.0
2
NXP Semiconductors
Important notice
1
Important notice
NXP provides the enclosed product(s) under the following conditions:
This evaluation kit is intended for use of ENGINEERING DEVELOPMENT OR EVALUATION PURPOSES ONLY.
It is provided as a sample IC pre-soldered to a printed circuit board to make it easier to access inputs, outputs, and
supply terminals. This evaluation board may be used with any development system or other source of I/O signals
by simply connecting it to the host MCU or computer board via off-the-shelf cables. This evaluation board is not a
Reference Design and is not intended to represent a final design recommendation for any particular application.
Final device in an application will be heavily dependent on proper printed circuit board layout and heat sinking
design as well as attention to supply filtering, transient suppression, and I/O signal quality.
The goods provided may not be complete in terms of required design, marketing, and or manufacturing related
protective considerations, including product safety measures typically found in the end product incorporating the
goods. Due to the open construction of the product, it is the user's responsibility to take any and all appropriate
precautions with regard to electrostatic discharge. In order to minimize risks associated with the customers
applications, adequate design and operating safeguards must be provided by the customer to minimize inherent or
procedural hazards. For any safety concerns, contact NXP sales and technical support services.
Should this evaluation kit not meet the specifications indicated in the kit, it may be returned within 30 days from the
date of delivery and will be replaced by a new kit.
NXP reserves the right to make changes without further notice to any products herein. NXP makes no warranty,
representation or guarantee regarding the suitability of its products for any particular purpose, nor does NXP
assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and
all liability, including without limitation consequential or incidental damages. “Typical” parameters can and do vary
in different applications and actual performance may vary over time. All operating parameters, including “Typical”,
must be validated for each customer application by customer’s technical experts.
NXP does not convey any license under its patent rights nor the rights of others. NXP products are not designed,
intended, or authorized for use as components in systems intended for surgical implant into the body, or other
applications intended to support or sustain life, or for any other application in which the failure of the NXP product
could create a situation where personal injury or death may occur.
Should the Buyer purchase or use NXP products for any such unintended or unauthorized application, the Buyer
shall indemnify and hold NXP and its officers, employees, subsidiaries, affiliates, and distributors harmless against
all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any
claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges
NXP was negligent regarding the design or manufacture of the part. NXP™ and the NXP logo are trademarks of
NXP Semiconductors. All other product or service names are the property of their respective owners. © 2016 NXP
B.V.
TWR-SB0800-36EVB tower system platform,
Rev. 1.0
NXP Semiconductors
3
Getting started
2
2.1
Getting started
Kit contents/packing list
The TWR-SB0800-36EVB contents include:
•
TWR-SB0800-36EVB tower board
•
Plug-in connectors
•
Warranty card
2.2
Jump start
NXP’s analog product development boards help to easily evaluate NXP products. These tools support analog mixed signal and power
solutions including monolithic ICs using proven high-volume SMARTMOS mixed signal technology, and system-in-package devices
utilizing power, SMARTMOS and MCU dies. NXP products enable longer battery life, smaller form factor, component count reduction, ease
of design, lower system cost, and improved performance in powering state of the art systems.
•
Go to
www.nxp.com/TWR-SB0800-36EVB
•
Review your Tool Summary Page
•
Look for
Jump Start Your Design
•
Download the documents, software and other resources
Once the files are downloaded, review the user guide in the bundle. The user guide includes setup instructions, BOM, and schematics.
Jump start bundles are available on each tool summary page with the most relevant and current information. The information includes
everything needed for design.
2.3
Required equipment and software
To use this kit, you need:
•
Power supply 6.0 V to 36 V with current limit set initially to 2.5 A to 9.0 A
•
Oscilloscope (preferably 4-channel) with current probe(s)
•
Digital multimeter
•
Typical loads: (DC motor, valve)
•
TWR-KL25Z48M, K20D72M, KV31F120M or other Tower boards (check compatibility)
•
Kinetis Design Studio or compatible CodeWarrior for MCUs (Eclipse IDE). For information on getting started with CodeWarrior,
see the MC34Valve Controller Processor Expert Component User Guide.
2.4
System requirements
The kit requires the following to function properly with the software:
•
USB-enabled PC with Windows® XP or higher
TWR-SB0800-36EVB tower system platform,
Rev. 1.0
4
NXP Semiconductors
Understanding the tower system modular development board platform
3
Understanding the tower system modular development
board platform
NXP’s Tower System peripheral module is designed to be combined and used with other Tower System modules. The Tower System is a
modular development platform for 8-, 16-, and 32-bit MCUs and MPUs enabling advanced development through rapid prototyping.
Featuring more than fifty development boards or modules, the Tower System provides designers with building blocks for entry-level to
advanced MCU development.
Figure 2
shows a Tower System platform with the TWR-SB0800-36EVB configured with another Tower
System module, the TWR-KL25Z48M board.
TWR-SB0800-36EVB or TWR-SB0410-36EVB
Elevator Board
(Secondary)
Elevator Board
(Primary)
Tower MCU Board (TWR-KL25Z48M in this example)

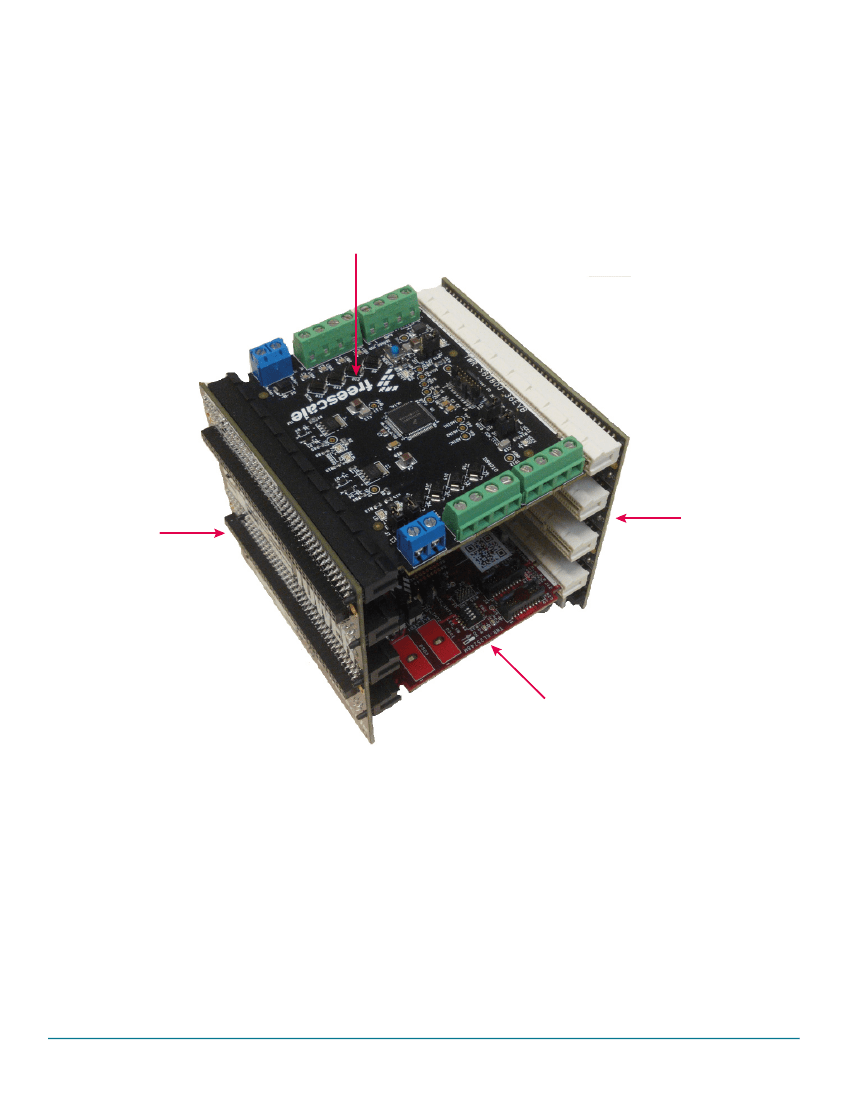

Figure 2. TWR-SB0800-36EVB on tower system
TWR-SB0800-36EVB tower system platform,
Rev. 1.0
NXP Semiconductors
5
