UF4001, UF4002, UF4003, UF4004, UF4005, UF4006, UF4007
www.vishay.com
Vishay General Semiconductor
Ultrafast Plastic Rectifier
FEATURES
• Glass passivated chip junction
• Ultrafast reverse recovery time
• Low forward voltage drop
• Low switching losses, high efficiency
DO-41 (DO-204AL)
• High forward surge capability
• Solder dip 275 °C max. 10 s, per JESD 22-B106
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
TYPICAL APPLICATIONS
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
t
rr
V
F
T
J
max.
Package
Circuit configuration
1.0 A
50 V, 100 V, 200 V, 400 V, 600 V,
800 V, 1000 V
30 A
50 ns, 75 ns
1.0 V, 1.7 V
150 °C
DO-41 (DO-204AL)
Single
For use in high frequency rectification and freewheeling
application in switching mode converters and inverters for
consumer, computer, and telecommunication.
MECHANICAL DATA
Case:
DO-41 (DO-204AL)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Base P/N-M3 - halogen-free, RoHS-compliant, commercial
grade
Terminals:
matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3 and M3 suffix meets JESD 201 class 1A whisker test
Polarity:
color band denotes cathode end
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Maximum repetitive peak
reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
0.375" (9.5 mm) lead length at T
A
= 55 °C
Peak forward surge current 8.3 ms single half
sine-wave superimposed on rated load
Operating junction and storage temperature range
SYMBOL UF4001 UF4002 UF4003 UF4004 UF4005 UF4006 UF4007 UNIT
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
T
J
, T
STG
50
35
50
100
70
100
200
140
200
400
280
400
1.0
30
-55 to +150
600
420
600
800
560
800
1000
700
1000
V
V
V
A
A
°C
Revision: 06-Aug-2018
Document Number: 88755
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
UF4001, UF4002, UF4003, UF4004, UF4005, UF4006, UF4007
www.vishay.com
Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Maximum instantaneous
forward voltage
Maximum DC reverse
current at rated DC
blocking voltage
Maximum reverse
recovery time
Typical junction
capacitance
TEST CONDITIONS
1.0 A
T
A
= 25 °C
I
R
T
A
= 100 °C
I
F
= 0.5 A, I
R
= 1.0 A,
I
rr
= 0.25 A
4.0 V, 1 MHz
t
rr
C
J
50
17
50
75
ns
pF
SYMBOL UF4001 UF4002 UF4003 UF4004 UF4005 UF4006 UF4007 UNIT
V
F (1)
1.0
10
μA
1.7
V
Note
(1)
Pulse test: 300 μs pulse width, 1 % duty cycle
THERMAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Typical thermal resistance
SYMBOL UF4001 UF4002 UF4003 UF4004 UF4005 UF4006 UF4007 UNIT
R
JA
(1)
R
JL
(1)
60
15
°C/W
(1)
Note
Thermal resistance from junction to ambient at 0.375" (9.5 mm) lead length
ORDERING INFORMATION
(Example)
PREFERRED P/N
UF4007-E3/54
UF4007-E3/73
UF4007-M3/54
UF4007-M3/73
UNIT WEIGHT (g)
0.33
0.34
0.33
0.34
PREFERRED PACKAGE CODE
54
73
54
73
BASE QUANTITY
5500
3000
5500
3000
DELIVERY MODE
13" diameter paper tape and reel
Ammo pack packaging
13" diameter paper tape and reel
Ammo pack packaging
RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25 °C unless otherwise noted)
1.0
30
Average Forward Rectified Current (A)
Peak Forward
Surge
Current (A)
T
A
= 55 °C
8.3 ms
Single
Half
Sine-Wave
25
20
0.5
15
10
5
Resistive or Inductive Load
0.375" (9.5 mm) Lead Length
0
20
40
60
80
100
120
140
160
0
1
10
100
Ambient Temperature (°C)
Number of Cycles at 60 Hz
Fig. 1 - Maximum Forward Current Derating Curve
Fig. 2 - Maximum Non-Repetitive Peak Forward Surge Current
Revision: 06-Aug-2018
Document Number: 88755
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
UF4001, UF4002, UF4003, UF4004, UF4005, UF4006, UF4007
www.vishay.com
Vishay General Semiconductor
100
T
J
= 150 °C
100
UF4001 thru UF4004
Instantaneous Forward Current (A)
Instantaneous Reverse Leakage
Current (μA)
10
T
J
= 125 °C
T
J
= 100 °C
10
T
J
= 150 °C
1
1
T
J
= 125 °C
T
J
= 100 °C
0.1
T
J
= 25 °C
0.01
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
0.1
T
J
= 25 °C
0.01
UF4005 thru UF4007
0.001
0
20
40
60
80
100
Instantaneous Forward Voltage (V)
Percent of Peak Reverse Voltage (%)

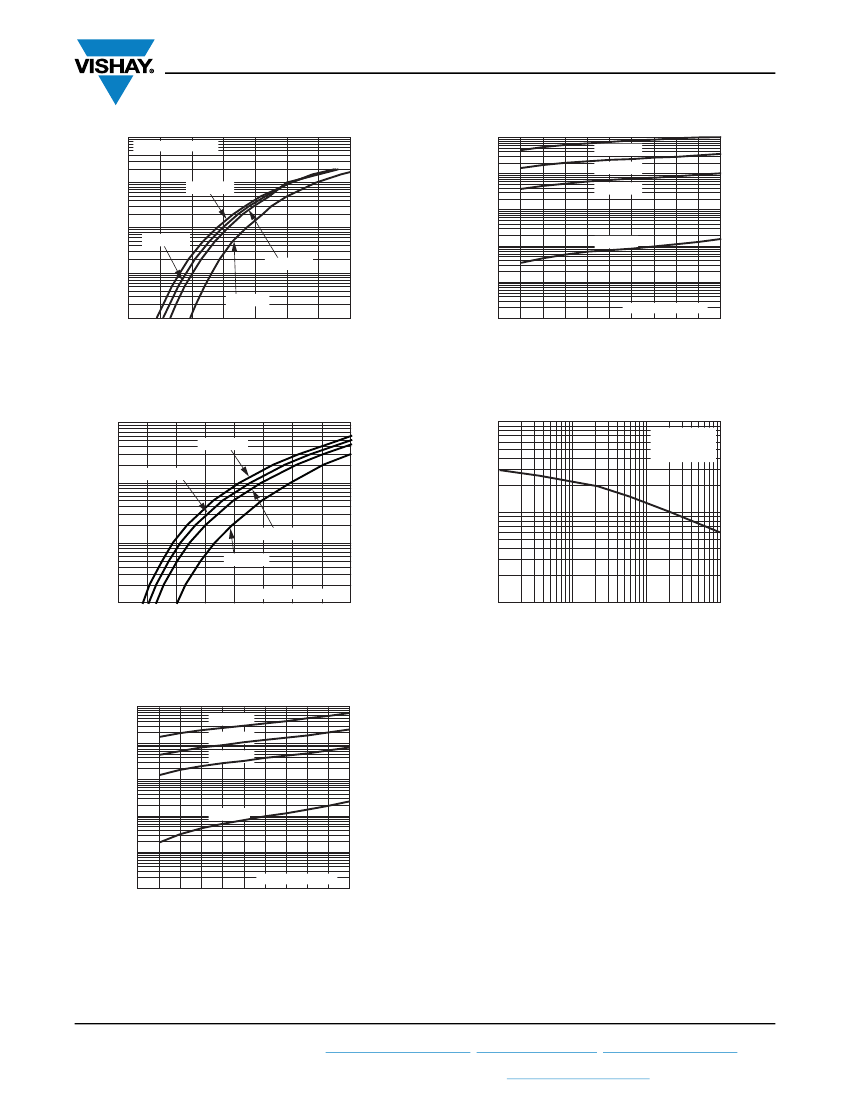

Fig. 3 - Typical Instantaneous Forward Characteristics
Fig. 6 - Typical Reverse Leakage Characteristics
10
100
T
J
= 150 °C
T
J
= 125 °C
Instantaneous Forward Current (A)
1
Junction Capacitance (pF)
T
J
= 25 °C
f = 1.0 MHz
V
sig
= 50 mV
p-p
10
0.1
T
J
= 100 °C
T
J
= 25 °C
UF4005 thru UF4007
0.01
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
1
0.1
1
10
100
Instantaneous Forward Voltage (V)
Reverse Voltage (V)
Fig. 4 - Typical Reverse Leakage Characteristics
Fig. 7 - Typical Junction Capacitance
100
T
J
= 150 °C
10
T
J
= 125 °C
T
J
= 100 °C
1
0.1
T
J
= 25 °C
0.01
UF4001 thru UF4004
0.001
0
20
40
60
80
100
Percent of Peak Reverse Voltage (%)
Revision: 06-Aug-2018
Document Number: 88755
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Instantaneous Reverse Leakage
Current (μA)
Fig. 5 - Typical Instantaneous Forward Characteristics
UF4001, UF4002, UF4003, UF4004, UF4005, UF4006, UF4007
www.vishay.com
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
DO-41 (DO-204AL)
Vishay General Semiconductor
1.0 (25.4)
MIN.
0.107 (2.7)
0.080 (2.0)
DIA.
0.205 (5.2)
0.160 (4.1)
1.0 (25.4)
MIN.
0.034 (0.86)
0.028 (0.71)
DIA.
Revision: 06-Aug-2018
Document Number: 88755
4
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
