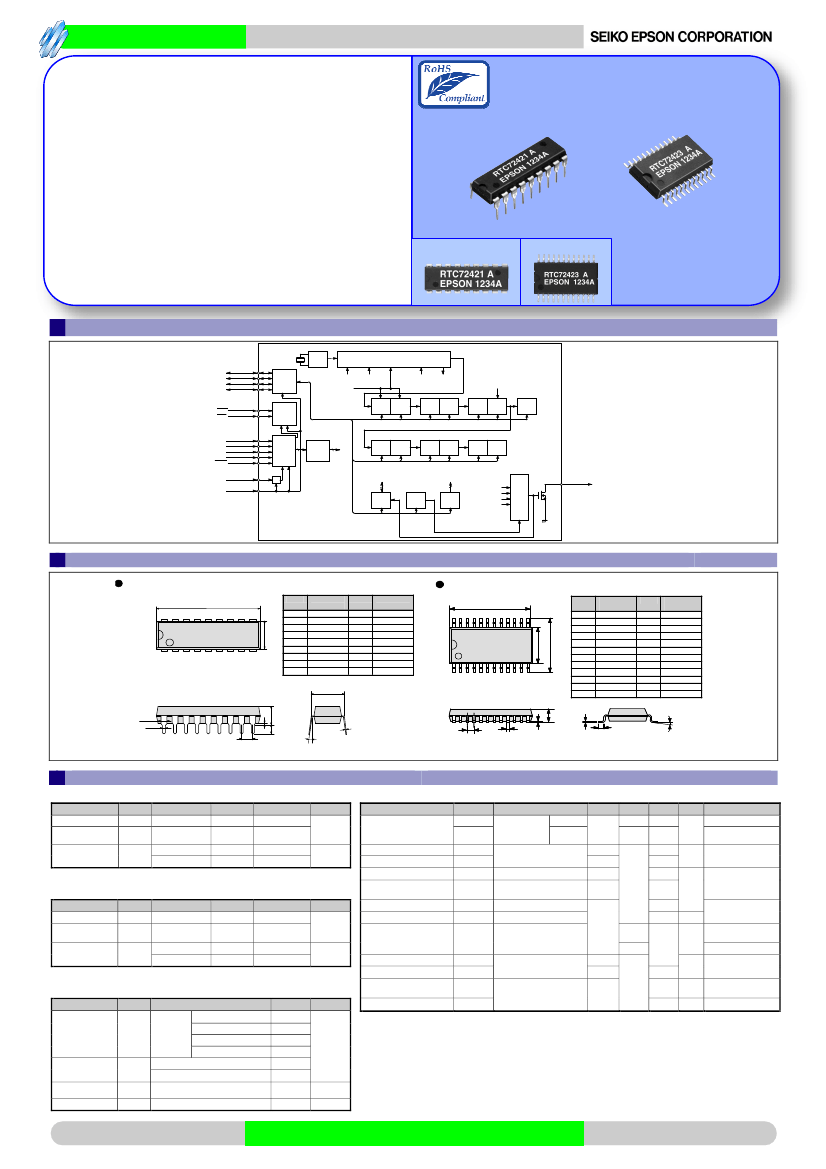

Real time clock module
REAL TIME CLOCK MODULE (4-bit)
RTC - 72421
RTC - 72423
•Built-in
crystal unit allows adjustment-free efficient operation.
•24
h /12 h changeable and leap year automatically adjustable
(Gregorian calendar).
Note
•7242series
does not have complete compatibility ability for
the "old product RTC-6242 series”.
•when
replace to 7242series from 6242 series, confirm the technical
information of RTC7242 latest manual by all means.
Actual size
RTC-72421
Product Number (Please contact us)
RTC-72421A : Q42724212000100
RTC-72421B : Q42724212000200
RTC-72423A : Q42724232000600
RTC-72423B : Q42724232000700
RTC-72423
Block diagram
RTC-72421/72423
OSC
D3
D2
D1
D0
R ES ET S TOP
bit
bit
30 s ec AD J
bit
S1
G ate
S 10
C ounter
HO LD
bit
BU SY
bit
G ate
24/12
bit
WR
RD
M I1
M I10
H1
H 10
W
A3
A2
A1
A0
C S0
ALE
C S1
Latch
Decoder
S 1 to
CF
D1
D 10
M O 1 M O10
Y1
Y10
Output
Selector
CD
CE
64 H z
1 S econd c arry
C F 1 M inute carry
1 H our carry
STD .P
Terminal connection/External dimensions
RTC-72421 (DIP 18-pin)
No.
23.1 Max.
#18
#10
(Unit:mm)
RTC-72423 (SOP 24-pin)
6.3
RTC72421 A
EPSON
#1
#9
#1
#12
7.62
0.2 4.2
Min. Max.
3.3
Min.
0.25
0° -15°
7.9
1234A
1
2
3
4
5
6
7
8
9
Pin
terminal
STD.P
/CS
0
ALE
A
0
A
1
A
2
A
3
/RD
GND
No.
18
17
16
15
14
13
12
11
10
Pin
terminal
V
DD
(V
DD
)
(V
DD
)
CS
1
C
0
D
1
D
2
D
3
/W R
16.3 Max.
#24
#13
No.
1
2
3
4
5
6
7
8
9
10
11
12
0.2
RTC72423
RTC62423
EPSON 1234A
Pin
terminal
STD.P
/CS
0
N.C.
ALE
A
0
N.C.
A1
N.C.
A
2
A
3
/RD
GND
No.
24
23
22
21
20
19
18
17
16
15
14
13
Pin
terminal
V
DD
(V
DD
)
(V
DD
)
N.C.
CS
1
D
0
N.C.
N.C.
D
1
D
2
D
3
/W R
1.52
0.46
2.54
1.27
0.35
0.1 Min.
12.2 Max.
2.8 Max.
1.0
0° - 10°
The metal case inside of the molding compound may be exposed on the top or bottom of this product.
This purely cos metic and does not have any effect on quality, reliability or electrical specs.
Specifications (characteristics)
Absolute Max. rating
Item
Supply voltage
Input voltage
Storage
temperature
*
Symbol
V
DD
V
I/O
T
STG
Conditions
T
a
=+25
°C
T
a
=+25
°C
RTC-72421
RTC-72423
Min.
-0.3
GND-0.3
-55
-55
Max.
+7.0
V
DD
+0.3
+85
+125
Unit
V
°C
*Refer
to application manual for details.
DC characteristics
Item
Current consumption
HIGH input voltage (1)
LOW input voltage (1)
LOW output voltage (1)
HIGH output voltage
Symbol
I
DD1
I
DD2
V
IH1
V
IL1
V
OL1
V
OH
V
OL2
I
OFFLK
C
1
V
IH2
V
IL2
I
LK1
I
LK2
Conditions
CS
1
= 0 V
V
DD
=5 V
Exclude input/
output current V
DD
=2 V
-
I
OL
=2.5 mA
I
OH
=-400 µA
I
OL
=2.5 mA
V
1
=V
DD
/0 V
Input frequency
1 MHz
V
DD
=2.0 V to 5.5 V
V
1
=V
DD
/0 V
-
10
20
4/5 V
DD
-
-
-
1/5 V
DD
1/-1
10/-10
-
Min.
-
2.2
-
-
2.4
-
Typ.
1
0.9
Max.
10
5
-
0.8
0.4
-
0.4
10/-10
Unit Applicable terminal
-
µA
-
V
All inputs other than
CS
1
D
0
to D
3
STD.P
Input other than
D
0
to D
3
D
0
to D
3
, STD.P
CS
1
Input other than
D
0
to D
3
D
0
to D
3
*Stored
as bare product after unpacking
Operating range
Item
Power voltage
Clock voltage
Operating
temperature
Symbol
V
DD
V
CLK
T
OPR
Conditions
-
-
RTC-72421
RTC-72423
Min.
4.5
2.0
-10
-40
Max.
5.5
5.5
+70
+85
Unit
V
V
µA
pF
V
µA
LOW output voltage (2)
OFF leak current
Input capacity
°C
HIGH input voltage (2)
LOW input voltage (2)
Input leak current (1)
Stored as bare produc after unpacking
Frequency characteristics
Item
Frequency
precision
Frequency
temperature
characteristics
Frequency voltage
characteristics
Symbol
∆f
/f
TOP
f/V
fa
Conditions
72421A
72421B
T
a
=+25 °
C
V
DD
=5.0 V
72423A
72423B
-10
°C
to +70
°C
(+25
°C)
-40
°C
to +85
°C(+25 °C)
Range
±10
±50
±20
±50
+10 / -120
+10 / -220
Unit
Input leak current (2)
×10
-6
T
a
=+25
°C,V
DD
=2.0 V to 5.5 V
±5.0
Max.
×10
-6
/V
T
a
=+25
°C,V
DD
=5.0 V,First year
±5.0
Max.
×10
-6
/year
Aging
