Data Sheet
Features
•
•
•
•
•
•
•
•
•
For Satellite Radio Applications
Usable Bandwidth 45 MHz
Low Loss
Good Selectivity
Ceramic Chip Scale Package (CSP)
Single-ended Input, 50Ω
Balanced Output, 100Ω or 200Ω
Hermetic
RoHS compliant (2002/95/EC), Pb-free

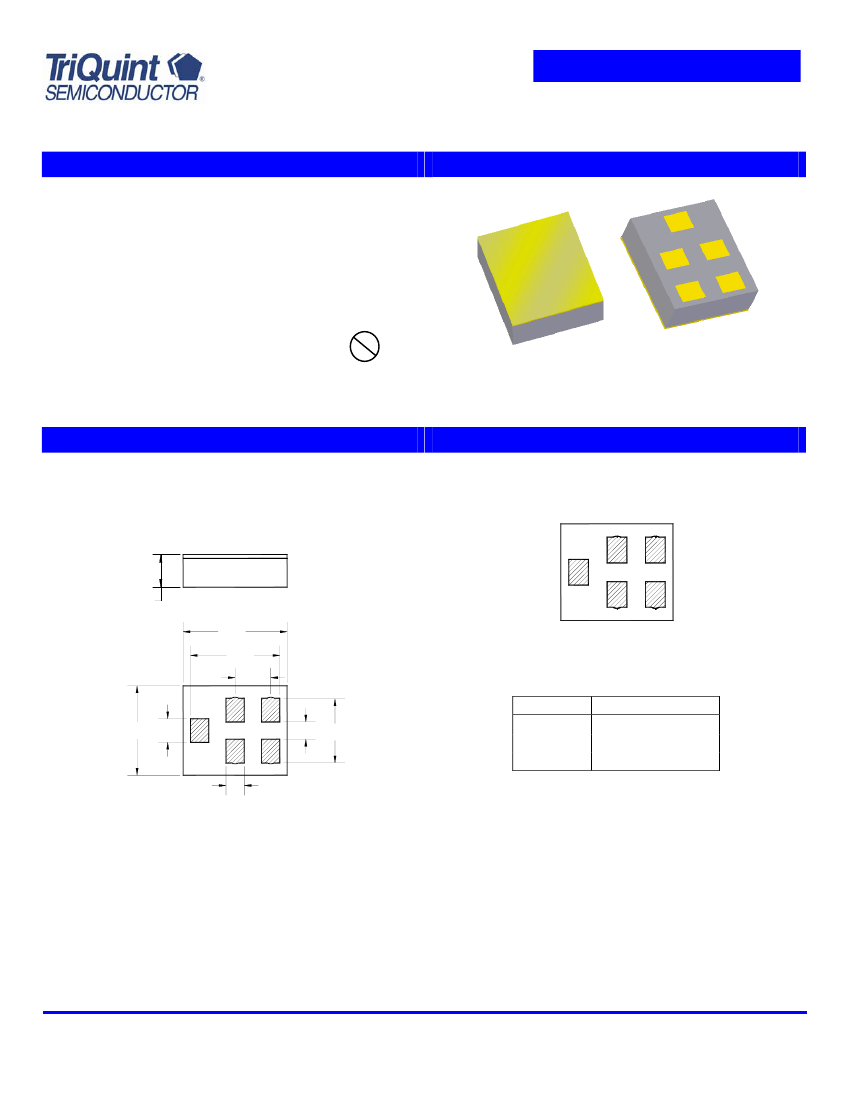

Part Number 856604
2332.5 MHz SAW Filter
•
Pb
Package
Surface Mount 1.40 x 1.20 x 0.46 mm
Pin Configuration
Bottom View
2
3
1
0.46 NOM.
0.50 MAX.
1.40
1.25
0.50
5
4
1.20 0.325
0.25
0.90
Pin No.
1
3,4
2,5
Description
Input
Output
Case ground
0.25
Dimensions shown are nominal in millimeters
All tolerances are
±0.10mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar
or
Alloy 42, Au
over
Ni
plated
Terminations:
Au
plating 0.5 - 1.0µm,
over a 2 - 6µm
Ni
plating
Subject to change or obsolescence without notice
Rev A
06-07 TriQuint Semiconductor, Inc. ©
Page 1 of 7
Data Sheet
Operating Temperature Range:
(2)
-40 to +85
o
C
Part Number 856604
2332.5 MHz SAW Filter
Target Electrical Specifications
(1)
Parameter
(3)
Center Frequency
Maximum Insertion Loss
2310 - 2355 MHz
Absolute Attenuation
0880 - 0960 MHz
1710 - 1900 MHz
2106 MHz
2224 MHz
2453 MHz
2570 MHz
Amplitude Variation
2310 - 2355 MHz
Output Amplitude Balance (|S
31
/S
21
|)
2310 - 2355 MHz
Output Phase Balance [φ(S
31
)-φ(S
21
)]
2310 - 2355 MHz
Source Impedance (single-ended)
(4)
Load Impedance (balanced)
(4)
Notes:
1.
Minimum
-
-
35
30
30
13
12
15
-
-1.5
-7.5
-
-
Typical
2332.5
1.70
45
34
38
21
15
31
0.35
-
-
50
100
Maximum
-
2.0
-
-
-
-
-
-
1.0
1.5
7.5
-
-
Unit
MHz
dB
dB
dB p-p
dB
degree
Ω
Ω
2.
3.
4.
All target specifications are based on TriQuint test circuit shown below
In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
This is the optimum impedance in order to achieve the performance shown
Test Circuit:
Actual matching values may vary due to PCB layout and parasitics
4.7nH
1
3
100
Ω
2,5
4
4.7nH
50
Ω
Single-ended
Input
50Ω
100
Ω
Balanced
Output
PCB:
PCB-5BT V-1
Inductor Kit:
LQW15AN4N7D10 0402 series inductors
Port extension:
58psec (input), 43psec (output+), 43psec (output-)
Subject to change or obsolescence without notice
Rev A
06-07 TriQuint Semiconductor, Inc. ©
Page 2 of 7
Data Sheet
Part Number 856604
2332.5 MHz SAW Filter

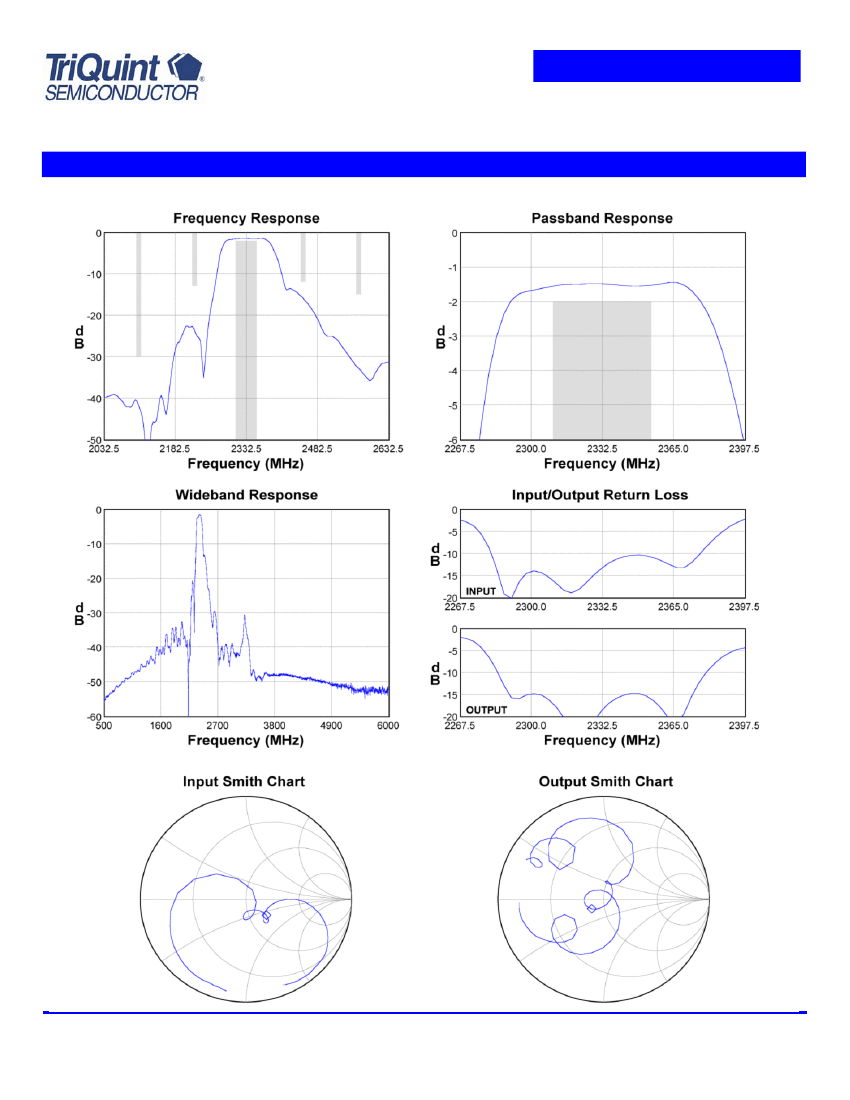

Typical Performance
(at +25
o
C)
Subject to change or obsolescence without notice
Rev A
06-07 TriQuint Semiconductor, Inc. ©
Page 3 of 7
Data Sheet
Operating Temperature Range:
(2)
-40 to +85
o
C
Part Number 856604
2332.5 MHz SAW Filter
Target Electrical Specifications
(1)
Parameter
(3)
Center Frequency
Maximum Insertion Loss
2310 - 2355 MHz
Absolute Attenuation
0880 - 0960 MHz
1710 - 1900 MHz
2106 MHz
2224 MHz
2453 MHz
2570 MHz
Amplitude Variation
2310 - 2355 MHz
Output Amplitude Balance (|S
31
/S
21
|)
2310 - 2355 MHz
Output Phase Balance [φ(S
31
)-φ(S
21
)]
2310 - 2355 MHz
Source Impedance (single-ended)
(4)
Load Impedance (balanced)
(4)
Notes:
1.
Minimum
-
-
35
30
30
13
12
15
-
-1.5
-7.5
-
-
Typical
2332.5
1.70
45
34
38
21
15
31
0.35
-
-
50
200
Maximum
-
2.0
-
-
-
-
-
-
1.0
1.5
7.5
-
-
Unit
MHz
dB
dB
dB p-p
dB
degree
Ω
Ω
2.
3.
4.
All target specifications are based on TriQuint test circuit shown below
In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
This is the optimum impedance in order to achieve the performance shown
Test Circuit:
Actual matching values may vary due to PCB layout and parasitics
3.3nH
1
3
18nH
2,5
4
3.3nH
200
Ω
50
Ω
Single-ended
Input
50Ω
200
Ω
Balanced
Output
PCB:
PCB-5BT V-1
Inductor Kit:
LQW15AN4N7D10, LQW15AN18NH00 0402 series inductors
Port extension:
58ps (input), 43ps (output +), 43ps (output -)
Subject to change or obsolescence without notice
Rev A
06-07 TriQuint Semiconductor, Inc. ©
Page 4 of 7
Data Sheet
Part Number 856604
2332.5 MHz SAW Filter
Typical Performance
(at +25
o
C)
Subject to change or obsolescence without notice
Rev A
06-07 TriQuint Semiconductor, Inc. ©
Page 5 of 7
