531622: DescriptionCovers, boxes and shell productsExtrudedAlum Sinkbox 8.86x4.2x2.36" Clear; Categoryaccessories Cover, box and shell products; File Size262KB，3 Pages; ManufacturerHammond; Websitehttp://www.hammondmfg.com; Environmental Compliance

Download Datasheet Parametric Compare View All

531622 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	531622	-	-	View	Buy Now

531622 Overview

Covers, boxes and shell productsExtrudedAlum Sinkbox 8.86x4.2x2.36" Clear

531622 Parametric

Parameter Name	Attribute value
Maker	Hammond
Product Category	Covers, boxes and shell products
product	Enclosures
type	PC Board Slots
Material	Aluminum
color	Clear
length	8.86 in
width	4.2 in
high	2.36 in
IP rating	IP54
series	SINK-BOX
size	8.86 in L x 4.2 in W x 2.36 in H
Height – inches	2.36
Height – mm	59.944
Length – inches	8.86
Length – mm	225.044
Factory packaging quantity	1
Width – inches	4.2
Width – mm	106.68
unit weight	1.315 kg

Preview

Download Datasheet

View All

11/14/2018

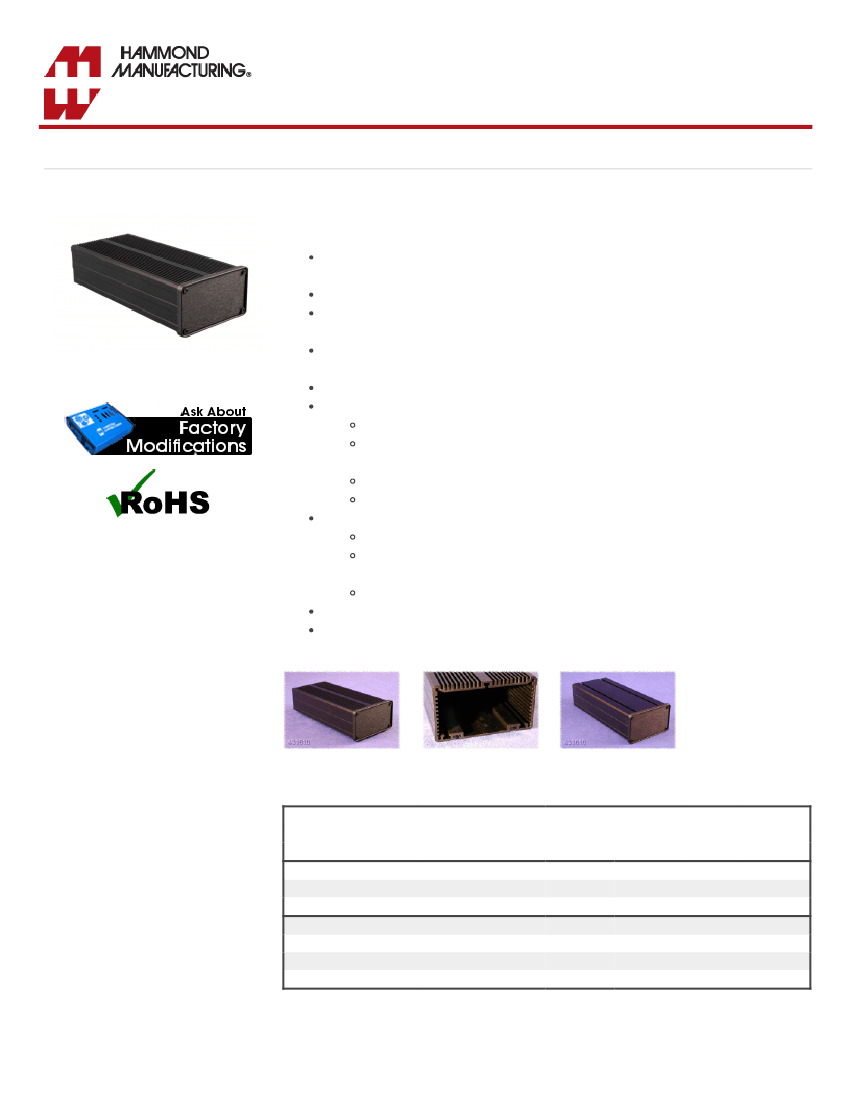

Extruded Aluminum "Sink Box" (SINK-BOX Series) - Hammond Mfg.

Quality Products. Service Excellence.

Extruded Aluminum "Sink Box"

SINK-BOX Series

Key Features

The Sink Box series is a British designed extruded aluminum enclosure (originally sold

under the West Hyde Enclosures Ltd. name).

Ideally suited for mounting small printed circuit boards or chassis horizontally.

The enclosure body is formed from a single, hollow aluminum extrusion. This gives the

unit high strength as well as simplifying assembly.

The aluminum extrusion has fins on one side (the top) which act as a heat sink. Aluminum

end panels are attached to each end.

Extrusions are anodized in a choice of either black or clear.

The interior of the enclosure contains:

numerous slots on both of the shorter sides to accept a P.C. board or chassis.

three "T" slots (one in the top and two in the bottom) which provide an alternative

method of mounting chassis or components that need to be cooled by conduction

the single "T" slot in the top takes an M3 half-nut.

the two "T" slots in the bottom take M4 half-nuts.

The exterior of the enclosure contains:

heat sink fins across the entire top.

two "T" slots on the bottom to allow mounting of wall brackets, belt attachment or

to connect to another enclosure.

the two bottom "T" slots take M4 half-nuts.

Also includes molded black plastic bezels which can be used to protect the end panels.

End panel assembly screws are included.

Outside View

Inside View

Upside Down View

Designed For

Part Number

Black Anodize

431609

431612

431610

431611

431621

431622

431623

Part Number

Clear Anodize

531609

531612

531610

531611

531621

531622

531623

P.C.B.

Width

85mm

100mm

Length

100

150

200

125

165

225

285

Width

90

105

Height

51

60

https://www.hammfg.com/electronics/small-case/extruded/sink-box

1/2

531622 Related Products

	531622	431621
Description	Covers, boxes and shell productsExtrudedAlum Sinkbox 8.86x4.2x2.36" Clear	Covers, boxes and shell productsExtrudedAlum Sinkbox 6.5x4.13x2.36" Black
Maker	Hammond	Hammond
Product Category	Covers, boxes and shell products	Covers, boxes and shell products
product	Enclosures	Enclosures
type	PC Board Slots	PC Board Slots
Material	Aluminum	Aluminum
color	Clear	Black
length	8.86 in	6.5 in
width	4.2 in	4.13 in
high	2.36 in	2.36 in
IP rating	IP54	IP54
series	SINK-BOX	SINK-BOX
size	8.86 in L x 4.2 in W x 2.36 in H	6.5 in L x 4.13 in W x 2.36 in H
Height – inches	2.36	2.36
Height – mm	59.944	59.944
Length – inches	8.86	6.5
Length – mm	225.044	165.1
Factory packaging quantity	1	1
Width – inches	4.2	4.13
Width – mm	106.68	104.902
unit weight	1.315 kg	1.315 kg
