NOTES:
UNLESS OTHERWISE SPECIFIED
1. CORNERS DRAWN SHARP TO BE R.005 MAXIMUM.
2. EXTERIOR SURFACE TEXTURE TO BE LIGHT EDM FINISH.
EQUIVALENT TO MT-11020. TEXTURE ON ENCLOSURE
WILL VARY FROM TIME TO TIME AS THE TOOL WEARS AND
IT BECOMES NESSESARY TO REAPPLY.
3. INTERIOR SURFACE TEXTURE TO BE: NONE.
4. ALL INSIDE RADII .010R. UNLESS OTHERWISE SPECIFIED.
5. ALL EXTERNAL DIMENSIONS AFFECTED BY THE DRAFT APPLY AT THE
LARGE END OF THE FEATURE, AND ALL INTERNAL FEATURES AFFECTED
BY THE DRAFT APPLY AT THE SMALL END OF THE FEATURE UNLESS
OTHERWISE SPECIFIED.
6. 1 DEGREE DRAFT IN THE DIRECTION OF PULL IS PERMISSIBLE UNLESS
OTHERWISED SPECIFIED.
7. MATERIAL / COLOR:
ASA PLASTIC IS STANDARD IN BLACK OR GRAY.
CUSTOM MATERIALS AND COLORS ARE AVAILABLE UPON REQUEST FOR QUOTE.
ALTERNATE RESINS HAVE DIFFERENT SHRINK RATES, AND WILL EFFECT
DIMENSIONS.
8. PCB SIZES ARE RECOMMENDATIONS ONLY. FINAL SIZES AND VERIFICATION
OF ITS FIT ARE THE SOLE RESPONSIBILITY OF EACH CUSTOMER.
9. ASSEMBLY SCREWS FOR THE ENCLOSURE INCLUDED.
FOR THE PCB AND WALL ARE SOLD SEPARATELY.
MOUNTING SCREWS
REV.
A
B
C
D
E
F
G
I
J
K
1.0
DRAWN BY
M BOYER
M BOYER
M BOYER
M BOYER
M BOYER
M BOYER
M BOYER
M BOYER
M BOYER
R CRUZ
R CRUZ
ECO No
DESCRIPTION
R
E
V
I
S
I
O
N
DATE
2017-Jun-07
2017-Jun-13
2017-Jun-15
2017-Jun-16
2017-Jun-22
2018-Feb-16
2018-Feb-21
2018-Mar-16
2018-Jun-18
2018-Aug-22
2019-Feb-19
APPROVE
D.C.
D.C.
D.C.
D.C.
D.C.
D.C.
D.C.
D.C.
D.C.
D.C.
PRELIMINARY RELEASE
REMOVE SCREW HOLES ENLARGE STRAP SLOT
REVISE SLOT WITH SINGLE SCREW HOLE ADDED
REVISE NOTES
THICKEN WALL TABS
INCREASE LENGTH BY .03 TO FIT OTS ORING
INCREASE COVER HEIGHT
ADD EAR GUSSETS
INCLUDE CONFIG TREE
UPDATE O-RING DETAILS
00319
UPDATE TO AS BUILT AND RELEASE TO MFG
2
10. THIS DRAWING IS BASED ON A SOLID MODEL, AND IS FURTHER DEFINED
BY THE SOLID MODEL FILE.
11. ALLOWABLE FLASH: 0.010 MAX.
12. ALL EJECTOR PIN MARKS TO BE WITHIN 0.010" OF FLUSH,
PROTRUDING OR BELOW FLUSH.
13. TRIM GATE WITHIN 0.030" OF FLUSH.
14. THIS ENCLOSURE IS DESIGNED FOR OUTDOOR USE
AND MEETS IPX7 INGRESS PROTECTION STANDARD.
4
9
7
6
5
3

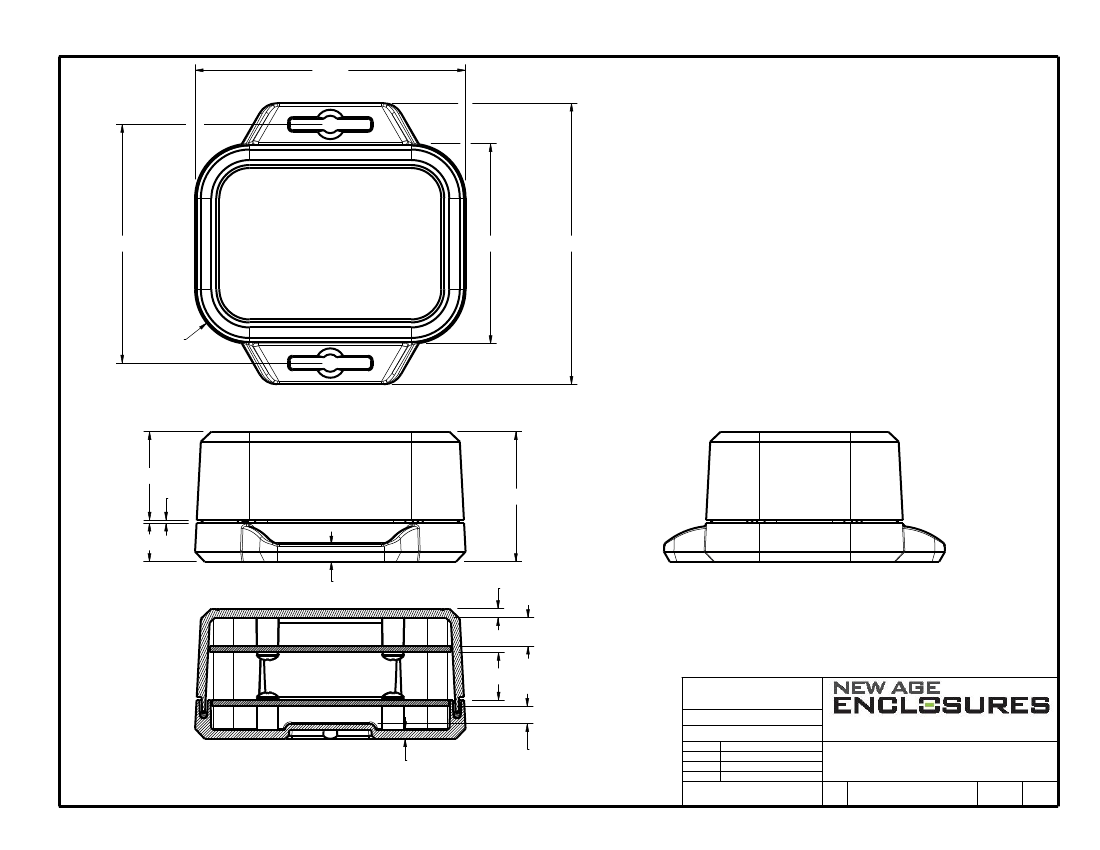

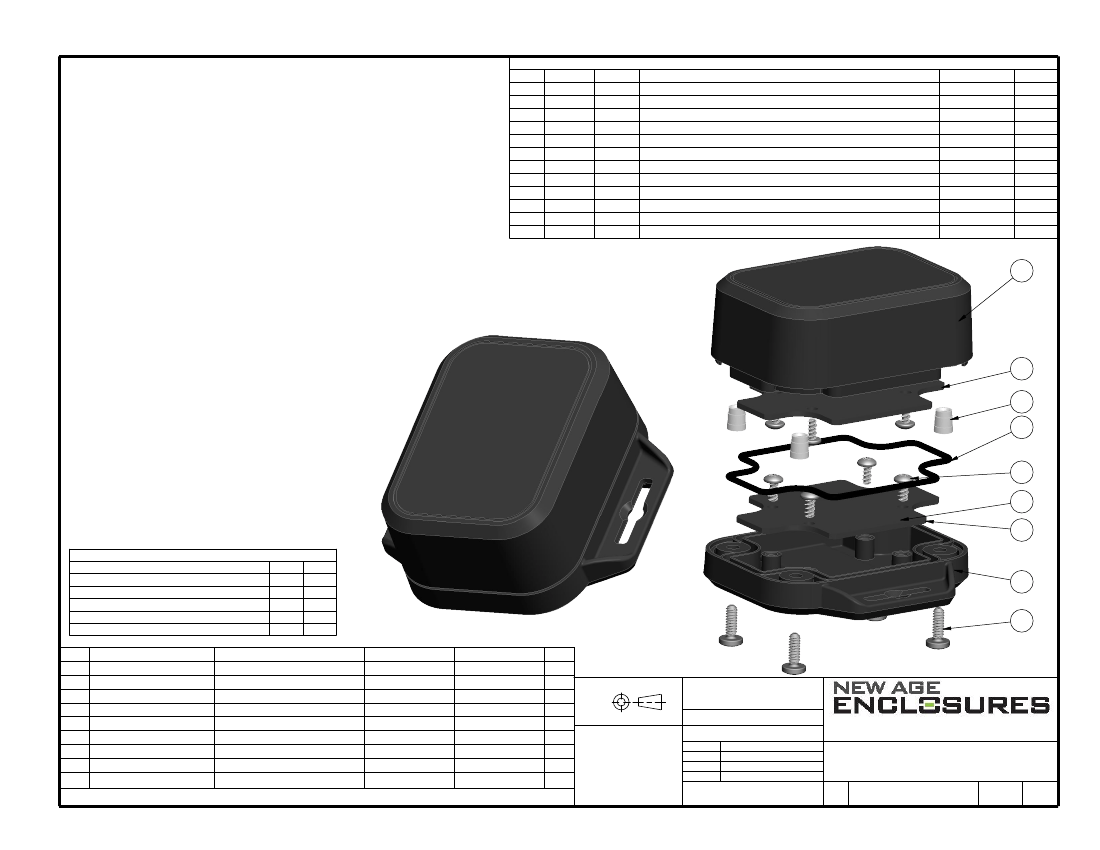

SXX-272013(x) CONFIGURATIONS

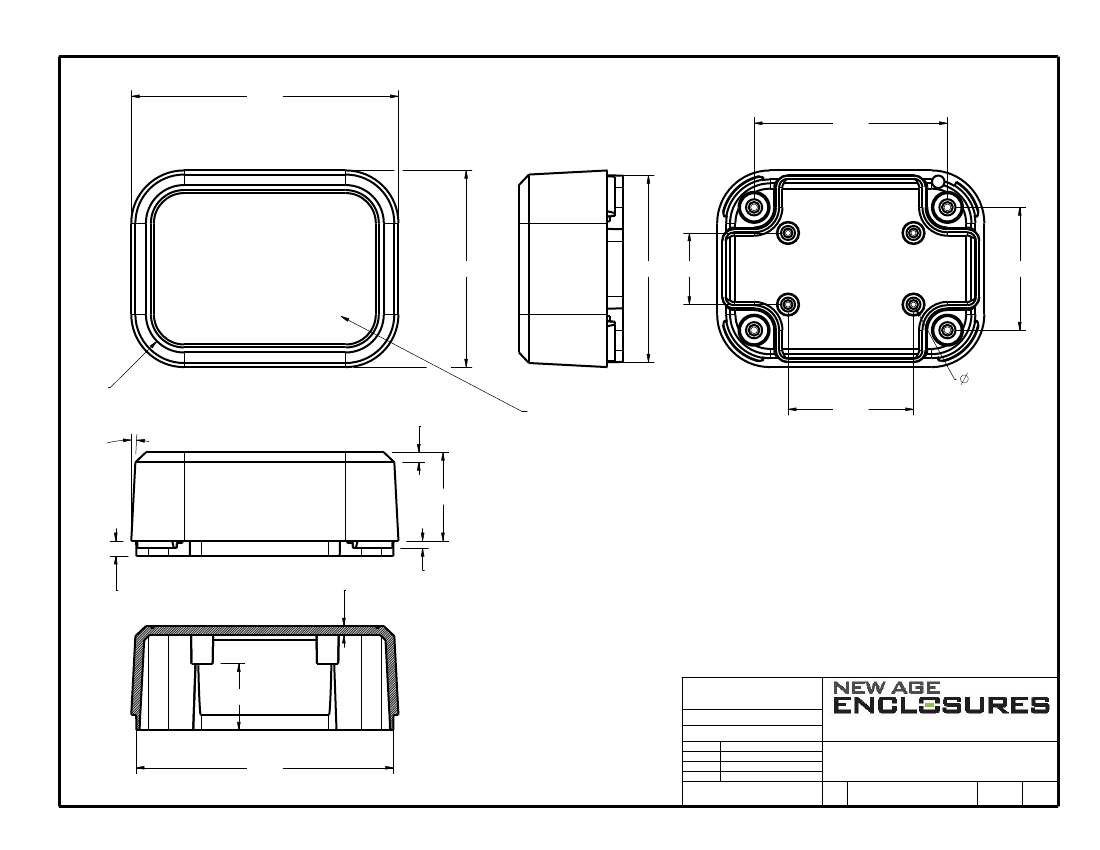

272013 COVER w/ STANDARD TEXTURE
272013 COVER w/ POLISHED LABEL RECESS
272013 WALL BASE
272013 ORING
6-32 x .375" STAINLESS PHILLIPS SCREW
9
8
7
6
5
4
3
2
1
PEM-INSERT_6-32
6-32_PHILLIPS_SCREW
272013-ORING
SCREW_HILO-NO4X250
SCREW-DRYWALLX750
272013-PCB-TOP
272013-PCB-BOT
272013-COVER
272013-BASE
-blank
1
1
1
4
-B1
1
1
1
4
BRASS
STAINLESS STEEL
SHORE A
ZINC PLATED
REFERENCE ONLY
.062" THICK
.062" THICK
ASA
ASA
1
8
4
4
1
8
2
1
1
1
1
DO NOT SCALE DRAWING
NOTICE: THE INFORMATION AND DATA
CONTAINED HEREIN IS CONSIDERED
PROPRIETARY TO ALLTEC INTEGRATED
MFG INC & SHALL REMAIN THE EXCLUSIVE
PROPERTY OF ALLTEC INTEGRATED MFG INC
THE HOLDER WILL ASSUME CUSTODY AND
CONTROL THAT THIS DOCUMENT WILL
NOT BE COPIED, REPRODUCED, OR
DISCLOSED WITHOUT THE EXPRESS WRITTEN
CONSENT OF ALLTEC INTEGRATED MFG INC
POSSESSION OF THIS DOCUMENT DOES
NOT CONSTITUTE A GRANT TO
MANUFACTURE ANY ITEMS.
© 2018
SCALE 1.000
OVER MOLDED
MMC 91772A146
INCLUDED
CUSTOMER SUPPLIED
CUSTOMER SUPPLIED
CUSTOMER SUPPLIED
CUSTOMER SUPPLIED
BLACK or GRAY
BLACK or GRAY
PEM INSERT 6-32 x .250"
6-32 PHILLIPS SCREW x .375"
272013 ORING,
OR-036
#4 HiLo SCREW x .250"
DRYWALL SCREW
272013 TOP PCB - REFERENCE
272013 BOTTOM PCB - REFERENCE
272013 COVER - STANDARD
272013 BASE - STANDARD
SCALE 0.900
THIRD ANGLE PROJECTION
TOLERANCES: UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN U.S. INCHES.
NEW AGE ENCLOSURES
Customer's Part No:
APPROVAL
CHECK
ENG.
SCALE
DRAWN BY
BY
DATE
X.XX = .015 X.XXXX = .001
X.XXX = .010
X.X° = 1°
272013
2240 South Thornburg Street
ph. (805) 595-1310
www.newageenclosures.com
Santa Maria, CA. 93455
fax (805) 595-1024

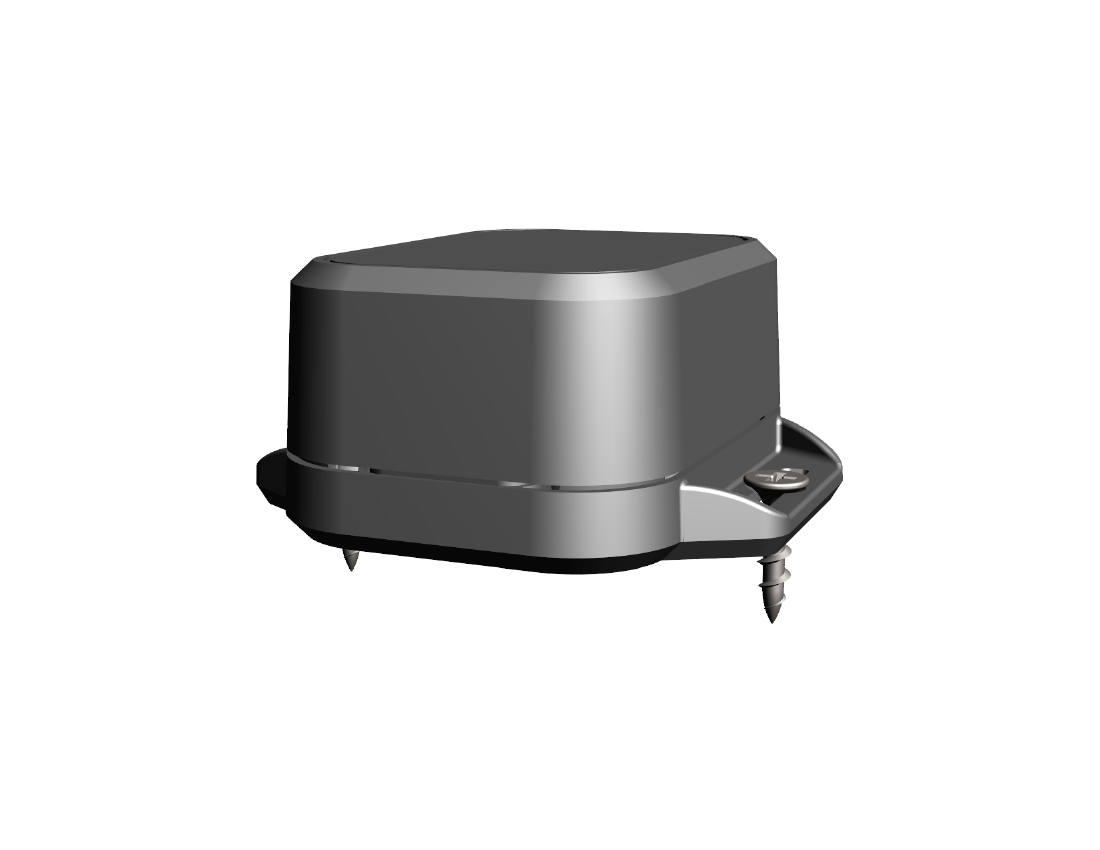

SM OUTDOOR UTILITY - STANDARD
ITEM
FILE
NAME
DESCRIPTION
MATERIAL
COLOR
QTY.
AS NOTED
SIZE
SXX-272013-XXX
SHEET
BILL OF MATERIALS
M BOYER
2017-Jun-07
A
DRAWING NAME
REV.DOC
272013_R1_0
1 OF 6
1.0
