ZM-1610-CW datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> LED lighting> LED bulbs and modules> LED lighting module> ZM-1610-CW

Preview

ZM-1610-CW: DescriptionLED Lighting ModuleWhite Channel LEDs Single per Module; CategoryLED optoelectronic/LED LED lighting LED bulbs and modules LED lighting module; File Size143KB，2 Pages; ManufacturerJKL Components; Environmental Compliance

Download Datasheet Parametric View All

ZM-1610-CW Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ZM-1610-CW	-	-	View	Buy Now

ZM-1610-CW Overview

LED Lighting ModuleWhite Channel LEDs Single per Module

ZM-1610-CW Parametric

Parameter Name	Attribute value
Maker	JKL Components
Product Category	LED lighting module
product	LED Modules
LED quantity	1
lighting color	White (Cool White)
Wavelength/Color Temperature	6000 K
brightness	-
Luminous flux/radiant flux	33 lm
If - forward current	30 mA
Vf - forward voltage	12 V
width	10 mm
length	12 mm
high	9.8 mm
Power rating	360 mW
lens shape	Cylindrical
display angle	160 deg
Dimming	-
Factory packaging quantity	20

Preview

Download Datasheet

View All

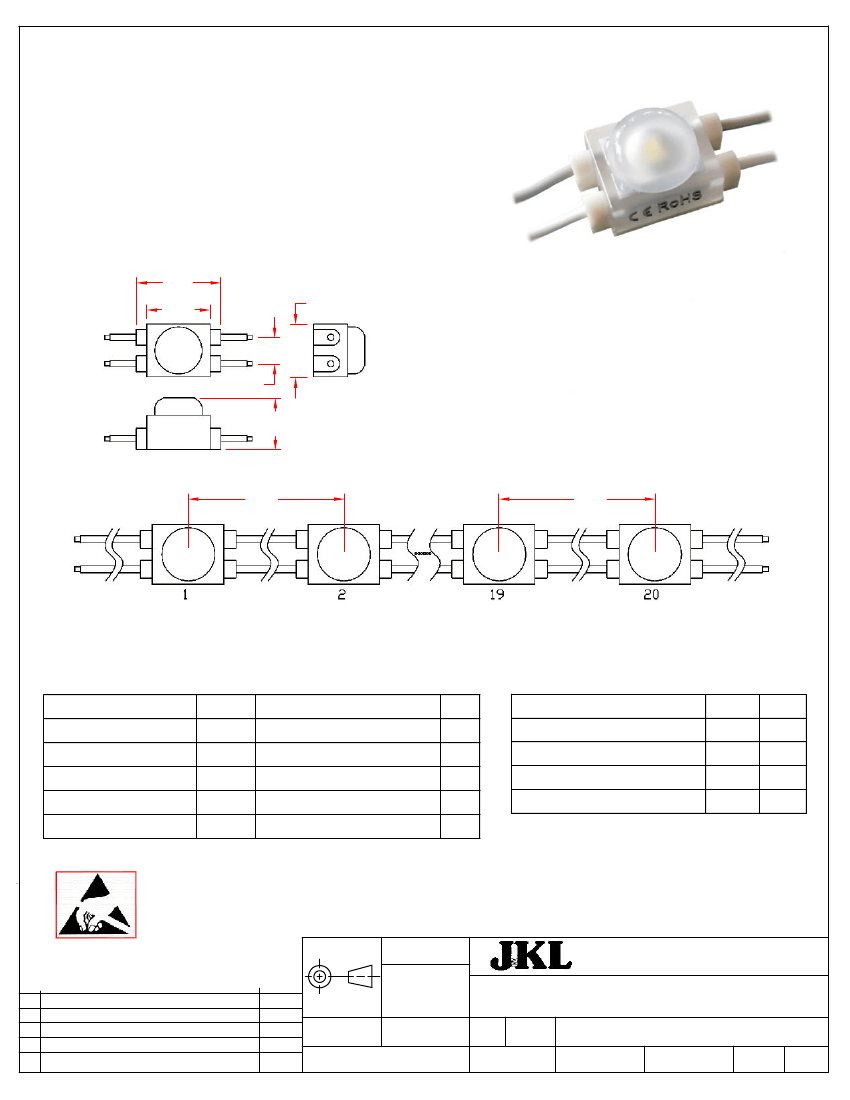

FEATURES

VOLTAGE: 12V DC

CURRENT: 30mA PER MODULE

WATTAGE: .36W PER MODULE

LED VIEWING ANGLE : 160°

WATER RESISTANCE: IP67

PACKAGE: 20 PIECES PER STRAND

MOUNTING: ADHESIVE BACKING

WATER RESISTANT SINGLE LED MINI MODULE

16mm

(.63")

12mm

(.472")

10mm

(.393")

5mm

(.197")

9.8mm

(.385")

MAXIMUM MODULES IN SERIES: 40 MODULES

60mm

(2.36")

60mm

(2.36")

26 AWG WIRE

Absolute Maximum Rating at TA = 25ºC

Parameter

Forward Current

Power Dissipation

Electrostatic Discharge

Operating Temperature

Storage Temperature

ATTENTION

Electrical/Optical Characteristics at TA = 25ºC

Parameter

Forward Voltage DC

Color Temperature

Luminous Flux Per Module

Recommend Forward Current

Typical Unit

12

6000

33

30

VF

K

Im

mA

Symbol Absolute Maximum Rating Unit

IF

PD

ESD

Topr

Tstg

30

0.36

600

-25~+50

-25~+70

mA

W

V

ºC

JKL PART NO.: ZM-1610-CW

OBSERVE PRECAUTION

FOR HANDLING ELECTROSTATIC

DISCHARGE SENSITIVE DEVICES

METRIC

THIRD ANGLE

PROJECTION

DRAWN BY

DIMENSIONS ARE

IN mm & (INCHES)

TOLERANCE UNLESS

OTHERWISE SPECIFIED

TITLE

COMPONENTS CORPORATION

1 PL +/-

2 PL +/-

ANGLE +/-

REF.

WIDE VIEW MINI CHANNEL LED, COOL WHITE

SIZE

SCALE

APPV'D BY

DATE

RELEASE

REV.

NO.

DESCRIPTION/ECO

NUMBER

7/28/18

APPV'D

DATE

L. WENGSTROM

S.C.

7/30/18

MANUAL REVISIONS NOT PERMITTED

- CAD DRAWING -

A

55335

NONE

FSCM NO.

DRAWING

NO.

RELEASED

DATE

ZM-1610-CW

REVISION

DATE

REV.

NO.

7/28/18

1

SHEET

OF

1
