REVISIONS
REV
ECO
DESCRIPTION
RELEASE NUMBER
DATE
30/NOV/18
BY
ROOKIE
APPR
TOMMY
19.8
A1
21.0
TITLE:
6
5.1
4X Ø4.32
REQUIRES CONTACT
RETENTION WEDGE AW3P
22.5
31.8
DWG NO:
30.4
55.8
40.5

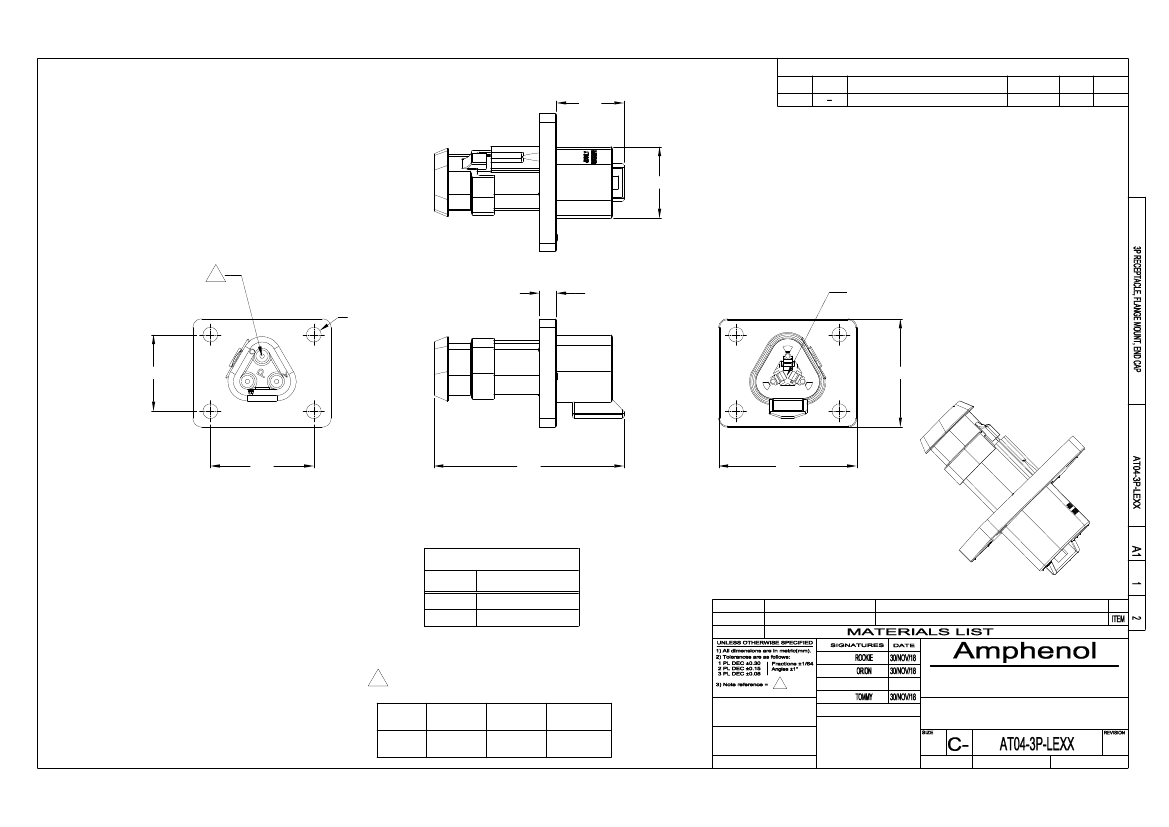

NOTES: UNLESS OTHERWISE SPECIFIED
1. MATERIAL:
HOUSING: THERMOPLASTIC
SEAL: SILICONE RUBBER
2. MODIFICATIONS: FLANGE, END CAP
3. SPECIFICATIONS:
3.1 CURRENT RATING: 13 AMPS
3.2 OPERATING TEMPERATURE: -55
℃
TO +125
℃
.
3.3 DIELECTRIC WITHSTANDING VOLTAGE: LESS THAN 2
MILLIAMPS CURRENT LEAKAGE @ 1500 VOLTS AC.
3.4 INSULATION RESISTANCE: 1000 MEGOHMS MIN @ 25
℃
.
3.5 MOISTURE RESISTANCE: IP67 ( MATED CONDITION )
3.6 MATING CYCLE DURABILITY: 100 CYCLES
3.7 RoHS COMPLIANT
4. MATING PART: AT06-3S* PLUG.
( * = MODIFICATIONS AND COLORS )
5. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY.
COLOR
GREY
BLACK
P/N CHART
P/N
AT04-3P-LE08
AT04-3P-LE12
QUANTITY
DRAWN:
CHECKED:
REV:
SH:
OF:
SEE P/N CHART
PART NUMBER
DESCRIPTION
6 . CONTACT SIZE AND REAR SEAL WIRE RANGE:
CONTACT MIN. INSUL MAX. INSUL
TYPICAL
SIZE
O.D.
O.D.
WIRE RANGE
16
2.24 mm
(.088 in)
3.68 mm
(.145 in)
14 - 20 AWG
NEXT ASS'Y:
X
ENGINEER:
APPROVAL:
Sine Systems - www.amphenol-sine.com
44724 Morley Drive
Clinton Township, MI 48036
MATERIAL SPECIFICATIONS:
CUSTOMER:
3P RECEPTACLE, FLANGE MOUNT, END CAP
PROCESS SPECIFICATIONS:
THIS DRAWING IS SUPPLIED FOR
INFORMATION ONLY. DESIGN FEATURES,
SPECIFICATIONS AND PERFORMANCE DATA
SHOWN HEREON ARE THE PROPERTY OF
THE AMPHENOL CORPORATION. NO RIGHTS
OF REPRODUCTION ARE IMPLIED. ALL
DIMENSIONS ARE SUBJECT TO NORMAL
SCALE:
MANUFACTURING VARIATIONS.
TYPE
DWG NO:
B
NONE
SHEET
A1
1
OF
2
REVISIONS
REV
A1
ECO
DESCRIPTION
RELEASE NUMBER
DATE
30/NOV/18
BY
ROOKIE
APPR
TOMMY
TITLE:
FOR REFERENCE ONLY
30.35±0.07
15.19±0.12
Ø25.4±0.12
12.5±0.12
22.45±0.07
DWG NO:
4X Ø4.32±0.07
FRONT MOUNT
REAR MOUNT

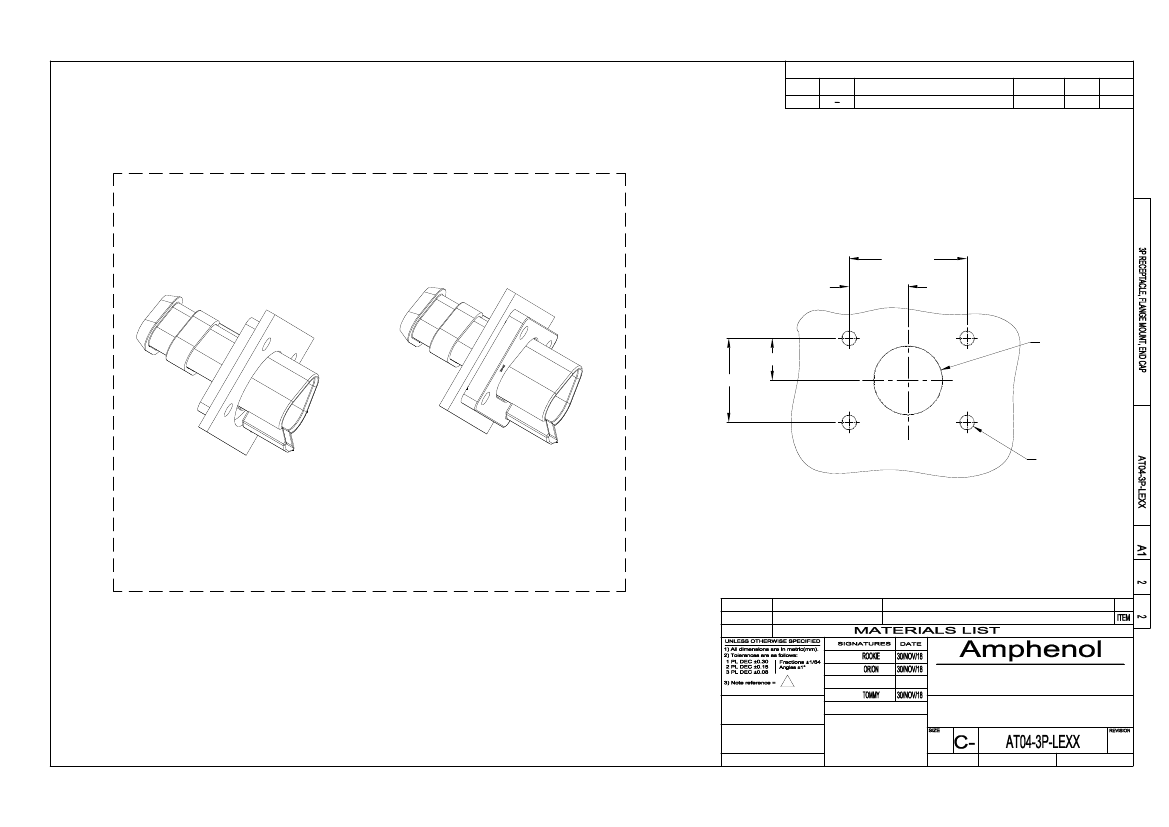

RECOMMENDED CUTOUT
FRONT AND REAR MOUNT
REV:
SH:
OF:
SEE SHEET 1
PART NUMBER
QUANTITY
DRAWN:
CHECKED:
ENGINEER:
APPROVAL:
MATERIAL SPECIFICATIONS:
CUSTOMER:
DESCRIPTION
X
Sine Systems - www.amphenol-sine.com
44724 Morley Drive
Clinton Township, MI 48036
3P RECEPTACLE, FLANGE MOUNT, END CAP
PROCESS SPECIFICATIONS:
THIS DRAWING IS SUPPLIED FOR
INFORMATION ONLY. DESIGN FEATURES,
SPECIFICATIONS AND PERFORMANCE DATA
SHOWN HEREON ARE THE PROPERTY OF
THE AMPHENOL CORPORATION. NO RIGHTS
OF REPRODUCTION ARE IMPLIED. ALL
DIMENSIONS ARE SUBJECT TO NORMAL
SCALE:
MANUFACTURING VARIATIONS.
TYPE
DWG NO:
B
NONE
SHEET
A1
2
OF
NEXT ASS'Y:
2
