AT04-12PA-L012 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Automobile connector> AT04-12PA-L012

AT04-12PA-L012: DescriptionAuto Connector 12 Pos Rcpt Fng Mnt Conn Pin Gry Key A; CategoryThe connector Automobile connector; File Size278KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

AT04-12PA-L012 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AT04-12PA-L012	-	-	View	Buy Now

AT04-12PA-L012 Overview

Auto Connector 12 Pos Rcpt Fng Mnt Conn Pin Gry Key A

AT04-12PA-L012 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Product Category	automotive connector
Shipping restrictions	Mouser does not currently sell this product.
product	Connectors
Number of locations	12 Position
Type	Pin (Male)
Installation style	Panel Mount
Termination type	Connector
Wire gauge range	20 AWG to 14 AWG
series	AT
Contact type	Pin (Male)
Current rating	13 A
Shell material	Thermoplastic (TP)
Entrance protection	IP67
Installation angle	Straight
installation method	Flange
Number of rows	2 Row
type	Receptacle Flange Mount Connector
Voltage rating	250 V
Maximum operating temperature	+ 125 C
Minimum operating temperature	- 55 C
Factory packaging quantity	100
Maximum wire gauge	14 AWG
Minimum wire gauge	20 AWG

Preview

Download Datasheet

View All

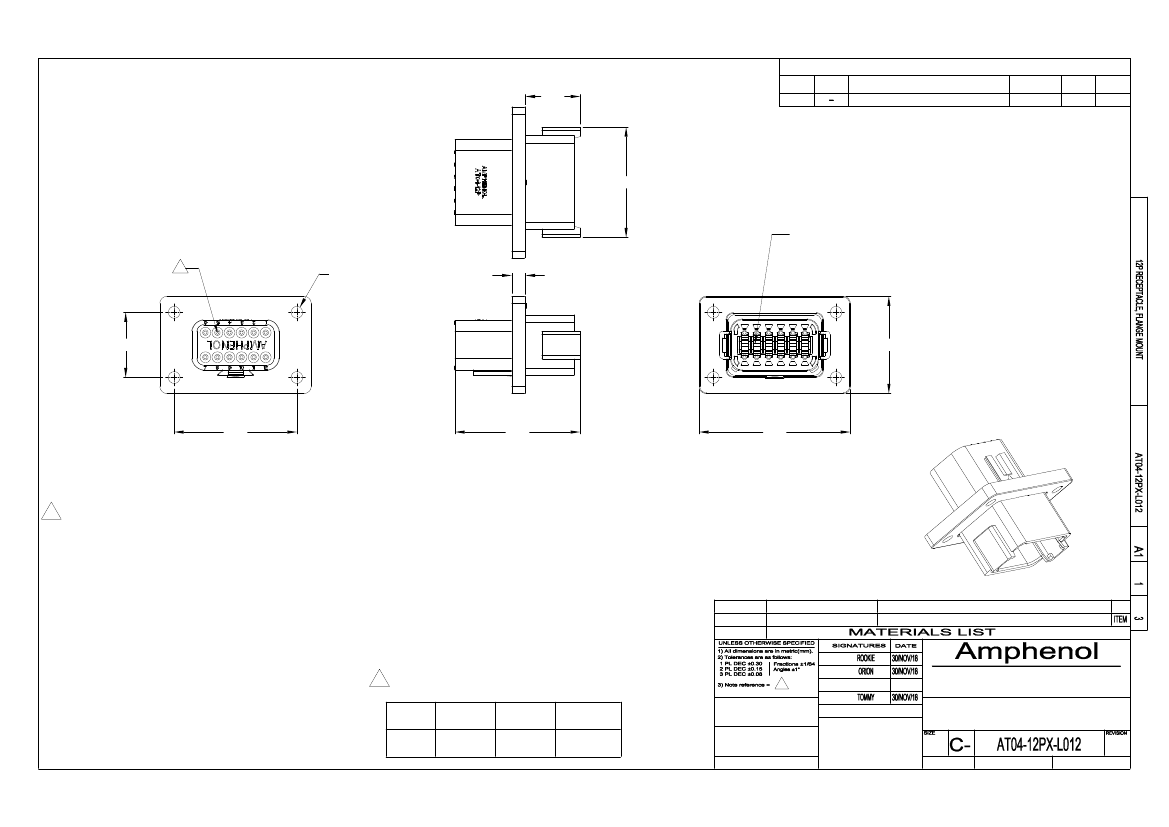

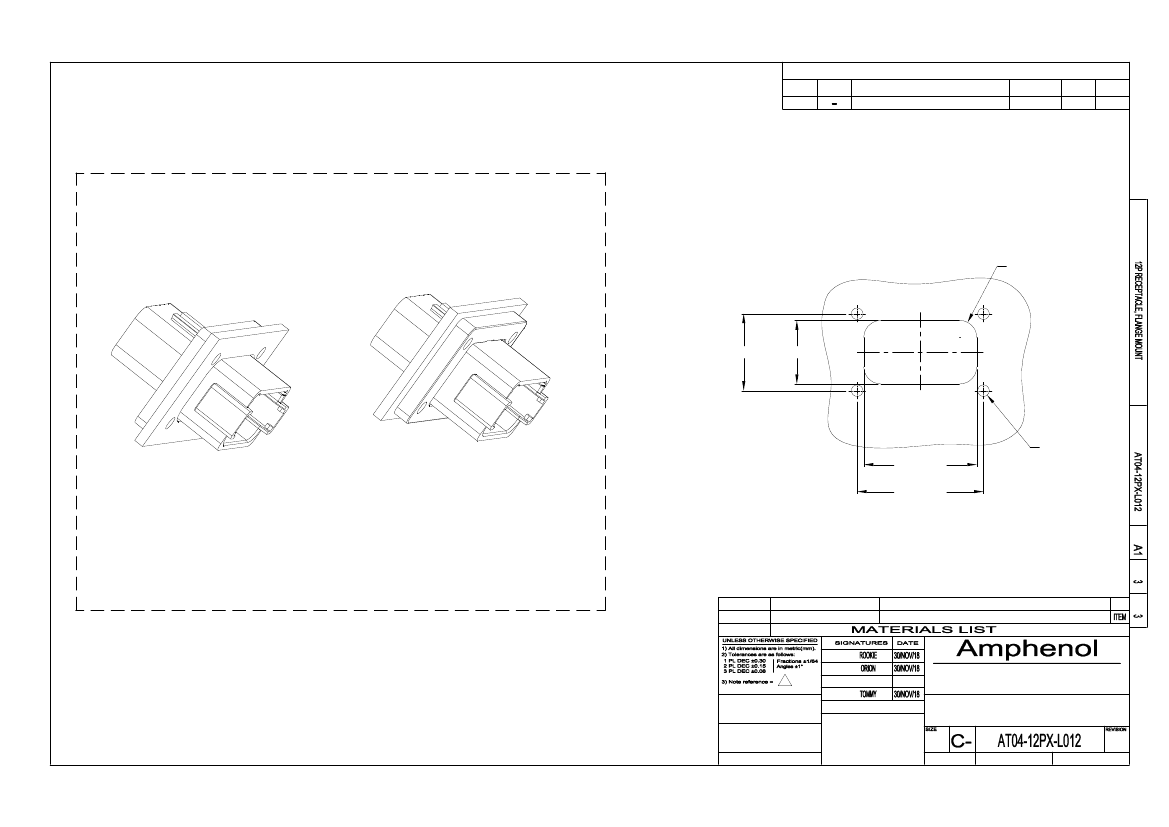

REVISIONS

REV

ECO

DESCRIPTION

RELEASE NUMBER

DATE

30/NOV/18

ROOKIE

APPR

TOMMY

20.0

40.5

TITLE:

REQUIRES CONTACT

RETENTION WEDGE AW12P

4X Ø4.32

5.1

23.9

35.6

DWG NO:

45.0

45.8

55.4

NOTES: UNLESS OTHERWISE SPECIFIED

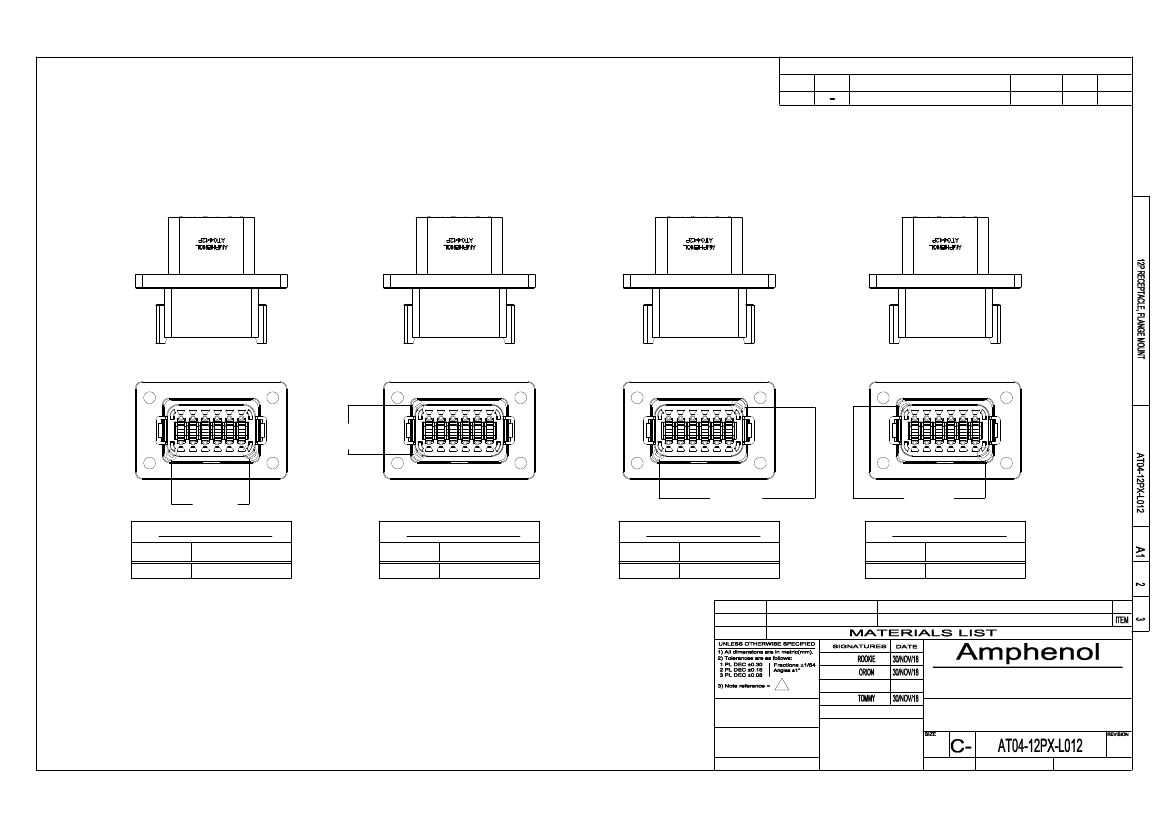

1. SEE SHEET 2 FOR KEY ARRANGEMENTS AND COLORS.

2. MATERIAL:

HOUSING: THERMOPLASTIC

SEAL: SILICONE RUBBER

3. MODIFICATIONS: FLANGE

4. SPECIFICATIONS:

4.1 CURRENT RATING: 13 AMPS

4.2 OPERATING TEMPERATURE: -55

℃

TO +125

℃

4.3 DIELECTRIC WITHSTANDING VOLTAGE: LESS THAN 2

MILLIAMPS CURRENT LEAKAGE @ 1500 VOLTS AC.

4.4 INSULATION RESISTANCE: 1000 MEGOHMS MIN @ 25

℃

4.5 MOISTURE RESISTANCE: IP67 ( MATED CONDITION )

4.6 MATING CYCLE DURABILITY: 100 CYCLES

4.7 RoHS COMPLIANT

5. MATING PART: AT06-12SX* PLUG.

( X=A,B,C,D KEYS, * = MODIFICATIONS AND COLORS )

6. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY.

SEE SHEET 2

PART NUMBER

QUANTITY

DRAWN:

CHECKED:

REV:

SH:

OF:

DESCRIPTION

7 . CONTACT SIZE AND REAR SEAL WIRE RANGE:

CONTACT MIN. INSUL MAX. INSUL

TYPICAL

SIZE

O.D.

WIRE RANGE

ENGINEER:

APPROVAL:

Sine Systems - www.amphenol-sine.com

44724 Morley Drive

Clinton Township, MI 48036

MATERIAL SPECIFICATIONS:

CUSTOMER:

12P RECEPTACLE, FLANGE MOUNT

PROCESS SPECIFICATIONS:

THIS DRAWING IS SUPPLIED FOR

INFORMATION ONLY. DESIGN FEATURES,

SPECIFICATIONS AND PERFORMANCE DATA

SHOWN HEREON ARE THE PROPERTY OF

THE AMPHENOL CORPORATION. NO RIGHTS

OF REPRODUCTION ARE IMPLIED. ALL

DIMENSIONS ARE SUBJECT TO NORMAL

SCALE:

MANUFACTURING VARIATIONS.

TYPE

DWG NO:

2.24 mm

(.088 in)

3.68 mm

(.145 in)

14 - 20 AWG

NEXT ASS'Y:

NONE

SHEET
