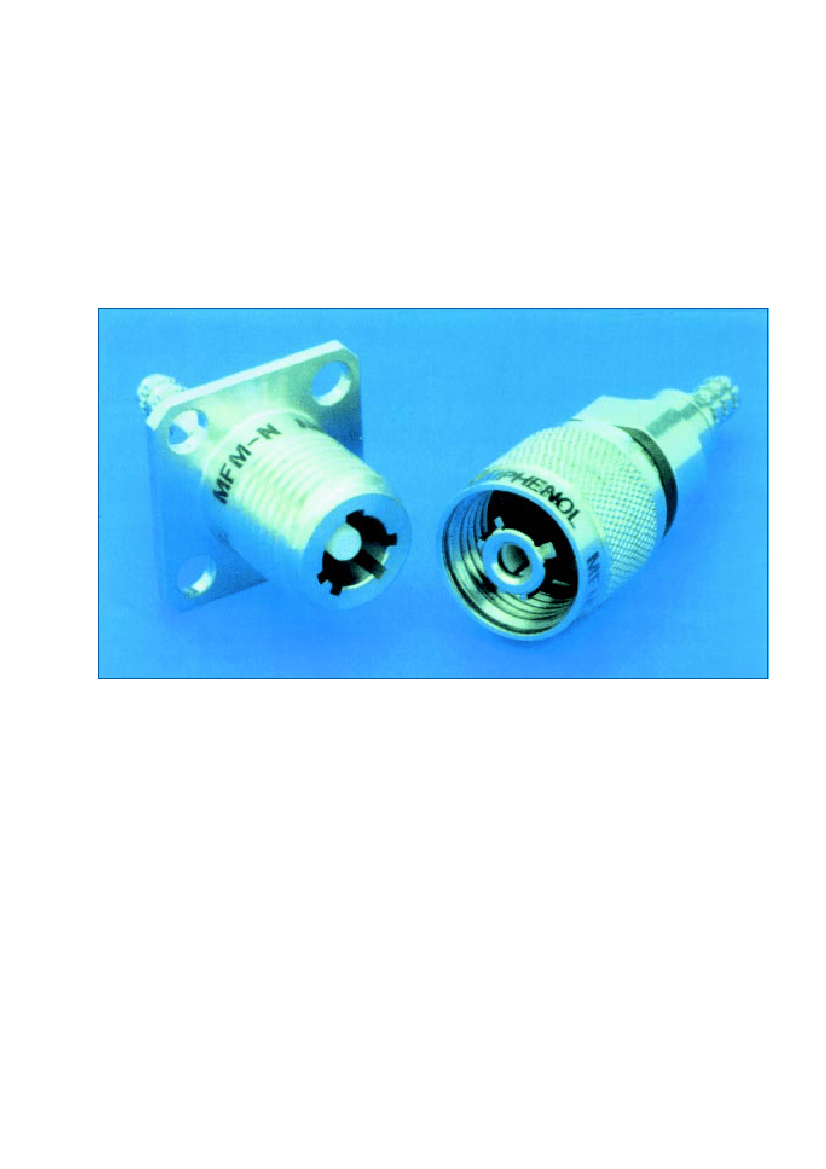

A high performance, low loss, fibre optic connector specifically designed to operate in harsh
environments.
s
The MFM uses ceramic PC ferrule technology with a ceramic alignment sleeve
to reduce insertion loss.
s
s
s
s
s
s
s
Lightweight, designed to interface with a wide range of rugged fibre optic cables.
Keyed shells and ferrules for optimum repeatability.
Anti vibration coupling mechanism.
Silicone ‘O’-ring environmental sealing.
Keyway polarisation.
RFI receptacle gasket.
Manufactured in Arcap for corrosion resistance.
Amphenol
MFM Series - Singleway Fibre Optic Connector
Technical Information
MFM Series - Singleway Fibre Optic Connector
Performance
Optical
Attenuation
Repeatability
Fibre types
Typically 0.25 with 62.5/125 cable
<0.1dB
50/125
85/125
200/280
Cable types
-001
-002
-003
-004
-005
-006
-007
-008
-015
-017
Termination method
62.5/125
100/140
8/125
62.5/125
62.5/125
62.5/125
200/280
100/140
8/125
8/125
62.5/125
100/140
62.5/125
2.75 OD
6.2 OD
2.75 OD
2.5 OD
1.6 OD
2.75 OD
6.2 OD
2.75 TJ
1.5 mm
5.4 OD
Ruggedised
Ruggedised
Loose Tube
Ruggedised
Ruggedised
Ruggedised
Ruggedised
Santaprene boot
Buffer
-7 Crimp ferrule and heatshrink
Many other cable types are available - contact factory for details
Epoxy/polish
Environmental
Temperature range
Vibration
Method A
-65
º
C - +155
º
C
As per pr EN 2519 Test D3
Mechanical
Durability
Materials
>500 matings
Shell:
Ferrule:
Alignment Sleeve:
‘O' ring (seals):
Boot:
Arcap
PC Zirconia ceramic
Zirconia ceramic
Silicone
Silicone
Termination tools and Consumables
Basic termination kit
Add on kit
Consumable pack (50 terminations approximately)
927 - 100 - 3000
927 - 100 - 3500
927 - 100 - 6000
Other items of tooling may be purchased separately, please contact factory for details

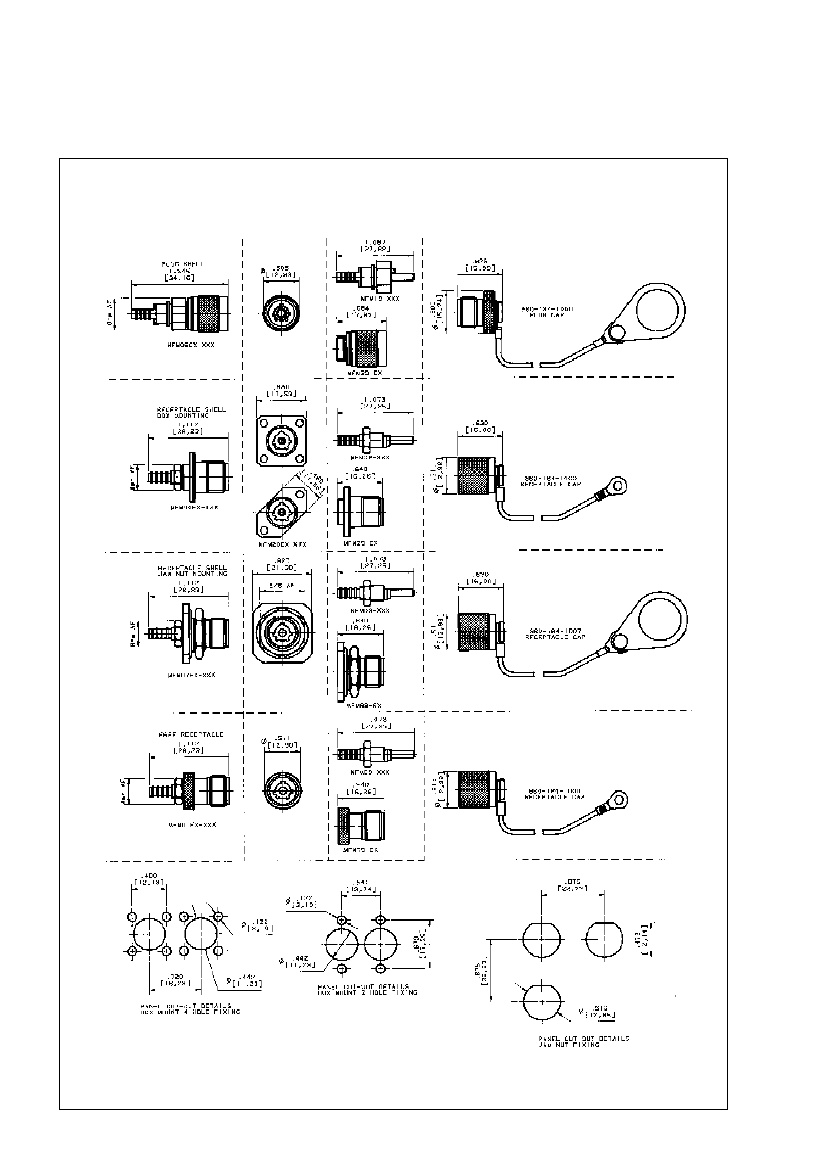

MFM Series - Singleway Fibre Optic Connector
Part Numbers Information
Series
Plug
Receptacle
Free Receptacle
2 hole receptacle
Jam Nut
MFM
06
00
01
20
07
XX
E
X
XXX
Orientation
N,A,B,C,D,E,U
Cable variant - See previous page
Sub-Assembly
Series
Plug Shell
Receptacle Shell
Jam nut shell
Free receptacle shell
MFM
39
29
69
79
XX
E
X
Orientation
N,A,B,C,D,E,U
Series
MFM
09
19
XX
XXX
Receptacle Sub Assembly
Plug Sub Assembly
Cable variant - See previous page
Protective Caps - See Technical Information on Page 2
For further information on cables, connectors and assemblies please consult your local office.
Product specifications and performance characteristics are typical only, and subject to change.
Notice:
Products are sold subject to Amphenol’s conditions of sale (“the standard conditions”). All specifications and statements contained herein are believed to be correct at the time of
printing, but no representation or warranty, express or implied, is given as to any specification or statement contained herein. Product specifications including performance characteristics are
typical only and subject to deviation. Specifications are also subject to change without notice. Users should not assume that all safety measures are indicated or that other measures may not
be required. No representation or warranty, express or implied, is given that any use of products (including any stated or suggested use) does not infringe any patent, registered design or other
third party rights and no stated or suggested use of products can be taken to recommend any such infringement.
