PIC32MZ0512EFE144T-I/PH

Description
32-Bit Microcontroller - MCU 32-BIT MCU 512KB FL 128KB RAM, No Crypto
Categorysemiconductor    The embedded processor and controller    Micro - MCU controller    32-bit microcontroller - MCU
File Size7MB，755 Pages
ManufacturerMicrochip
Websitehttps://www.microchip.com
Environmental Compliance
Download Datasheet Download user manual Parametric Compare View All

PIC32MZ0512EFE144T-I/PH Overview

32-Bit Microcontroller - MCU 32-BIT MCU 512KB FL 128KB RAM, No Crypto

PIC32MZ0512EFE144T-I/PH Parametric

Parameter NameAttribute value
MakerMicrochip
Product Category32-bit microcontroller - MCU
Installation styleSMD/SMT
Package/boxTQFP-144
seriesPIC32MZxxxxEF
coreMIPS32 M-Class
Data bus width32 bit
maximum clock frequency200 MHz
Program memory size512 kB
Data RAM size512 kB
ADC resolution12 bit
Number of input/output terminals120 I/O
Working power voltage2.1 V to 3.6 V
Minimum operating temperature- 40 C
Maximum operating temperature+ 85 C
Interface TypeI2C, SPI, SQI, UART
EncapsulationReel
productMCU
Program memory typeFlash
Data Ram typeSRAM
Number of ADC channels48 Channel
Processor seriesPIC32MZEF
Factory packaging quantity900
Supply voltage - max.3.6 V
Supply voltage - min.2.1 V
watchdog timerWatchdog Timer
unit weight1.319 g

Preview

Download Datasheet
PIC32MZ Embedded Connectivity
with Floating Point Unit (EF) Family
32-bit MCUs (up to 2 MB Live-Update Flash and 512 KB SRAM) with FPU,
Audio and Graphics Interfaces, HS USB, Ethernet, and Advanced Analog
Operating Conditions
• 2.1V to 3.6V, -40ºC to +85ºC, DC to 252 MHz
• 2.1V to 3.6V, -40ºC to +125ºC, DC to 180 MHz
Advanced Analog Features
• 12-bit ADC module:
- 18 Msps with up to six Sample and Hold (S&H) circuits
(five dedicated and one shared)
- Up to 48 analog inputs
- Can operate during Sleep and Idle modes
- Multiple trigger sources
- Six Digital Comparators and six Digital Filters
• Two comparators with 32 programmable voltage
references
• Temperature sensor with ±2ºC accuracy
Core: 252 MHz (up to 415 DMIPS) M-Class
16 KB I-Cache, 4 KB D-Cache
FPU for 32-bit and 64-bit floating point math
MMU for optimum embedded OS execution
microMIPS™ mode for up to 35% smaller code size
DSP-enhanced core:
- Four 64-bit accumulators
- Single-cycle MAC, saturating, and fractional math
- IEEE 754-compliant
• Code-efficient (C and Assembly) architecture
•
•
•
•
•
Communication Interfaces
• Two CAN modules (with dedicated DMA channels):
- 2.0B Active with DeviceNet™ addressing support
• Six UART modules (25 Mbps):
- Supports up to LIN 2.1 and IrDA
®
protocols
• Six 4-wire SPI modules (up to 50 MHz)
• SQI configurable as an additional SPI module (50 MHz)
• Five I
2
C modules (up to 1 Mbaud) with SMBus support
• Parallel Master Port (PMP)
• Peripheral Pin Select (PPS) to enable function remap
Clock Management
• Programmable PLLs and oscillator clock sources
• Fail-Safe Clock Monitor (FSCM)
• Independent Watchdog Timers (WDT) and Deadman
Timer (DMT)
• Fast wake-up and start-up
Power Management
• Low-power modes (Sleep and Idle)
• Integrated Power-on Reset (POR) and Brown-out Reset
(BOR)
Timers/Output Compare/Input Capture
•
•
•
•
Nine 16-bit or up to four 32-bit timers/counters
Nine Output Compare (OC) modules
Nine Input Capture (IC) modules
Real-Time Clock and Calendar (RTCC) module
Memory Interfaces
• 50 MHz External Bus Interface (EBI)
• 50 MHz Serial Quad Interface (SQI)
Input/Output
• 5V-tolerant pins with up to 32 mA source/sink
• Selectable open drain, pull-ups, pull-downs, and slew rate
controls
• External interrupts on all I/O pins
• PPS to enable function remap
Audio and Graphics Interfaces
•
•
•
•
Graphics interfaces: EBI or PMP
Audio data communication: I
2
S, LJ, and RJ
Audio control interfaces: SPI and I
2
C
Audio master clock: Fractional clock frequencies with USB
synchronization
Qualification and Class B Support
• AEC-Q100 REVH (Grade 1 -40ºC to +125ºC)
• Class B Safety Library, IEC 60730 (planned)
• Back-up internal oscillator
High-Speed (HS) Communication Interfaces
(with Dedicated DMA)
• USB 2.0-compliant Hi-Speed On-The-Go (OTG) controller
• 10/100 Mbps Ethernet MAC with MII and RMII interface
Debugger Development Support
•
•
•
•
•
•
•
•
•
•
In-circuit and in-application programming
4-wire MIPS
®
Enhanced JTAG interface
Unlimited software and 12 complex breakpoints
IEEE 1149.2-compatible (JTAG) boundary scan
Non-intrusive hardware-based instruction trace
C/C++ compiler with native DSP/fractional and FPU support
MPLAB
®
Harmony Integrated Software Framework
TCP/IP, USB, Graphics, and mTouch™ middleware
MFi, Android™, and Bluetooth
®
audio frameworks
RTOS Kernels: Express Logic ThreadX, FreeRTOS™,
OPENRTOS
®
, Micriµm
®
µC/OS™, and SEGGER embOS
®
TFBGA
VTLA
LQFP
Security Features
• Crypto Engine with RNG for data encryption/decryption and
authentication (AES, 3DES, SHA, MD5, and HMAC)
• Advanced memory protection:
- Peripheral and memory region access control
Software and Tools Support
Direct Memory Access (DMA)
• Eight channels with automatic data size detection
• Programmable Cyclic Redundancy Check (CRC)

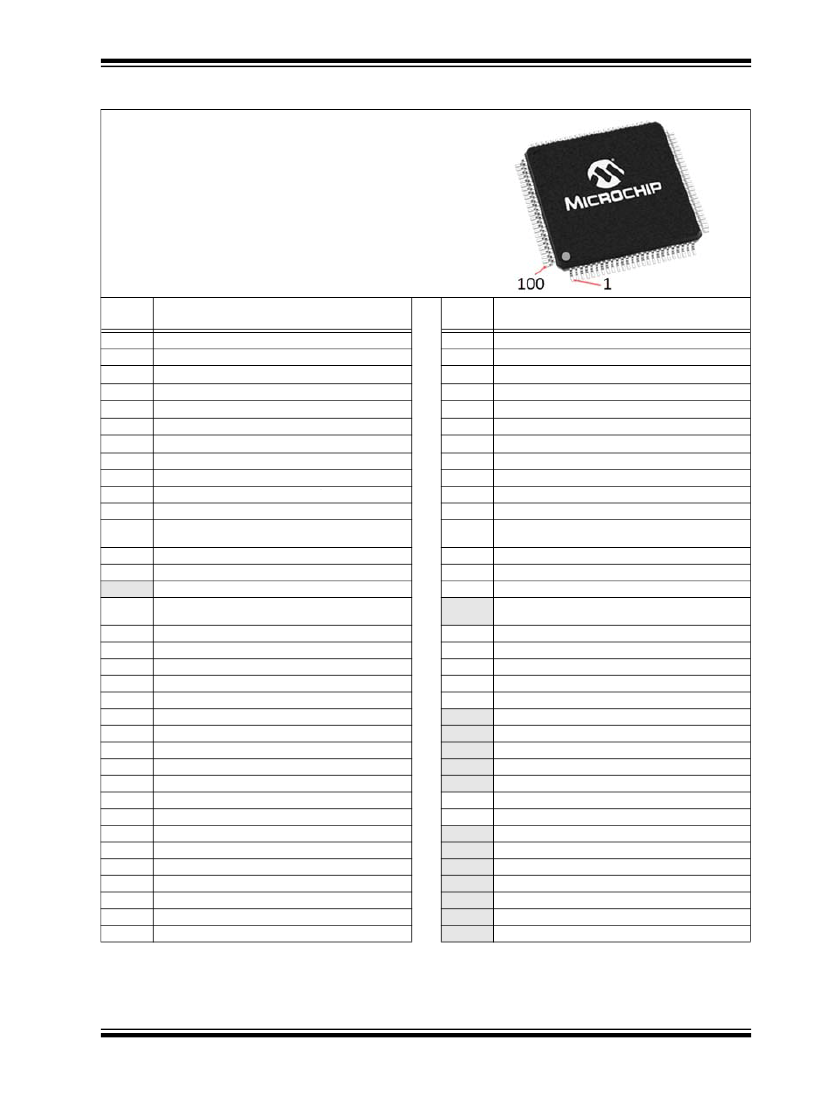

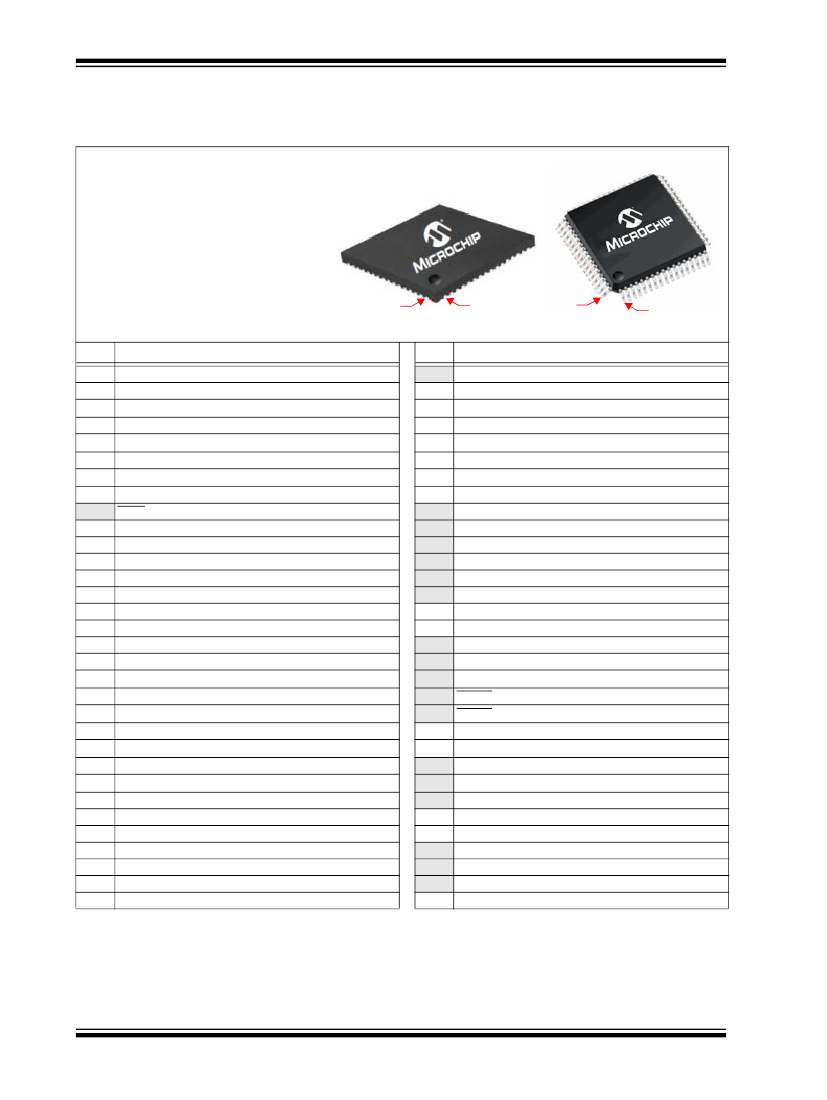

Packages
Type
QFN
TQFP
Pin Count
64
64
100
144
100
144
124
144
I/O Pins (up to)
53
53
78
120
78
120
98
120
Contact/Lead Pitch
0.50 mm
0.50 mm
0.40 mm
0.50 mm
0.40 mm
0.65 mm
0.50 mm
0.50 mm
0.50 mm
Dimensions
9x9x0.9 mm 10x10x1 mm 12x12x1 mm 14x14x1 mm 16x16x1 mm 7x7x1.2 mm 7x7x1.2 mm 9x9x0.9 mm 20x20x1.40 mm
2015-2019 Microchip Technology Inc.
DS60001320F-page 1

PIC32MZ0512EFE144T-I/PH Related Products

PIC32MZ0512EFE144T-I/PH PIC32MZ1024EFF100-E/PT PIC32MZ1024EFM124-E/TL PIC32MZ2048EFG144-E/PH PIC32MZ2048EFH100-E/GJX PIC32MZ0512EFF144T-I/JWX PIC32MZ1024EFG144-E/PL PIC32MZ1024EFK064-I/MR PIC32MZ0512EFE064-E/MR
Description 32-Bit Microcontroller - MCU 32-BIT MCU 512KB FL 128KB RAM, No Crypto 32-Bit Microcontroller - MCU 32-Bit MCU 1024KB FL 256KB RAM No Crypto 32-Bit Microcontroller - MCU 32-Bit MCU 1024KB FL 512KB RAM Crypto 32-Bit Microcontroller - MCU 32-Bit MCU 2048KB FL 512KB RAM No Crypto 32-bit microcontroller-MCU 32 Bit MCU, FPU, 2MB Flash, 512KB RAM, 100Pin, USB-HS, ENET, CAN, SQI 32-bit Microcontroller - MCU 512KB Flash 128KB RAM No Crypto CAN 32-Bit Microcontroller - MCU 32-Bit MCU 1024KB FL 512KB RAM No Crypto 32-Bit Microcontroller - MCU 32-BIT MCU 1024KB FL 256KB RAM, Crypto 32-Bit Microcontroller - MCU 32-Bit MCU 512KB FL 128KB RAM No Crypto
Maker Microchip Microchip Microchip Microchip Microchip Microchip Microchip Microchip Microchip
maximum clock frequency 200 MHz 64 MHz - 64 MHz 200 MHz 64 MHz 64 MHz 200 MHz 64 MHz
Minimum operating temperature - 40 C -40 °C - -40 °C - 40 C -40 °C -40 °C - 40 C -40 °C
Maximum operating temperature + 85 C 125 °C - 125 °C + 125 C 85 °C 125 °C + 85 C 125 °C
package instruction - TQFP-100 - TQFP-144 - TFBGA-144 LFQFP, - QFN-64
Reach Compliance Code - compliant - compliant - compliant compliant - compliant
Factory Lead Time - 14 weeks - 14 weeks - 9 weeks 12 weeks - 9 weeks
Has ADC - YES - YES - YES YES - YES
bit size - 32 - 32 - 32 32 - 32
DAC channel - NO - NO - YES NO - NO
DMA channel - YES - YES - YES YES - YES
JESD-30 code - S-PQFP-G100 - S-PQFP-G144 - S-PBGA-B144 S-PQFP-G144 - S-PQCC-N64
length - 12 mm - 16 mm - 7 mm 20 mm - 9 mm
Number of I/O lines - 78 - 120 - 120 120 - 46
Number of terminals - 100 - 144 - 144 144 - 64
On-chip program ROM width - 8 - 8 - 8 8 - 8
PWM channel - YES - YES - YES YES - YES
Package body material - PLASTIC/EPOXY - PLASTIC/EPOXY - PLASTIC/EPOXY PLASTIC/EPOXY - PLASTIC/EPOXY
encapsulated code - TFQFP - TFQFP - TFBGA LFQFP - HVQCCN
Package shape - SQUARE - SQUARE - SQUARE SQUARE - SQUARE
Package form - FLATPACK, THIN PROFILE, FINE PITCH - FLATPACK, THIN PROFILE, FINE PITCH - GRID ARRAY, THIN PROFILE, FINE PITCH FLATPACK, LOW PROFILE, FINE PITCH - CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
ROM programmability - FLASH - FLASH - FLASH FLASH - FLASH
Filter level - AEC-Q100; TS 16949 - AEC-Q100; TS 16949 - TS 16949 AEC-Q100; TS 16949 - AEC-Q100; TS 16949
Maximum seat height - 1.2 mm - 1.2 mm - 1.02 mm 1.6 mm - 0.9 mm
Maximum supply voltage - 3.6 V - 3.6 V - 3.6 V 3.6 V - 3.6 V
Minimum supply voltage - 2.1 V - 2.1 V - 2.1 V 2.1 V - 2.1 V
Nominal supply voltage - 3.3 V - 3.3 V - 3.3 V 3.3 V - 3.3 V
surface mount - YES - YES - YES YES - YES
technology - CMOS - CMOS - CMOS CMOS - CMOS
Temperature level - AUTOMOTIVE - AUTOMOTIVE - INDUSTRIAL AUTOMOTIVE - AUTOMOTIVE
Terminal form - GULL WING - GULL WING - BALL GULL WING - NO LEAD
Terminal pitch - 0.4 mm - 0.4 mm - 0.5 mm 0.5 mm - 0.5 mm
Terminal location - QUAD - QUAD - BOTTOM QUAD - QUAD
width - 12 mm - 16 mm - 7 mm 20 mm - 9 mm
uPs/uCs/peripheral integrated circuit type - MICROCONTROLLER - MICROCONTROLLER - MICROCONTROLLER MICROCONTROLLER - MICROCONTROLLER
