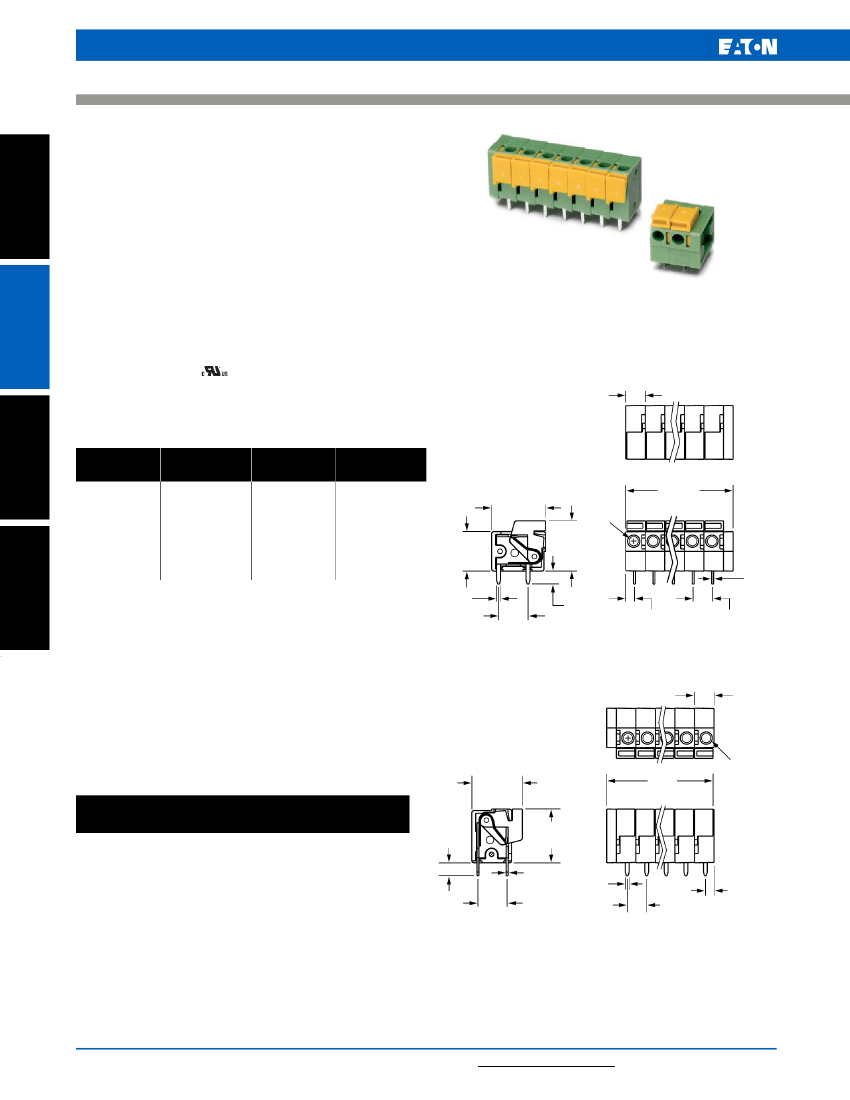

EuroMag Series PCB Mount Screwless Terminal Blocks
Terminal Blocks:
Single Row
EM2795 Series
EuroMag Terminal Blocks
Screwless; 5.08 Centers
SPECIFICATIONS
Rating:
10A, 300V
Center Spacing:
0.20” (5.08mm)
Wire Range:
#14-24 AWG
Housing Material:
UL rated 94V0 Thermoplastic
Contact Material:
Tin-Plated Brass
Operating Temperature:
105°C (221°F) max., -40°C
(-40°F) min.
Recommended PCB Hole Diameters:
0.051" (1.30mm)
Construction:
Mold-to-Length
Agency Information:
File E62622; CE Certified
EM279507H
EuroMag Series
EM279502V
Screwless
Dimensions - in (mm)
VERTICAL
0.20
(5.08)
Edge Connectors,
One-Sided Boards
Poles
2
3
4
5
6
7
8
9
L (mm)
12.70
17.78
22.86
27.94
33.02
38.10
43.18
48.26
Poles
10
11
12
13
14
15
16
L (mm)
68.58
73.66
78.74
83.82
53.34
58.42
63.50
0.55
(14.0)
0.41
(10.3)
L
0.094 DIA.
(2.4)
0.51
(13.0)
0.024
(0.6)
0.039
(1.0)
0.30
(7.62)
0.12
(3.0)
0.10
(2.5)
0.20
(5.08)
Compliance
References
To convert to inches, divide by 25.4
HORIZONTAL
0.200
(5.08)
0.51
(13.00)
L
0.094 DIA.
(2.40)
Part Numbering System
0.12
(3.0)
Series
EM2795
nnnnnn nn
02
to
16
# of Positions
n
0.55
(14.0)
0.02
(0.50)
0.30
(7.6)
EM2795H
1.00
(0.039)
0.20
(5.80)
Orientation
0.10
(2.54)
H
- horizontal
V
- vertical
