Connection Systems
150 & 280 Series GT
Connection Systems
Description
The GT terminal and connector system was developed with global
customer input at every design phase and has a small package
size suited to fit the shrinking space requirements of today’s
vehicles. The GT Connection System includes:
• Tangless terminals with stamped serrations
• Pump-handle primary locks with integrated Connector Position
Assurance (CPA)
• Secondary lock capabilities including Terminal Position
Assurance (TPA) and Primary Lock Reinforcement (PLR) with
positive connector seal retention or a Slide Lock Cover (SLC) for
unsealed systems
• Female terminals compatible with ISO or SAE blades
Typical Applications
The GT Connection System is suitable for in-line, device, header
or bulkhead applications. The number and orientation of cavities
can be configured to a customer’s specific application. In addition
to providing customized designs, Delphi offers the following:
• GT 150 and 280 Series available in both sealed and unsealed
versions in cavity variations between 2-way and 16-way.
• GT Mixed Series combining both 150 and 280 series terminals
in the same connector. Typically, 280 series terminal cavities
are located in the outside corners of the connector. This series
is available as a 12-way and 16-way sealed and unsealed.
• GT 150 Female Sealed connectors available with 3.5 mm
centerline spacing and various indexing capabilities. The 3.5
mm centerline spacing (vs. standard 4.5 mm) enables mating to
existing devices like sensors.
• GT Lever Lock Series available in both sealed and unsealed
versions, providing connector mating forces of less than 50
newtons for up to 40 terminations per connector.

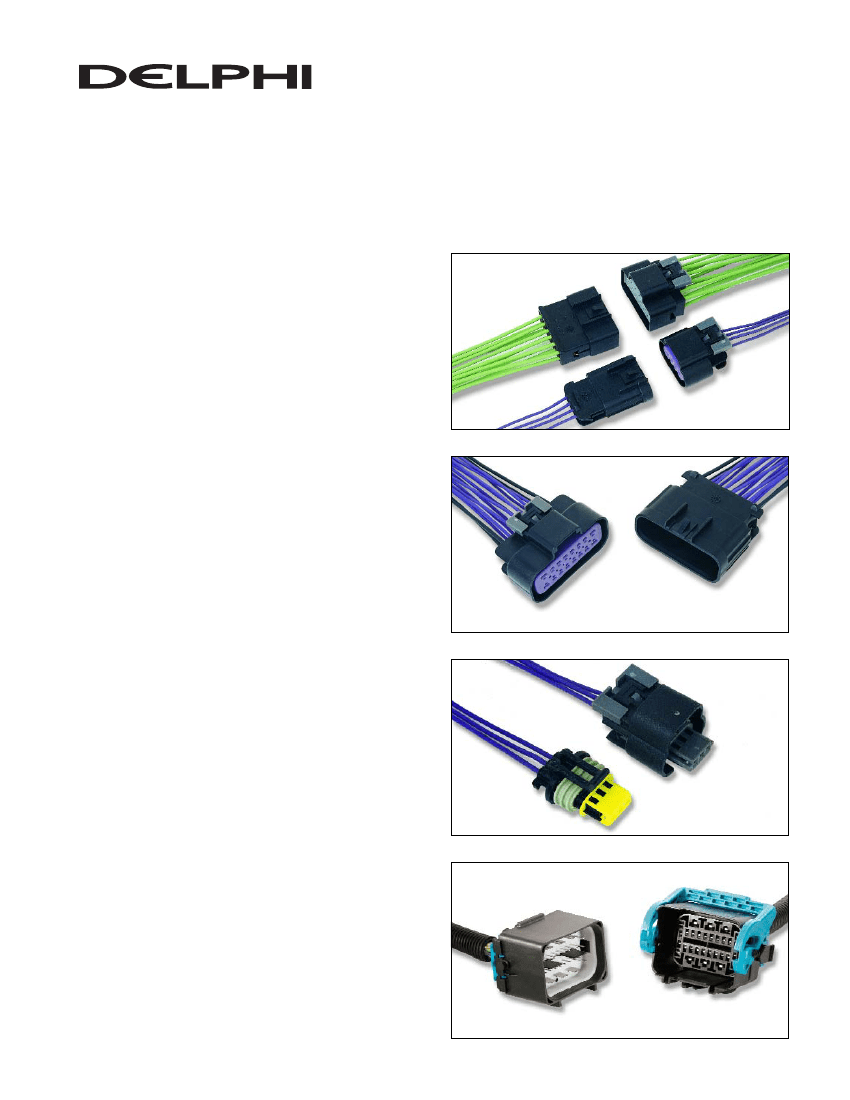

GT 150 Female Sealed (3.5 mm Centerline)
GT 150 and 280 Series
GT Mixed Series
GT Lever Lock Series
150 & 280 Series GT
Connection Systems
Performance Advantages
Delphi’s patented high center rib connector seals exceed sealing
requirements (e.g. USCAR) for harsh vehicle environments. The
seals also reduce connector-to-connector mating force. The GT
Connection System’s terminal-to-terminal mating force is the
lowest in its class. When combined with the high center rib seal,
it results in the ergonomic benchmark for connections. The GT
Connection System satisfies ISO and USCAR electrical,
mechanical and environmental performance criteria as well as
specific customer requirements.
Application Guidelines
Features
• Tangless terminals
• Low engage force
• Pump-handle primary lock
• Secondary lock, TPA and CPA
capabilities
• Seal retention and protection
features
• Electrical performance equal to
less space efficient terminations
• Mates to ISO, SAE blades
Benefits
• Durable design
• Improved reliability and
ergonomics
• Lower engage and easy
disassembly
• Improved system design
• Helps prevent loss or damage
to the connector seal
• Capable of more terminations
per connection
• Compatible to existing systems
150 Series GT Terminal - Tin Plated
Temperature Rise Above
Ambient (25 oC ) vs Current*
Temperature Rise (°C)
100
0.35
80
0.8
60
40
20
0
0
5
10
15
20
1.0
0.5
20
Temperature Derating Curves*
0.8
0.35
10
5
0
25
50
75
100
125
Current (amps)
150 Series
Cable Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.35 - 1.0 mm
2
Current Range . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 - 15 amps
Temperature Range . . . . . . . . . . . . . . . . . . . . . . . -40˚C to 125˚C
Resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . <10mΩ @ 20mV
Voltage Drop . . . . . . . . . . . . . . . . . . . . . . . . . . . . <10.0mV/amp
Centerline Spacing – Unsealed . . . . . . . . . . . . . . 4.0 mm
Centerline Spacing – Sealed . . . . . . . . . . . . . . . . 4.5 mm
Blade Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5 mm
Terminal to Terminal Engage Forces
Tin plated system mates to .64mm blade . . . . . . Avg. 3N
15
1.0
0.5
Current (amps)
Ambient Temperature (°C)
280 Series GT Terminal - Tin Plated
Temperature Rise Above
Ambient (25 oC ) vs Current*
Temperature Rise (°C)
100
80
60
40
20
0
0
10
20
30
40
50
5.0
0.8
0.5
1.0
2.0
50
40
30
20
10
0
Temperature Derating Curves*
5.0
2.0
3.0
3.0
Current (amps)
0.5
25
0.8
50
1.0
75
100
125
280 Series
Cable Range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.35 - 5.0 mm
2
Current Range . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 - 25 amps
Temperature Range . . . . . . . . . . . . . . . . . . . . . . . -40˚C to 125˚C
Resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . <10mΩ @ 20mV
Voltage Drop . . . . . . . . . . . . . . . . . . . . . . . . . . . . <4.0mV/amp
Centerline Spacing – Unsealed . . . . . . . . . . . . . . 5.5 mm
Centerline Spacing – Sealed . . . . . . . . . . . . . . . . 6.5 mm
Blade Width. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.8 mm
Terminal to Terminal Engage Forces
Tin plated system mates to .64mm blade . . . . . Avg. 6N
Terminals can be gold plated upon request.
Current (amps)
Ambient Temperature (°C)
* The test data is based on single circuits in free space and was
generated using a “Lumped Resistance” model. The data
presented here does not account for all variables that would be
present in an actual application. Delphi Engineering can model
customers’ specific applications upon request. For additional
detailed product performance, contact 1-800-722-5273 or visit
our website at www.delphi.com.
Cable Sizes
0.35 mm
2
0.5 mm
2
0.8 mm
2
1.0 mm
2
2.0 mm
2
3.0 mm
2
5.0 mm
2
www.delphi.com/connect
Printed on Recycled Paper.
© 2000, Delphi. All rights reserved.
Printed in the U.S.A.
DP-01-E-031
1201/5M-ACI • 502/3W
