Product datasheet
Characteristics

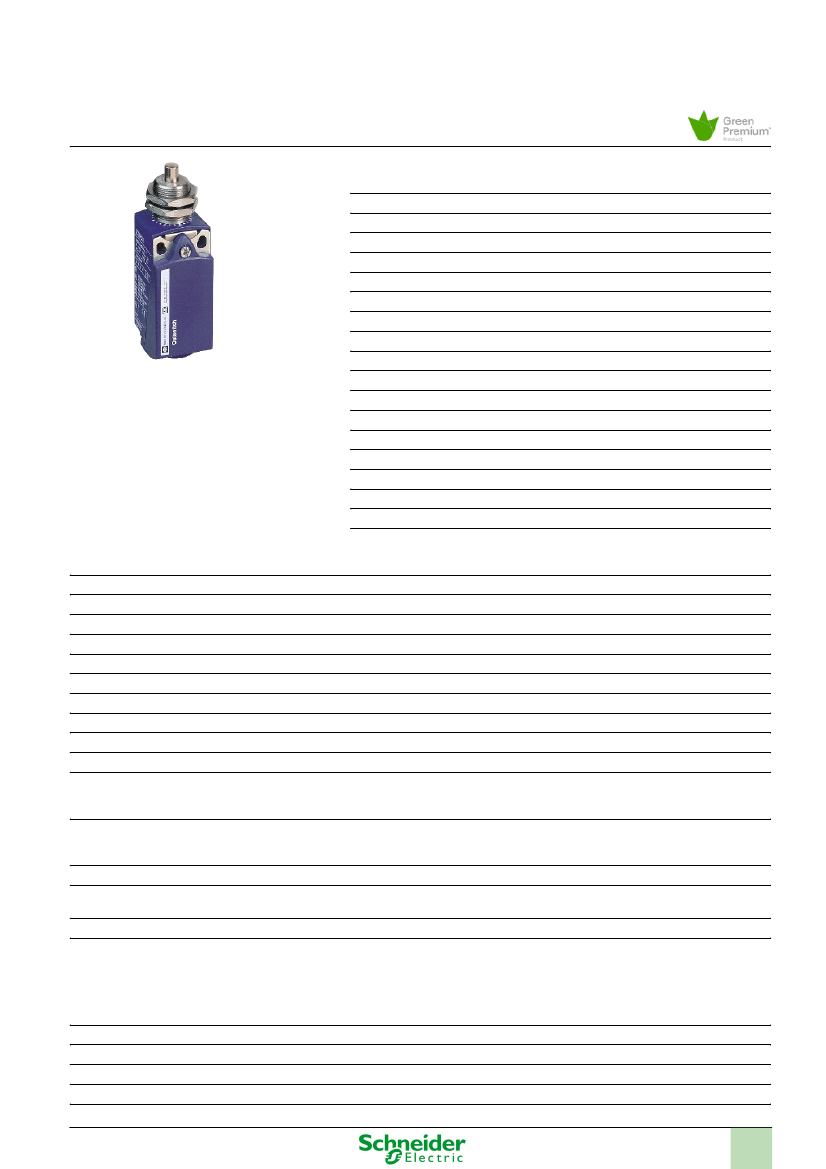

XCKP25H0G11
Main
Range of product
Series name
Product or component type
Device short name
Sensor design
Body type
Head type
Material
Body material
Head material
Fixing mode
Movement of operating head
Type of operator
Type of approach
Number of poles
Contacts type and composition
Contact operation
OsiSense XC
Standard format
Limit switch
XCKP
Compact
Fixed
M18 plunger head
Plastic
Plastic
Zamak
The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
By the head
Linear
Spring return plunger metal
Vertical approach 1 direction
2
1 NC + 1 NO
Slow-break, break before make
Complementary
Switch actuation
Electrical connection
Cable entry
Contacts insulation form
Positive opening
Positive opening minimum force
Minimum force for tripping
Minimum actuation speed
Maximum actuation speed
Repeat accuracy
Contact code designation
On end
Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²
1 entry tapped for Pg 11 cable gland
Zb
With
45 N
15 N
6 m/min
1.64 ft/s (0.5 m/s)
0.1 mm on the tripping points with 1 million operating cycles
Q300, DC-13 (Ue = 250 V, Ie = 0.27 A) conforming to EN/IEC 60947-5-1 appendix A
A300, AC-15 (Ue = 240 V, Ie = 3 A) , Ithe = 10 A conforming to EN/IEC 60947-5-1
appendix A
500 V degree of pollution 3 conforming to IEC 60947-1
300 V conforming to UL 508
300 V conforming to CSA C22.2 No 14
<= 25 MOhm conforming to IEC 60255-7 category 3
6 kV conforming to IEC 60664
6 kV conforming to IEC 60947-1
10 A by gG cartridge fuse
5000000 cycles, DC-13, 120 V, 4 W, operating rate: <= 60 cyc/mn, load factor: 0.5
conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, 24 V, 10 W, operating rate: <= 60 cyc/mn, load factor: 0.5
conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, 48 V, 7 W, operating rate: <= 60 cyc/mn, load factor: 0.5
conforming to IEC 60947-5-1 appendix C
10000000 cycles
1.22 in (31 mm)
2.56 in (65 mm)
1.18 in (30 mm)
[Ui] rated insulation voltage
Resistance across terminals
[Uimp] rated impulse withstand voltage
Short-circuit protection
Electrical durability
Mechanical durability
Width
Height
Depth
1/4
Product weight
Terminals description ISO n°1
0.29 lb(US) (0.13 kg)
(13-14)NO
(21-22)NC
Environment
shock resistance
vibration resistance
IP degree of protection
IK degree of protection
electrical shock protection class
ambient air temperature for operation
ambient air temperature for storage
protective treatment
product certifications
50 gn (duration = 11 ms) conforming to IEC 60068-2-27
25 gn (f = 10...500 Hz) conforming to IEC 60068-2-6
IP66 conforming to IEC 60529
IP67 conforming to IEC 60529
IK04 conforming to EN 50102
Class II conforming to IEC 61140
Class II conforming to NF C 20-030
-13...158 °F (-25...70 °C)
-40...158 °F (-40...70 °C)
TC
CCC
CSA
UL
EN 60204-1
EN 60947-5-1
IEC 60204-1
IEC 60947-5-1
UL 508
CSA C22.2 No 14
standards
Offer Sustainability
Green Premium product
Green Premium product
Compliant - since 1103 - Schneider Electric declaration Compliant - since 1103 - Schneider Electric declaration of conformity
of conformity
Reference not containing SVHC above the threshold
WARNING: This product can expose you to chemicals
including:
Reference not containing SVHC above the threshold
WARNING: This product can expose you to chemicals including:
Diisononyl phthalate (DINP), which is known to the State Diisononyl phthalate (DINP), which is known to the State of California to cause
of California to cause cancer, and
cancer, and
Di-isodecyl phthalate (DIDP), which is known to the StateDi-isodecyl phthalate (DIDP), which is known to the State of California to cause birth
of California to cause birth defects or other reproductive defects or other reproductive harm.
harm.
For more information go to www.p65warnings.ca.gov
For more information go to www.p65warnings.ca.gov
Contractual warranty
Warranty period
18 months

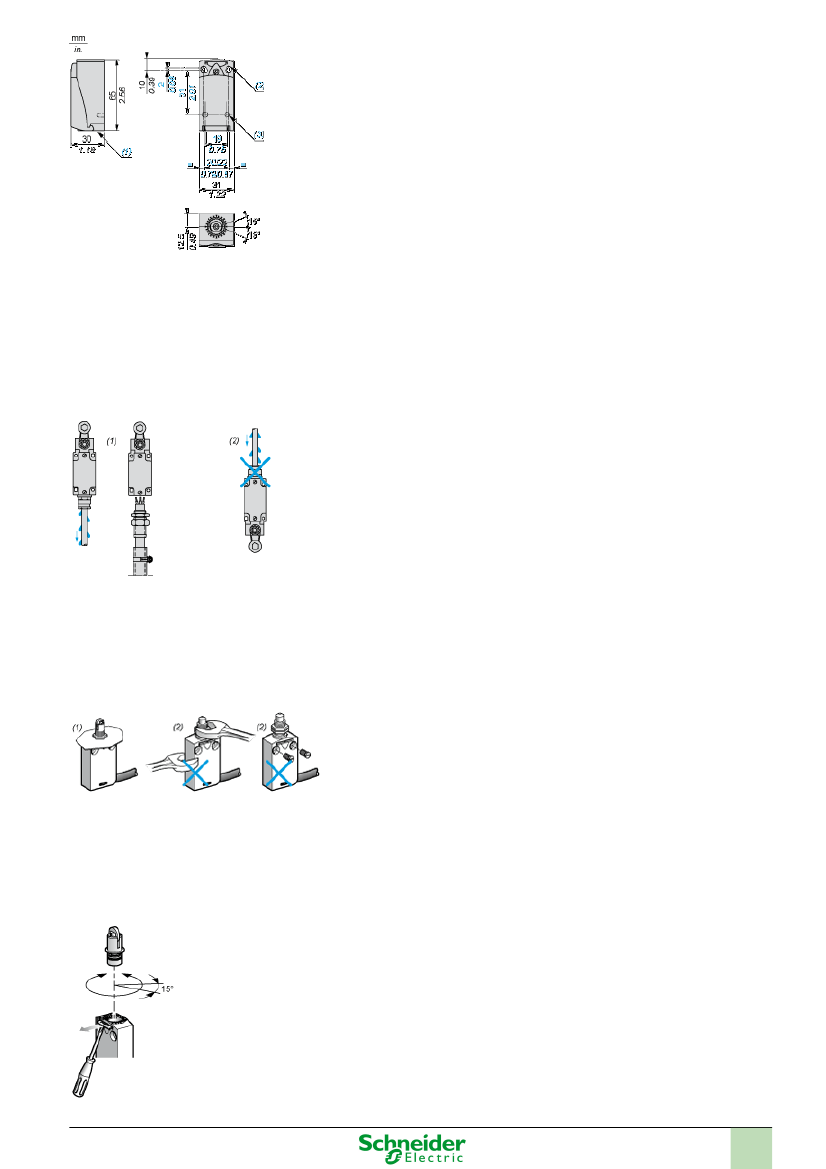

Dimensions
2/4
(1)
(2)
(3)
(4)
Tapped entry for Pg 11 cable gland
2 elongated holes Ø 4.3 x 6.3 mm on 22 mm centres, 2 holes Ø 4.3 on 20 mm centres.
2 x Ø 3 holes for support studs, depth 4 mm.
Fixing nut thickness 3.5 mm.
Mounting with Cable Entry
Position of Cable Gland
(1)
(2)
Recommended
To be avoided
Panel Mounting
Mounting and Fixing Limit Switches by the Head
(1)
(2)
Recommended
Forbidden
Setting-up
Plunger or Multi-directional Heads
3/4
