Series SGRF312/SGRF332
SMT DPDT Non-Latching Electromechanical Relay
Signal Integrity up to 20Gbps
HIGH REPEATABILITY,
DC-8 GHz/20Gbps
TO-5 RELAYS, DPDT
SERIES
RELAY TYPE
SGRF312
SGRF332

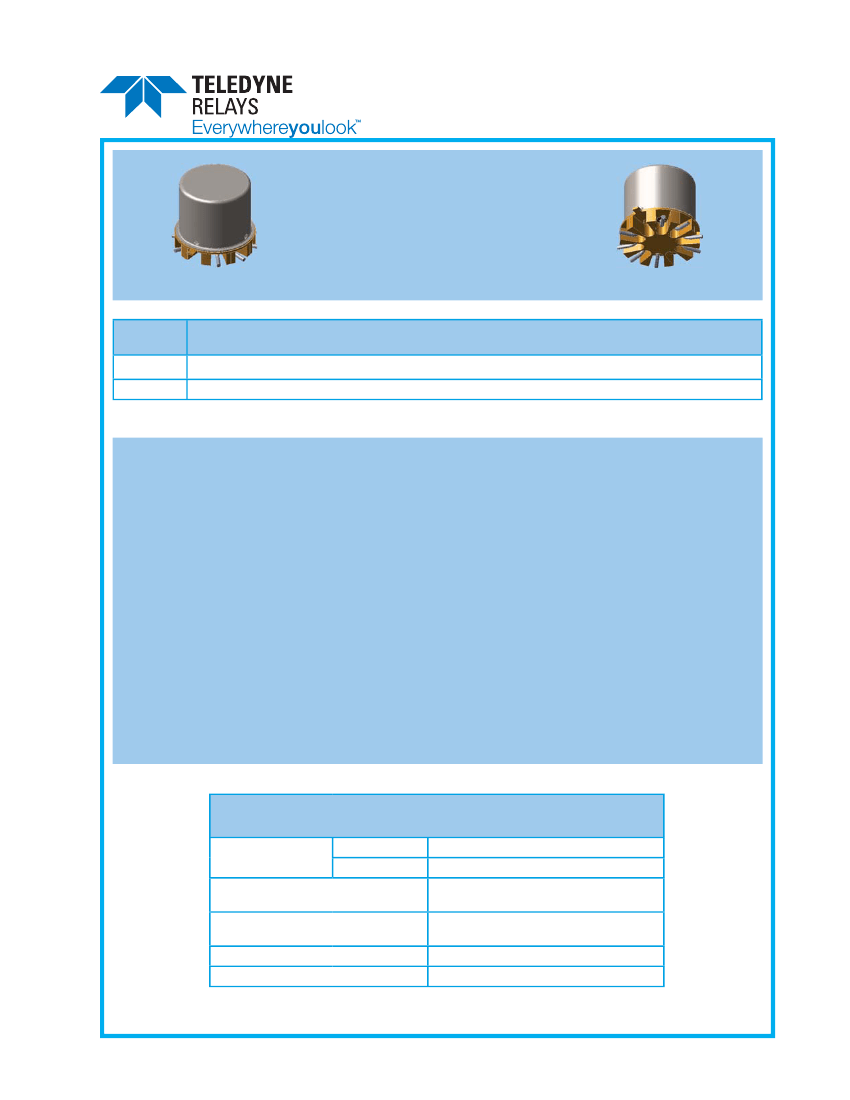

Repeatable, Surface-Mount J-Lead RF relay
Low Power Operating Coil, Surface-Mount J-Lead RF relay
DESCRIPTION
CONSTRUCTION FEATURES
The ultra miniature SGRF312 is designed to improve
upon the SGRF300/SGRF303 relay’s high frequency
performance. The SGRF312/SGRF332 offers mono-
tonic insertion loss to 8 GHz. This improvement in RF
insertion loss over the frequency range, makes these
relays highly suitable for use in attenuator and other
RF circuits. The sensitive SGRF332 relay has a high
resistance coil, thus requiring extremely low operating
power (200 mW typical).
• High repeatability.
• Broader bandwidth.
• Metal enclosure for EMI shielding.
• Ground pin option to improve case grounding.
• High isolation between control and signal paths.
• Highly resistant to ESD.
The following unique construction features and
manufacturing techniques provide excellent resistance
to environmental extremes and overall high reliability.
• Uni-frame motor design provides high magnetic
efficiency and mechanical rigidity.
• Minimum mass components and welded
construction provide maximum resistance to shock
and vibration.
• Advanced cleaning techniques provide maximum
assurance of internal cleanliness.
• Gold-plated precious metal alloy contacts ensure
reliable switching.
• Hermetically sealed.
ENVIRONMENTAL AND
PHYSICAL SPECIFICATIONS
Temperature
(Ambient)
Vibration
(General Note I)
Shock
(General Note I)
Enclosure
Weight
Storage
Operating
–65°C to +125°C
–55°C to +85°C
10 g’s to 500 Hz
30 g’s,
6ms half sine
Hermetically sealed
0.09 oz. (2.55g) max.
© 2014 TELEDYNE RELAYS
(800) 284-7007 • www.teledynerelays.com
SGRF312/SGRF332 Page 1
SGRF312-SGRF332\042014\Q2
Series SGRF312/SGRF332
SMT DPDT Non-Latching Electromechanical Relay
Signal Integrity up to 20Gbps
SERIES SGRF312/SGRF332

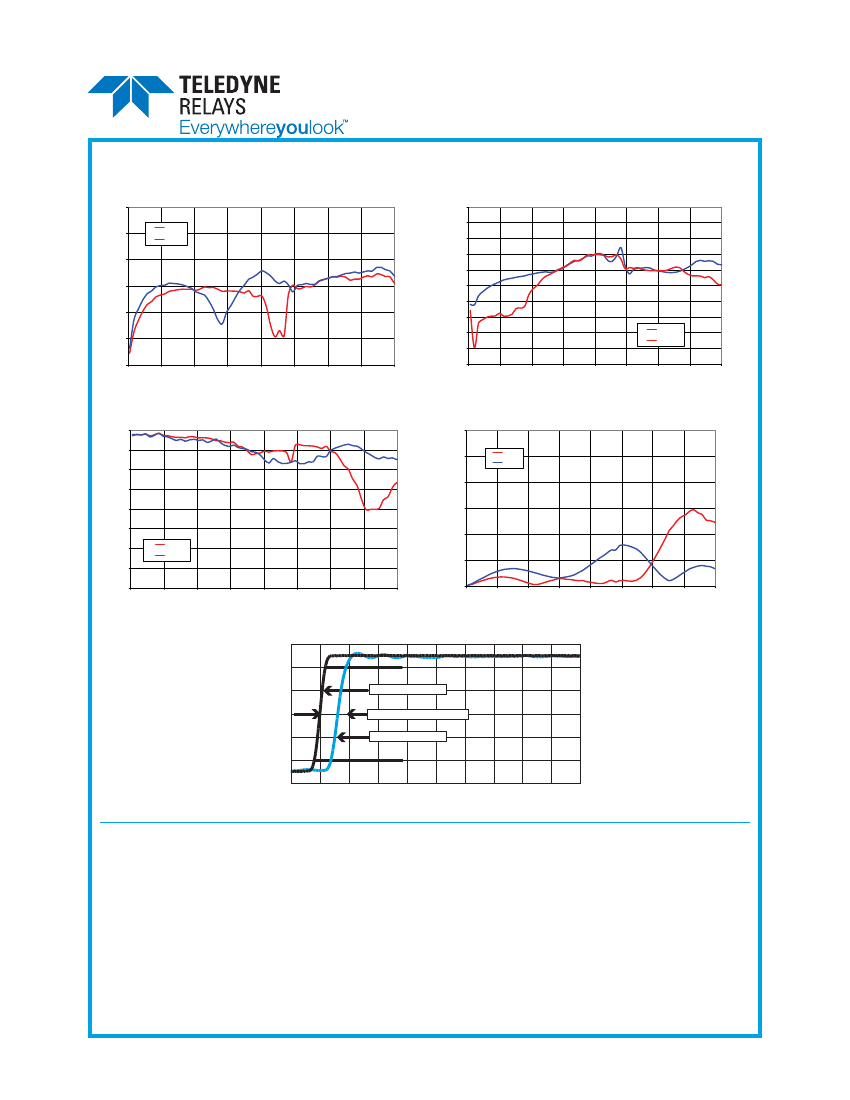

TYPICAL RF CHARACTERISTICS (See RF Notes)
Isolation Across Contacts (RF Note 4)
0
Isolation Pole to Pole (RF Note 5)
0
-10
P2NC
-10
P2NO
-20
-30
-20
Isolation (dB)
Isolation (dB)
-40
-50
-60
-70
-80
P-P-DE
P-P-E
-30
-40
-50
-90
-60
0
1
2
3
4
5
6
7
8
-100
0
1
2
3
4
5
6
7
8
Frequecny(GHz)
Frequency (GHz)
Insertion Loss (RF Note 6)
0
4
VSWR (RF Note 6)
-0.5
3.5
-1
P1NC
P1NO
Insertion Loss (dB)
3
-1.5
VSWR
P1NC
P1NO
-2
2.5
-2.5
2
-3
1.5
-3.5
1
0
1
2
3
4
5
6
7
8
0
1
2
3
4
5
6
7
8
-4
Frequency (GHz)
Frequency (GHz)
SGRF312/SGRF332 Time Response (RF Note 6)
1.1
0.9
90%
0.7
37ps reference
Volt
0.5
0.3
0.1
-0.1
-100
62.3ps propagation delay time
51.3ps pulse rise time
10%
0
100
200
300
400
500
600
700
800
900
Time (ps)
RF NOTES
1. Test conditions:
2.
3.
4.
5.
6.
7.
a.
Fixture: .031" copper clad, reinforced PTFE, RT/duroid
®
6002 with SMA connectors.
(RT/duroid
®
is a registered trademark of Rogers Corporation.)
b.
Room ambient temperature.
c.
Terminals not tested were terminated with 50-ohm load.
d.
Contact signal level: –10 dBm.
e.
No. of test samples: 4.
Data presented herein represents typical characteristics and is not intended for use as specification limits.
Data is per pole, except for pole-to-pole data.
Data is the average from readings taken on all open contacts.
Data is the average from readings taken on poles with coil energized and de-energized.
Data is the average from readings taken on all closed contacts.
Test fixture effect de-embedded from frequency and time response data.
SGRF312/SGRF332 Page 2
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
© 2014 TELEDYNE RELAYS
SGRF312-SGRF332\042014\Q2
Series SGRF312/SGRF332
SMT DPDT Non-Latching Electromechanical Relay
Signal Integrity up to 20Gbps
SERIES SGRF312/SGRF332
GENERAL ELECTRICAL SPECIFICATIONS (@25
°C)
Contact Arrangement
Rated Duty
Contact Resistance
Contact Load Rating
Contact Life Ratings
Coil Operating Power
Operate Time
Release Time
Intercontact Capacitance
Insulation Resistance
Dielectric Strength
2 Form C (DPDT)
Continuous
0.15
Ω
max.
Resistive: 1Amp/28Vdc
Low level: 10 to 50
μA
@ 10 to 50 mV
1,000,000 cycles (typical) at low level contact load
SGRF312: 450 mW typical at nominal rated voltage
SGRF332: 200 mW typical at nominal rated voltage
SGRF312: 4.0 mS max.
SGRF332: 6.0 mS max.
3.0 mS max.
0.4 pf typical
1,000 MΩ min. between mutually isolated terminals
350 Vrms (60 Hz) @ atmospheric pressure
DETAILED ELECTRICAL SPECIFICATIONS (@25°C)
BASE PART NUMBERS (SGRF312)
Coil Voltage, Nominal (Vdc)
Coil Resistance (Ohms ±20%)
Pick-up Voltage (Vdc max.)
BASE PART NUMBERS (SGRF332)
Coil Voltage, Nominal (Vdc)
Coil Resistance (Ohms ±20%)
Pick-up Voltage (Vdc max.)
SGRF312-5
SGRF312-12
5.0
50
3.6
SGRF332-5
12.0
390
9.0
SGRF332-12
5.0
100
3.6
12.0
850
9.0
Teledyne Part Numbering System for SGRF312/SGRF332
SGRF332YZ - 5/R
Relay Series
Lead Finish
Ground Pin Option
Y = Ground Pin at Position 5
Z = Ground Pin at Position 10
R = RoHS Compliant Solder-Dipped Leads
Nominal Coil Voltage
GENERAL NOTE:
PARTS ORDERED WITHOUT SUFFIX WILL BE SUPPLIED WITH (Sn60Pb40) SOLDER-COATED LEADS.
PARTS ORDERED WITH ROHS SOLDER-COATED LEADS WILL HAVE (Sn99.3/Cu0.7)
© 2014 TELEDYNE RELAYS
(800) 284-7007 • www.teledynerelays.com
SGRF312/SGRF332 Page 3
SGRF312-SGRF332\042014\Q2
Series SGRF312/SGRF332
SMT DPDT Non-Latching Electromechanical Relay
Signal Integrity up to 20Gbps
SERIES SGRF312/SGRF332

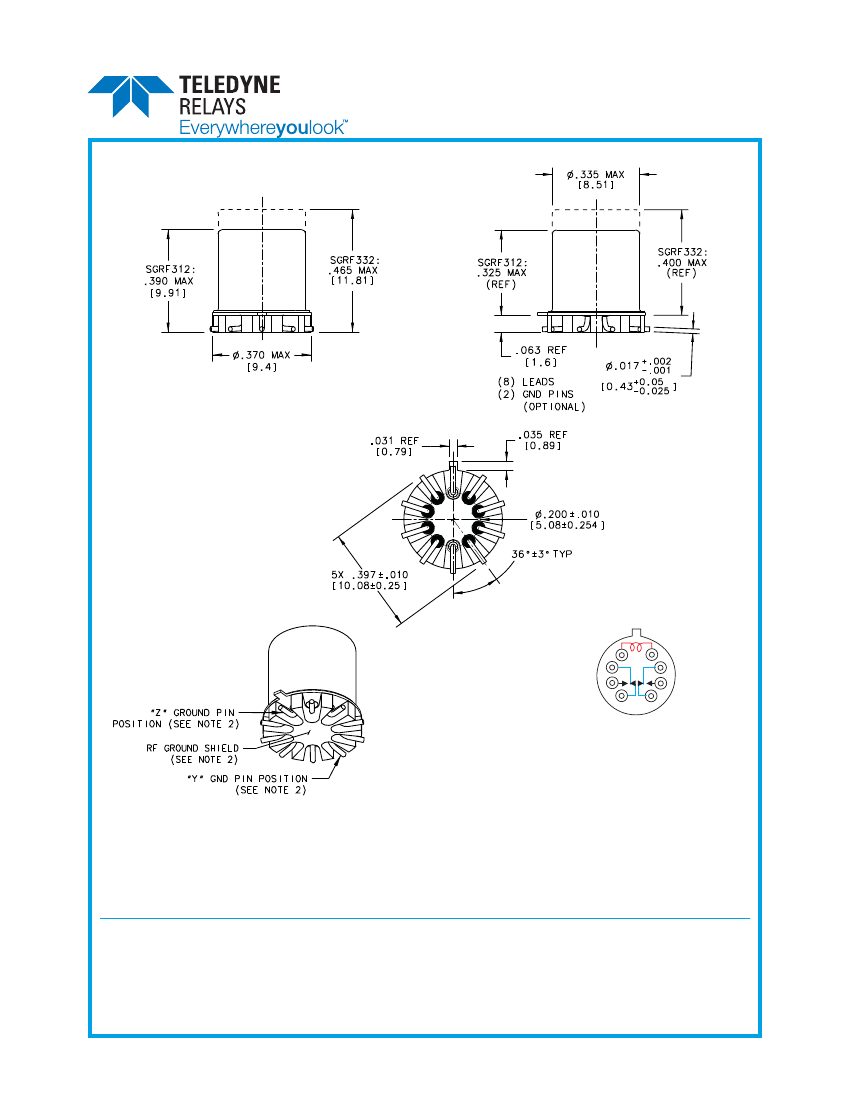

OUTLINE DIMENSIONS
9
8
7
6
1
2
3
4
SCHEMATIC DIAGRAM
TERMINAL VIEW PIN NUMBERS
AE FOR REFERENCE ONLY NOT
MARKED ON RELAYS
NOTES:
1. DIMENSIONS ARE IN INCHES, METRIC EQUIVALENTS SHOWN IN [ ].
2. POSTITIONS 5 AND 10 ARE FOR UNINSULATED CASE GROUND OPTIONS.
3. NO PROTRUSION BELOW BOTTOM OF HEADER WHEN GROUND PINS ARE INSTALLED
4. TO ORDER THE CASE GROUND OPTION, AFTER THE SERIES DESIGNATOR, ADD “Y” TO THE PART NUMBER FOR POSITION
5 OR “Z” TO THE PART NUMBER FOR POSITION 10.
GENERAL NOTES
I. Relays will exhibit no contact chatter in excess of 10
μsec
or transfer in excess of 1
μsec.
II. For reference only. Coil resistance not directly measureable at relay terminals due to internal series diode.
SGRF312/SGRF332 Page 4
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
© 2014 TELEDYNE RELAYS
SGRF312-SGRF332\042014\Q2
Series SGRF312/SGRF332
SMT DPDT Non-Latching Electromechanical Relay
Signal Integrity up to 20Gbps
SERIES SGRF312/SGRF332

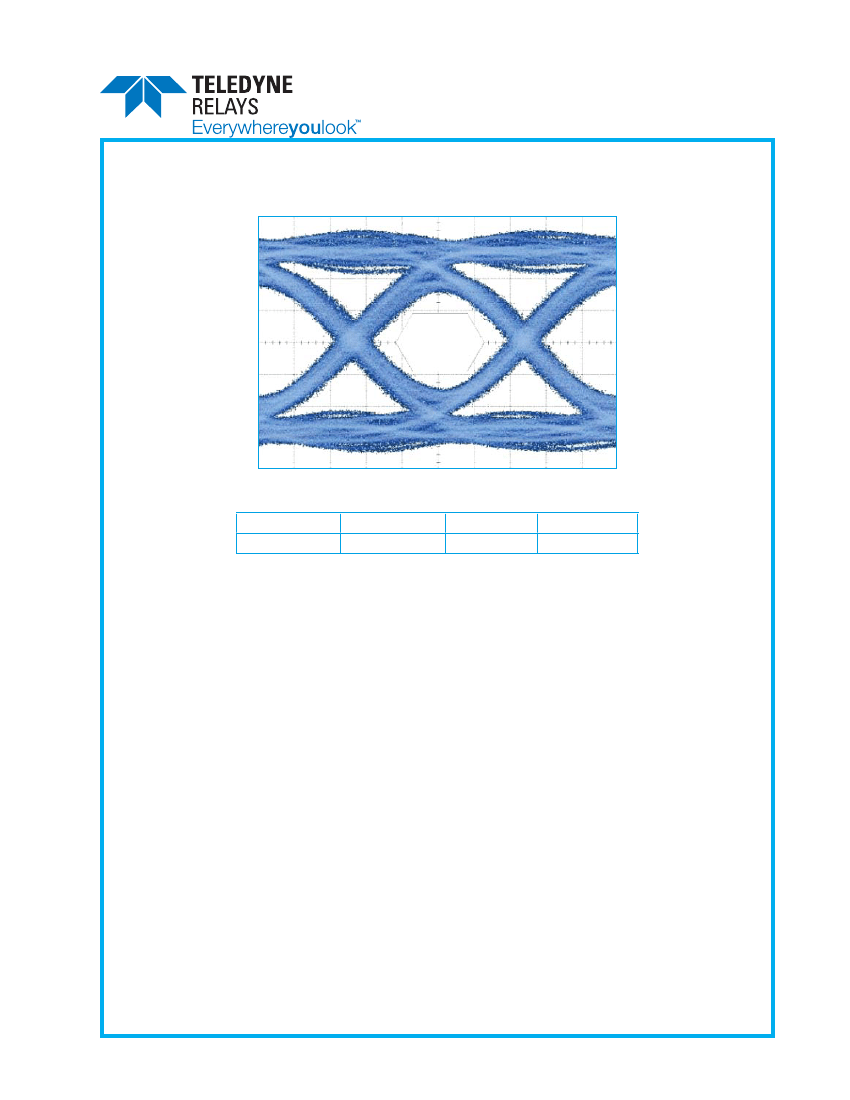

TYPICAL Single-Ended Signal Integrity Characteristics @ 20 Gbps
+225 mV
0V
-225 mV
0 ps
20 ps
40 ps
60 ps
80 ps
100 ps
Bit Rate
20 Gbps
Eye Height
144 mV
Eye Width
33.3 ps
Jitter
P-P
12.67 ps
© 2014 TELEDYNE RELAYS
(800) 284-7007 • www.teledynerelays.com
SGRF312/SGRF332 Page 5
SGRF312-SGRF332\042014\Q2
