DF60-2S-10.16C(15) datasheet, PDF

Datasheet> All Categories > The connector> The power connector> The power to the board> DF60-2S-10.16C(15)

DF60-2S-10.16C(15): DescriptionPower to board; CategoryThe connector The power connector The power to the board; File Size623KB，17 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/; Environmental Compliance

Download Datasheet Parametric View All

DF60-2S-10.16C(15) Overview

Power to board

DF60-2S-10.16C(15) Parametric

Parameter Name	Attribute value
Maker	Hirose
Product Category	power to board
series	DF60
Factory packaging quantity	100
unit weight	3.770 g

Preview

Download Datasheet

View All

65A 10.16mm pitch Wire-to-Board Connectors for Internal Power Supply

DF60 Series

(UL, C-UL, TÜV certified product)

Unique locking mechanism is

contained inside the header

Socket and header

design avoids

short-circuit between

adjacent contacts.

Guide keys prevent

incorrect insertion

Molded pins give a

temporary hold and

assure proper orientation

of the connector.

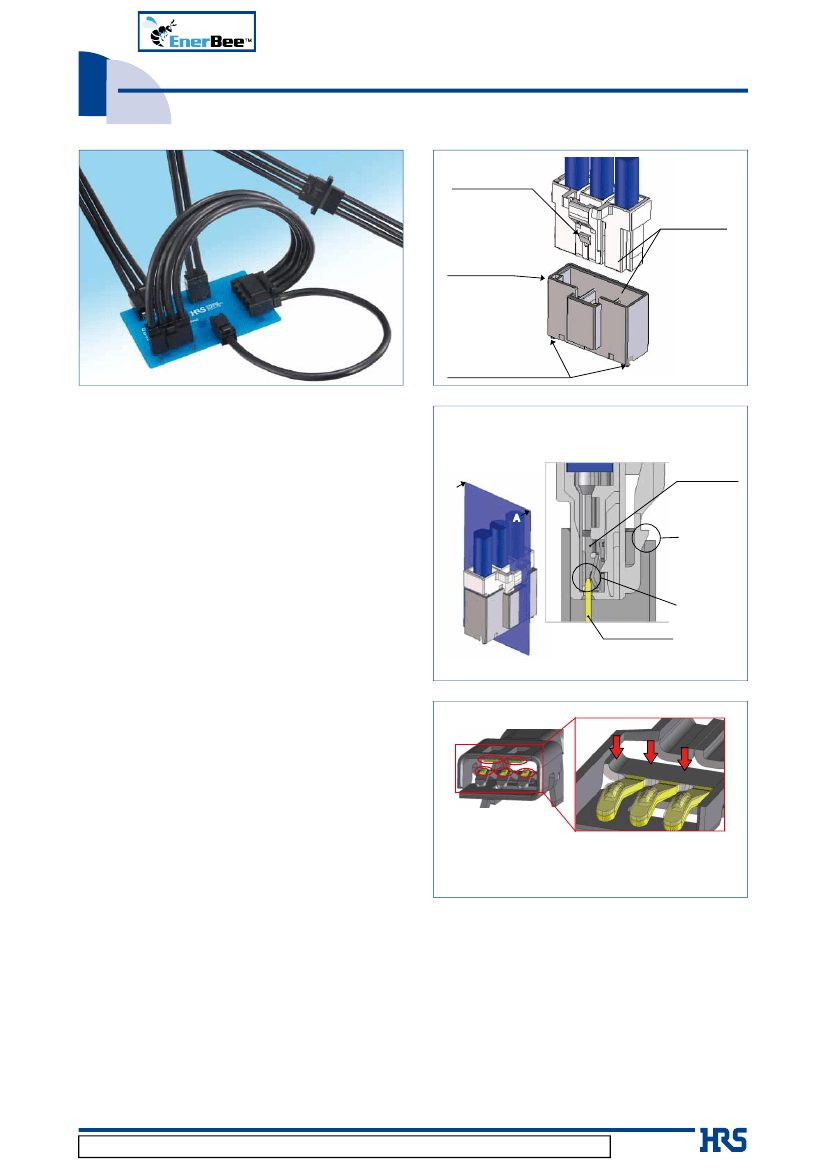

Fig.1

■Features

1. High current capacity

Capable of going to a max. of 65A when using

8 AWG with the single position connector.

(Please refer to the chart for the rated current in

other pin counts.)

●

Lock structure

［A-A½

Crimp contact

2. Secure lock mechanism ensures

complete mating

A secure lock mechanism with a clear tactile and

audible click prevents insufficient mating. (Fig.2)

Lock parts of

the plug and

header start

to engage.

3. Highly reliable 5-point contact structure

Three independent contact springs provide a

secure contact with high contact reliability using

5-point of contact. (Fig.3)

Header contact

No contact yet.

4. Molded lance design

The lance is actually part of the housing instead of

being part of the terminal. This prevents tangled

wires during assembly.

Fig.2

5. Mis-insertion prevention for headers

The addition of a molded pin on the header allows

temporar y mounting retention and prevents

reverse mounting on the PCB. (Fig.1).

(Right angle pin header has a metal fitting for this

purpose)

6. Prevention of solder cracks

Glass-reinforced resin is used on pin header to

prevent solder cracks due to thermal contraction.

Three independent spring contacts provide a secure contact and a

high contact reliability with 5-points of contact.

Fig.3

7. Design Prevents short-circuits between

contacts

The wall structure between contacts isolates the

contacts and prevents short circuits from occuring.

(Fig.1)

8. Compliant to UL, C-UL and TÜV specifications

9. Glow Wire compliance(Compliant with IEC

60695-2-11)

10. Finger-safe (Electric shock prevention) type

available

In cases where the application will demand a high level of reliability, such as automotive,

please contact a company representative for further information.

2018.6r
