RAFIX 16 F - Selector switch, illuminated, latching
1.30.093.501/2000
General information
Actuator
Color of handle marking
Form of collar
Color of collar
Dimensions
Collar dimensions
Overall height
Mounting depth with contact block
Key grid
Mounting hole
Mechanical design
Mounting
Contact function
Illumination
Rotating angle
Mechanical characteristics
Torque max.
Electrical characteristics
Protection class
Other specifications
Operating life (operations)
Degree of protection from front side
Operation temperature min.
Ambient temp. operating max. without lamp /
LED
Ambient temp. operating max. with lamp /LED
Storage temperature min.
Storage temperature max.
Environmental restistance
ROHS compliant
REACH compliant
handle
translucent white
square
black
24.9 x 24.9 mm
12.1 mm
50 mm
30 x 30 mm
23.1 x 23.1 mm
ring nut
latching
yes
1 x 90°, form L
1.3 Nm
-
30.000 cycle
IP65 (DIN EN 60529)
-25 °C
+70 °C
+55 °C
-40 °C
+85 °C
acc. to IEC 60068-2-14, -30, -33 and -78
yes
yes
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
For more information, refer to www.rafi.de chapter Imprint / Data Protection.
21.12.2018

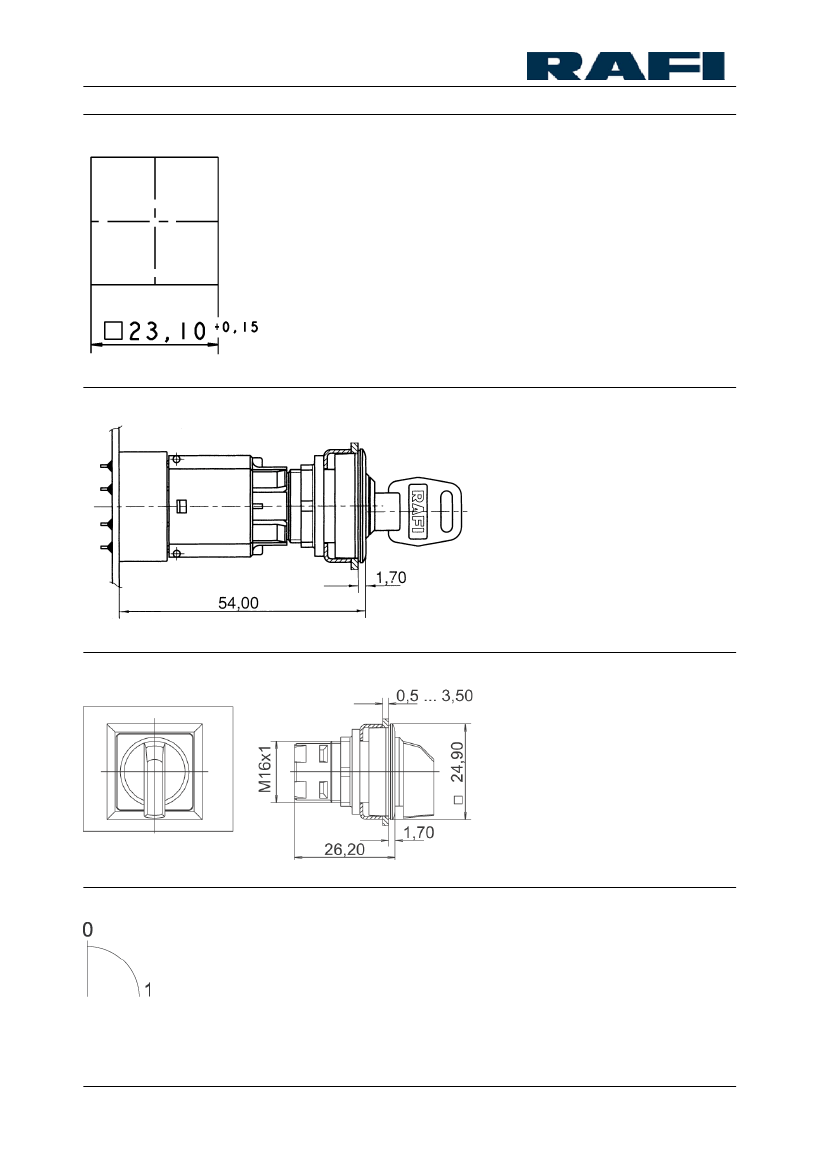

Panel cut-out
with PCB plug-in socket
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
For more information, refer to www.rafi.de chapter Imprint / Data Protection.

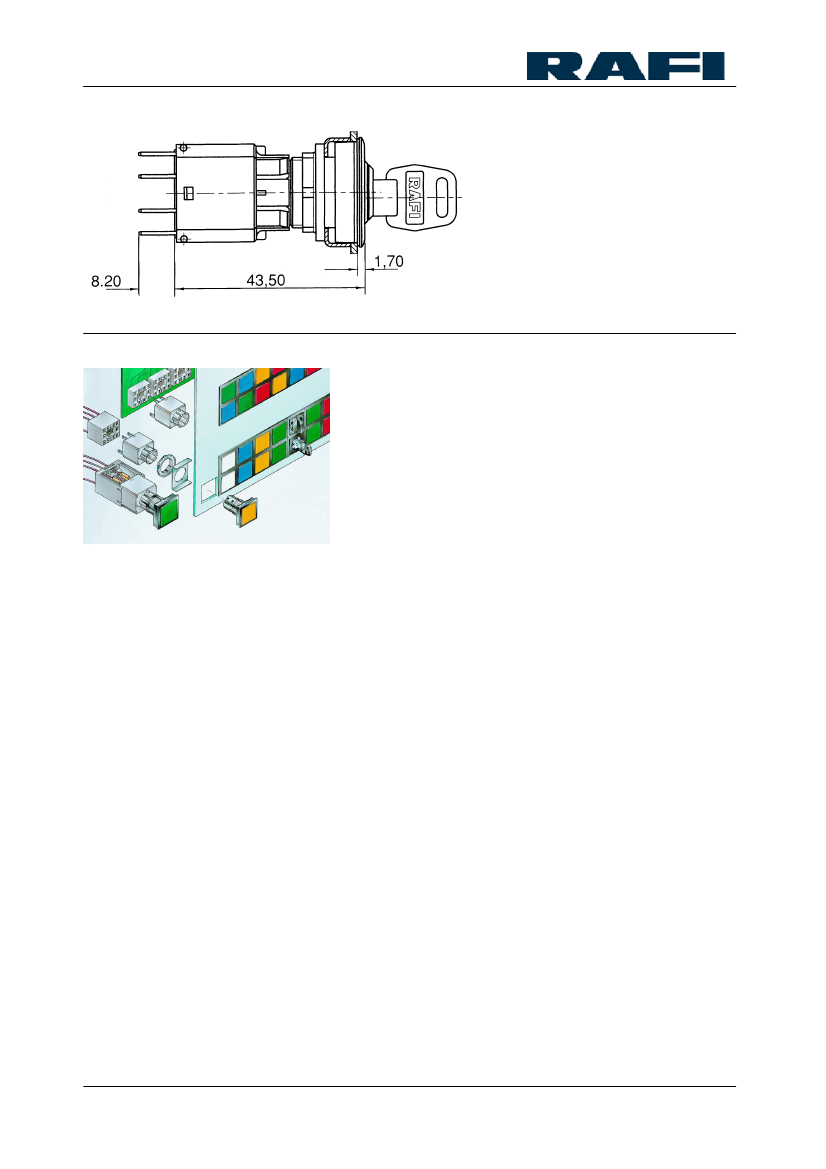

21.12.2018
operating element and contact block
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
For more information, refer to www.rafi.de chapter Imprint / Data Protection.
