ADAM-5056D-AE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> I/O module> ADAM-5056D-AE

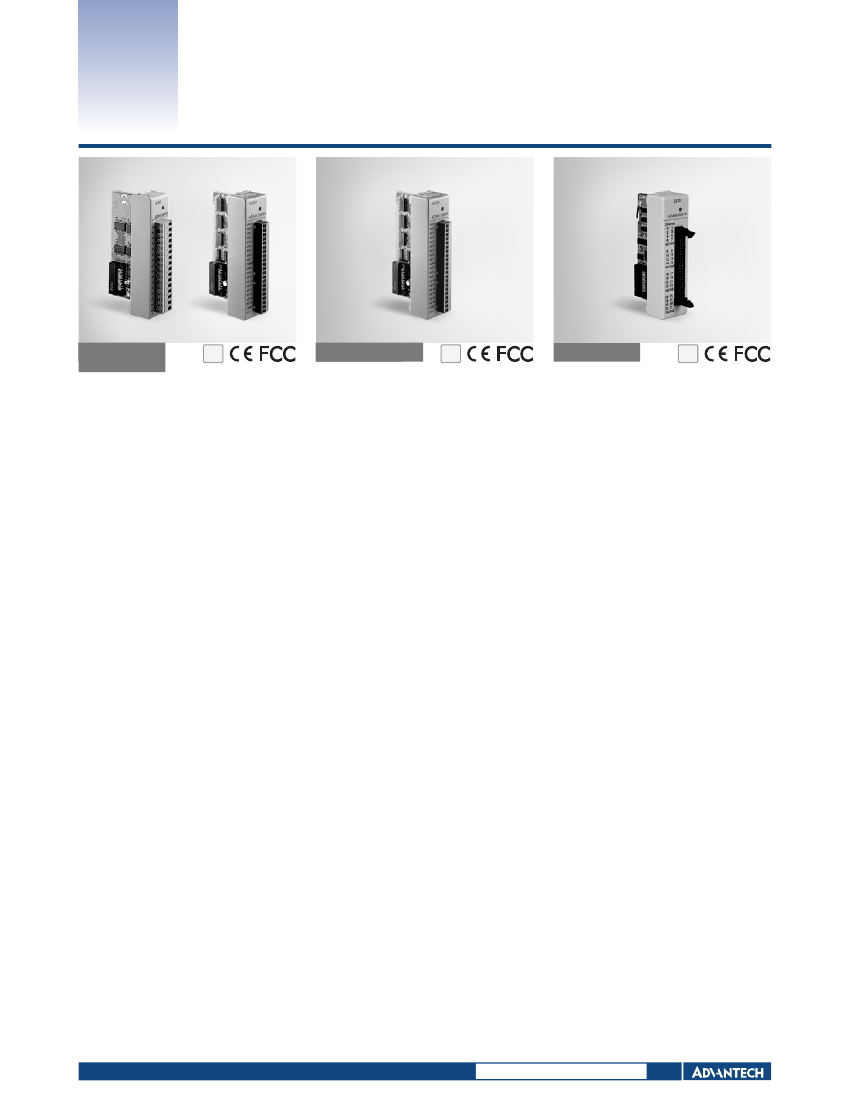

ADAM-5056D-AE: DescriptionI/O Module 16-Ch DO Module w/ LED; CategoryMechanical and electronic products I/O module; File Size233KB，1 Pages; ManufacturerAdvantech; Websitehttp://www.advantech.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

ADAM-5056D-AE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ADAM-5056D-AE	-	-	View	Buy Now

ADAM-5056D-AE Overview

I/O Module 16-Ch DO Module w/ LED

ADAM-5056D-AE Parametric

Parameter Name	Attribute value
Maker	Advantech
Product Category	I/O module
Shipping restrictions	Mouser does not currently sell this product.
product	DC Output Modules
Input voltage	30 V
The output voltage	30 V
Output current	100 mA
Output type	DC
Termination type	Screw
insulation	Isolated
series	ADAM-5056/5057
Factory packaging quantity	1

Preview

Download Datasheet

View All

ADAM-5056/D/S

ADAM-5056SO

ADAM-5057S

16-ch Digital Output Module

16-ch Source-type Isolated

Digital Output Module with LED

32-ch Isolated Digital Output Module

ADAM-5056

ADAM-5056D

ADAM-5056S

RoHS

2002/95/EC

COMPLIANT

ADAM-5056SO

RoHS

2002/95/EC

COMPLIANT

ADAM-5057S

RoHS

2002/95/EC

COMPLIANT

Specifications

General

Certification

Connectors

ADAM-5056/5056D

ADAM-5056S

Enclosure

LED Indicators

ADAM-5056D

CE, FCC class A

(ADAM-5056S only)

1 x Plug-in screw

terminal (# 14 ~ 22 AWG)

1 x Plug-in screw

terminal (# 14 ~ 28 AWG)

ABS+PC

Specifications

General

Certification

Connectors

CE, FCC class A

1 x Plug-in screw terminal

(# 14 ~ 28 AWG)

Enclosure

ABS+PC

LED Indicator

On: Active

Off: Inactive

Power Consumption

0.6 W (Max.)

Specifications

General

CE, FCC class A

1 x 40 pin (wiring line)

ABS+PC

On: Active

Off: Inactive

Power Consumption

1W (Max.)

Certification

Connectors

Enclosure

LED Indicator

On: Output logic level 1

Off: Output logic level 0

ADAM-5056S

On: Active

Off: Inactive

Power Consumption

ADAM-5056:0.53 W (max.)

ADAM-5056D: 0.84 W

(max.)

ADAM-5056S: 0.6 W

(max.)

Digital Output

Channels

Digital Output

Current

Power Dissipation

10 ~ 35 V

200 mA max. (per channel)

Channel : 1 W max.

Total : 2.2 W

Digital Output

Channels

Digital Output

Must connect with 2 units

of ADAM-3920R

Protection

Optical Isolation

Overvoltage

Protection

2,500 V

70 V

Protection

Optical Isolation

Overvoltage

Protection

2,500 V

70 V

Relay Spec. of ADAM-3920R

10A @ 250 V

10A @ 30 V

Contact Resistance

100 mΩ

Operation Time

15 ms

Relay Type SPST

(Form A)

Release Time

5 ms max

Life Expectancy

1.7 x 10

at related load

Insulation Resistance

1GΩ @ 500 V

Power Input

+24 V

Mounting

DIN 35 rail, wall, rack (with

mounting kit)

Note:

ADAM-5057S must connect with 2 units of

ADAM-3920R via PCL-10220

Note:

only for ADAM-5550 & 5560 Series

Contact Rating

Digital Output

Channels

Digital Output

ADAM-5056/5056D

Open collector to 30 V,

100 mA max. load

ADAM-5056S

Open collector to 40 V,

200 mA max. load (sink)

Operating Voltage

ADAM-5056/5056D:

30 V max

Power Dissipation

300 mW for each channel

Protection (Only for ADAM-5056S)

-Optical Isolation 2500 V

-Overvoltage Protection 70 V

-Power Dissipation 300 mW

Ordering Information

ADAM-5056SO

16-ch Source Type Iso. DO

Module w/ LED

Ordering Information

ADAM-5056

ADAM-5056D

ADAM-5056S

16-ch Digital Output

Module

16-ch Digital Output

Module with LED

16-ch Sink Type Iso. DO

Module w/ LED

Ordering Information

ADAM-5057S

ADAM-3920R

PCL-10220

32-ch Digital Output

Module

20-pin Flat Cable Wiring

Relay Board

40-pin IDC to two 20-pin

IDC cable, 1m

Online Download

www.advantech.com/products

All product specifications are subject to change without notice

Last updated : 28-Aug-2013
