3.14.002.061/0000

Description
Industrial panel installation indicator / switch indicator Signal indicator Red LED / LENS
CategoryMechanical and electronic products    switch
File Size205KB,3 Pages
ManufacturerRAFI
Environmental Compliance
Download Datasheet Parametric View All

3.14.002.061/0000 Overview

Industrial panel installation indicator / switch indicator Signal indicator Red LED / LENS

3.14.002.061/0000 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresPANEL MOUNTABLE
body width9.5 mm
body height9.15 mm
Body length or diameter19.05 mm
Circuit configuration1X1
illuminationRED LED
Installation featuresTHROUGH HOLE-STRAIGHT
Number of switches1
Maximum operating temperature70 °C
Minimum operating temperature-25 °C
surface mountNO
Switch actionMOMENTARY
switch functionSPST
Switch typeKEYBOARD
Termination typeSOLDER
Base Number Matches1
05.12.2018

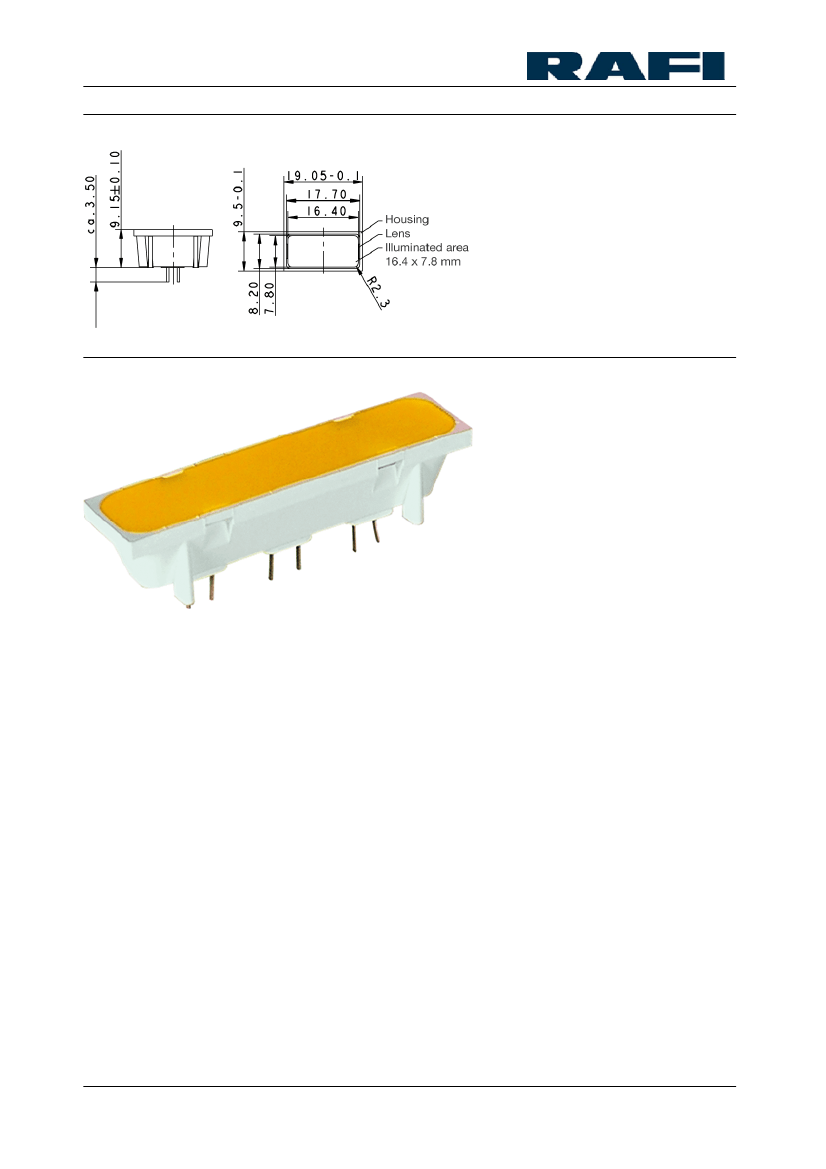

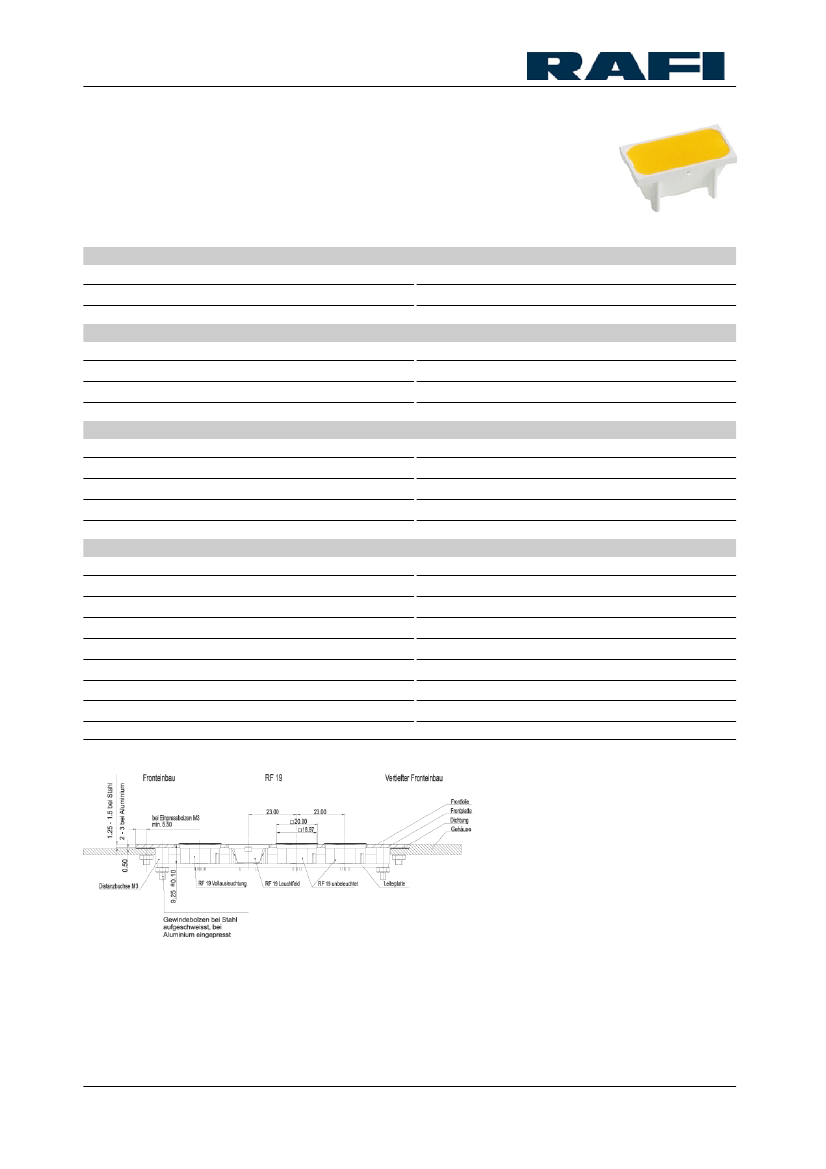

RF 19 - Signal indicator, ½ x 1-module
3.14.002.061/0000
For more information, see LEDs.
General information
Color of lens
Recommended key grid
Dimensions
Length
Width
Overall height
Mechanical design
Mounting
Illumination
LED color
LED type
Other specifications
Ambient temp. operating min.
Ambient temp. operating max.
Environmental restistance
Solderability / solder heat resistance
Wave soldering
Manual soldering
ROHS compliant
REACH compliant
red
23/x mm
19.05 mm
9.5 mm
9.15 mm
THT soldering in PCB
fully illuminated 1 LED
red
2 mm
-25 °C
+70 °C
acc. to IEC 60068-2-14, -30, -33 and -78
according to DIN EN 60068-2-20
260 °C max.
350 °C / 5 sec. max.
yes
yes
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
For more information, refer to www.rafi.de chapter Imprint / Data Protection.
