TSS700120 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> Relay socket with the hardware> TSS700120

TSS700120: DescriptionRelay Sockets and Hardware 77-MIP-9; CategoryMechanical and electronic products relay Relay socket with the hardware; File Size393KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

TSS700120 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TSS700120	-	-	View	Buy Now

TSS700120 Overview

Relay Sockets and Hardware 77-MIP-9

TSS700120 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Product Category	Relay sockets and hardware
Shipping restrictions	Mouser does not currently sell this product.
Factory packaging quantity	25

Preview

Download Datasheet

View All

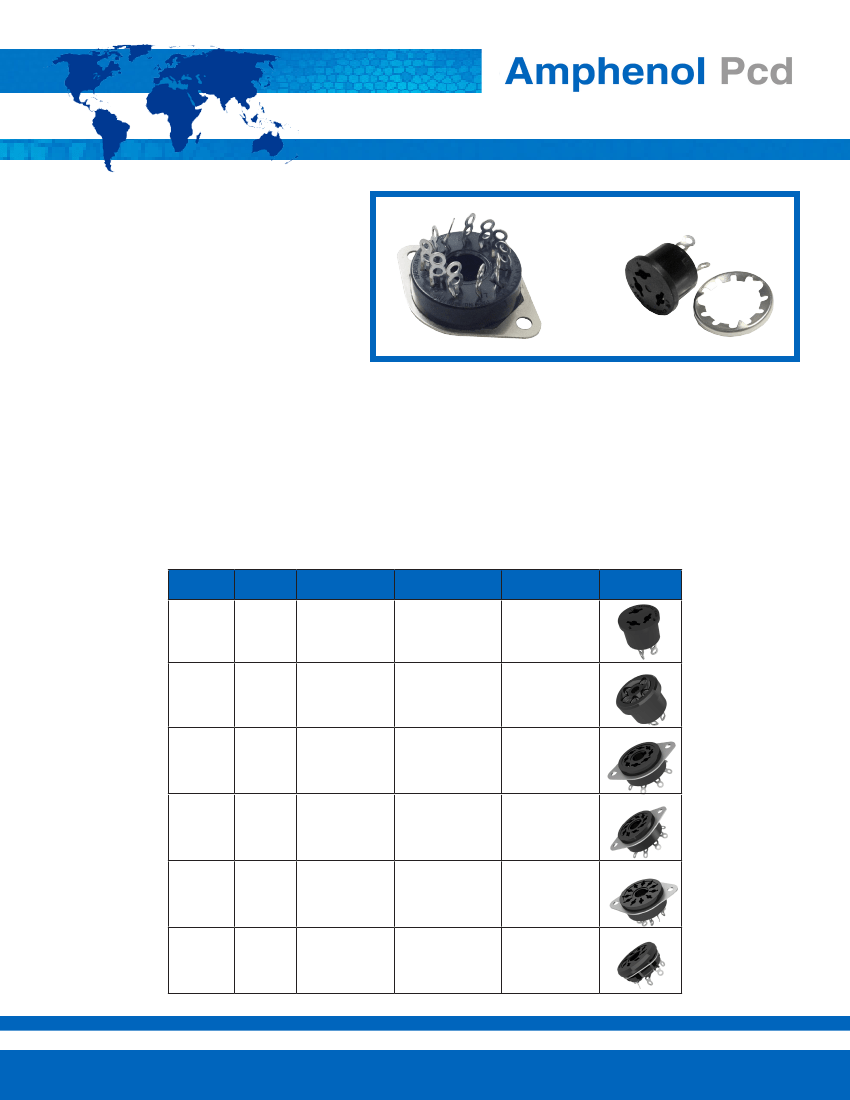

Industrial/Audio Relay Sockets

Amphenol Pcd is pleased to announce the re-

introduction of a classic design -

Industrial/Audio

Relay Sockets.

Originally designed and produced

by Amphenol’s Chicago division, Amphenol Pcd

has brought back this connector due to popular

demand.

Amphenol Pcd’s Industrial/Audio Relay Sockets

provides a low cost, high quality solution for

customers looking to maximize the life cycle of

their existing product architectures.

Made with black phenol plastic and stamped alloy contacts, Amphenol Pcd’s Industrial/Audio Relay Sockets meet existing

dimensional and performance specifications. Typical applications are home security, door & gate openers, industrial

automation, thermostats and lighting using “unsealed” relays, such as TE Connectivity’s™ Schrack MT Series Multimode

Relays and TE Connectivity’s Potter & Brumfield KRPA General Purpose Relays. Audio applications are high-end audio

amplifiers, guitar amplifiers, electronic organs and speakers from Mcintosh™, Marshall™, Hammond™ and Bogner™, and

using vacuum tube amplifiers, pre-amplifiers and rectifiers from Western Electric™, Sovtech™, Philips™ and Siemens™.

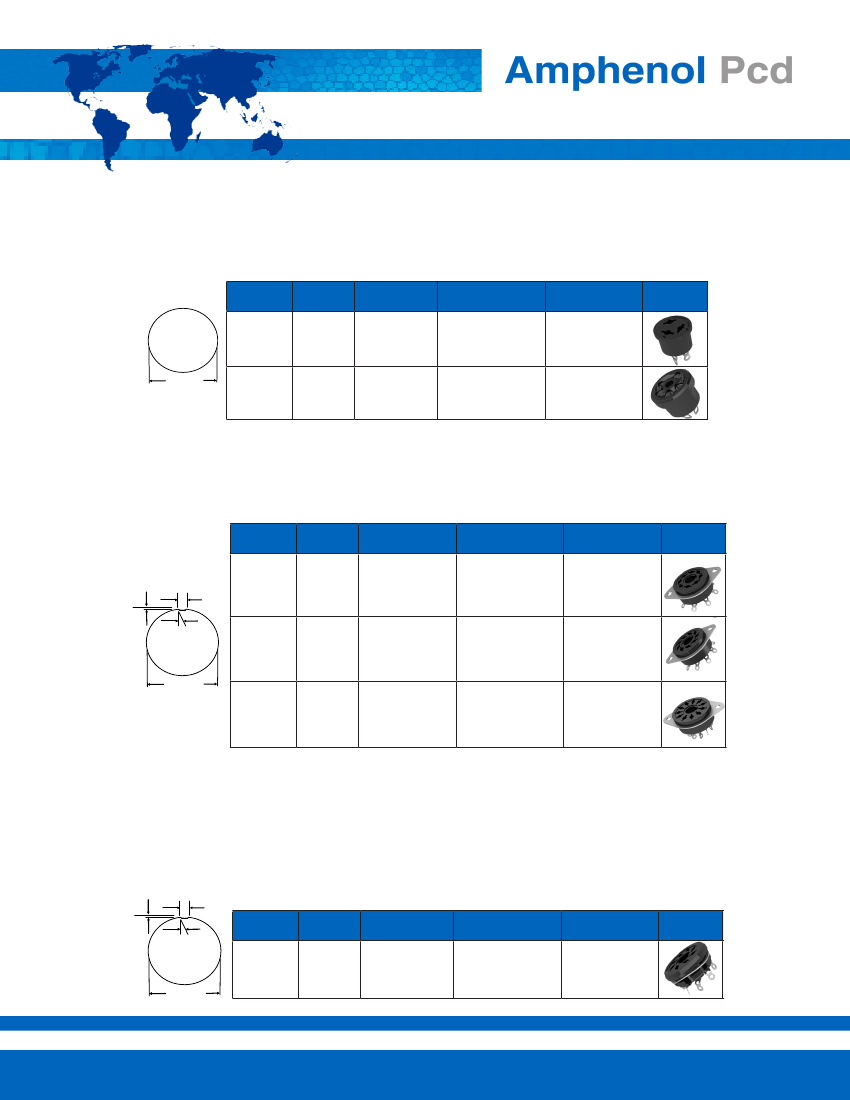

Amphenol Pcd’s Industrial/Audio Relay Socket product offering consists of a number of standard sockets, including retainer

ring mounted and molded-in-plate (MIP) styles. Also available are shielded, as well as termination screw-type sockets.

Standard plugs are in development.

APCD P/N

Industrial

Reference

Number of

Contacts

Retaining

Mechanism

Rating


TSS700123

78-S3S

Retainer Ring

3 amps

TSS700126

78-S6S

Retainer Ring

3 amps

TSS700128

77-MIP-8

Molded Plate

3 amps

TSS700120

77-MIP-9

Molded Plate

3 amps

TSS700121

77-MIP-11

Molded Plate

3 amps

TSS700127

78-S8

Retainer Ring

3 amps

Amphenol Pcd

www.amphenolpcd.com

info@amphenolpcd.com

978-624-3400

April 2014
