3.99.400.112/2400 datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> switch> The sense of touch switch> 3.99.400.112/2400

3.99.400.112/2400: DescriptionTactile switch RG 85 Key switch Wht Symbol Yellow; CategoryMechanical and electronic products switch The sense of touch switch; File Size928KB，4 Pages; ManufacturerRAFI; Environmental Compliance

Download Datasheet Parametric View All

3.99.400.112/2400 Overview

Tactile switch RG 85 Key switch Wht Symbol Yellow

3.99.400.112/2400 Parametric

Parameter Name	Attribute value
Maker	RAFI
Product Category	Tactile switch
Shipping restrictions	Mouser does not currently sell this product.
illumination	Illuminated
lighting color	White, Yellow
Lamp type	LED
Installation style	Panel
Actuator	Square
work force	3.5 N
Current rating	250 mA
Voltage ratingDC	35 VDC
Voltage ratingAC	-
Power rating	12.5 W
Contact form	SPST
color	White
Contact plating	Silver
range of working temperature	- 25 C to + 70 C
journey	1 mm
Maximum operating temperature	+ 70 C
Minimum operating temperature	- 25 C
Factory packaging quantity	10

Preview

Download Datasheet

View All

04.12.2018

RG 85 III - Key switch, square design, 1 NO, without lens

3.99.400.112/2400

Please order lenses separately.

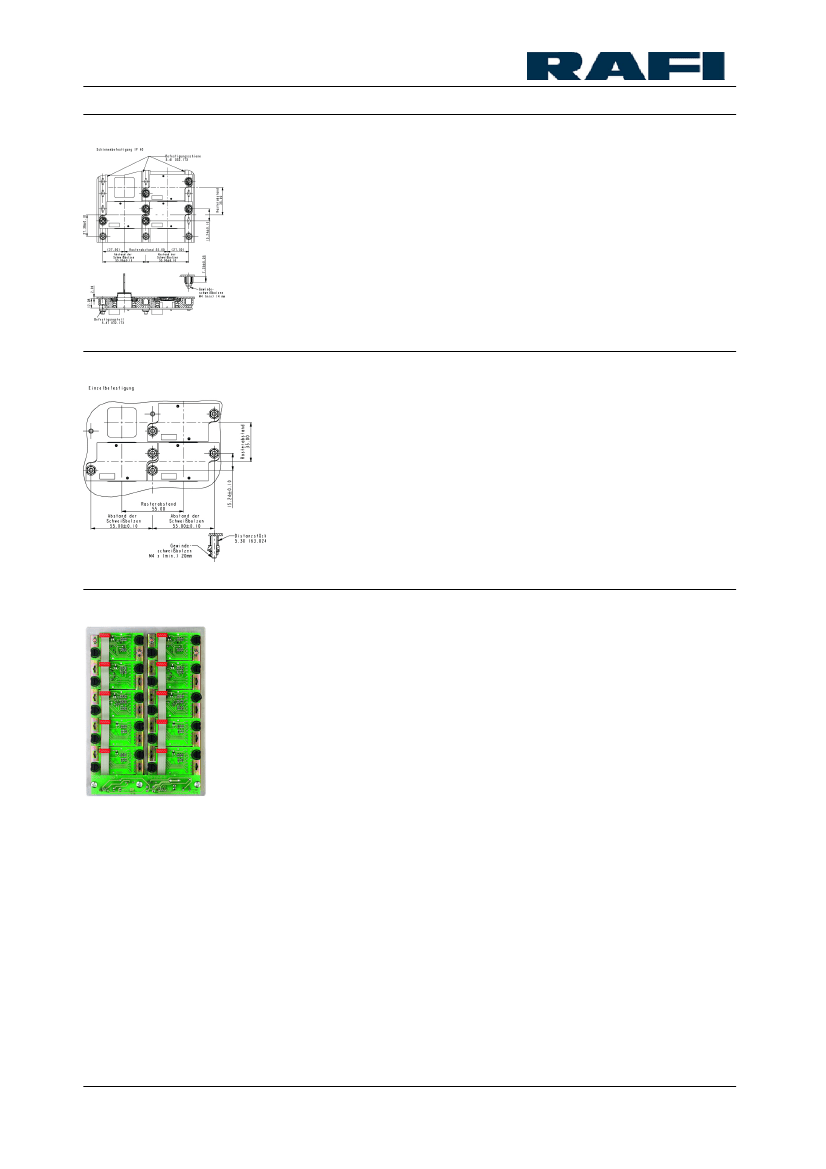

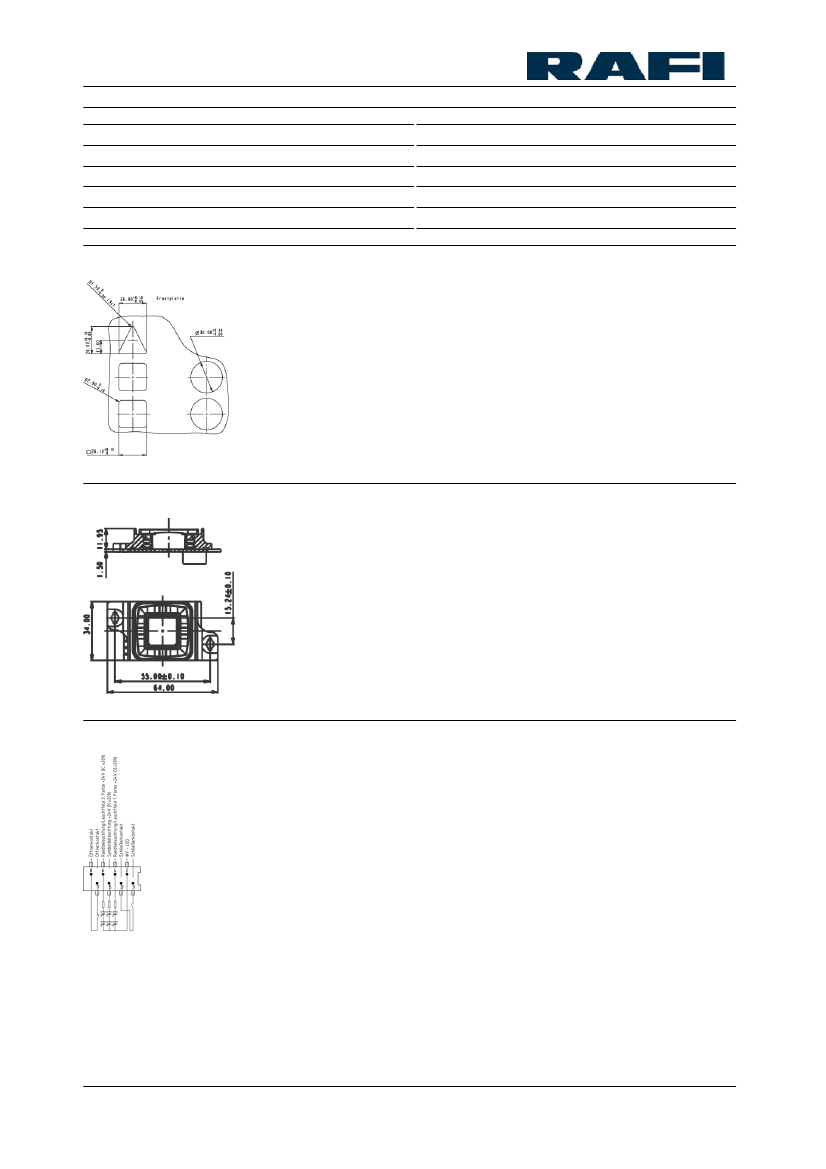

Dimensions

Mounting grid min.

Length

Width

Mechanical design

Version

Mounting

Terminals

Contact system

Contact arrangement

Contact materials

Symbol illumination

Edge illumination

Mechanical characteristics

Operating force

Operating travel

Switching travel NO

Switching travel NC

Electrical characteristics

Rated voltage min.

Rated voltage max.

Rated current min.

Rated current max.

Rated power max.

Contact resistance when new max.

Contact resistance acc. to life max.

Bouncing time max.

Operating voltage for LED

Input current LED

Other specifications

Ambient temp. operating min.

Ambient temp. operating max.

Storage temperature min.

Storage temperature max.

Environmental restistance

55 x 35 mm

64 mm

34 mm

square

on U-rails or single mounting

8-pin Micro-Match® female connector

snap-action contact

1 NO

2 LED yellow

4 LED white

3.5 N

1 mm

0.6 mm

35 V

0.1 mA

250 mA

12.5 W

100 mΩ

3Ω

10 ms

±20%

per color/LED row 9 - 16 mA

-25 °C

+70 °C

-40 °C

+80 °C

acc. to IEC 60068-2-14, -30, -33 and -78

Technical data are approximate and intended solely for general orientation in the selection of a product.

Subject to modifications and errors. Images and other graphics may only be similar.

For more information, refer to www.rafi.de chapter Imprint / Data Protection.
